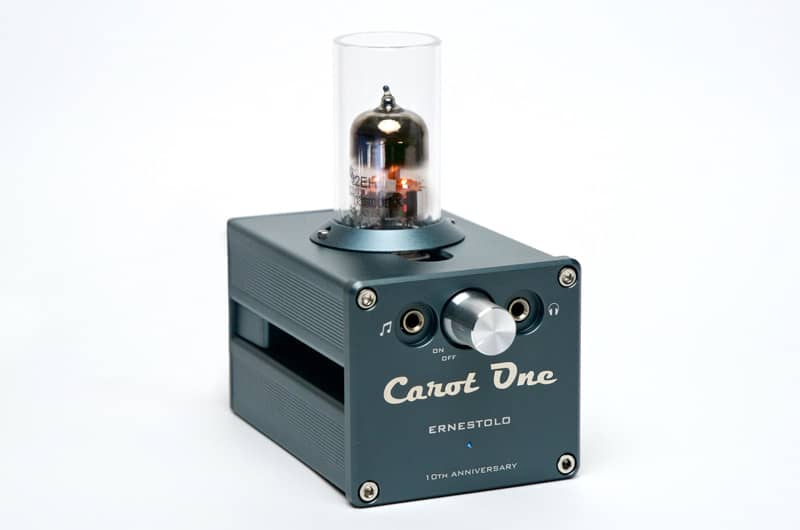

Descrizione prodotto
T-Amp IC Tripath TA2024
Output Power 2x15W @4ohm
2x6W @8ohm(RMS)
Signal-to-Noise Ratio (SNR) 98dB
Ornare Nullam Dolor
Dynamic Range 98dB
IHF IM Distortion 0.10% @ 1W, 4ohm
THD+Noise Audiophile Quality 0.03% @ 9W 4ohm
0.1% @ 11W 4ohm
0,1% @ 9W 6 ohm
0.1% @ 6W 8ohm
High Power 10% @ 15W 4ohm
10% @ 10W 4ohm
Power Efficiency 81% @ 15W 4ohm
90% @ 10W 8ohm
Input Audio IN RCA (Left/Right) x 1
Power Socket (5.5mm/2.1mm) x 1
Speaker OUT RJ45 x1
Other Volume & Knob Power ON/OFF switch x
Power Indicator (Blue LED) x1
Power Supply DC 12V-13.2V (max.)5 A
Specification of the Headphone Amplifier Unit
Signal-to-Noise Ratio (SNR) 92dB
Power Output 3.0 Watts per channel on 33 Ohm
Headphone
Frequency response 15 Hz – 100 kHz -1db
Input Impedance 10k Ohms
Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
Specification of the Pre Amplifier Unit

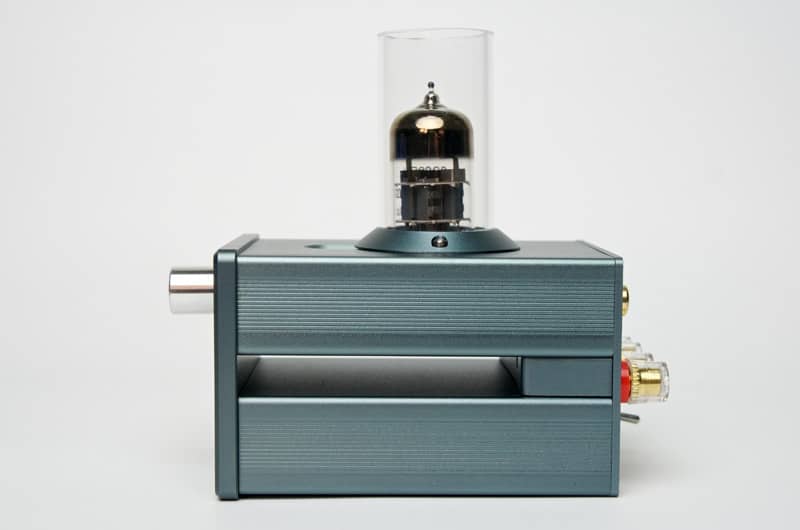

Vacuum Tube 6DJ8/6922 series or 12AU7 series
(exchangeable)
Signal-to-Noise Ratio (SNR) 92dB
THD + Noise 0.05% @ 10k ohm 0.15% @ 33 ohm
Input Audio CD IN RCA (Left/Right) x 1 [3Vpp max.]
Power Socket (5.5mm/2.1mm) x 1
Output Audio OUT 3.5mm x 1
Headphone OUT (3.5mm) x 1
Knob Audio and power switch x 1
Power Indicator (Blue LED under Tube Socket) x1
Volume Knob x 1
Power Supply DC 12V-13V (max.)5A
Dimensions (W)76mm x (H)60mm x (D)100mm
Specification of the AC Adaptor
AC Input Universal AC 100V-240V/50-60Hz
DC Output DC 12V 5A (48W)
DC Plug DC 2.1mm
Ripple & Noise <= 25mV
Over-load Protection 105%-150%
Over-voltage Protection 115%-150%
Dimensions (L)78mm x (W)50mm x (H)33mm

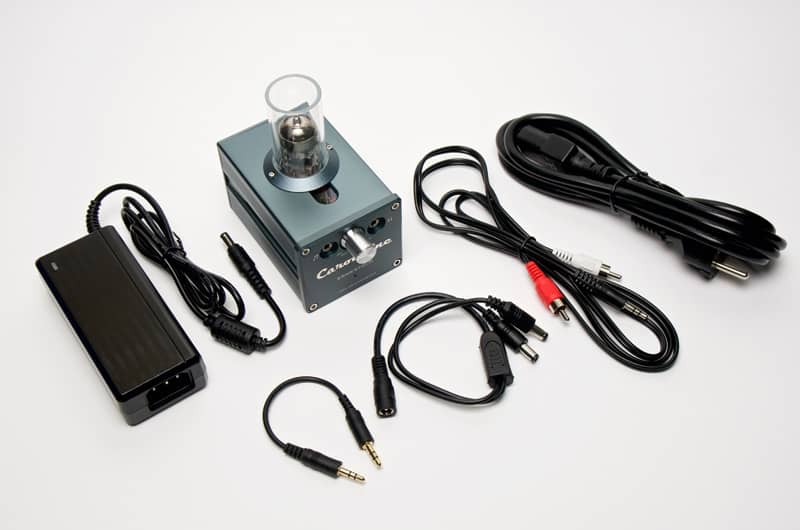

Accessories
3.5MM jumper cable x 1
2.1MM Power bifurcation line x 1
Tube x1
+12V power supply x 1
Over-load Protection 105%-150%
User Guide x 1
