D/A converter and digital preamplifier at 32-bit/768 kHz with VOLTAiR technology and six digital inputs.
Diamond: the design
The Diamond uses the AKM AK4490 Velvet Sound converter for PCM and DSD256, with a low-pass filter switchable between PCM and DSD. With volume on the motorised Alps pot it can drive a power amplifier directly: the XLR and RCA outputs are variable, the RCA also fixed. There is an input for an external clock.
Like the other SPL components it uses VOLTAiR technology: the audio circuits run on ±60 V rails, with discrete op-amps of SPL's own design and a shielded toroidal transformer.
Specifications
- Converter: AKM AK4490 Velvet Sound, 32-bit/768 kHz, DSD256

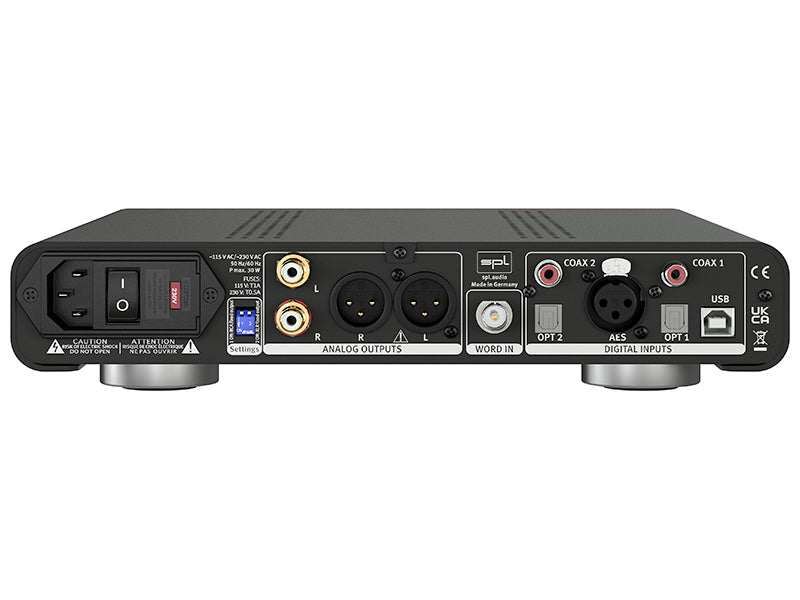

- Digital inputs: 2 coaxial, 2 optical, AES, USB
- Analogue outputs: variable XLR and RCA, RCA also fixed
- External clock: input
- Volume: motorised Alps RK27 "Big Blue"
- Dimensions (W × H × D): 278 × 57 × 330 mm
- Weight: 3.15 kg

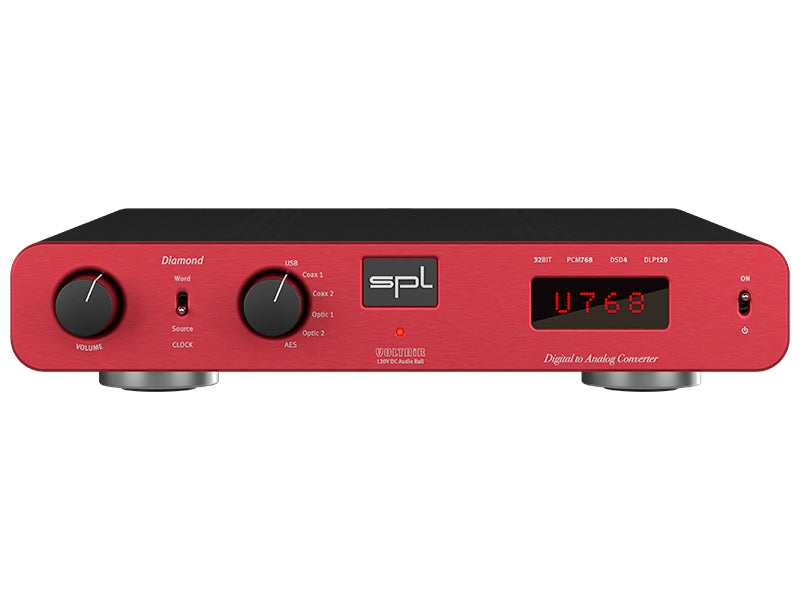

- Finishes: black, silver, red
