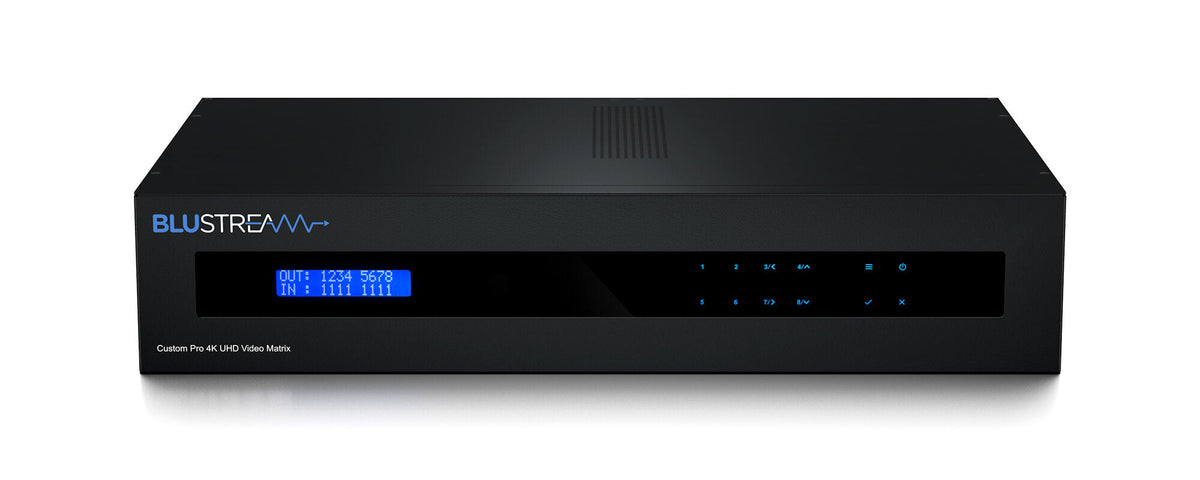

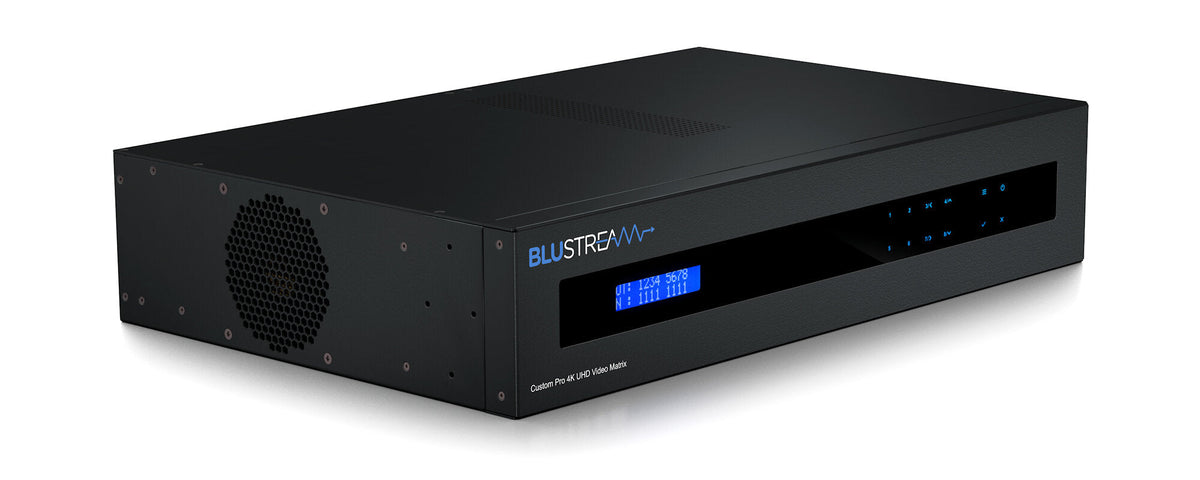

PRO88HDMI-V2
Custom Pro 8x8 HDMI Matrix - Supports 4K HDR, IP Control, 2-Way IR
Description
Our Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market. The PRO88HDMI-V2 is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.
Key Features
-
Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
-
Supports 18 Gbps 4K UHD video including HDR, HDR10+ and Dolby Vision
-
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
-
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
-
Control via front panel, IR, RS-232 & TCP/IP
-
3rd Party drivers available for major control brands
-
Advanced EDID management
-
HDCP 2.2 compliant
Specifications
-

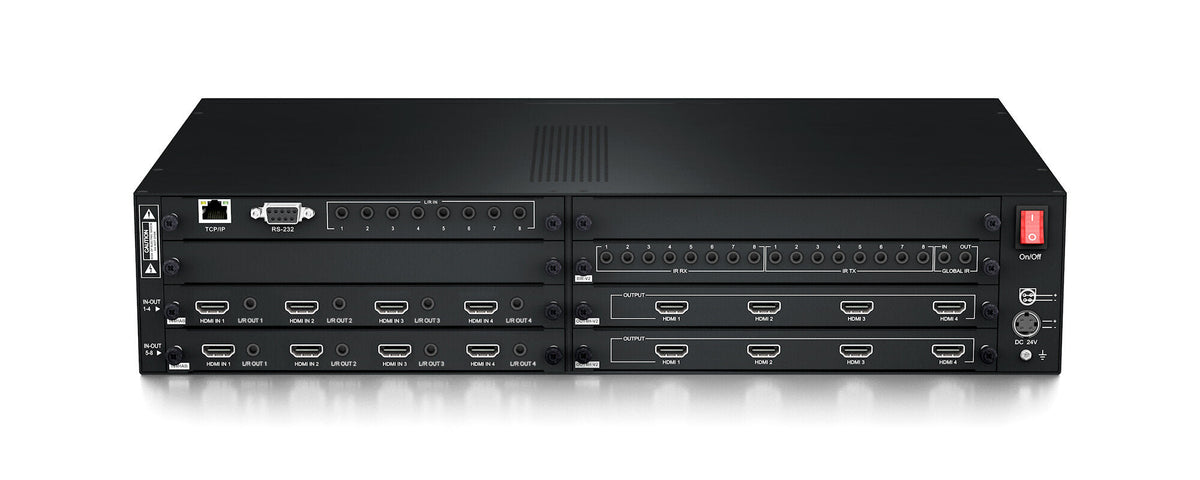

Video Input Connectors: 8 x HDMI Type A, 19-pin female
-
Video Output Connectors: 8 x HDMI Type A, 19-pin, female
-
Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
-
TCP/IP Control: RJ45, female
-
Ethernet / Network: RJ45, female
-
RS-232 Serial Port: DB-9, female
-
Rack-Mountable: 2U rack height, rack ears included
-
Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
-
Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
-
Shipping Weight: 5kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
-
Power Supply: 24V/8A DC
