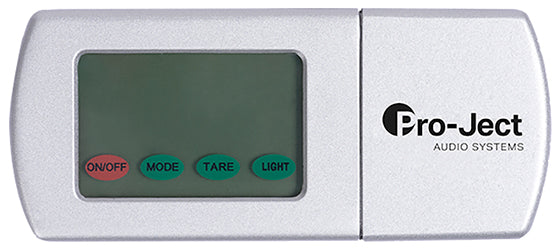

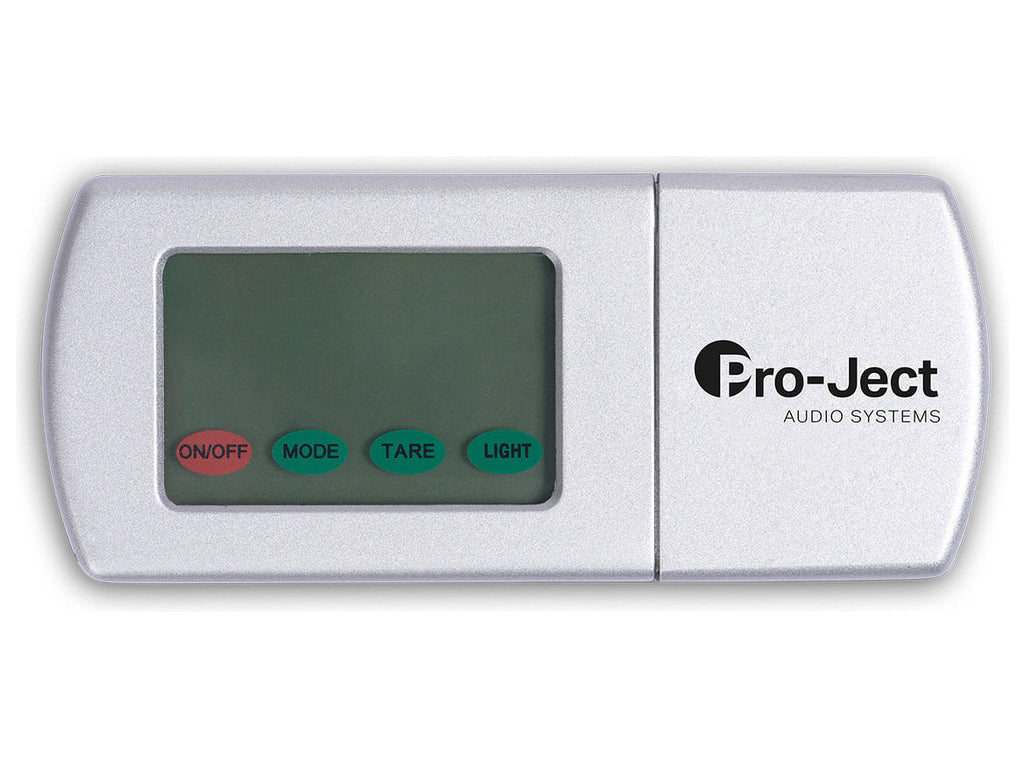

Measure it S2 is an electronic stylus balance for checking the tracking force of a cartridge: it reads up to 5 g in 0.001 g steps and has a solid aluminium body with a backlit four-digit LCD.
Measure it S2: measurement and kit

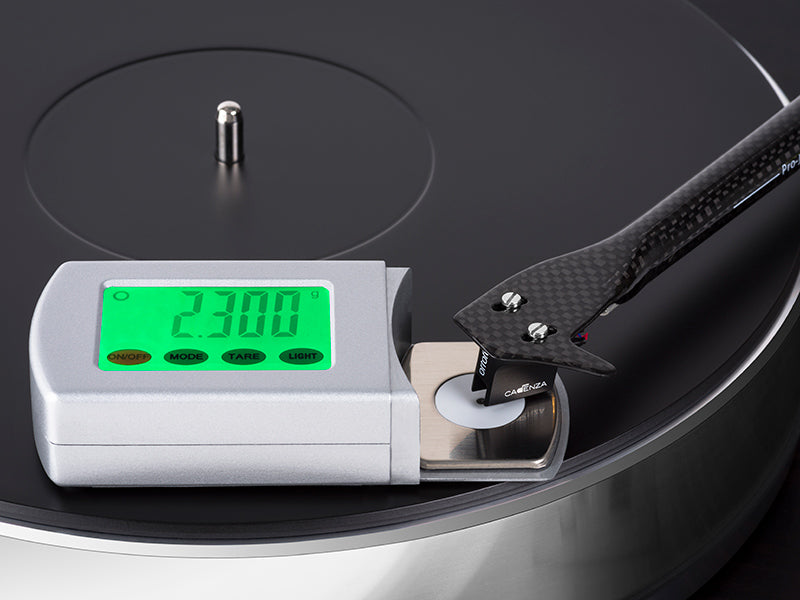

Its job is to remove any doubt about the real pressure the diamond puts on the groove: rest the stylus on the pan and read the figure to a thousandth of a gram. Knowing the tracking force this precisely lets you set the counterweight to the value specified for the cartridge and cut stylus wear noticeably. Calibration can be repeated at any time with the 5 g reference weight that comes in the box.

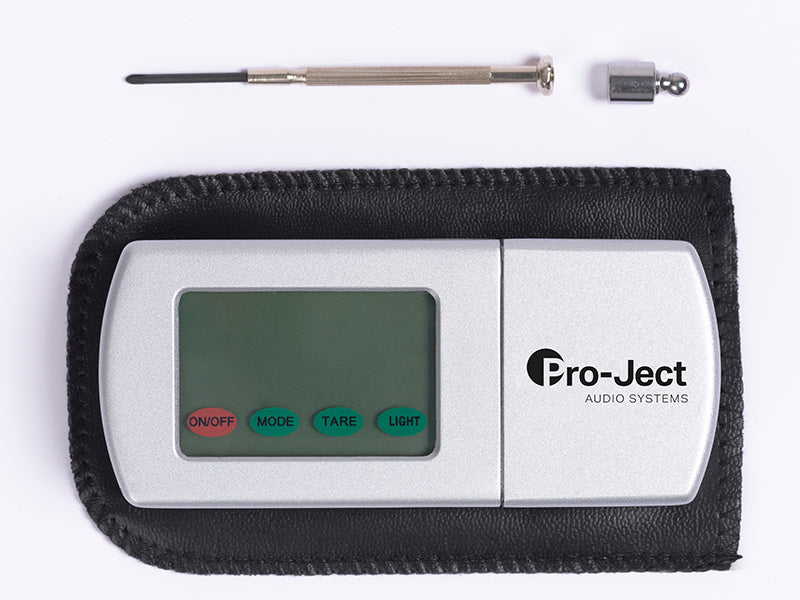

Besides grams, the balance can show the reading in ounces, pennyweight and carats, and it switches itself off after 60 seconds of inactivity. It runs on two AAA cells, which are in the box together with the calibration weight, a screwdriver, a protective case and the user guide. The working temperature range is 10 to 30 °C.
Specifications
- Range: 0 to 5 g
- Measurement tolerance: ±0.001 g
- Units: grams, ounces, pennyweight and carats
- Display: four-digit LCD, backlit
- Calibration: automatic, with a 5 g reference weight
- Automatic switch-off: after 60 seconds
- Power: two 1.5 V AAA cells, supplied
- Working temperature: 10 to 30 °C
- Body: solid aluminium
- Size: 122 mm wide, 27 mm high, 55 mm deep
- Weight: 170 g
- In the box: calibration weight, screwdriver, batteries, case, user guide
