Four Class A/B channels in a compact power amplifier for multichannel systems

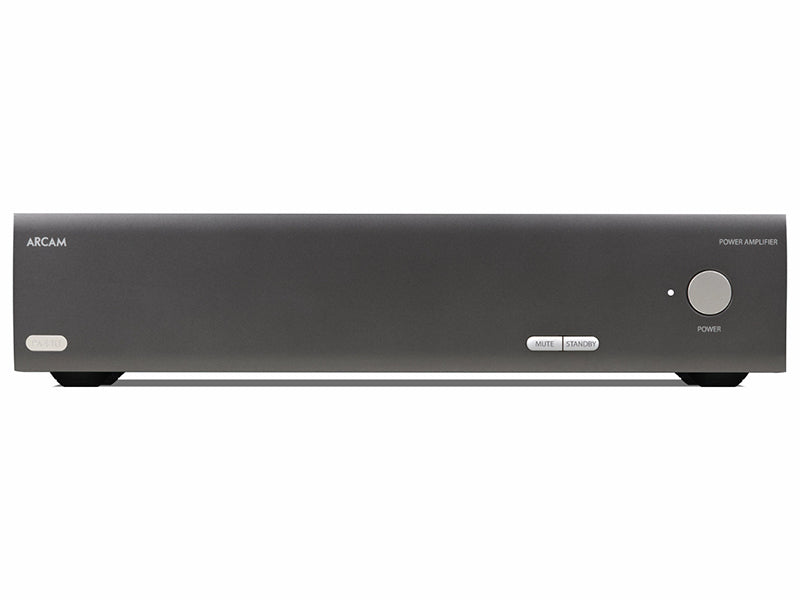

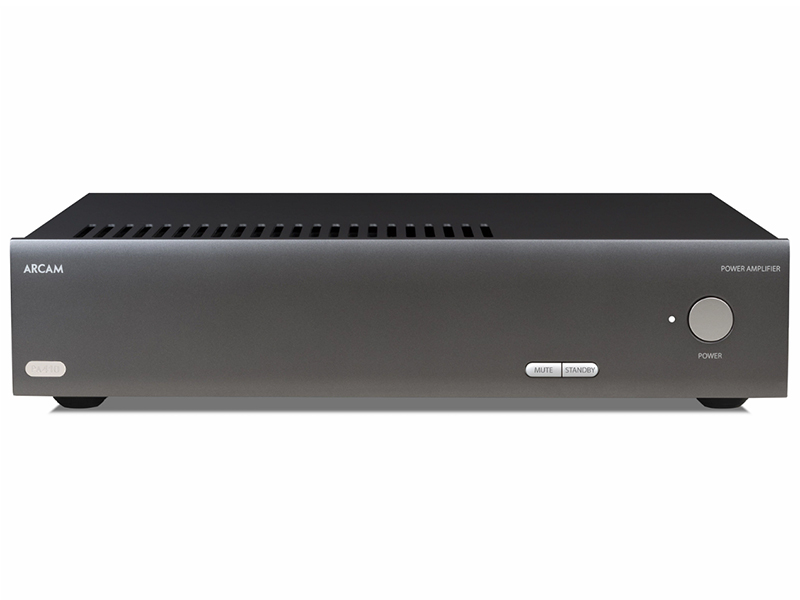

Arcam PA410 is a four-channel Class A/B power amplifier rated at 4x50 W into 8 ohms, with toroidal transformer, RCA inputs and outputs, and RS232 control.
PA410 belongs to the HDA range and is designed to add four channels of amplification to an AV processor or receiver with pre-outs. Its construction focuses on a dedicated, compact power section suited to surround, height or other multichannel duties without requiring several separate stereo power amplifiers.
Key features
- Four channels of Class A/B amplification.
- Output of 4x50 W into 8 ohms with all channels driven.
- Up to 4x70 W into 4 ohms with all channels driven.
- Four mono RCA inputs and four mono RCA outputs.
- Toroidal transformer.
- Acoustically damped chassis.
- Paralleled transistor output stages.
- RS232 control.
Four-channel Class A/B
The power section delivers 50 W per channel into 8 ohms and 70 W into 4 ohms with all four channels driven. With two channels driven there is additional reserve, but the design is primarily intended to provide four matched channels in one chassis for expanding a home cinema system.
Construction and power supply
The toroidal transformer works with an acoustically damped chassis and paralleled transistor output stages. These measures are intended to reduce vibration, noise and distortion while preserving control and consistency when several channels are demanded at the same time.
Connections and integration

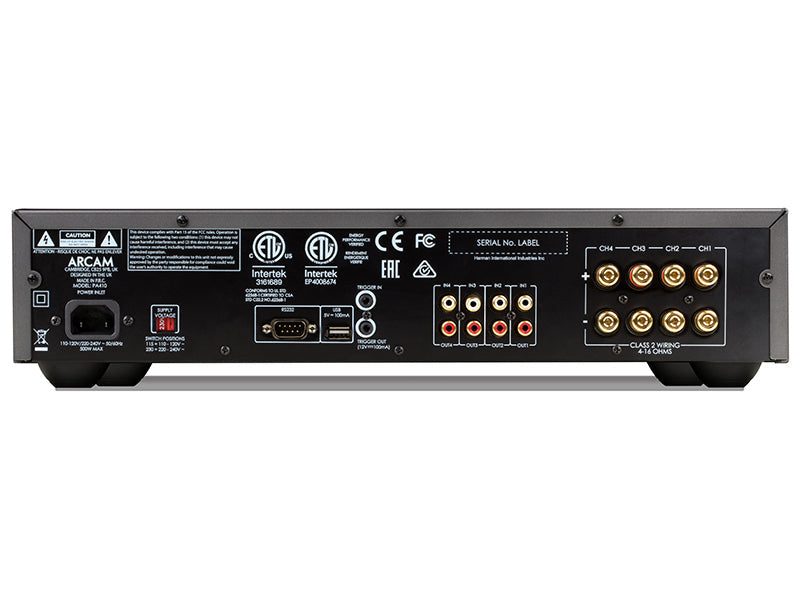

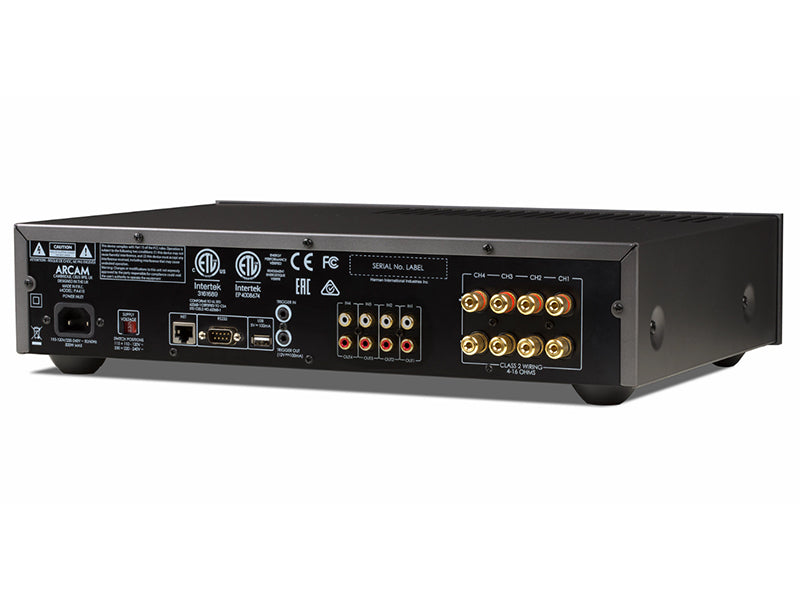

Four mono RCA inputs receive signals from a processor or preamplifier and four mono RCA outputs provide pass-through to other electronics. RS232 control also suits technical racks and automation systems where power and operation need to be coordinated.
Dimensions and installation
Net weight is 10 kg. Arcam documentation displays the sequence 433 x 325 x 105 mm, while the mechanical drawing confirms a height of about 105 mm: normalised as W x H x D, dimensions are 433 x 105 x 325 mm.
