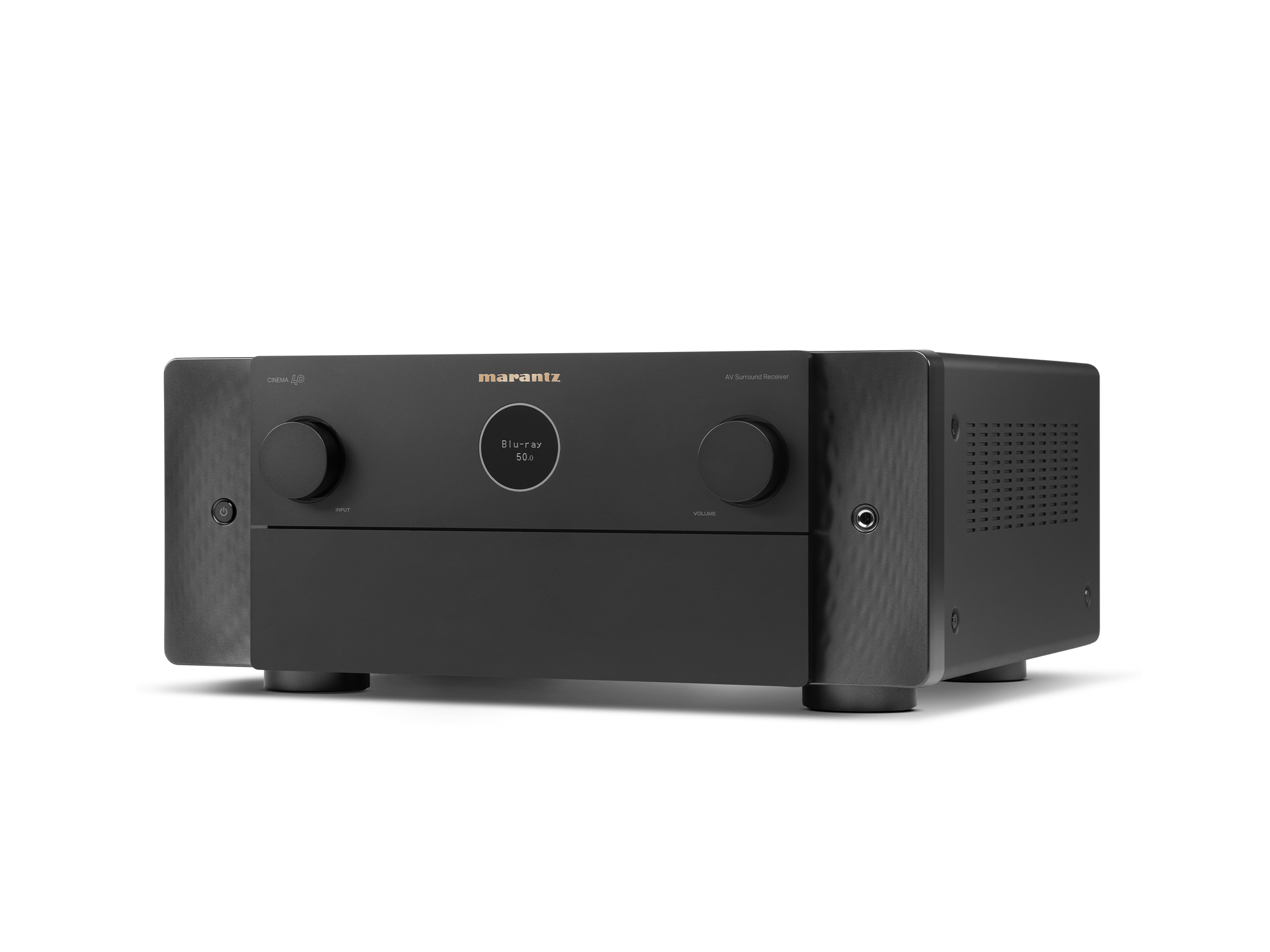

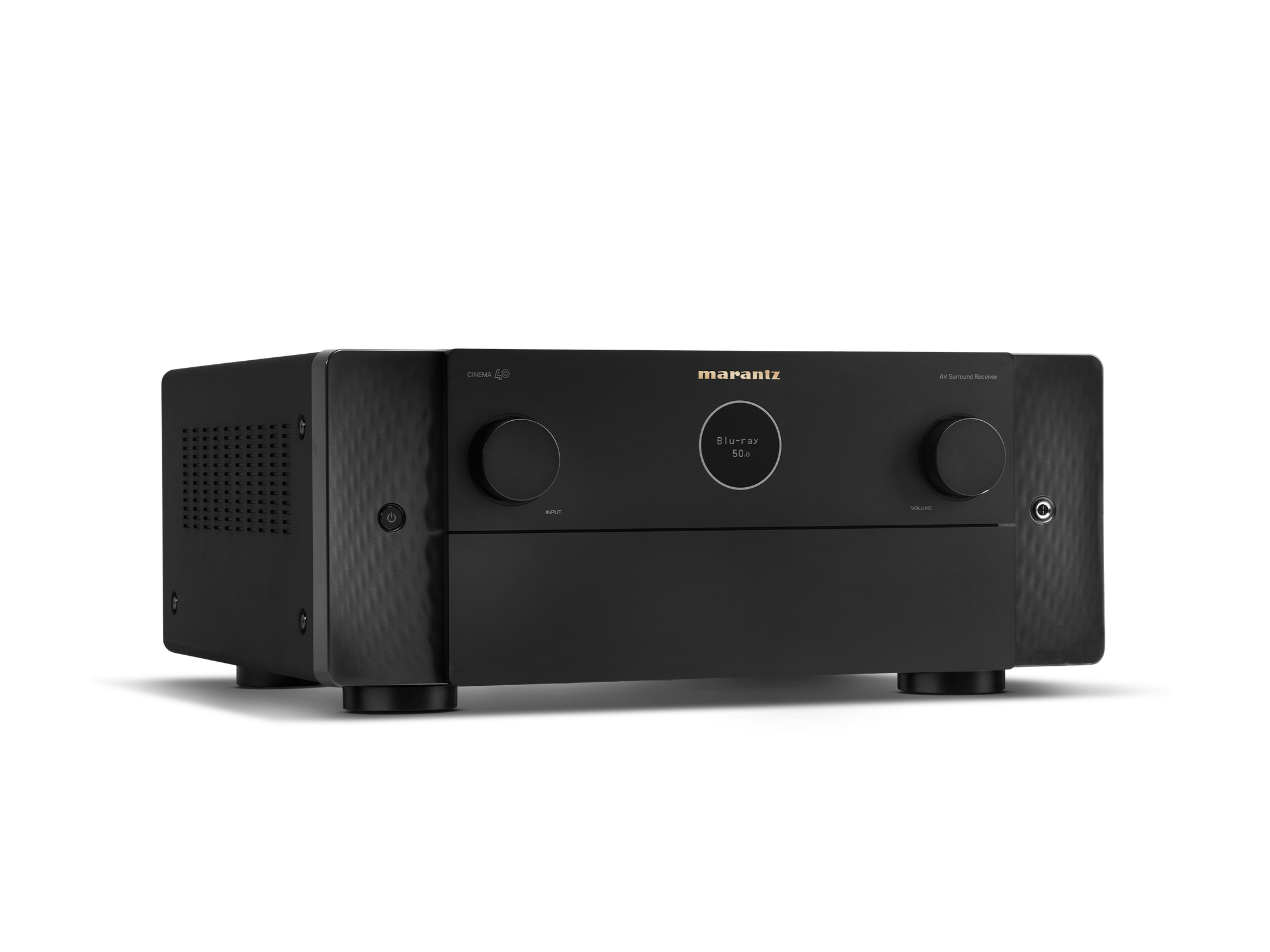

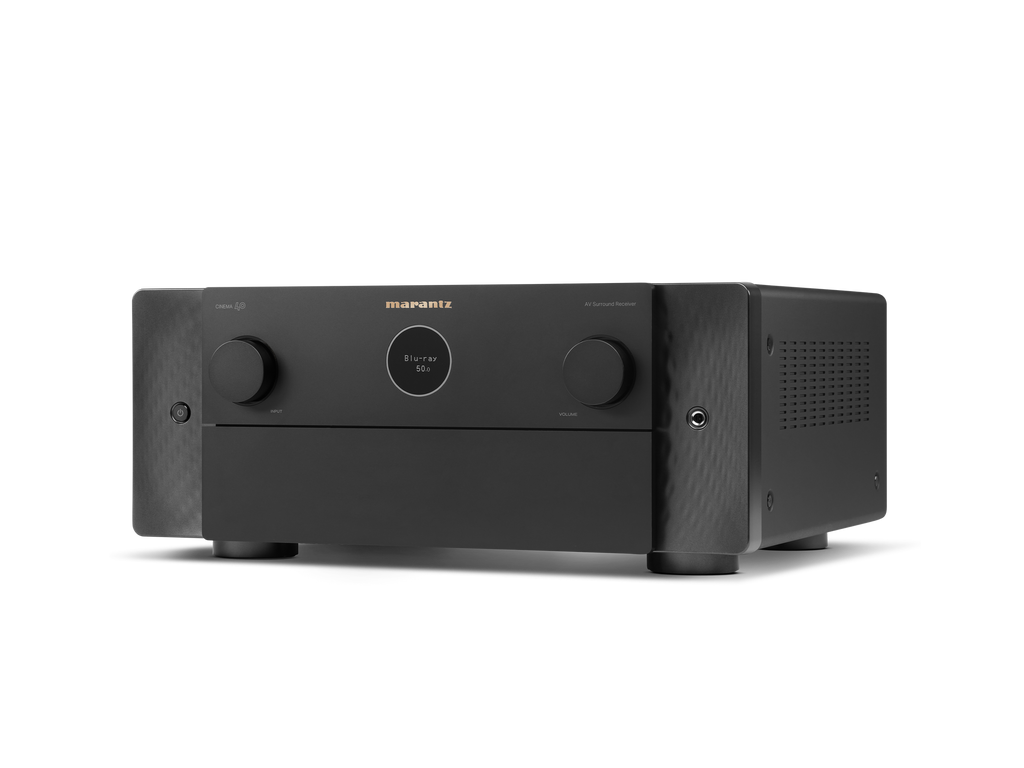

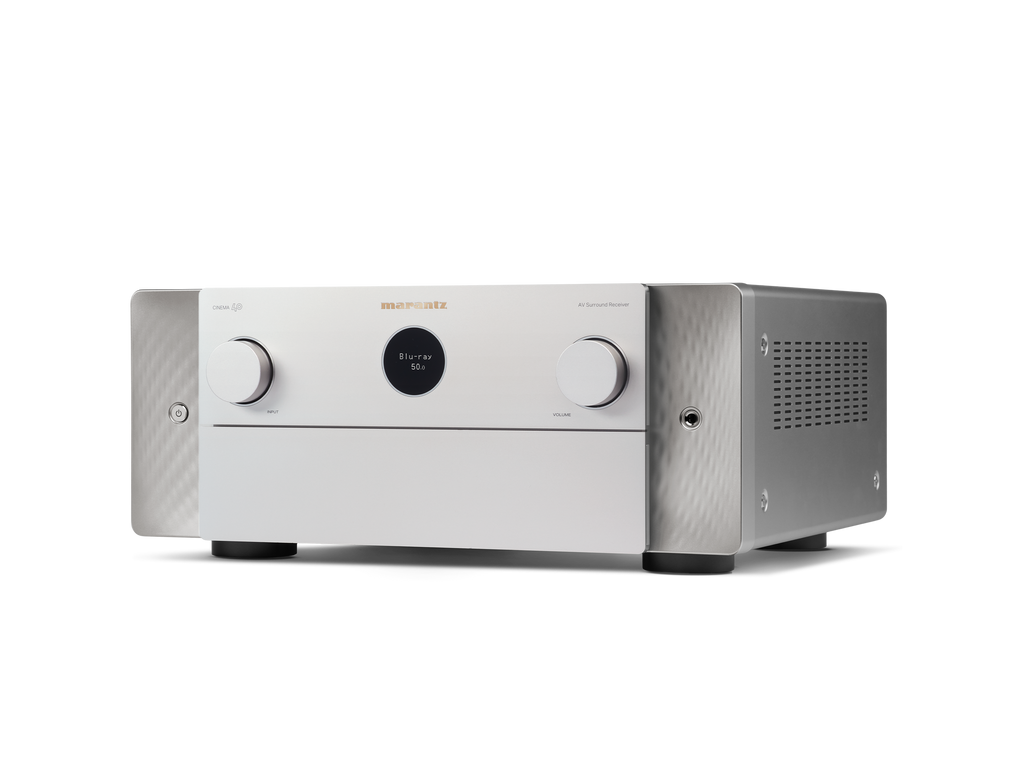

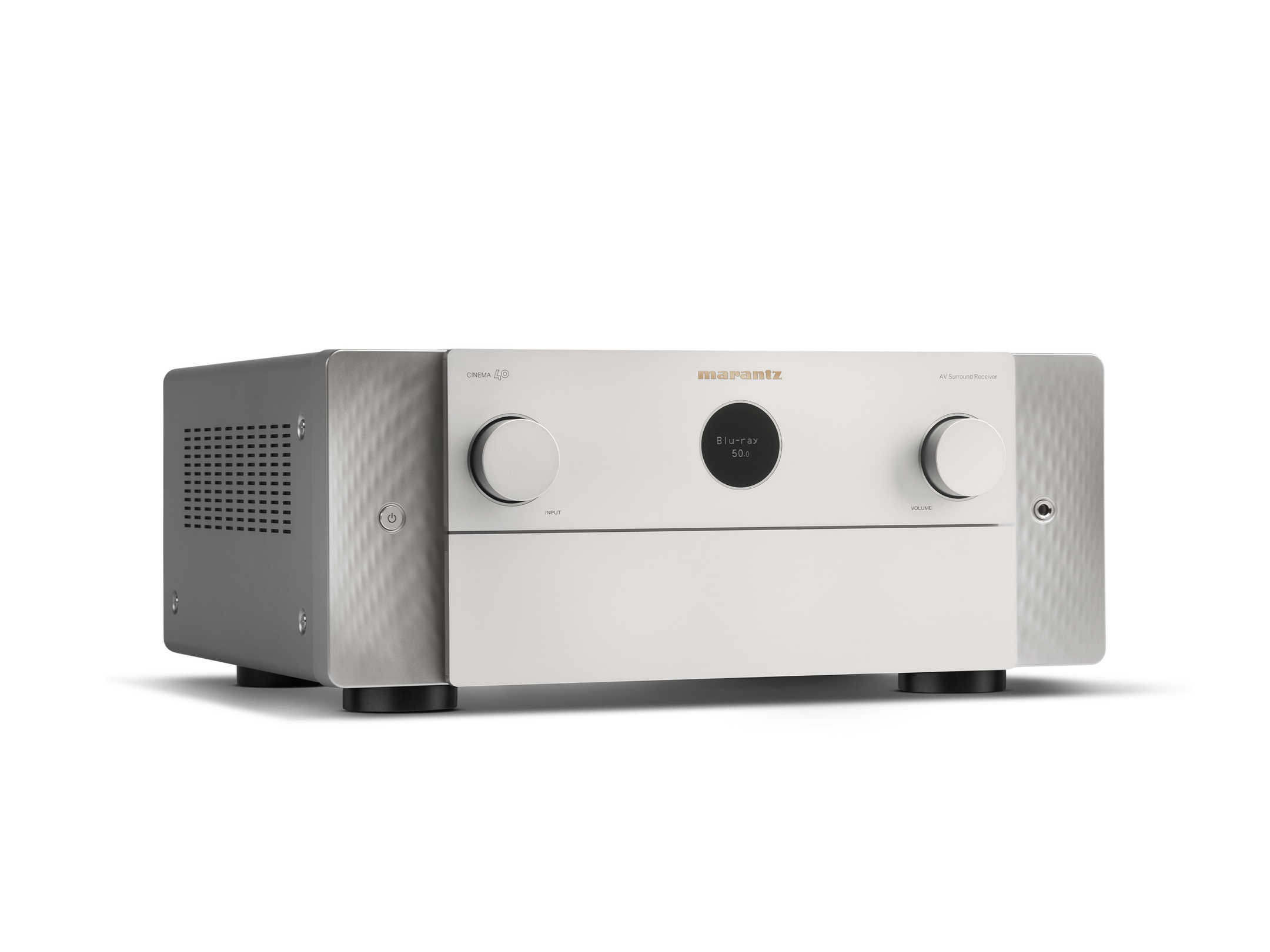

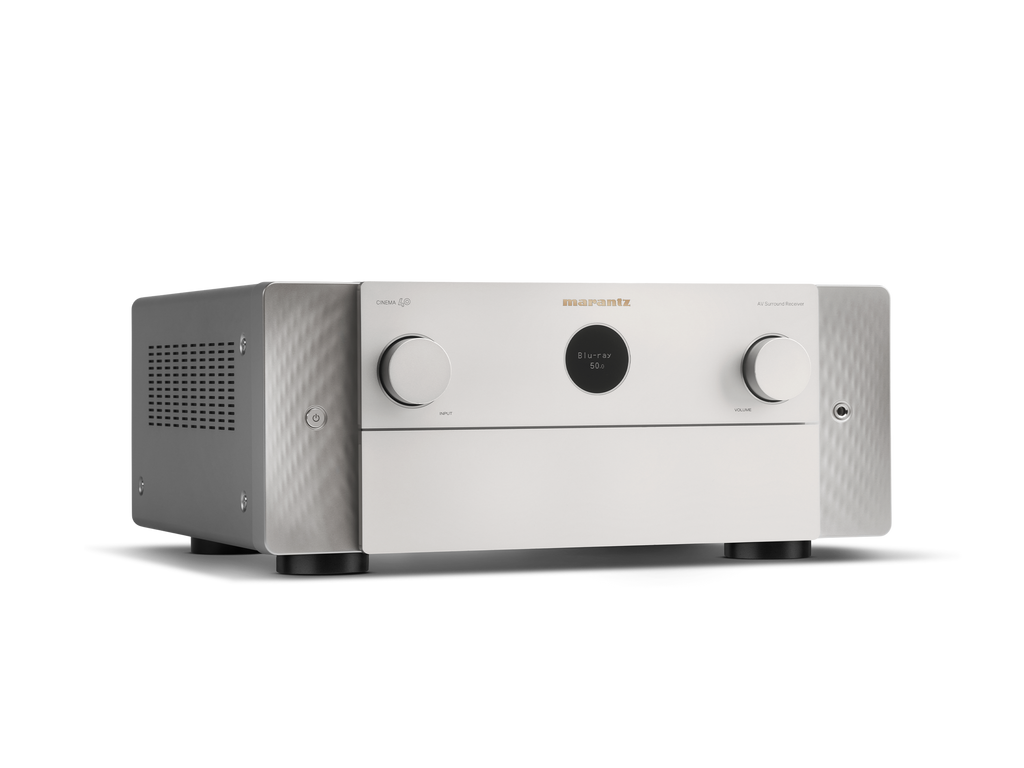

Premium 9.4 channel amplification, 125 Watts per channel; Dolby Atmos, DTS:X, Auro 3D and 8K Ultra HD, HEOS® Built-in streaming. CINEMA 40 is a technology manifesto and a reference AV amplifier.
Excellence starts with performance
Built on decades of great heritage, designed with timeless style and engineered for maximum performance, Marantz CINEMA Series amplifiers are the foundation of the world's most demanding home theater systems.
Unmatched performance
Immersive sonic breadth, warm, rich tones, and lifelike dynamics are legendary hallmarks of Marantz sound.
Leader in audiovisual technologies
CINEMA 40 is equipped with the latest immersive audio formats, 8K video, room optimization, streaming and technologies to take your entertainment to the next level.

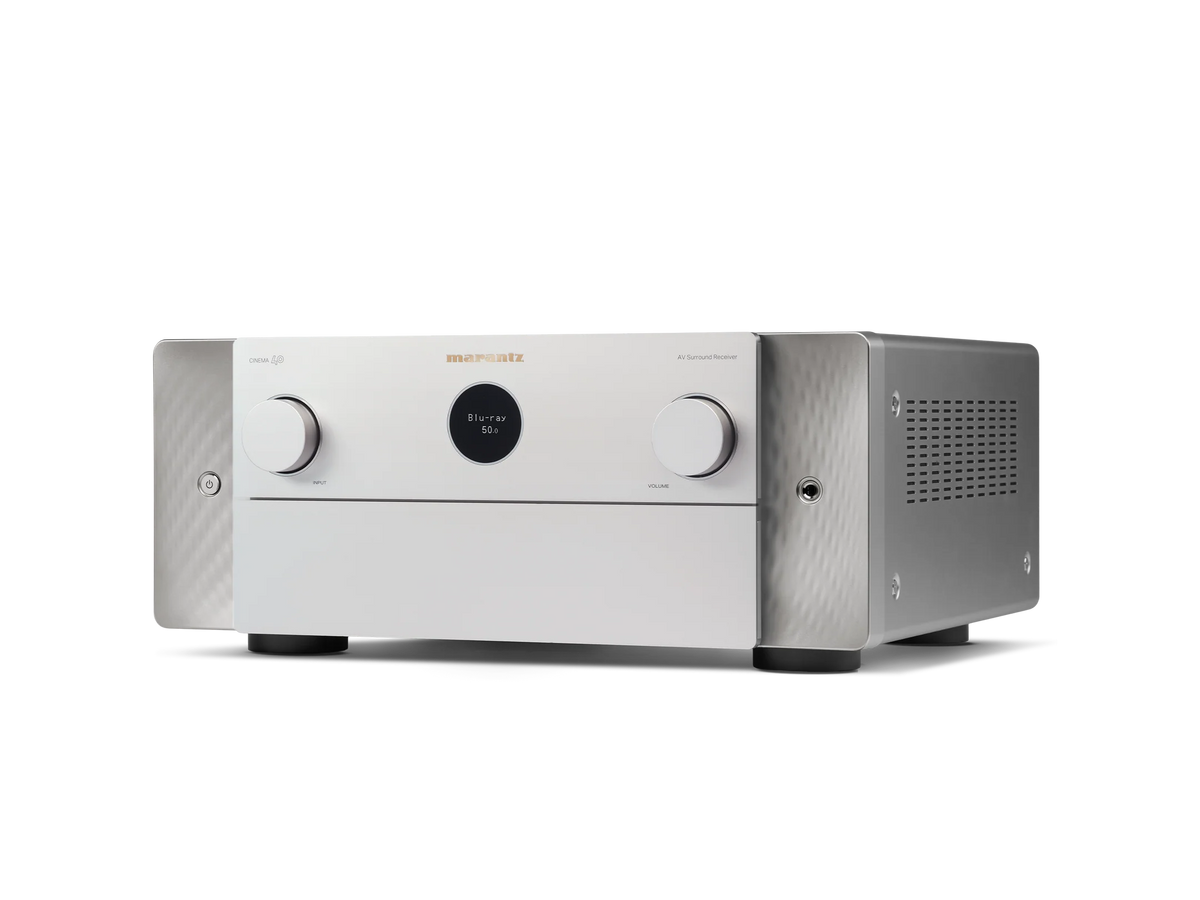

Refined design

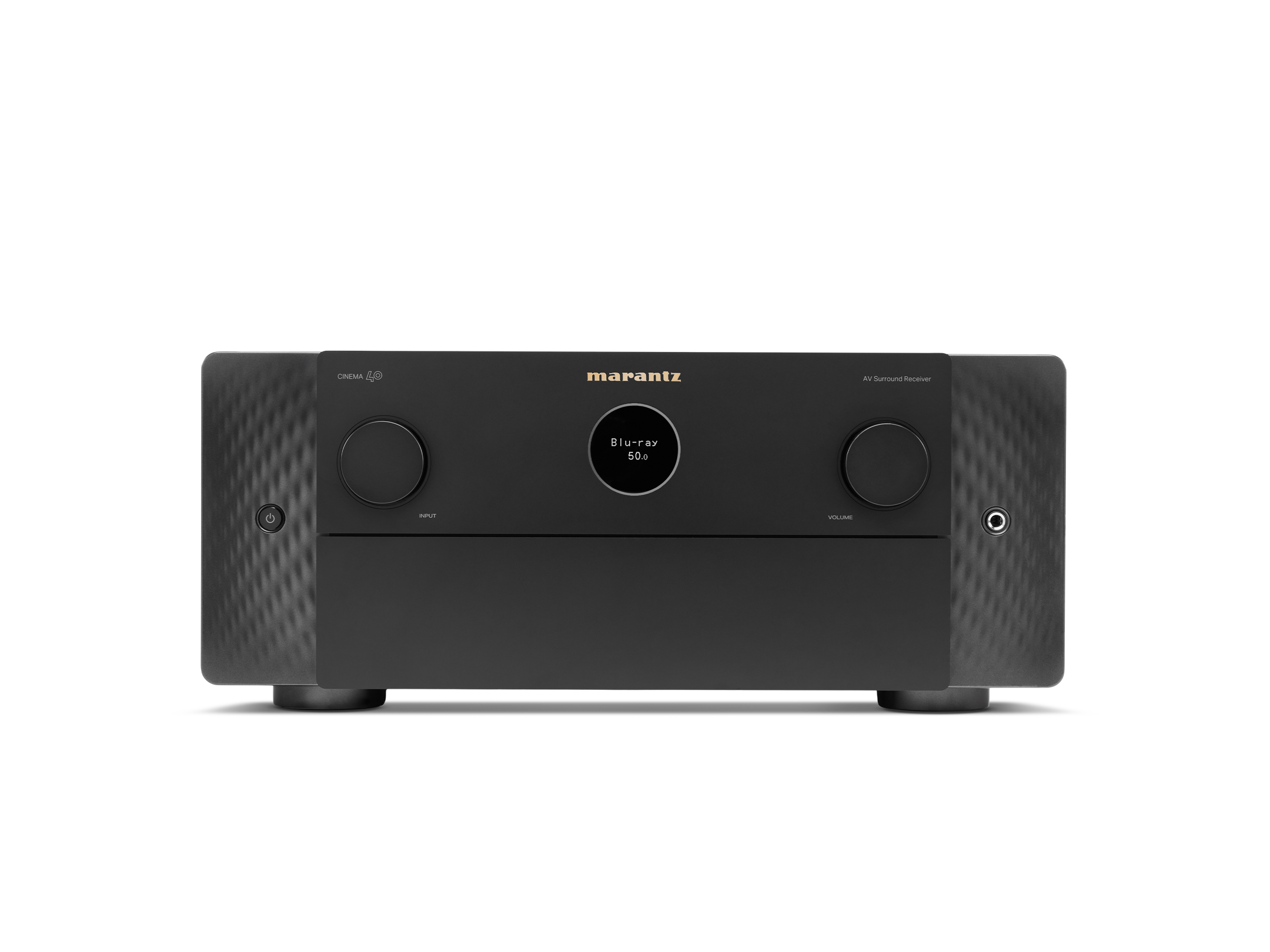

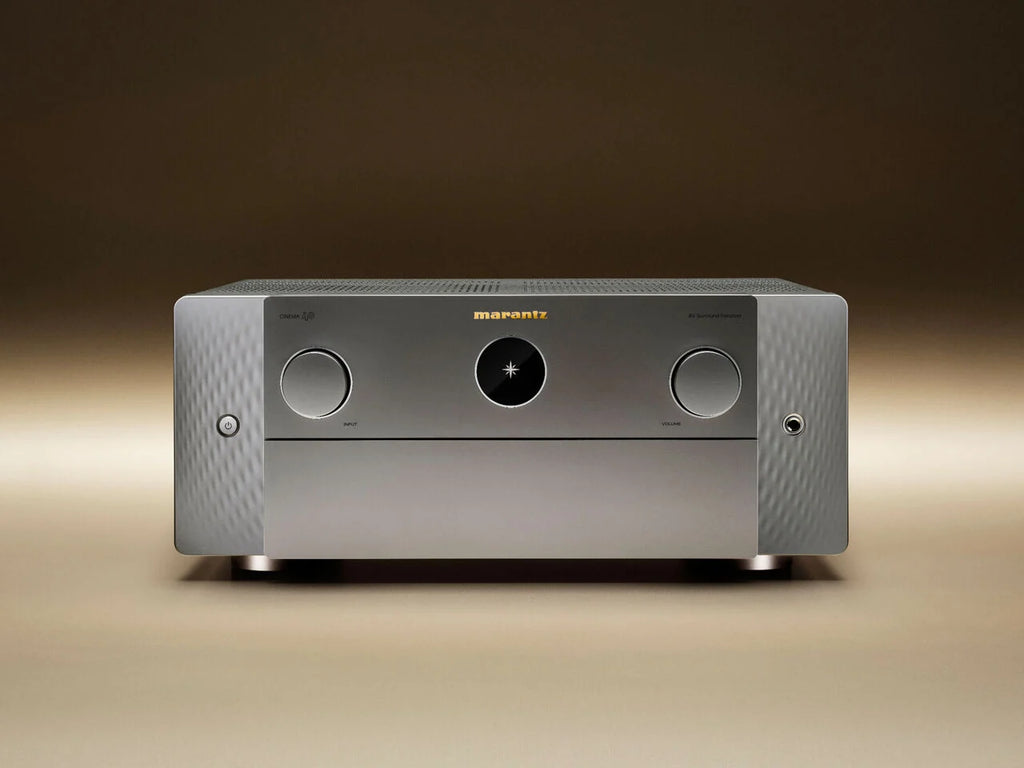

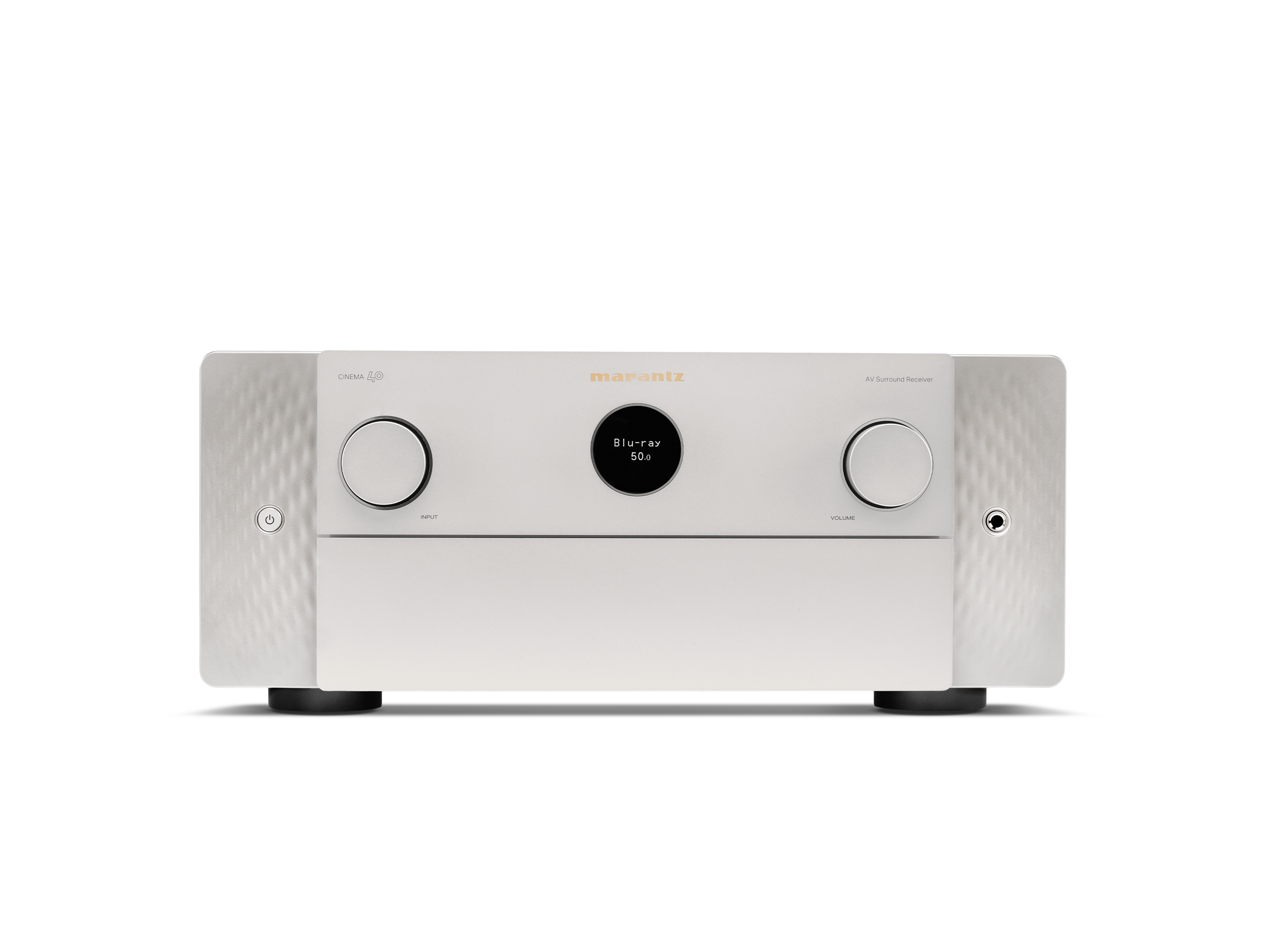

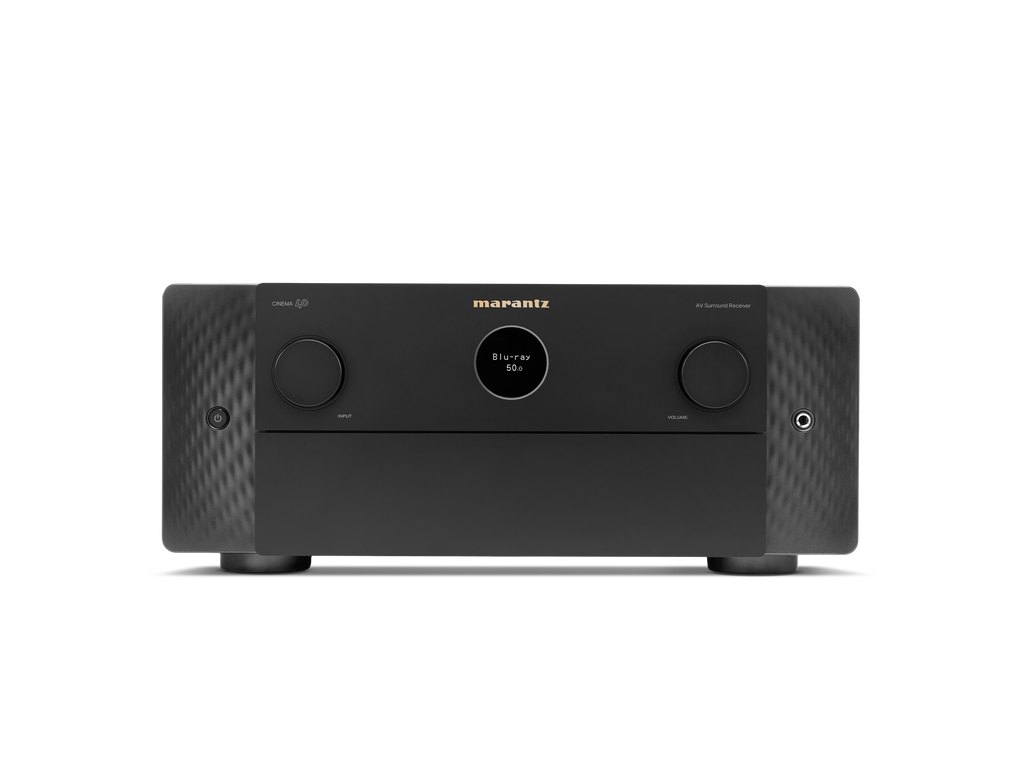

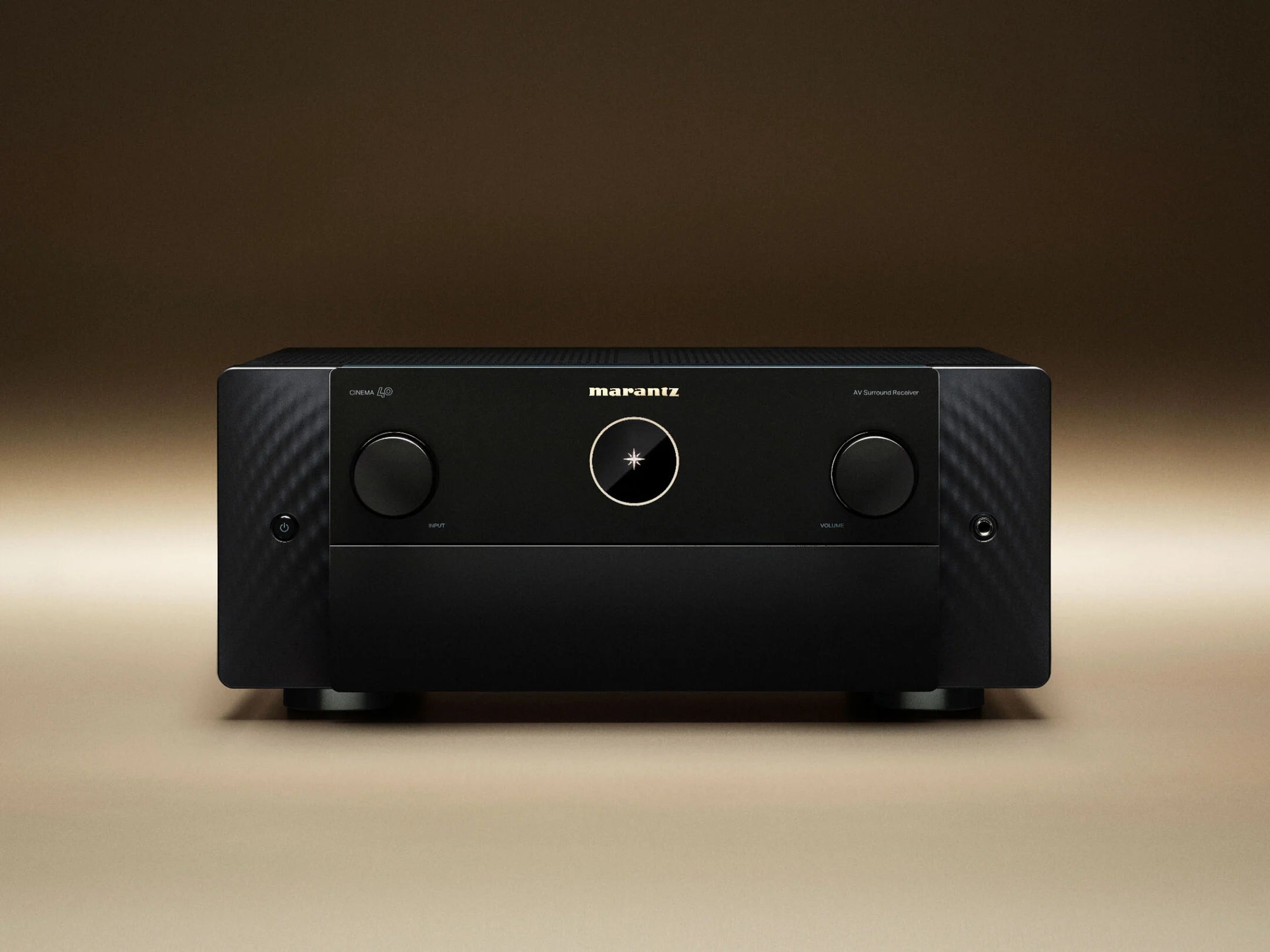

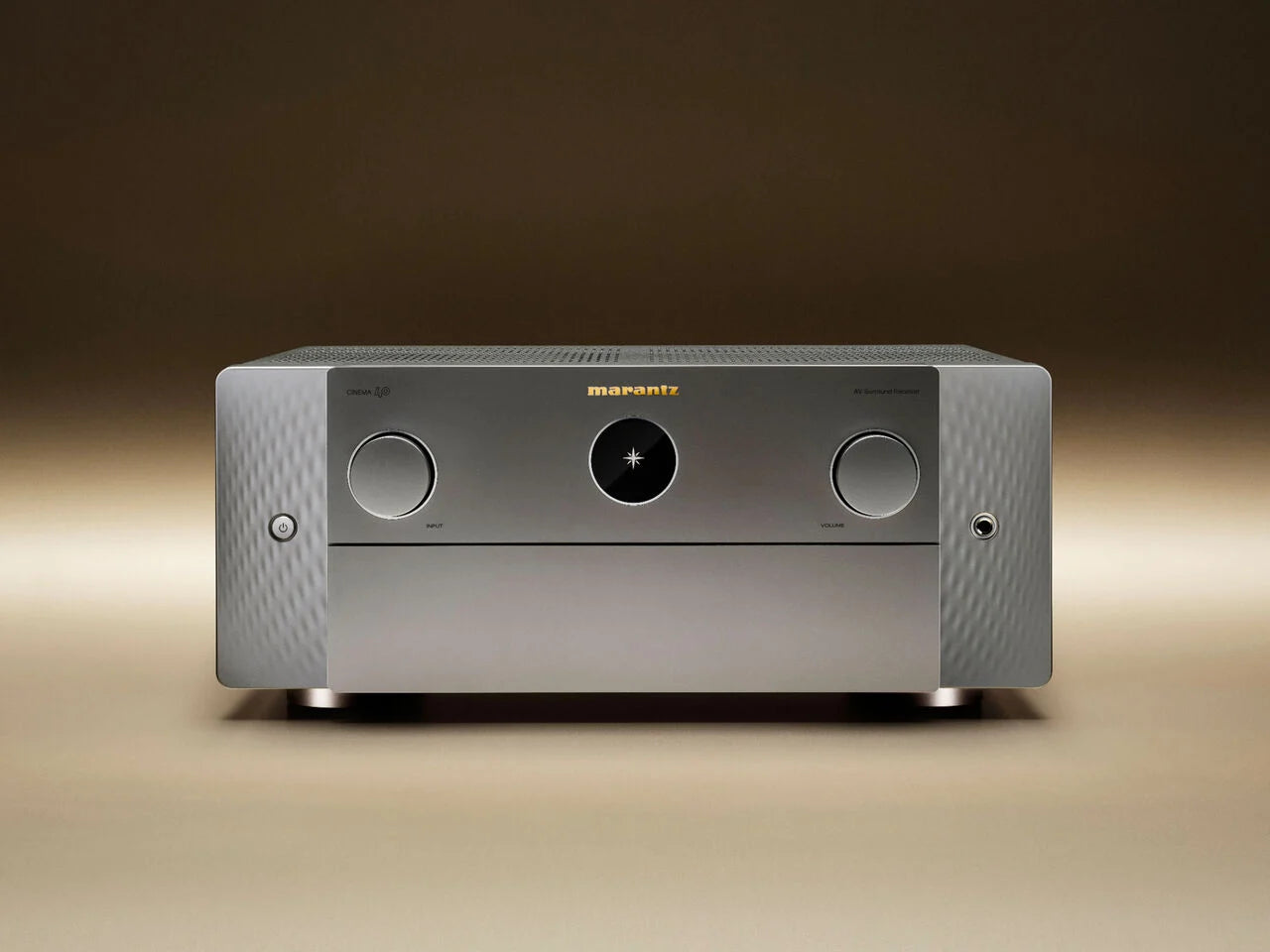

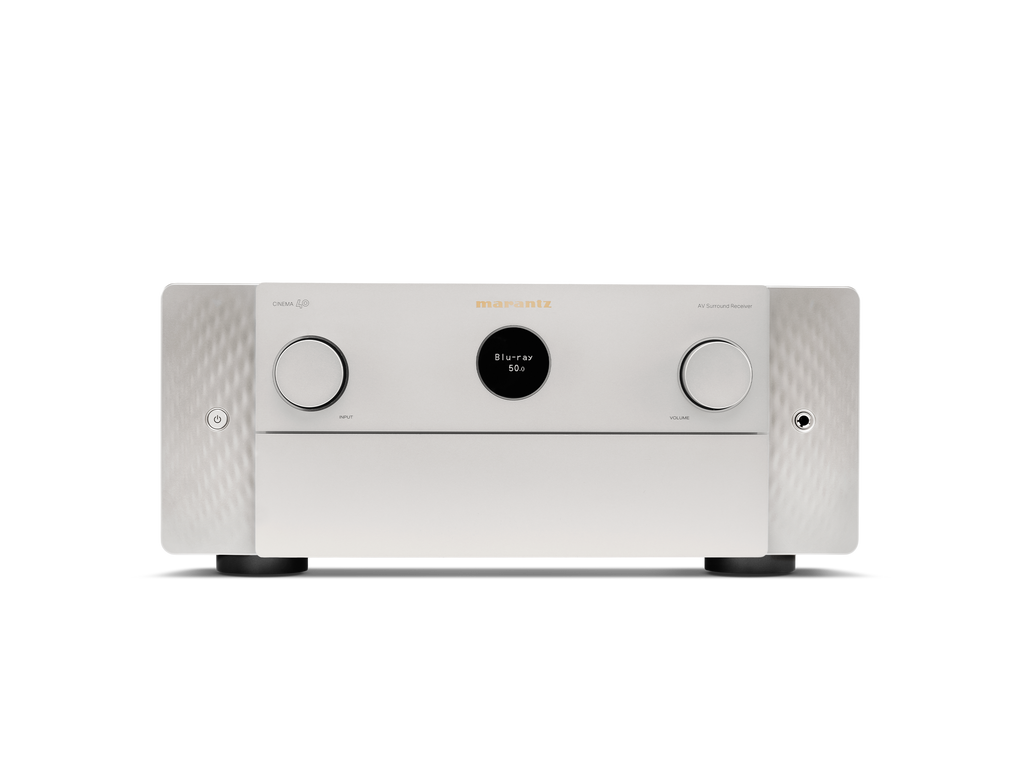

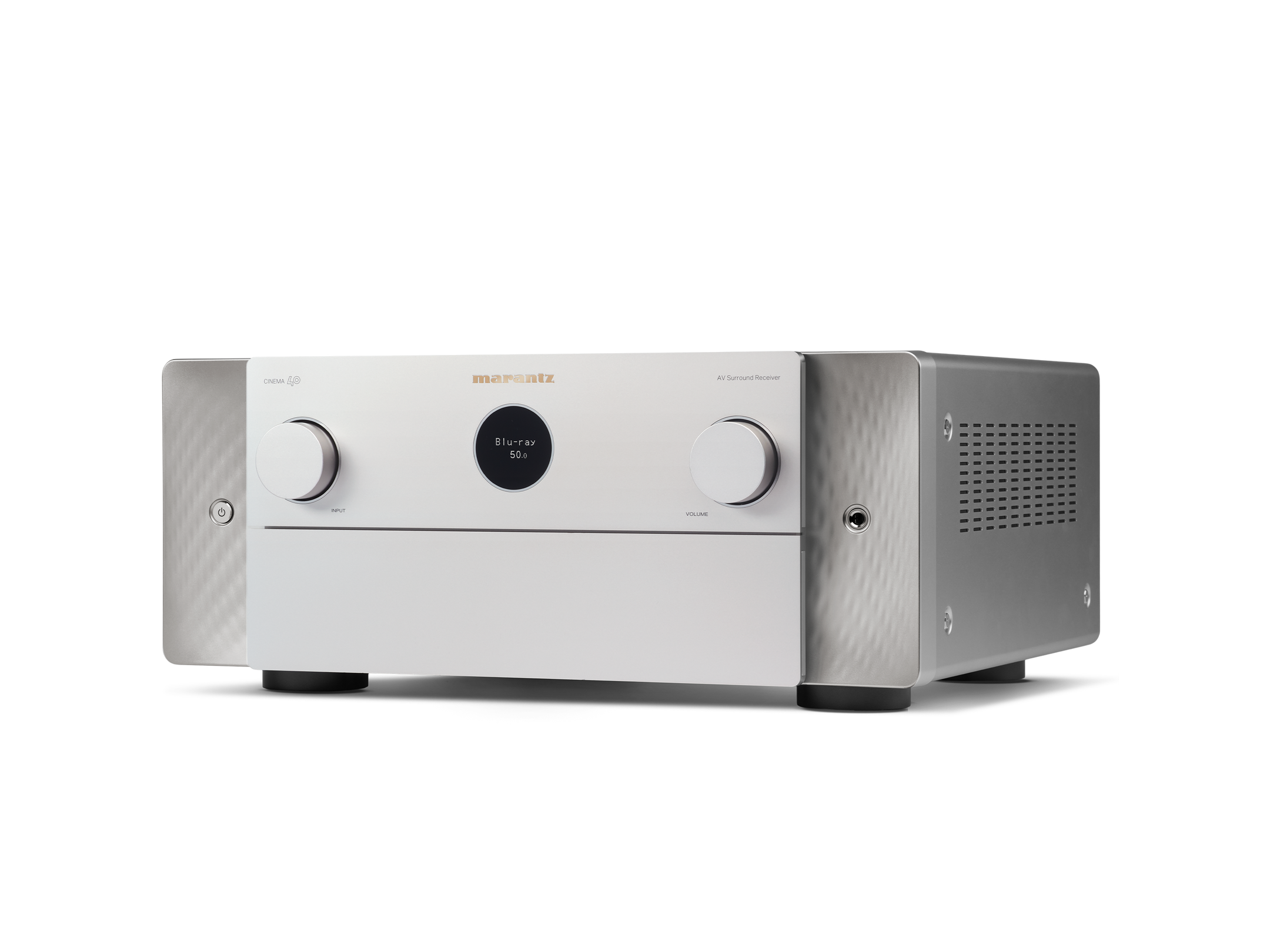

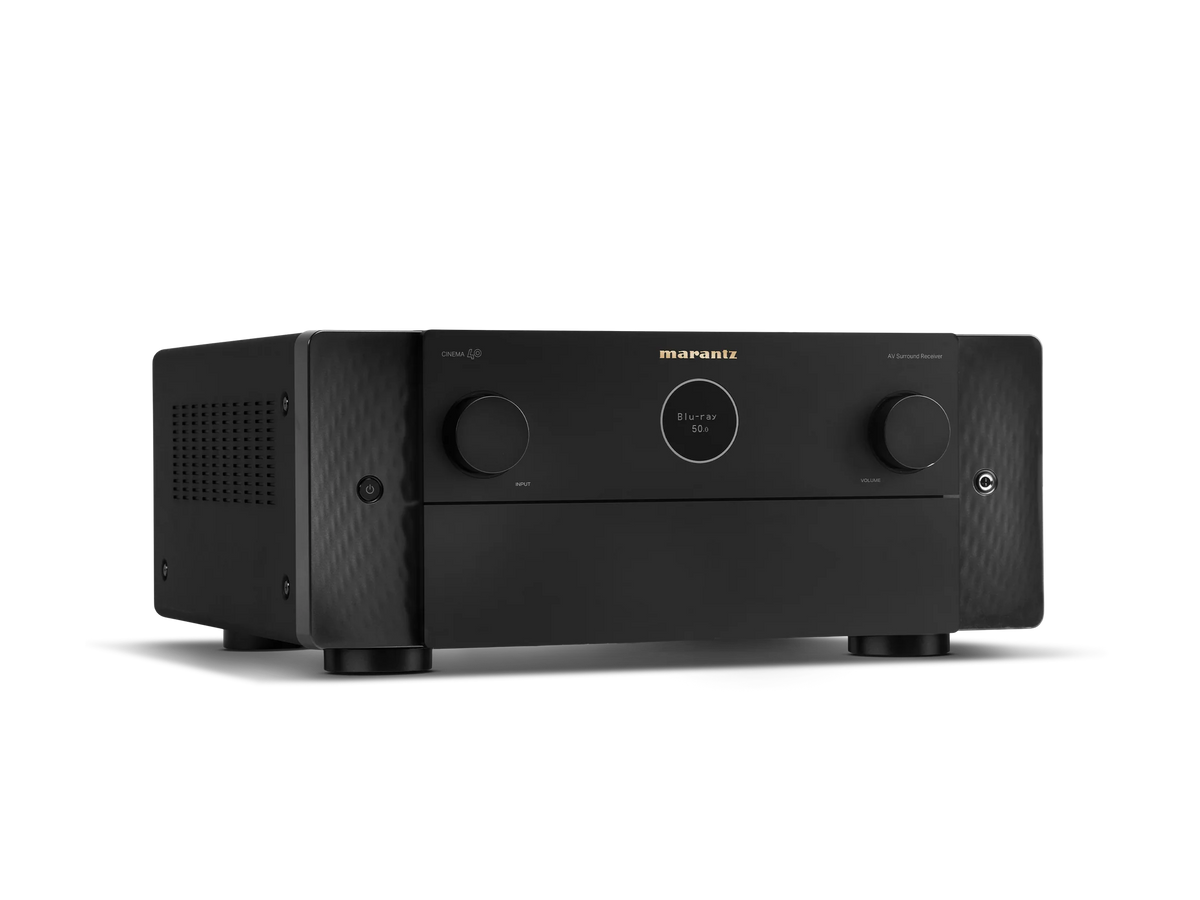

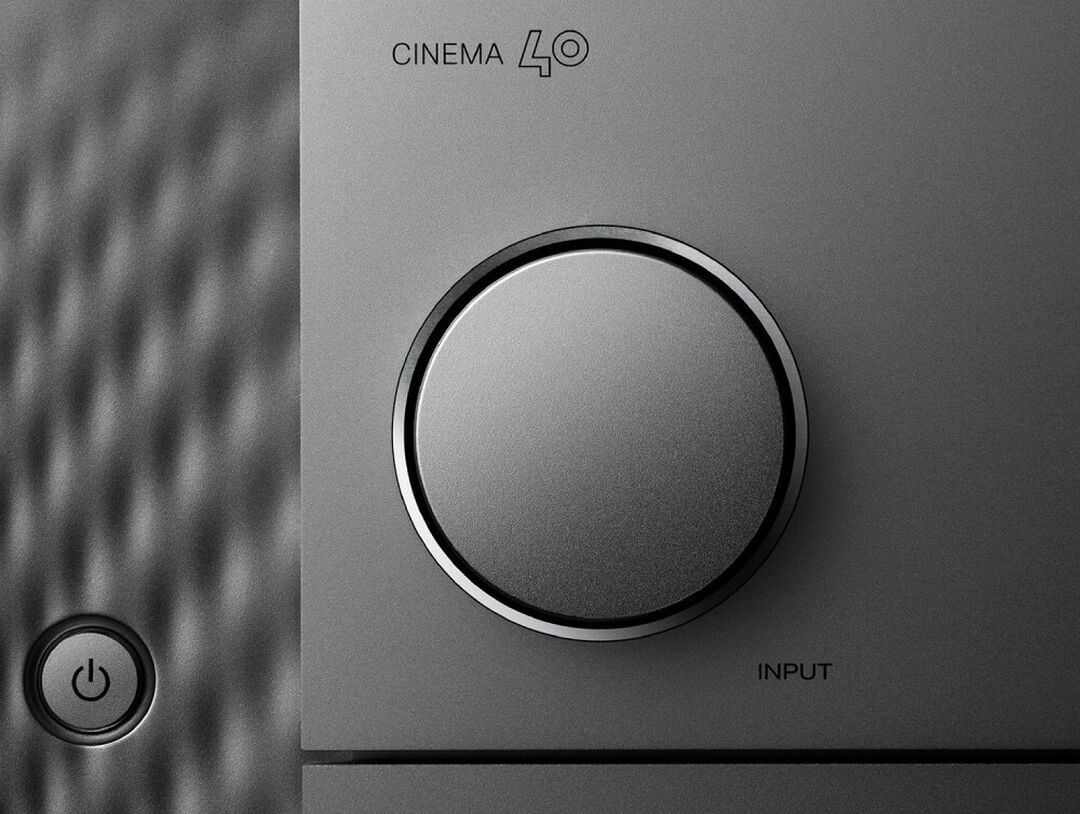

A modern expression of a timeless design, CINEMA 40 features the iconic Marantz porthole display, a symmetrical design and front panel controls elegantly hidden from view.
Performance
A Marantz Sound Master has meticulously optimized CINEMA 40 for extraordinary performance, carefully selecting parts to create the most musical sound in your home.
Style
Excellence is felt and seen. CINEMA 40 is meticulously crafted with sought-after materials in a modern style befitting its long heritage and outstanding performance.
Personalization
Carefully selected connectivity options and optimization capabilities let you customize CINEMA 40 to the max.
Maximum simplicity
The supplied remote control, front panel controls and an intuitive setup process on the TV screen will make you feel like an expert user right away.
POWER AMPLIFIER
Number of amplification channels | 9 |
Power Output (8 Ohms, 20 Hz - 20 kHz, 0.08% 2ch driven) | |
Power Output (8 Ohms, 20 Hz - 20 kHz, 0.05% 2ch driven) | 125W |
Power Output (6 Ohms, 1 kHz, 0.7% 2ch driven) | 165W |
Output power (6 ohms, 1 kHz, 10% 1 channel driven) | 235W |
70% Guaranteed | Yes |
Discrete power amplifier | Yes |
Amplification topology | Class A/B |
Current Feedback topology | Yes |
Bi-amplification | assignable |
MULTICHANNEL SURROUND TECHNOLOGIES
DTS extension | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
Other | IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo2 |
Maximum number of processing channels (preamplifier) | 11.4 |

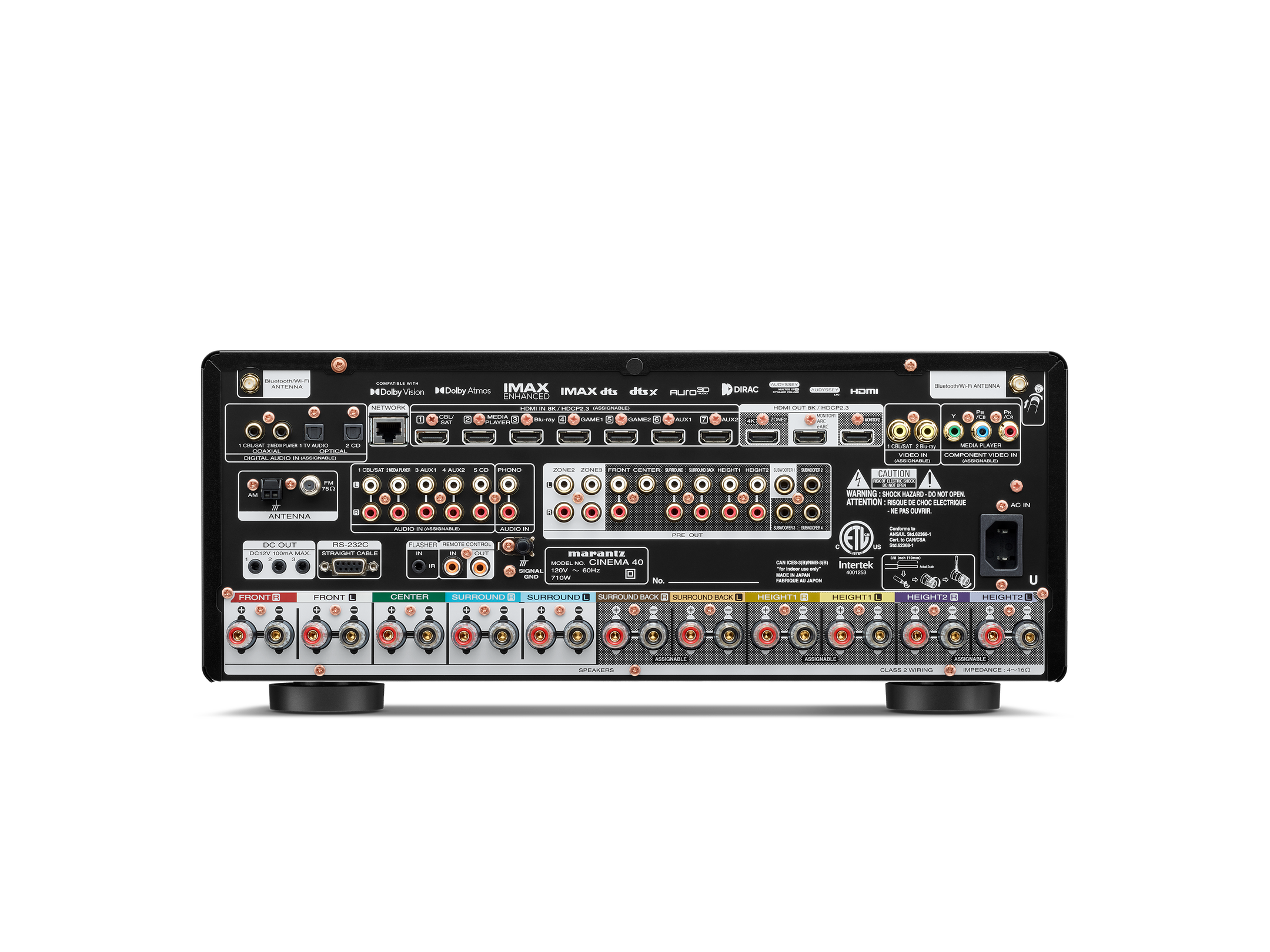

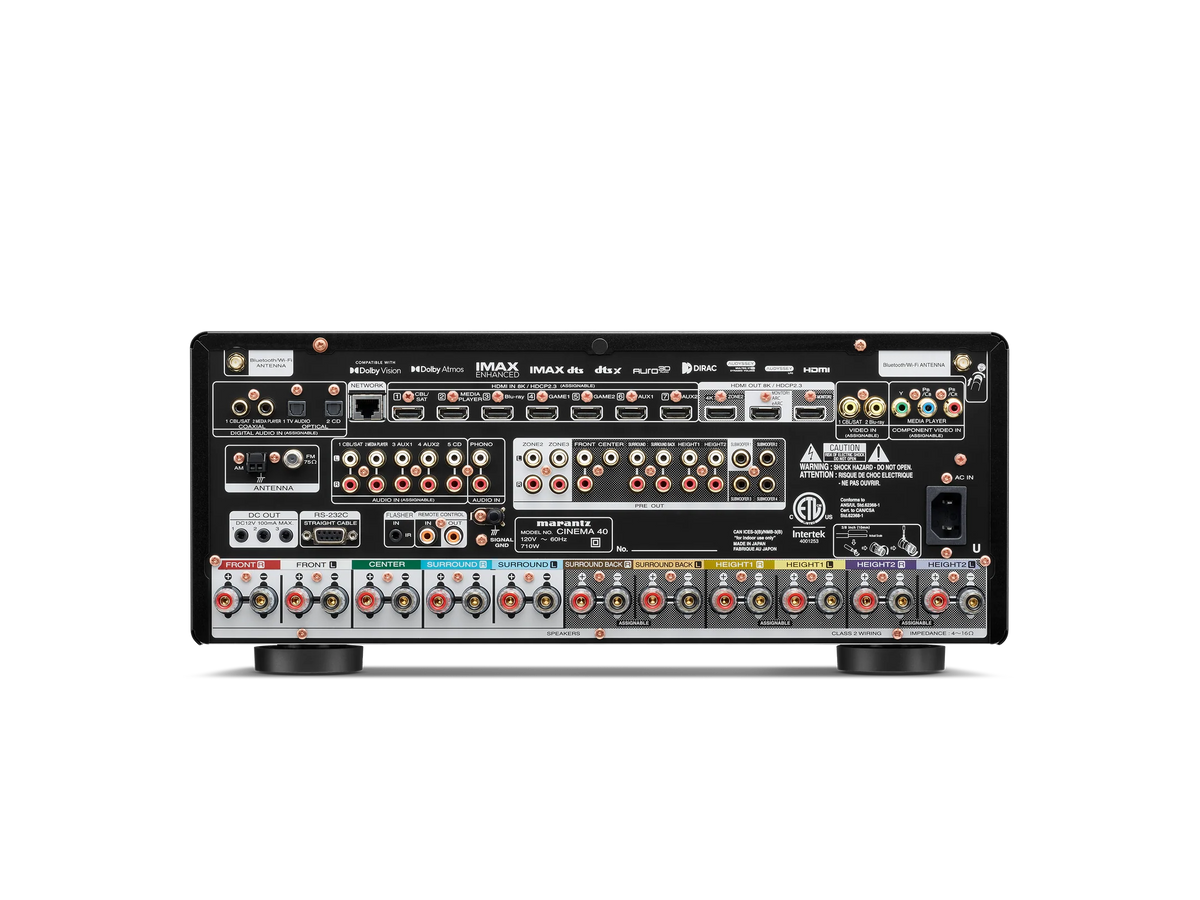

INPUTS/OUTPUTS
Composite Input/Output | 2 / 0 |
Component In/Out | 1 / 0 |
HDMI Input/Output | 7 / 3 |
Multiroom video output via HDMI | Yes |
Analog input / fixed level output | 6 in / 0 out |
Phono input (MM) | Yes |
Digital Inputs: Optical / Coaxial | 2 / 2 |
Multiroom Output: Analog / Digital | 2 / 0 |
Multi-channel preamplified output | 11.4 |
Subwoofer output | 4 (independent) |
Multi-channel input 7.1 | Yes |
Number of speaker terminals | 11 |
Acoustic speakers A/B | assignable |
Terminals for Multiroom loudspeakers | assignable |
Front entrances | USB-A |
USB Audio | Yes |
FM Tuner with RDS | |
DAB+ radio tuner | No |
HDMI
Total number of HDMI inputs / Number of inputs that support 8K | 7 / 7 |
Support HDCP2.3 | Yes |
HDMI outputs: Main / Zone | 2 / 1 |
Video conversion from analog to HDMI | Yes |
HDMI upscaling | 1080P/4K to 8K |
Maximum resolution @ framerate | 8K @ 60Hz, 4K @ 120Hz |
Audio Return Channel | eARC extension |
Video dynamic range | HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
ALLM (Auto Low Latency Mode) pass-through for gaming | Yes |
Variable Refresh Rate / Quick Frame Transport | Yes, yes |
HDMI pass-through in standby mode | Yes |
CEC | Yes |
DSD audio over HDMI | Yes |
Auto LipSync | Yes |
