Mono power amplifier with bipolar transistors and VOLTAiR technology: 420 W into 8 ohms, 750 W into 4 ohms. Price per unit.
Performer m1000: the design
The Performer m1000 is a mono power amplifier: a stereo system needs two. It reaches 1,000 W into 2 ohms, with a 1,375 VA shielded toroidal transformer and one hundred 1,000 µF filter capacitors. The XLR input also has a through output for bi-amping; the front plate is magnetic and interchangeable.
Like the other SPL components it uses VOLTAiR technology: the audio circuits run on ±60 V rails, with discrete op-amps of SPL's own design and a shielded toroidal transformer.
Specifications
- Power: 420 W into 8 ohms, 750 W into 4 ohms, 1,000 W into 2 ohms
- Connections: XLR input and output
- Input sensitivity: adjustable from 0 to −5.5 dB
- Protection: DC and overload, with front-panel LEDs
- Trigger: 12 V
- Power supply: 1,375 VA toroidal
- Dimensions (W × H × D): 278 × 205 × 375 mm
- Weight: 24.8 kg

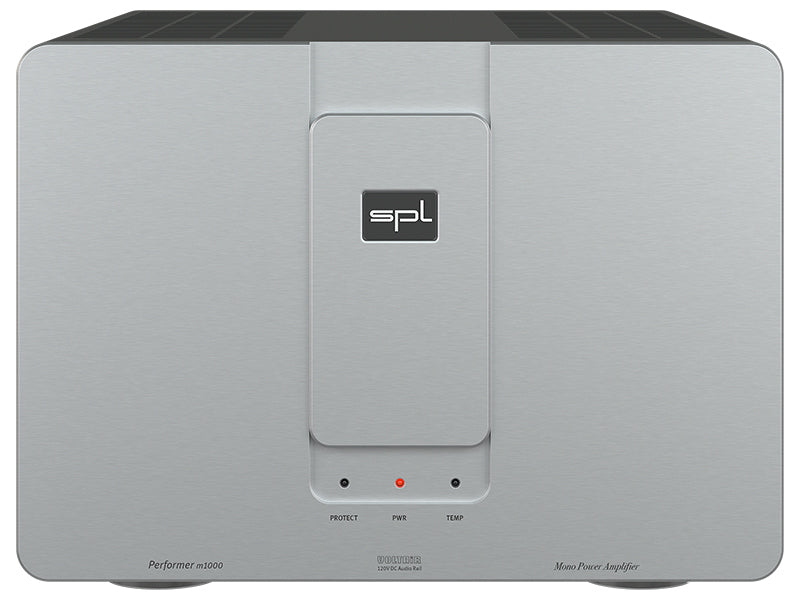

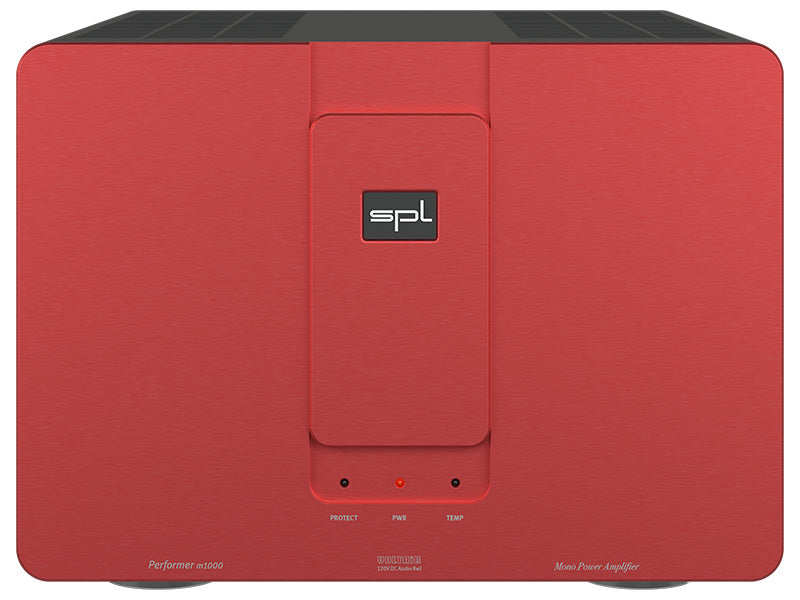

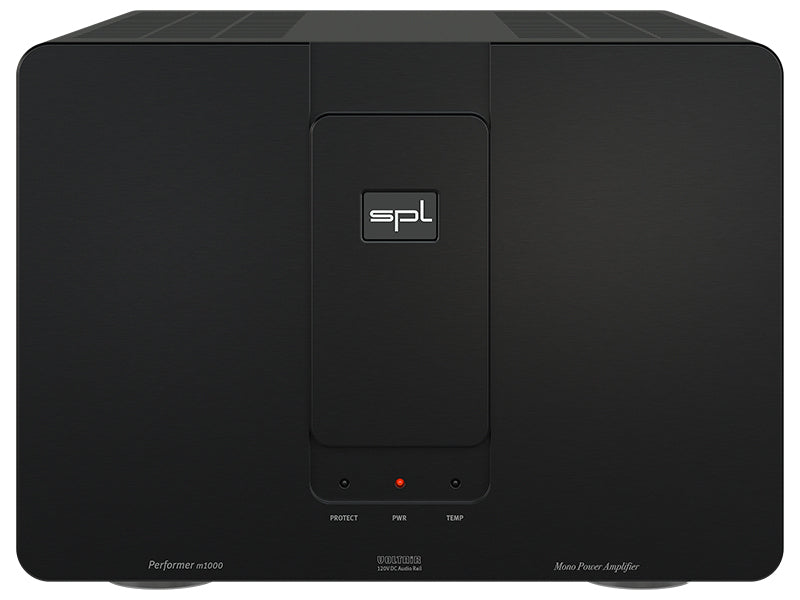

- Finishes: black, silver, red, with an interchangeable magnetic front plate
