Stereo power amplifier with bipolar transistors and VOLTAiR technology: 2 × 185 W into 8 ohms, 450 W in bridged mono.
Performer s800: the design
The Performer s800 has an 855 VA shielded toroidal transformer and six 6,800 µF filter capacitors. The XLR input also has a through output, for connecting a second power amplifier for bi-amping.
Like the other SPL components it uses VOLTAiR technology: the audio circuits run on ±60 V rails, with discrete op-amps of SPL's own design and a shielded toroidal transformer.
Specifications
- Power: 2 × 185 W into 8 ohms, 2 × 285 W into 4 ohms, 450 W bridged

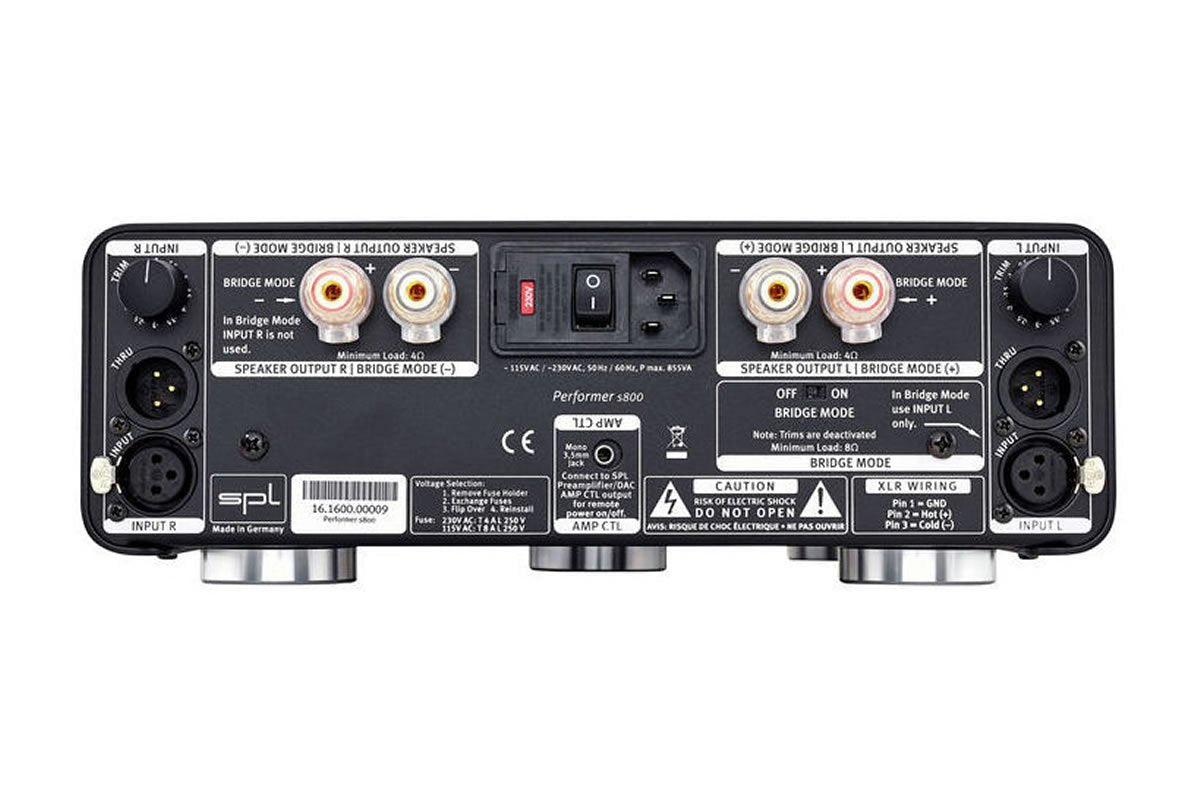

- Connections: XLR input and output
- Input sensitivity: adjustable from 0 to −5.5 dB
- Protection: DC and overload, with front-panel LEDs
- Trigger: 12 V
- Power supply: 855 VA toroidal
- Dimensions (W × H × D): 278 × 100 × 375 mm
- Weight: 12.8 kg

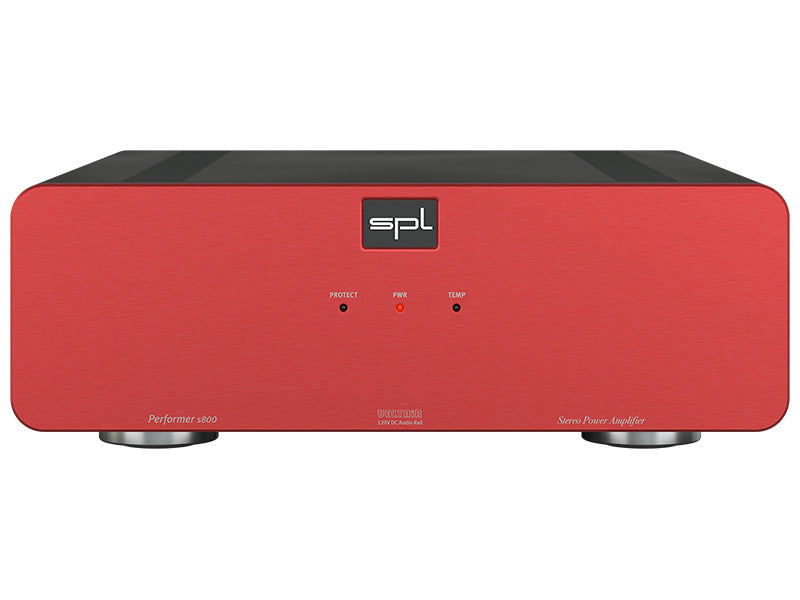

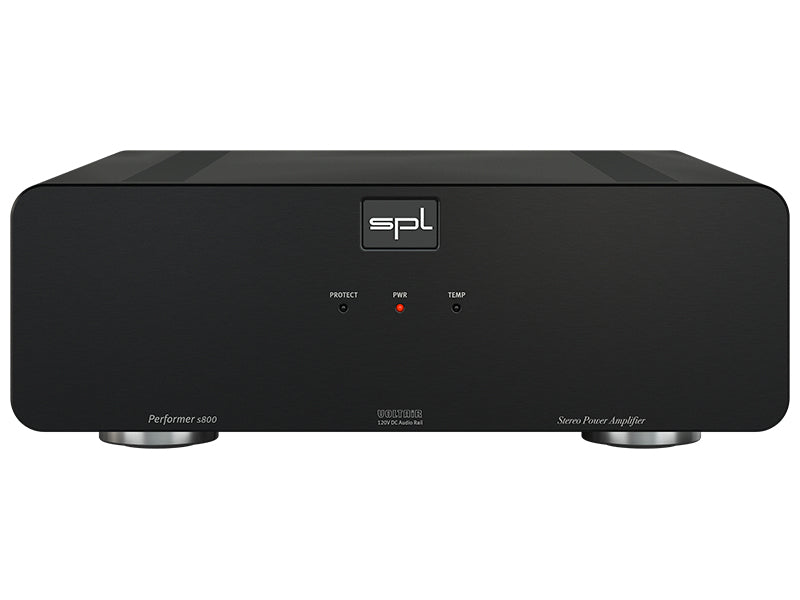

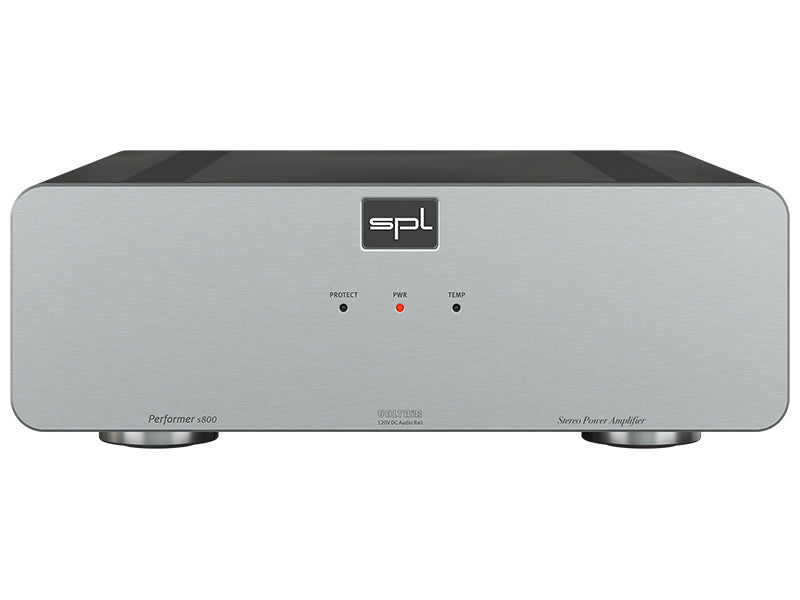

- Finishes: black, silver, red
