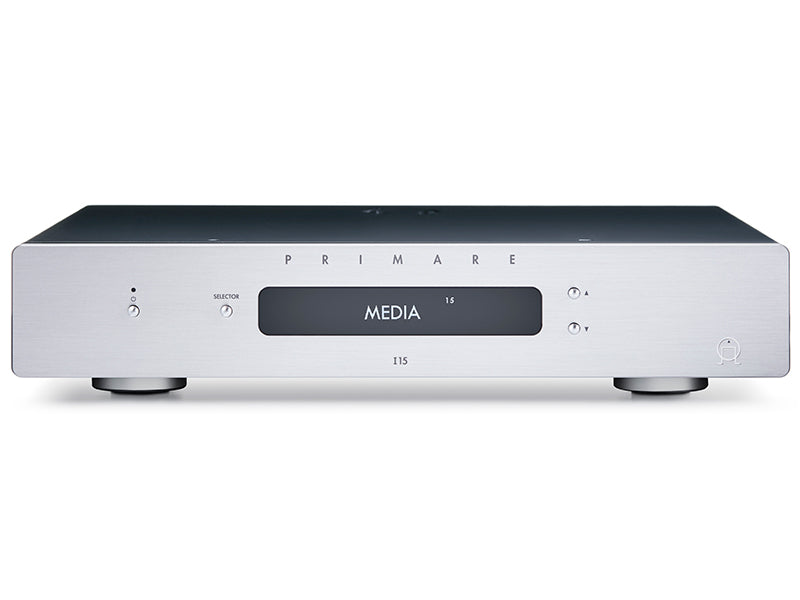

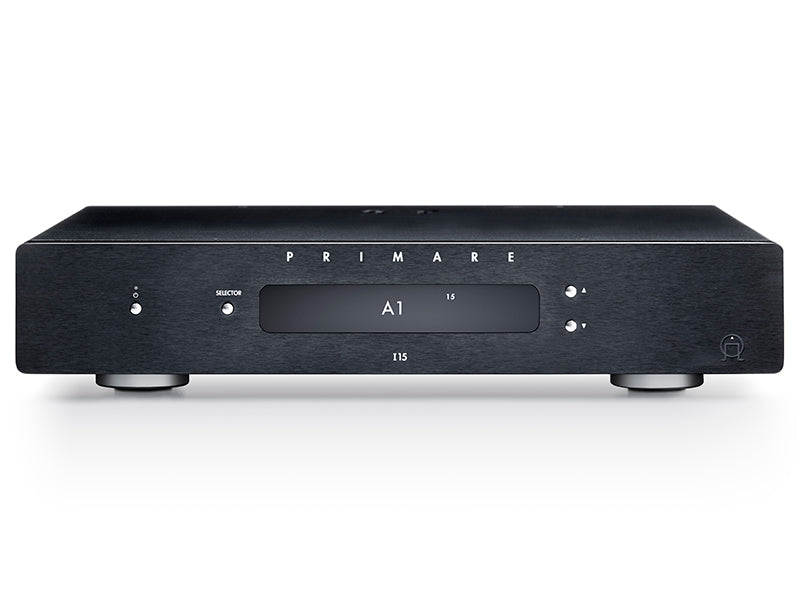

Introduction to the Integrated Amplifier
The integrated amplifier presented here offers a power of 60+60 W RMS into 8 ohms , thanks to its Hypex Class D technology . It stands out for its versatility and high-quality audio performance.
Complete Connections
With 5 analog RCA inputs and 2 RCA outputs (one fixed and one variable pre-out), this amplifier offers multiple connection options for integrating different audio sources. The presence of the RS-232 port and 12V triggers and 3.5mm IR IN/OUT further expand the control and integration possibilities.
OLED Display for Intuitive Navigation
The OLED graphic display provides a clear indication of the selected source, volume level, and other useful information. This makes navigating and controlling the amplifier's settings extremely intuitive.
Integrated MM15 Phono Card
The amplifier features a built-in MM15 phono stage , allowing for vinyl playback with exceptional audio quality. This additional option increases its flexibility and adaptability to the user's needs.
Energy Efficiency and Compact Size
With a standby power consumption of just 0.5W , this amplifier is also eco-friendly and energy efficient. Its compact size (35x7.3x34cm) makes it ideal for any home space without sacrificing performance.
| Technology
|
Class D, Hypex technology |
| Power
|
60+60 W RMS into 8 ohms |
| Analog Inputs
|
5 RCA analog inputs |
| Analog Outputs
|
2 RCA outputs (one fixed and one variable pre-out) |
| Control Connections
|
RS-232 socket, 12V trigger, IN/OUT IR 3.5mm |
| Display
|
OLED graphic display for source, volume and info indication |
| Integrated Phono Card
|
MM15 Phono card on board |
| Standby consumption
|
0.5W |
| Remote control
|
C25 remote control |
| Dimensions (WxHxD)
|
35x7.3x34cm |
