Total power and control for distributed audio

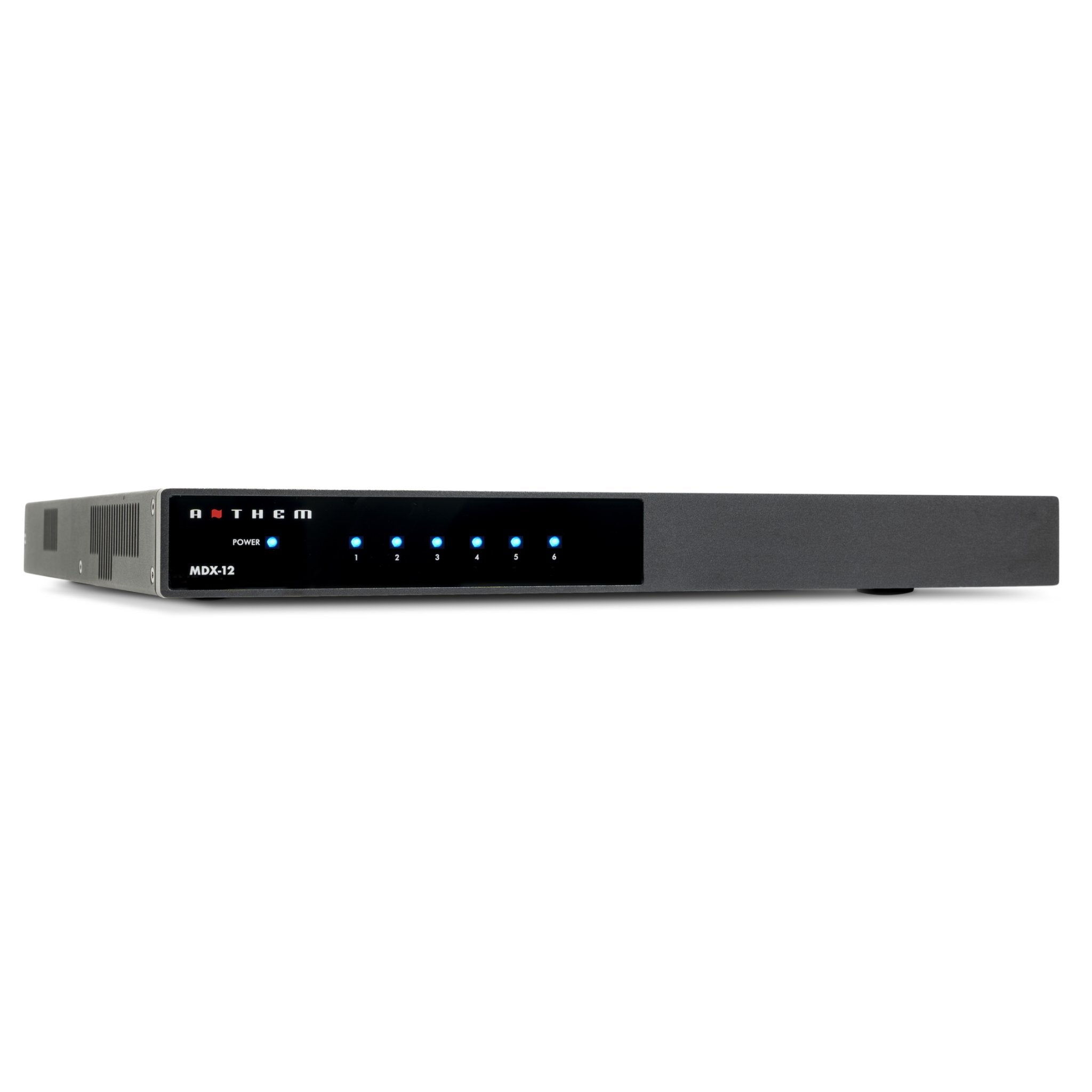

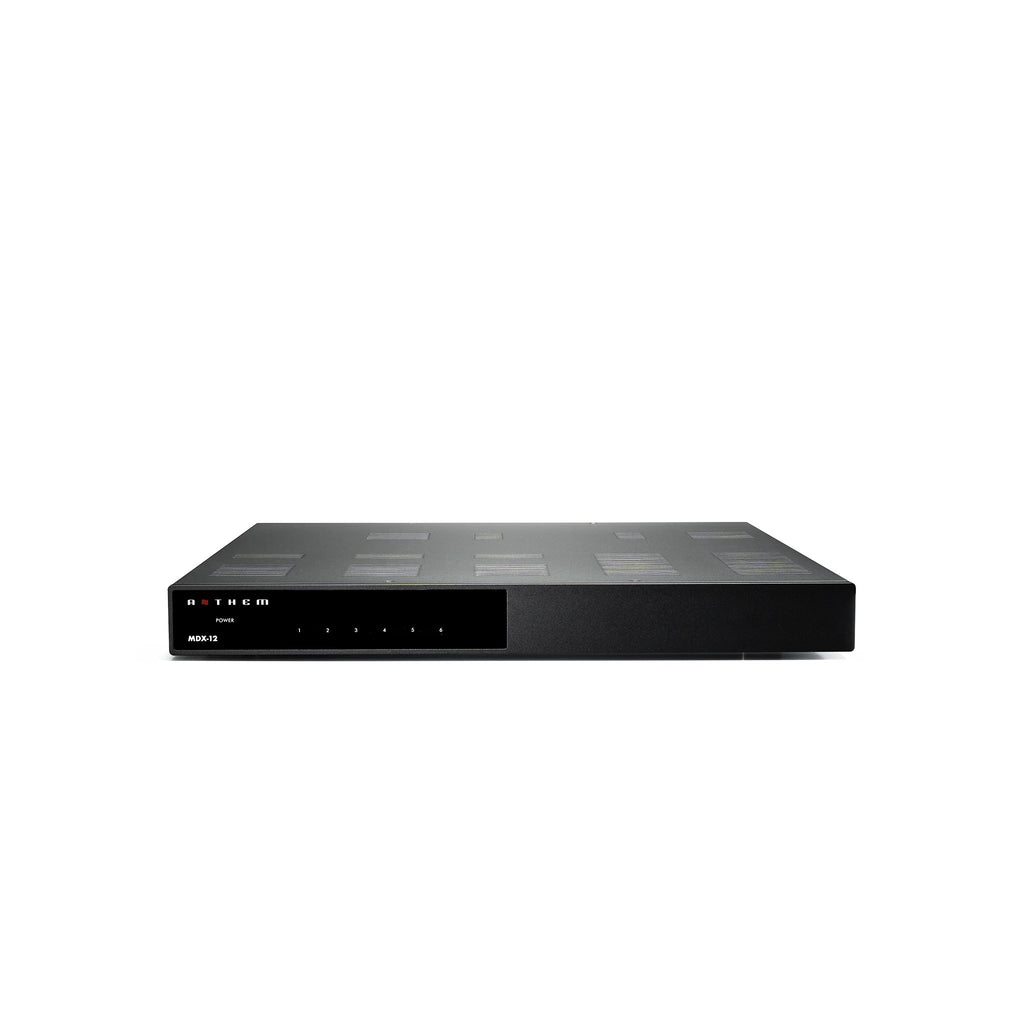

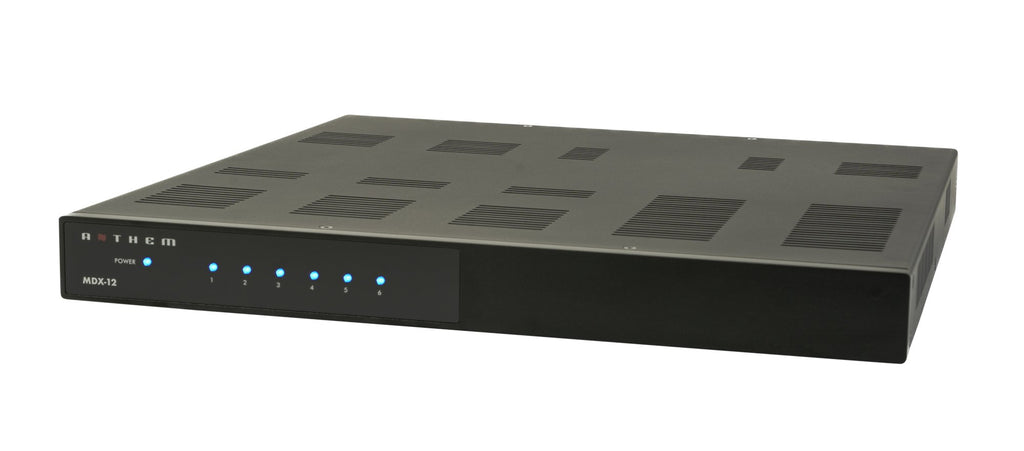

The Anthem MDX-12 is a multi-channel amplifier designed to deliver power, efficiency, and ease of installation in multi-room and home theater systems. With 12 channels of 75W into 8 ohms (or 150W into 4 ohms ), this model guarantees professional-level performance and pure, dynamic sound reproduction . Channels can be bridged , reaching 280W into 8 ohms , to suit any power requirement.

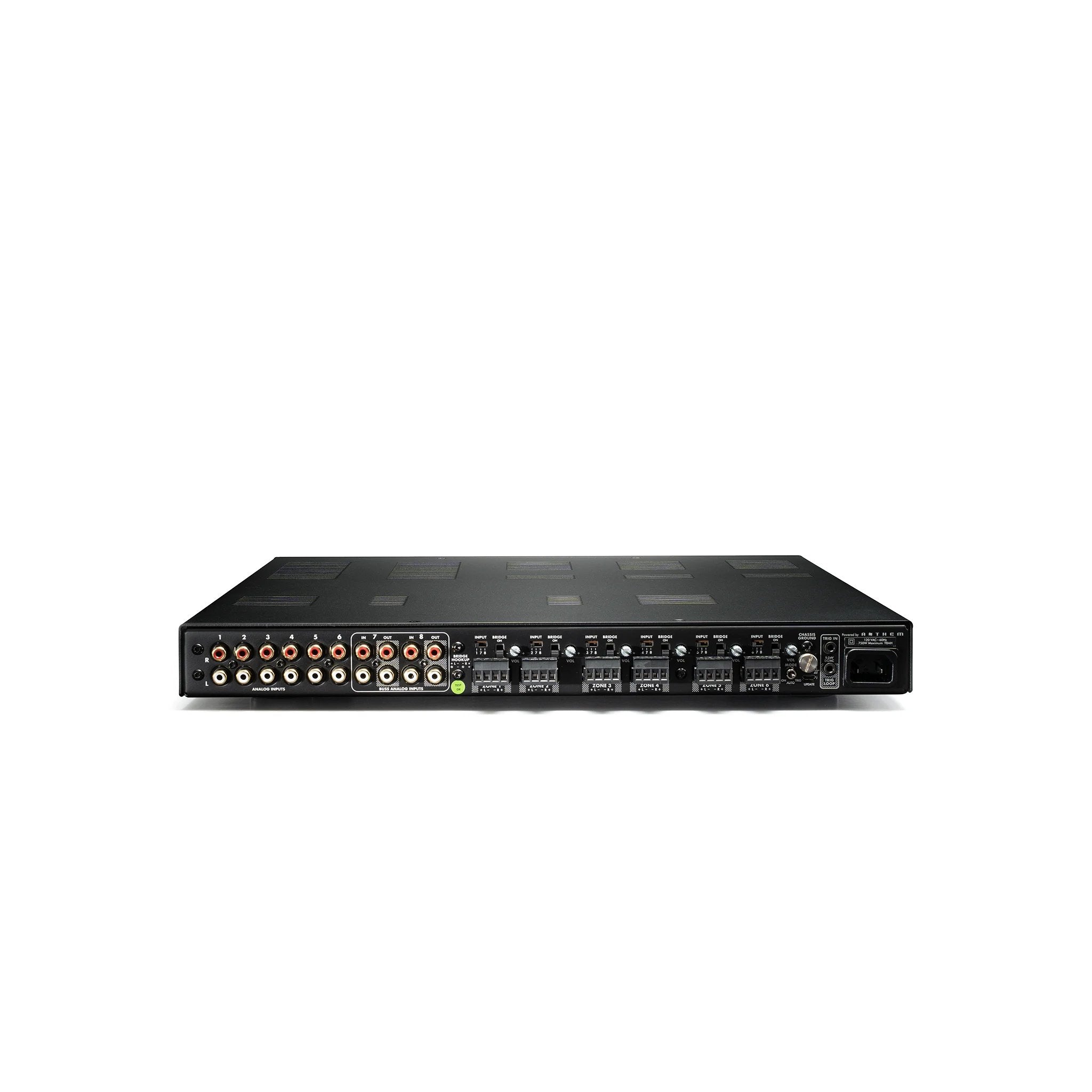

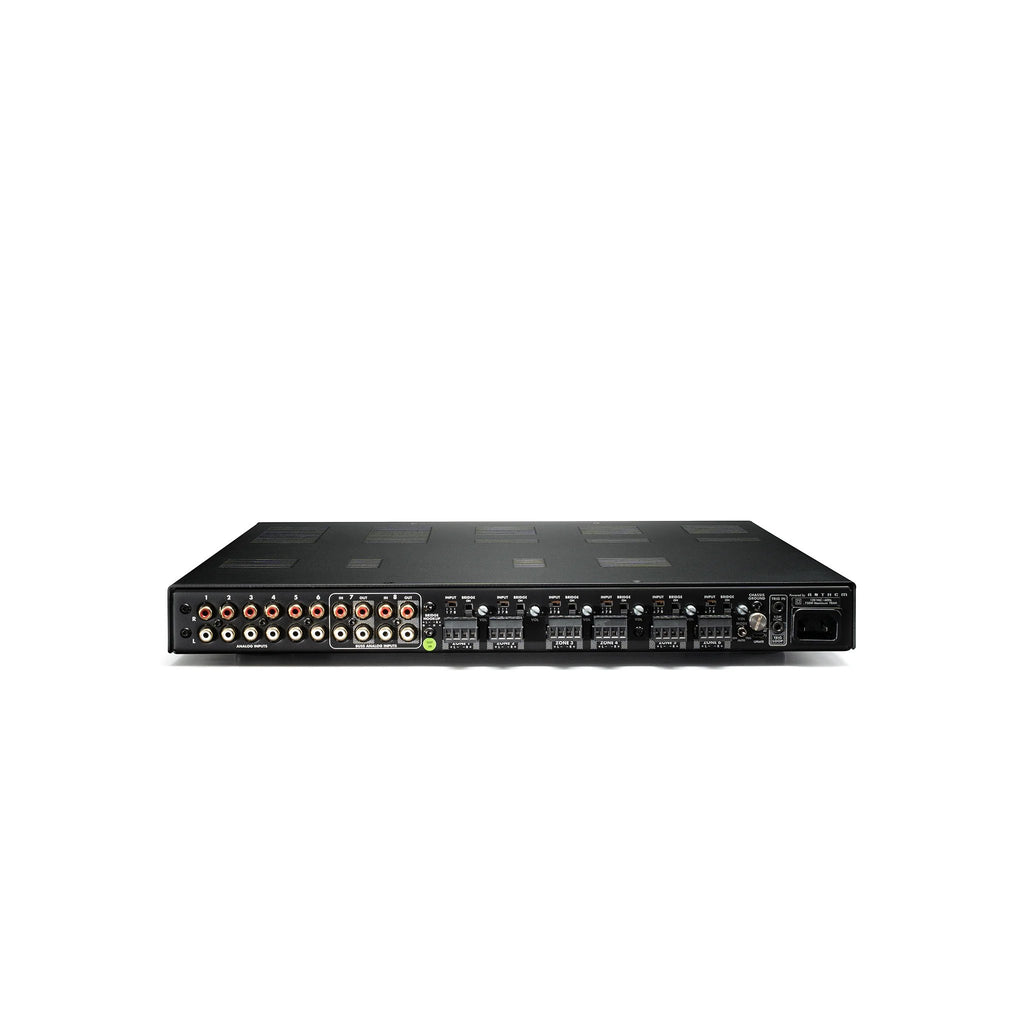

Forgoing the internal matrix switching found in the MDX-8 and MDX-16, the MDX-12 offers six dedicated zone analog inputs and two selectable global analog inputs , allowing for maximum freedom in configuration with external sources and matrices. The Ultra-Class-D architecture and the Advanced Load Monitoring (ALM) system ensure efficiency, reliability and stability even with demanding loads , always maintaining impeccable audio quality .
Compact size and surprising power
Despite its extremely compact size (1U rack) , the Anthem MDX-12 integrates a highly efficient 1,000 W power supply , capable of providing continuous and stable current to all channels without overheating. The fan-controlled cooling maintains constant operating temperatures even in the most demanding environments, ensuring consistent performance over time .
Its robust and compact structure makes it ideal for both discreet residential installations and professional multi-zone systems , where reliability, silence and power must coexist.
Anthem engineering and superior quality
Unlike ordinary distribution amplifiers, the MDX-12 embodies the Anthem philosophy of putting sound quality first . With extremely low distortion (0.002% THD) , precise power supply, and construction designed entirely in Canada , the MDX-12 sets a benchmark in the distributed audio industry .
Every construction detail is designed to offer transparency, dynamics and absolute fidelity , both in music listening and in home theater applications.
Uncompromising safety and reliability
The MDX-12 is equipped with built-in protection systems against overcurrent, overvoltage, and overheating. Multiple thermal sensors constantly monitor the board's temperature, protecting both the amplifier and the connected speakers. These solutions ensure safe and continuous operation even in the most complex and prolonged systems.
Technical Data Sheet
| Typology |
Multi-channel amplifier for multi-room and home theater |
| Channels |
12 |
| Power per channel |
75 W into 8 Ω / 150 W into 4 Ω |
| Power in the bridge |
280 W into 8 Ω |
| Architecture |
Ultra-Class-D high efficiency |
| Total Harmonic Distortion (THD) |
0.002% |
| Signal input |
6 zone analog RCAs + 2 global selectable analog RCAs |
| Speaker terminations |
Terminals compatible with wire up to AWG 12 |
| Diet |
High-efficiency 1,000W power supply |
| Protection |
Integrated circuits versus current, voltage and temperature |
| Cooling system |
Automatically controlled fan |
| Assembly |
1 U rack (kit included) |
| Dimensions (W×H×D)
|
43.2 × 4.4 × 27.9 cm (with brackets) |
| Weight |
5.6 kg |
| Finish |
Black |
