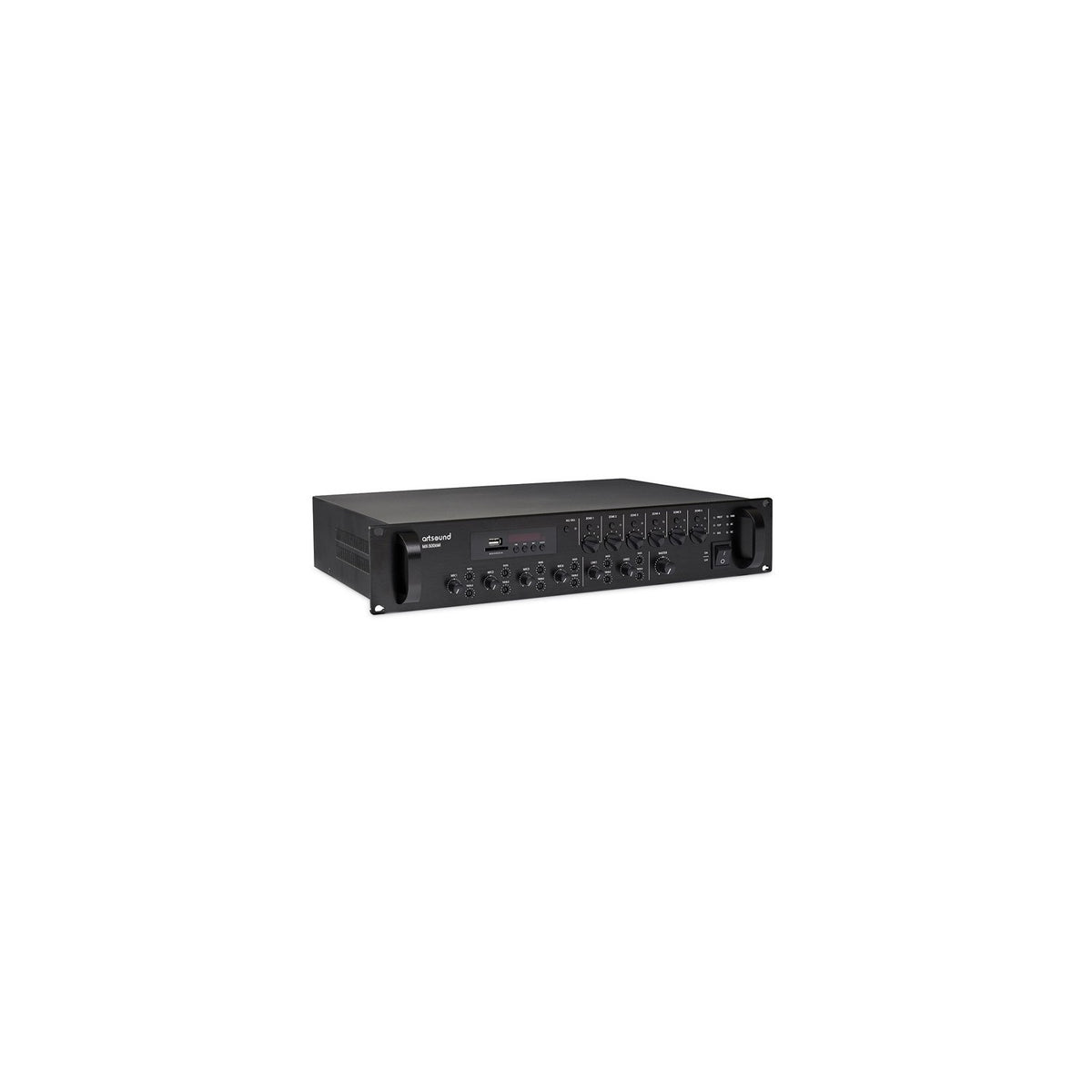

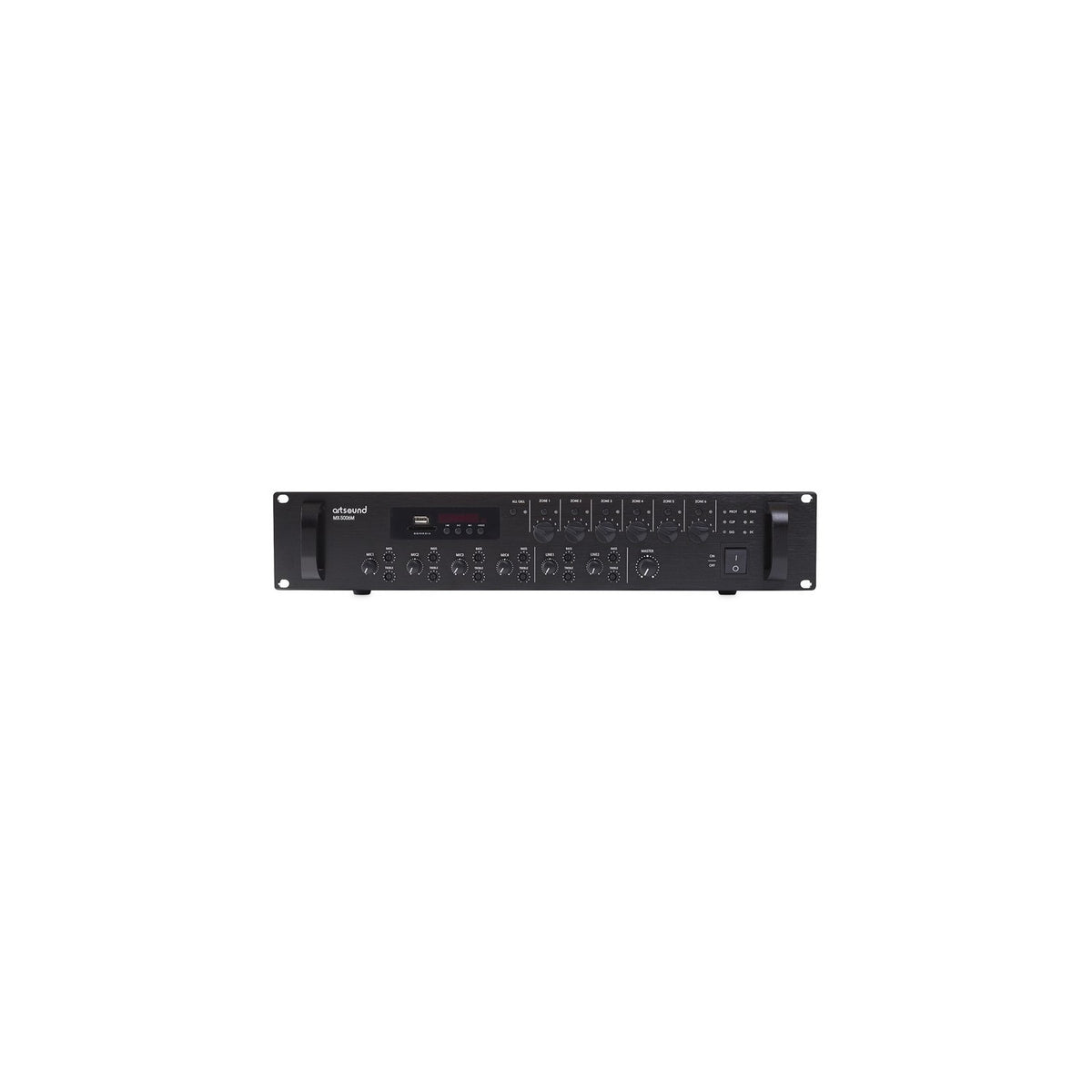

ArtSound MX-5006M: 100 V mixer amplifier with 6 zones, 500 W
The MX-5006M is an integrated mixer amplifier for 100 V installations, in 19-inch rack format, able to deliver up to 500 W. It manages six zones that work independently: each has a volume level of its own and can be called selectively.
The built-in sources are the FM tuner, Bluetooth and the USB/SD player; these are joined by two AUX inputs on RCA and by the microphone inputs, with tone control on every input. The power outputs work on 100 V or 70 V lines, or on loads from 4 to 16 Ohm. Five priority levels govern precedence between announcements and signals; the MIC-216 selective microphone is available as an optional accessory.
Technical features
- Zones: 6, with independent volume
- Power: 500 W RMS into 8 Ohm, 500 W on a 100 V line
- Power outputs: 4-16 Ohm, 70 V, 100 V; line output present
- Microphone inputs: 4 XLR/jack combo plus 2 RJ45 for selective paging
- AUX inputs: 2 on RCA
- Built-in sources: FM tuner, Bluetooth, USB/SD
- Priority: 5 levels (EMC input, built-in alarm, TEL input and MIC-216 remote microphone, chime, MIC1)
- Frequency response: 50 Hz to 16 kHz
- Supply: 240 V AC or 24 V DC, consumption 360 W; dimensions 88 mm by 484 mm by 353 mm; weight 7.2 kg per piece
Available versions
Sold as a single unit.
