The three-way Signature centre completes a 700 S3 front stage.
The HTM71 S3 Signature retains the standard model's driver layout while revising specific parts.

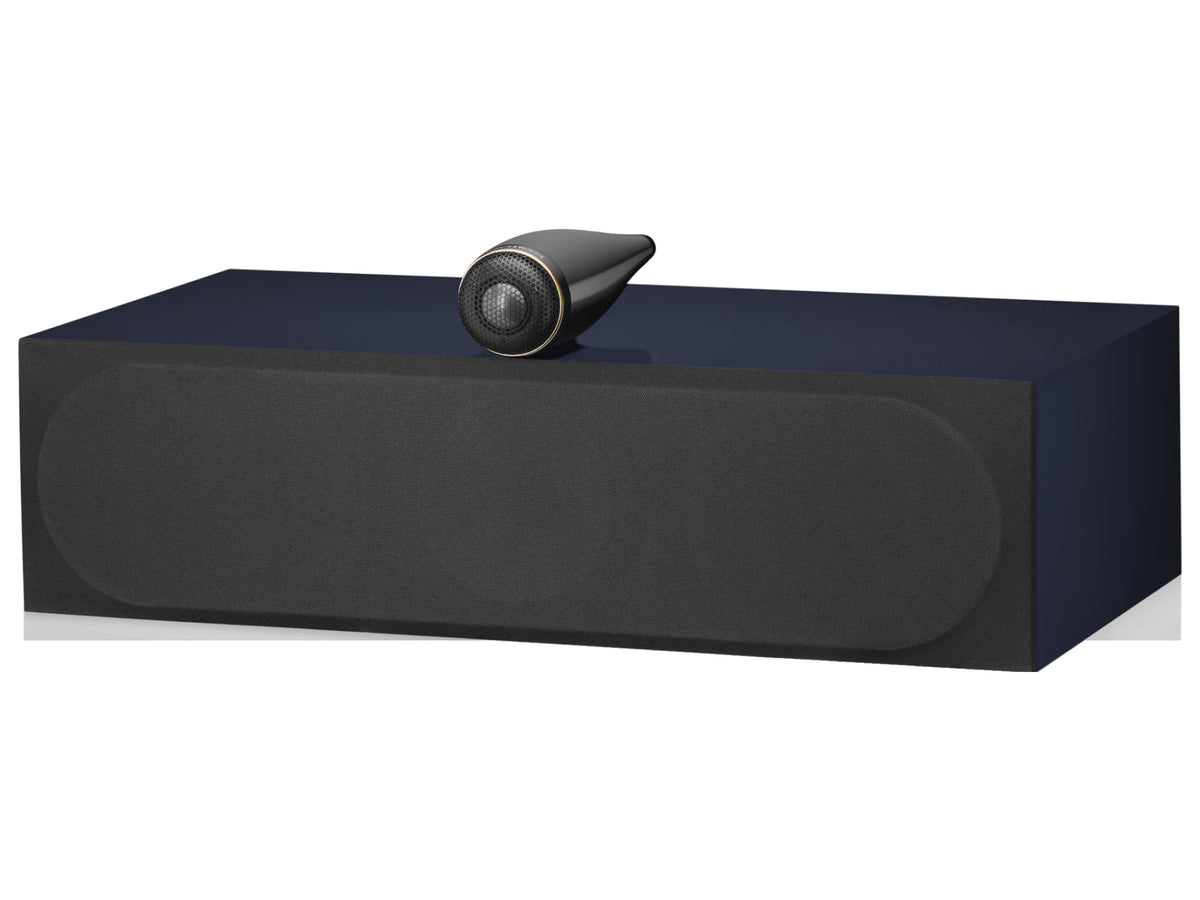

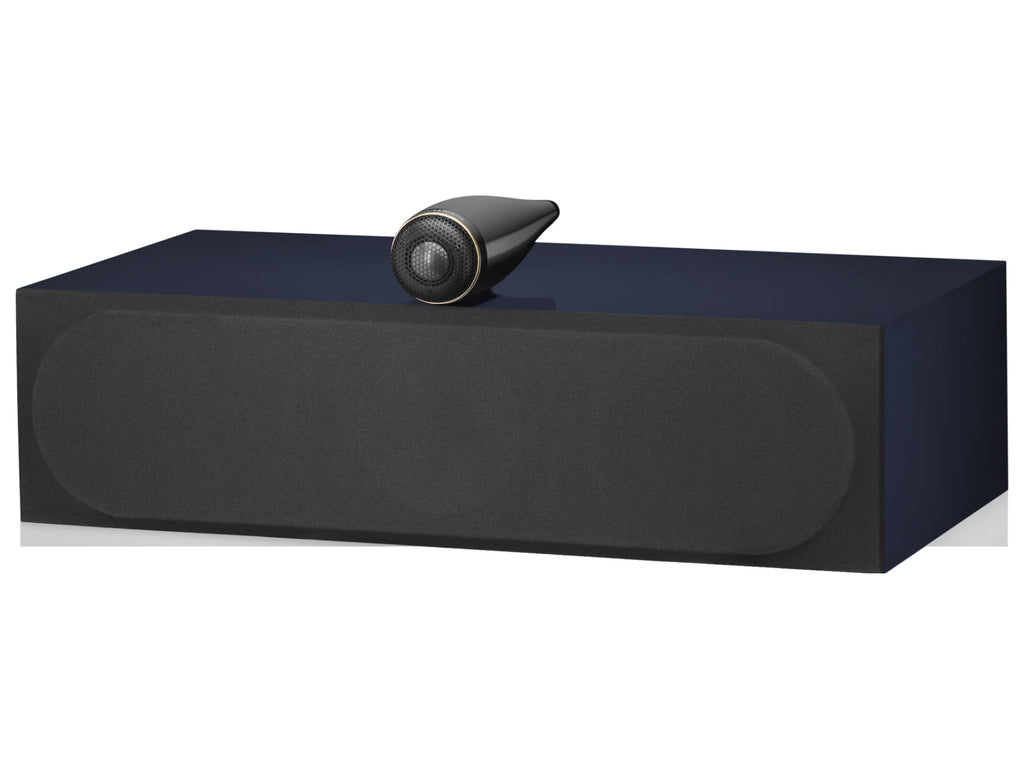

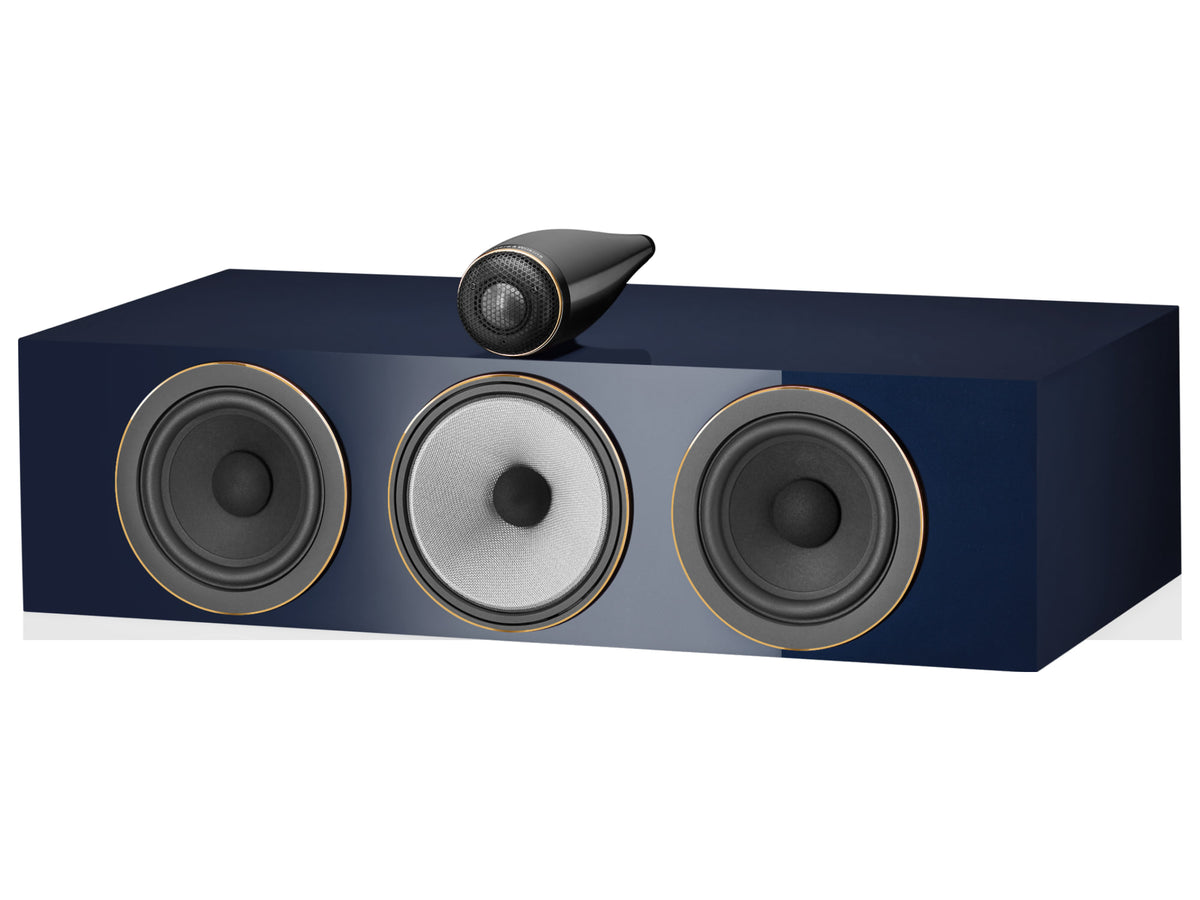

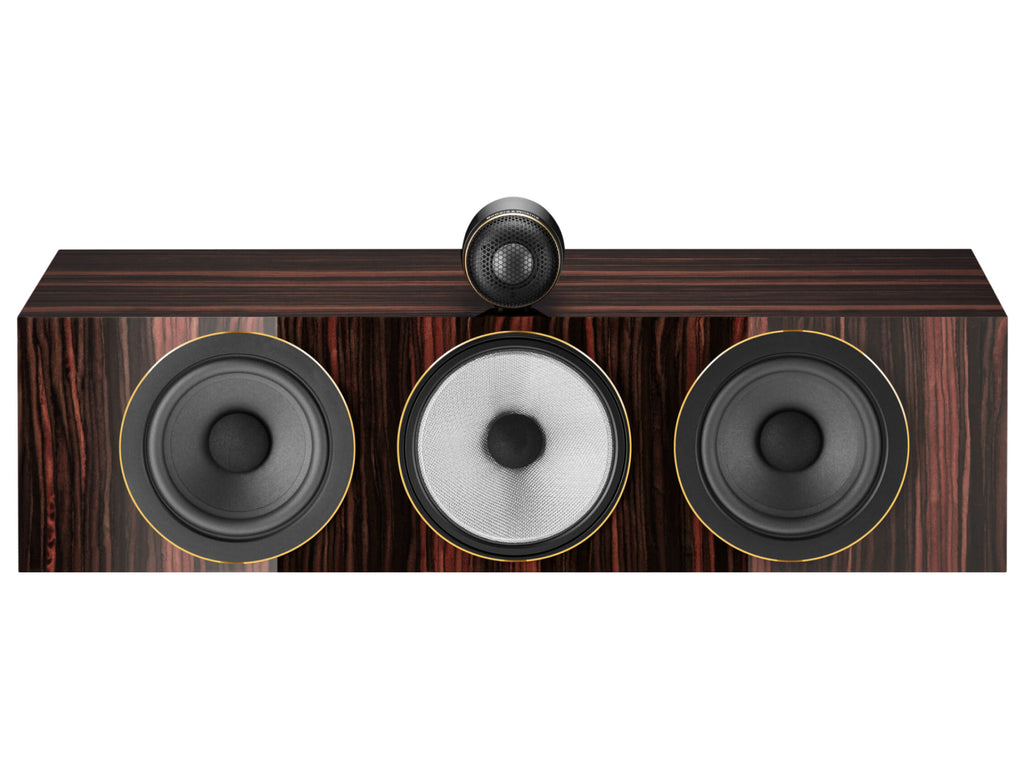

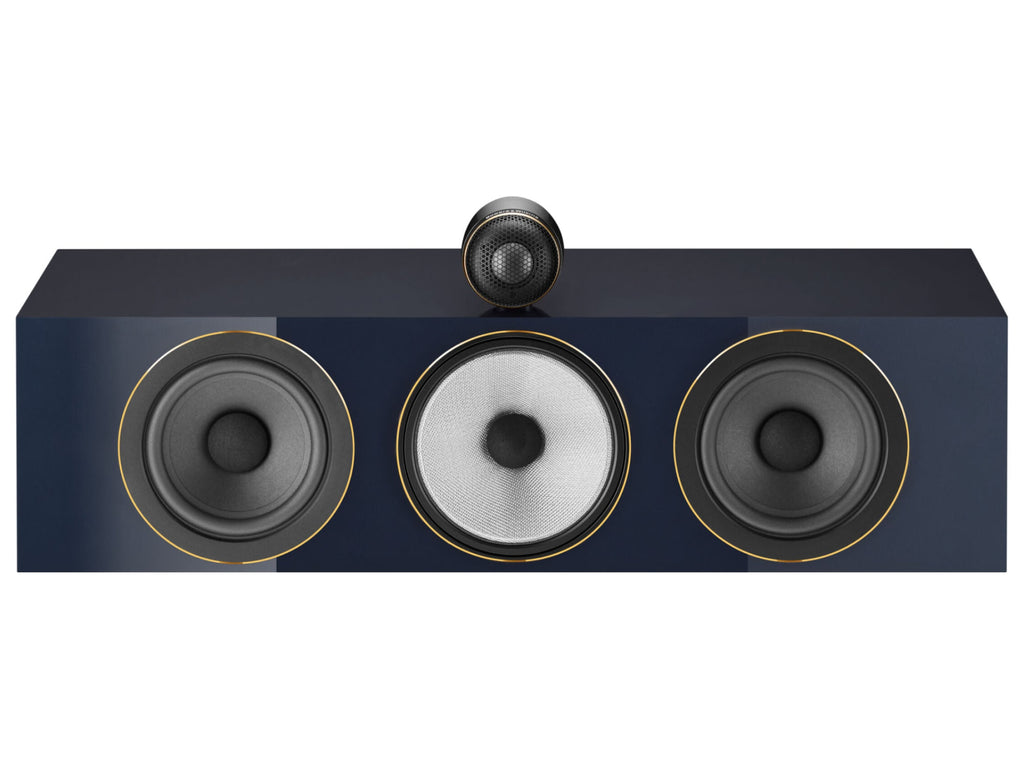

The single Bowers & Wilkins HTM71 S3 Signature is a horizontal centre with a 130 mm Continuum FST midrange, two 130 mm Aerofoil woofers and a Carbon Dome tweeter above the cabinet. Against the regular HTM71 S3, its bass motors, capacitors, terminals and protective tweeter mesh change. The three-way allocation of drivers remains.
Key features
- Three-way centre with a 25 mm Carbon Dome in Solid Body Tweeter-on-Top
- 130 mm Continuum FST midrange and two 130 mm Aerofoil woofers
- Revised bass motors, capacitors, terminals and tweeter mesh
- Response 50 Hz-28 kHz (±3 dB), sensitivity 89 dB; 8-ohm impedance (3.1-ohm minimum)
- Recommended 30-200 W; 233 × 628 × 356 mm with tweeter, grille and terminals; 18.50 kg
Dialogue at the centre
A dedicated midrange handles voices without assigning the whole band to the twin woofers. Solid Body Tweeter-on-Top keeps the dome physically apart from the main baffle. Signature changes reach components and drivers rather than only the exterior. The shorter HTM72 S3 has two Continuum bass/midrange units in a two-way arrangement and no top housing.
Space beneath the screen

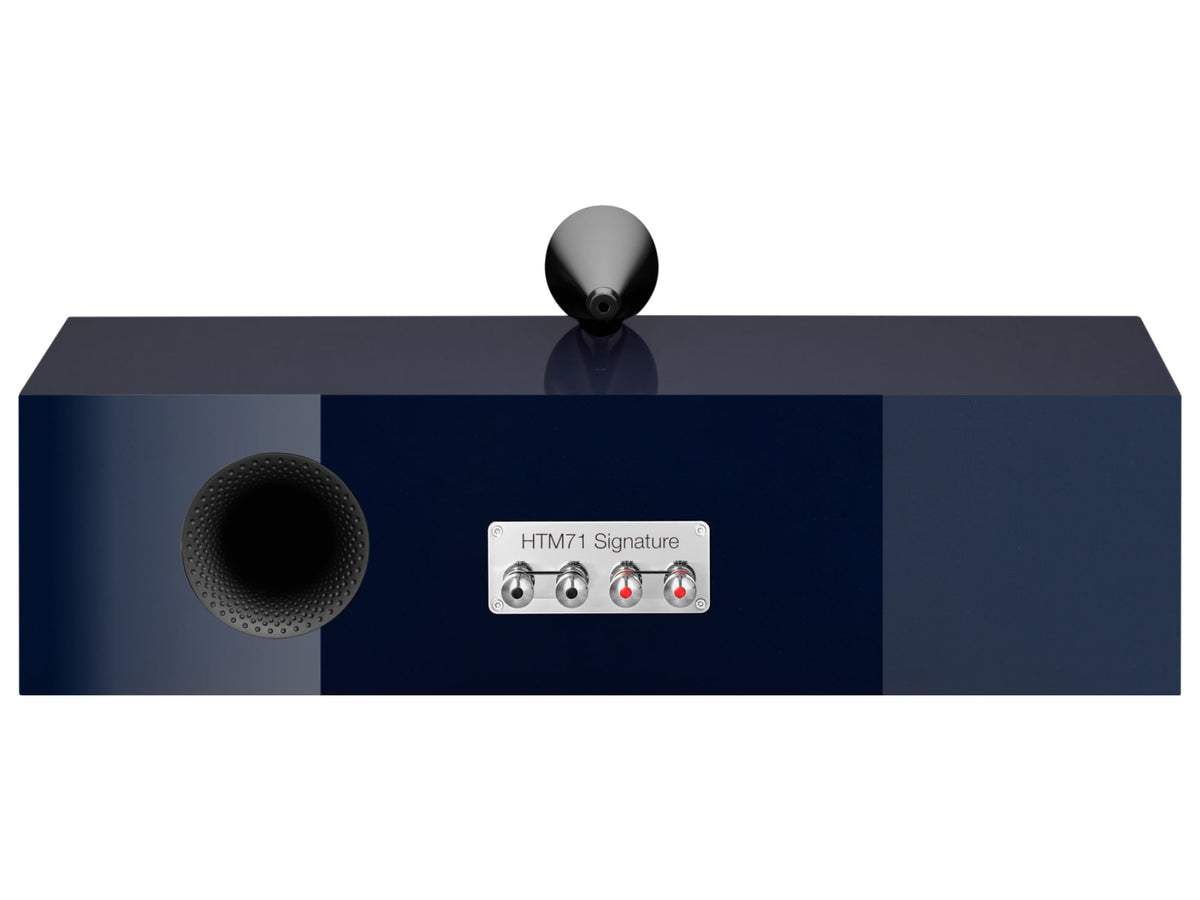

The cabinet measures 165 × 628 × 318 mm. Height reaches 233 mm with the tweeter, while depth is 356 mm with grille and terminals. A shelf must support 18.50 kg. Place the centre in relation to the screen while leaving headroom for the tweeter module and access to the rear connections.
The ±3 dB response is 50 Hz-28 kHz, sensitivity is 89 dB and recommended amplification 30-200 W into 8 ohms. Its 3.1-ohm impedance minimum matters for amplifier choice. These headline figures match the regular centre: the component revisions and weight increase from 17.45 to 18.50 kg identify this version more clearly.
