Slim HDBaseT receiver, up to 70 m

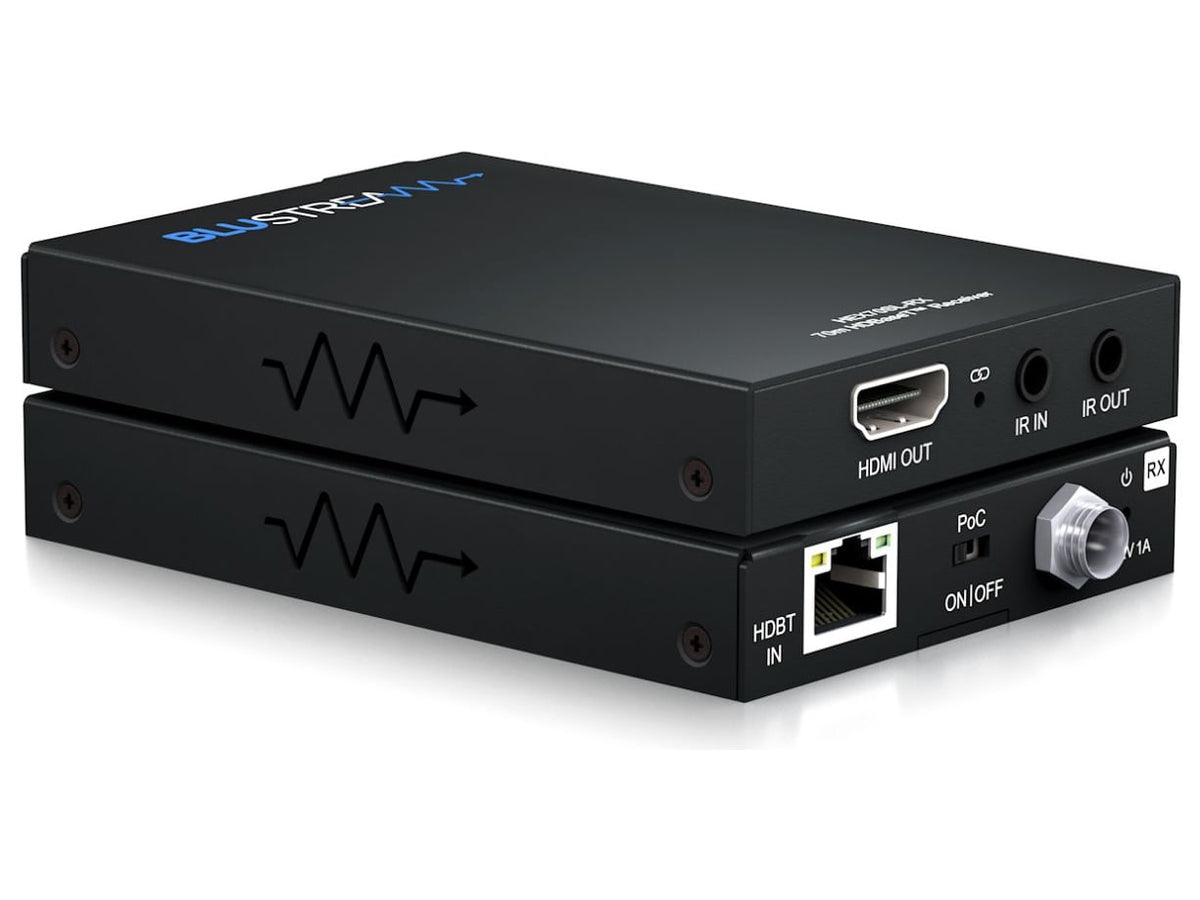

The Blustream HEX70SL-RX is a compact HDBaseT receiver that takes the HDMI signal of a compatible transmitter or matrix off the network cable and hands it to the display.
Its housing is very thin, just 16 mm, and fits easily behind a TV or inside a cabinet. Video and audio arrive uncompressed and without delay: up to 70 m at 1080p and up to 40 m in 4K. IR commands travel in both directions, so sources located away from the room with the screen can still be operated. The receiver can be powered by the transmitter through the cable (PoC) or can power the transmitter itself; the 12 V adapter is not included, and no IR receiver or emitter is in the box.
Key features
- 1080p up to 70 m on one network cable
- 4K up to 40 m: 3840 x 2160 at 30 Hz and 4096 x 2160 at 24 Hz in 4:4:4, or 4K at 60 Hz in 4:2:0
- From VGA-WUXGA computer resolutions to video formats from 480i up to 4K
- Bitstream multichannel surround audio, object-based formats included
- Two-way IR
- Two-way PoC with a compatible transmitter; HDCP 2.2
Technical data
HDBaseT input on RJ45, HDMI type A output, IR in on a 3.5 mm stereo jack and IR out on a 3.5 mm mono jack. It runs on 12 V / 1 A or via the cable. It measures 106 x 73 x 16 mm; the box contains the mounting kit and a quick guide.
