Video over IP receiver with scaler and video wall mode for 1 Gb networks

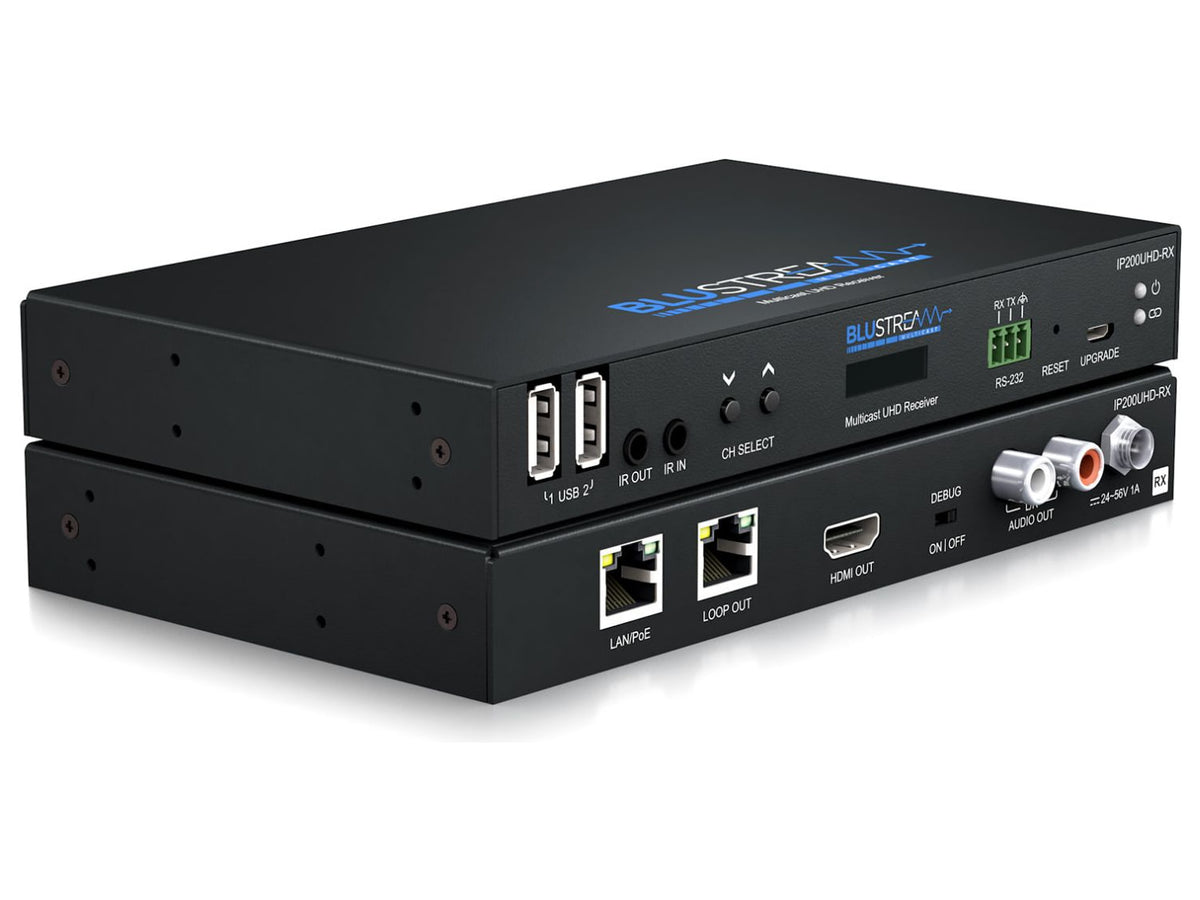

The IP200UHD-RX is the receiver of the IP200UHD multicast platform: it picks up HDMI video from the managed Gigabit network and hands it to the screen, with a delay of a single frame.
The signal arrives with visually lossless compression together with two-way IR, RS-232 and USB/KVM, across up to 100 m of network cable. The built-in scaler raises or lowers the resolution to suit the display, with output up to 4K 30 Hz. Besides matrix distribution and video wall use, both with a Gigabit switch, the unit also works as a plain point-to-point or point-to-multipoint extender with no switch, thanks to its LAN pass-through port. Power comes from the switch via PoE or from a local 24-56 V adapter, sold separately. It is used in commercial and residential settings.
Key features
- Four modes: matrix, video wall, one-to-one and one-to-many extender
- Video upscaling and downscaling, output up to 4K 30 Hz
- Multichannel bitstream audio, object-based formats included
- Video, audio, IR, RS-232 and USB/KVM each routed independently
- Stereo analogue audio output on RCA
- HDCP 2.2 with advanced EDID handling
- PoE draw of 7 W typical, 8.3 W at most
Connections
Network input on RJ45 plus a second RJ45 for signal extension; HDMI type A output; two RCA sockets for left and right analogue audio; 3-pole Phoenix for RS-232; two USB type A for KVM; 3.5 mm minijacks for IR in and out; micro-USB for firmware updates. Size 190 x 114 x 25 mm.
Box contents
Receiver, IRR IR receiver, IR1 IR transmitter, 3-pole Phoenix serial terminal and mounting kit.
