Four-way HDMI 2.0 output card for the Custom Pro matrix

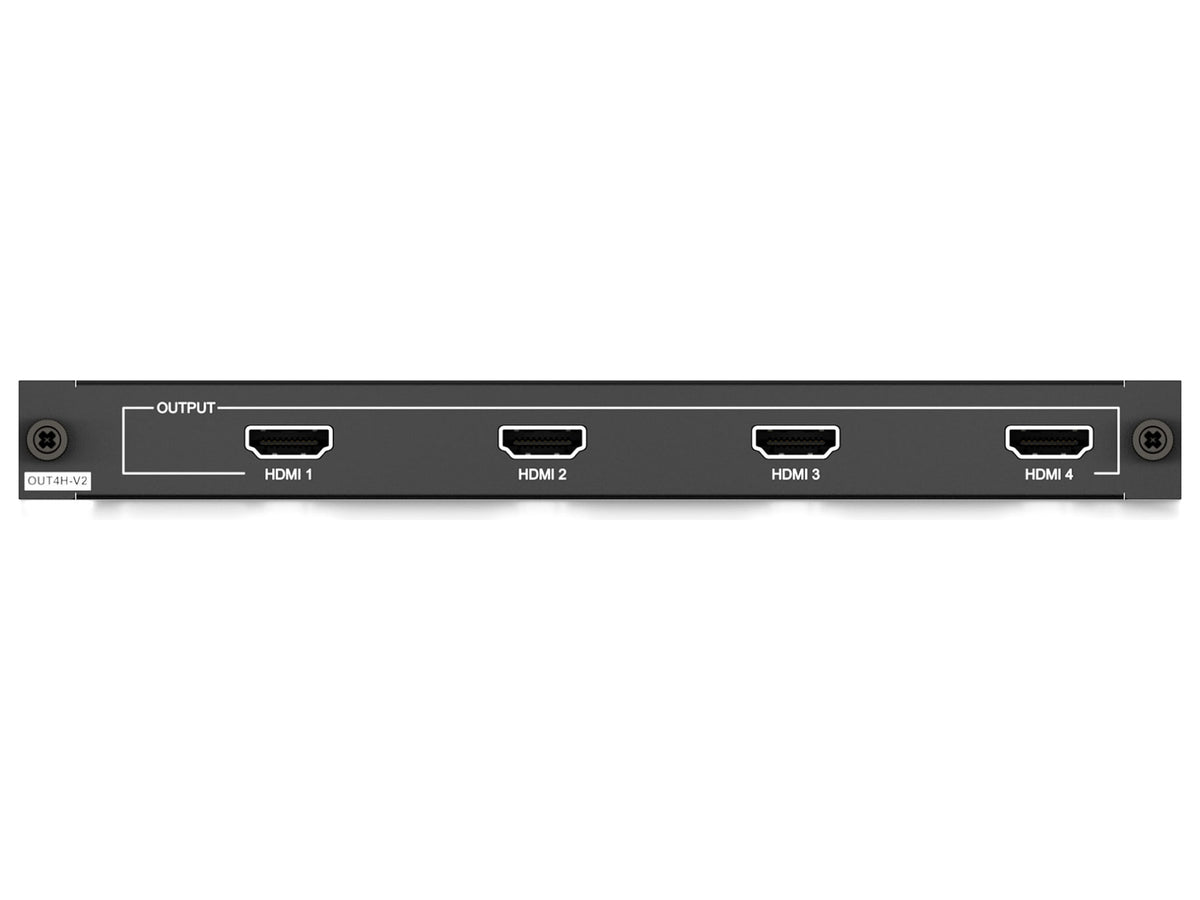

The PRO-OUT4H-V2 adds four independent HDMI outputs to the Custom Pro modular matrix, each one able to drive a screen with signals up to 4K 60Hz in 4:4:4 at 18Gbps.
This is the card to choose when the screens sit close to the matrix and no extension over network cable is needed: sources connected to the input cards are routed to four different displays, with HDR support and HDCP 2.2 content protection. It fits into the chassis without tools thanks to quick-release fittings and can be mixed freely with the other input and output cards of the range, so the matrix is built to the size of the installation.
Key features
- Four 19-pin HDMI Type A outputs
- HDMI 2.0 at 18Gbps with HDR
- Resolution up to 4K UHD 60Hz in 4:4:4
- Pass-through of multichannel and object-based surround formats defined by the HDMI standard
- HDCP 2.2 compatible
Installation
To work at 18Gbps the card has to be combined with an 18Gbps HDMI 2.0 Custom Pro input card. Quick-release fittings make it easy to fill the chassis with the cards required. It measures 182 x 22 x 177mm, 202 x 22 x 188mm with connectors, and weighs 0.5kg packed.
