HDMI 2.0 splitter for two 4K screens with audio breakout

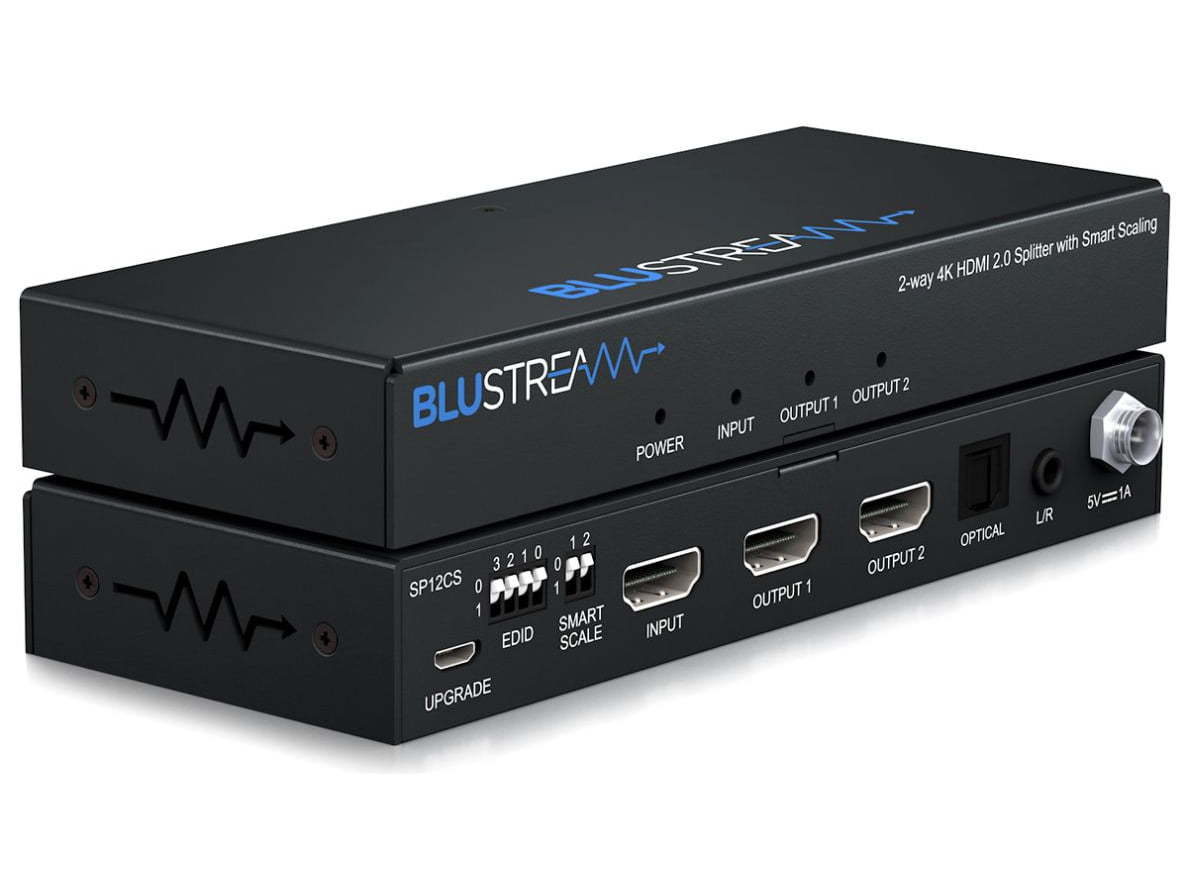

The Blustream SP12CS takes one HDMI source and sends it to two screens at once, in 4K 60Hz in 4:4:4 with HDR and HDCP 2.2, while also extracting the audio.
It is the answer for duplicating a set-top box, player or console on two TVs, or for running a projector next to the main screen. Each output can scale the signal on its own: if one of the two screens only accepts 4K 4:2:0 or 1080p it gets a suitable format, while the other keeps showing full 4K. This is set with a small DIP switch, and a second 4-way switch handles EDID. Audio comes out simultaneously on an optical digital output and an analogue stereo jack, to connect a soundbar or amplifier. CEC commands only pass between the source and the screen on output 1. The splitter is compact and runs from a small 5 V adapter supplied in the box.
Key features
- One HDMI input copied to two HDMI outputs
- 18Gbps HDMI 2.0 with HDR, up to 4K 60Hz in 4:4:4
- Independent scaling for 4K 4:2:0 or 1080p screens
- Resolutions from VGA to WUXGA and from 480i to 4K
- Audio extracted on optical and analogue stereo outputs
- Bitstream of multichannel surround audio, object-based formats included
- Advanced EDID and HDCP 2.2
Technical data
One HDMI Type A input and two outputs, an optical output, an analogue output on a 3.5 mm stereo jack, a 4-way EDID DIP switch and a 2-way one for Smart Scale. It measures 158 x 64 x 23 mm without feet and runs on 5 V 1 A. In the box: power supply, mounting kit and quick guide.
