Four-output 8K HDMI 2.1 splitter with two selectable inputs

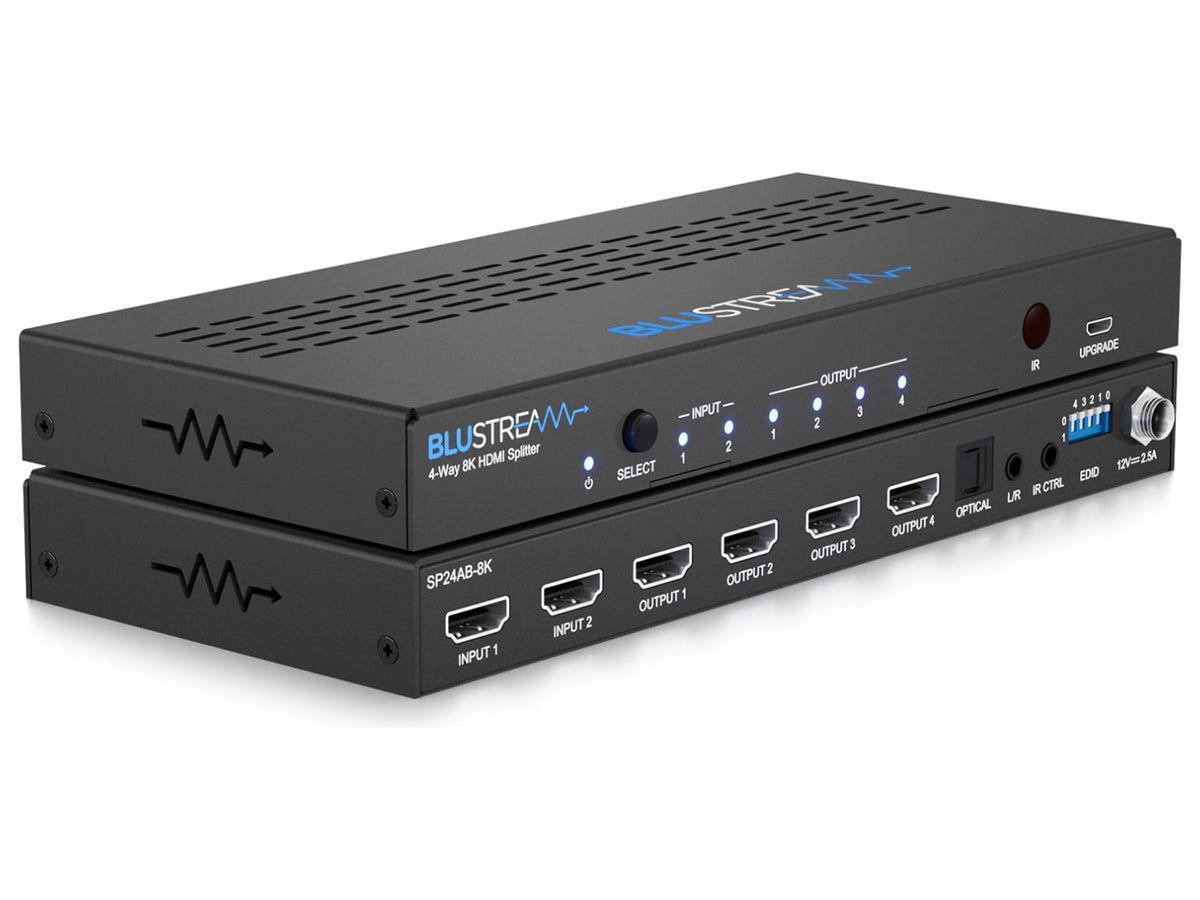

The Blustream SP24AB-8K picks one of two HDMI 2.1 sources and copies it to four outputs at once, handling signals as demanding as 8K 60Hz or 4K 120Hz.
It is meant for systems where sources and screens already rely on HDMI 2.1, such as current-generation consoles, players and 8K or high frame rate 4K TVs. Bandwidth reaches 40Gbps with HDR, and ALLM (auto low latency mode) and VRR (variable refresh rate) also pass through, both useful for gaming. Switching between the two inputs happens on its own, when the splitter senses the 5 V of a newly connected source or a fresh TMDS signal, or by hand with the IR remote supplied or the front buttons. Audio can be taken out on an analogue output and an optical S/PDIF output, to bring in an amplifier or sound system. It handles HDCP 2.3 and offers advanced EDID management.
Key features
- Two selectable HDMI 2.1 inputs, four HDMI outputs
- At 10-bit: 8K 60Hz in 4:2:0, 8K 30Hz in 4:4:4, 4K 120Hz in 4:4:4
- Bandwidth up to 40Gbps with HDR
- ALLM and VRR support
- Automatic switching by sensing 5 V or the TMDS signal
- Bitstream of multichannel surround audio, object-based formats included
Connections
Two HDMI Type A inputs and four outputs, an analogue audio output on a 3.5 mm stereo jack, an optical S/PDIF output, a 3.5 mm stereo jack for the IR receiver and a micro-USB for updates. It measures 212 x 94 x 23 mm and runs on 12 V 2.5 A. In the box: power supply, IR receiver, remote control, mounting kit, four rubber feet and quick guide.
