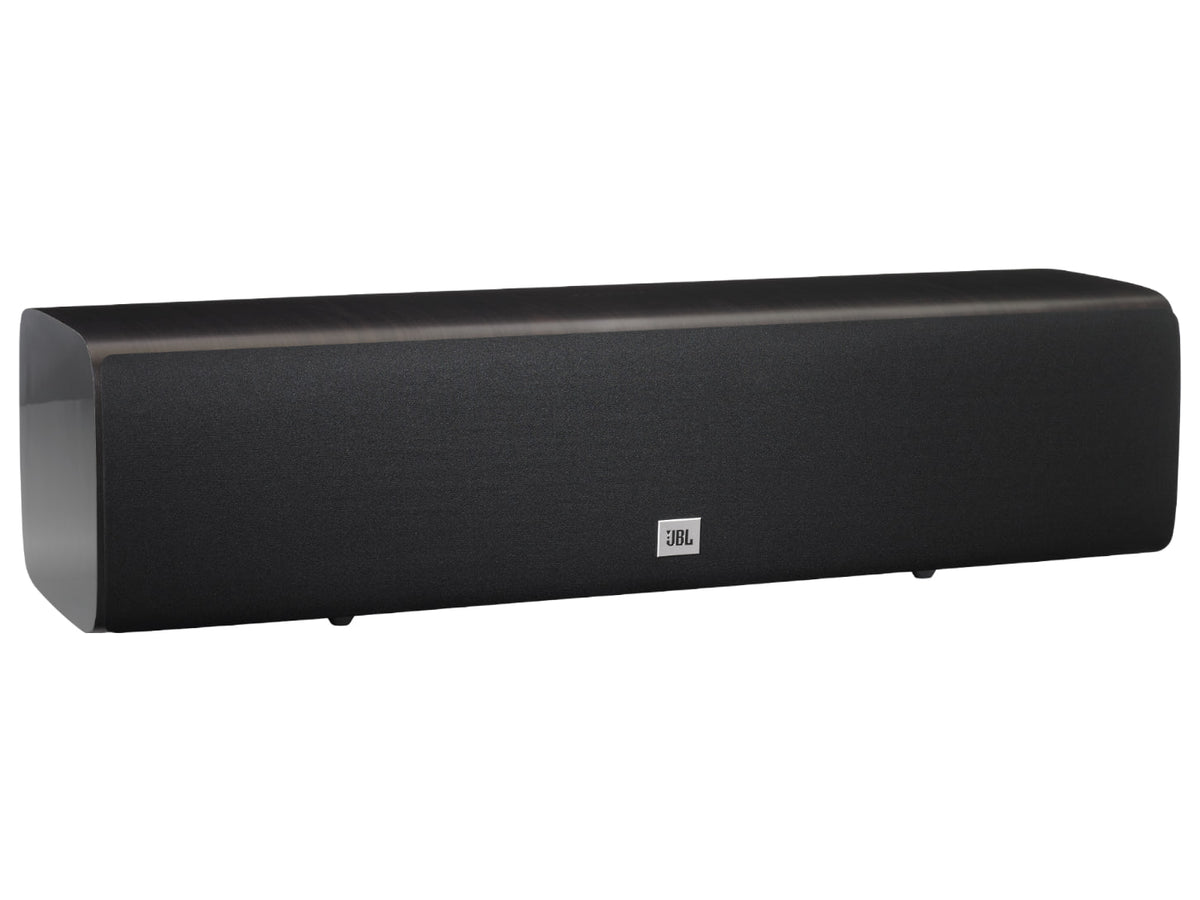

JBL Studio 665C: 2.5-way centre channel with four 133 mm woofers
The Studio 665C is the larger centre channel of the Studio 6 range, sized to accompany the floorstanding models of the same line in a home theater system. It is sold individually and suits amplifiers of up to 200 W.

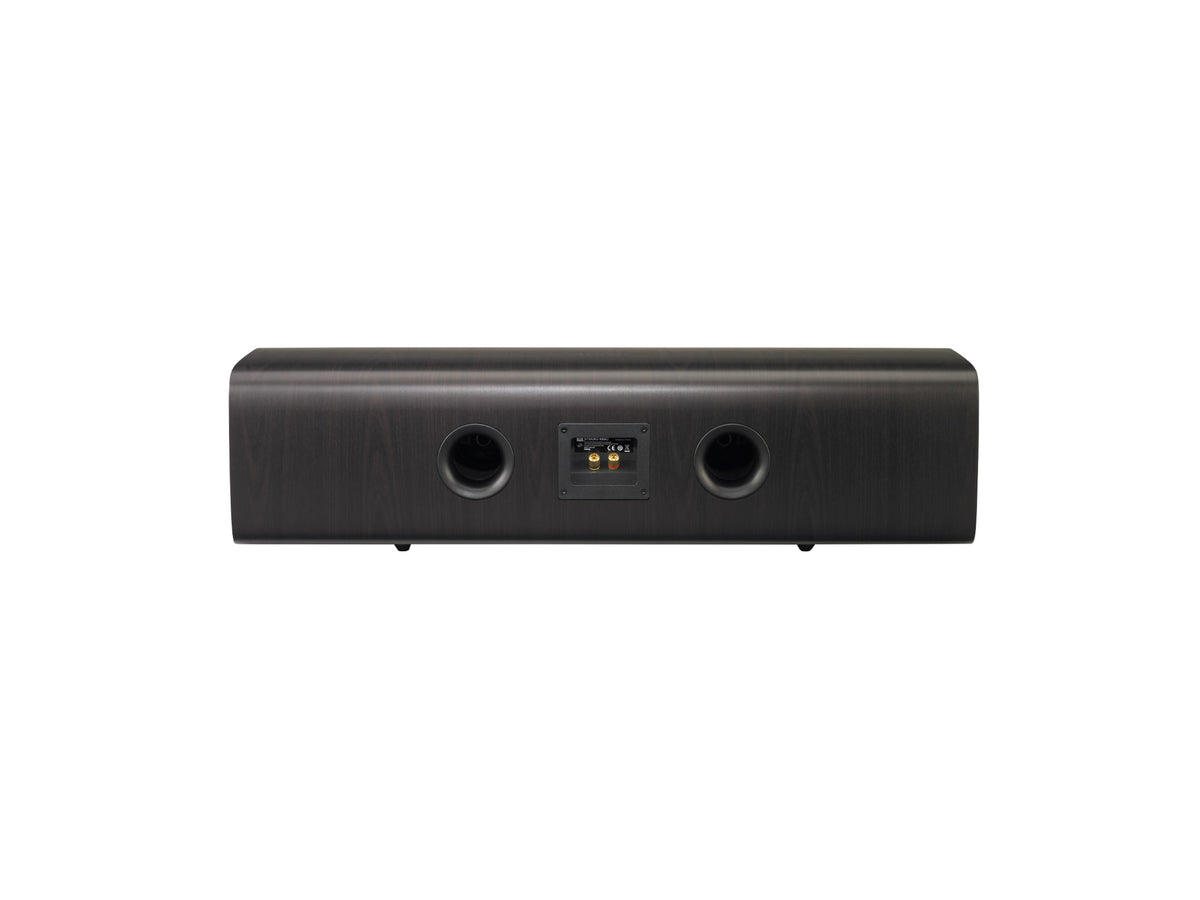

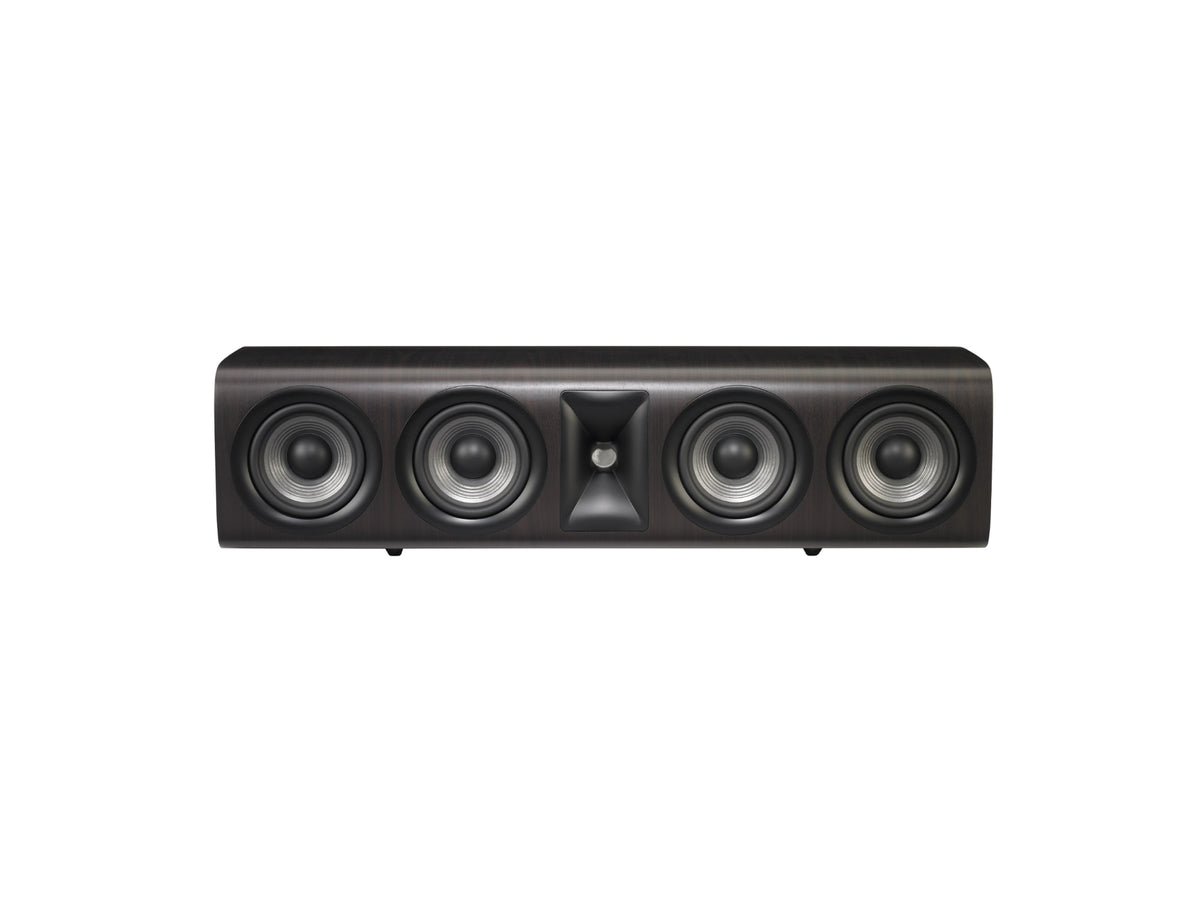

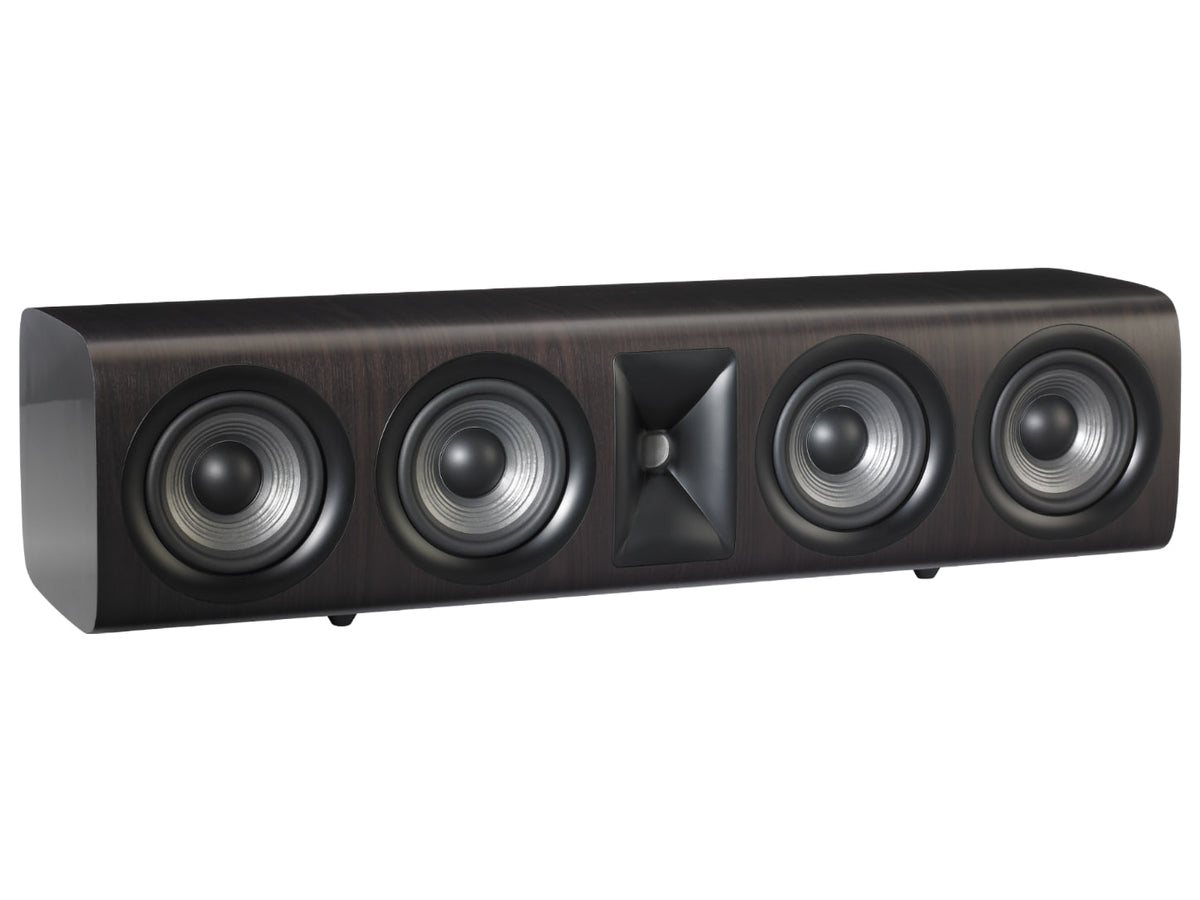

The 760 mm width of the cabinet houses four 133 mm PolyPlas woofers, together with the 25 mm compression driver and its HDI (High-Definition Imaging) waveguide. The layout is a 2.5-way one with two crossover points: 600 Hz and 2.2 kHz. The cabinet is a bass-reflex type with a tuned port on the back panel, unlike the Studio 625C, which is closed.
Key features
- 2.5-way layout with rear reflex loading
- Four 133 mm woofers with PolyPlas cones
- 25 mm compression driver and HDI waveguide
- Frequency response between 58 Hz and 40 kHz
- 90 dB sensitivity (2.83 V at 1 m) into a nominal 6 ohms
- Suggested amplifier power: up to 200 W
Technical data
Footprint of 760 x 230 x 190 mm (width x depth x height) for a weight of 16.12 kg. The crossover points are 600 Hz and 2.2 kHz. Against the Studio 625C, sensitivity grows by 5 dB, the response drops from 64 Hz to 58 Hz and the width increases by 320 mm.
Finishes
Dark Wood finish. The loudspeaker is supplied with four rubber feet.
