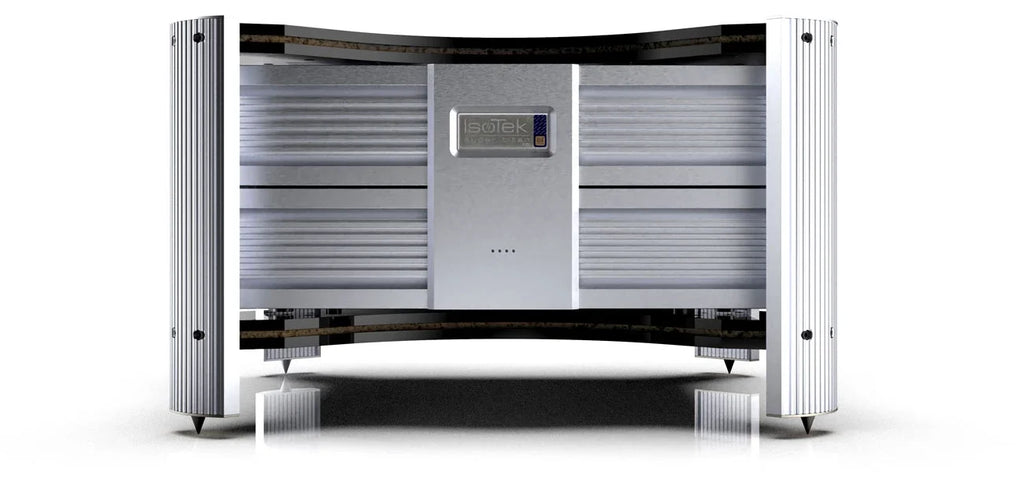

IsoTek EVO3 Super Titan

High-current mains filter with four outlets, at the top of the IsoTek range, in 20 A and 32 A versions.

EVO3 Super Titan: the design

EVO3 Super Titan takes the Direct-Coupled circuit introduced by the first Titan to its limit: it keeps impedance low and delivers instant current to equipment that draws it in bursts, that is power amplifiers, active speakers and subwoofers.

It has four high-current outlets and sits on the ISIS isolation system. The 20 A version has 16 A outlets and supplies up to 3,680 W; the 32 A version has Neutrik powerCON outlets, reaches 7,360 W and needs a dedicated 32 A mains line. The supplied cables are EVO3 Optimum.

Specifications

• 4 independent high-current outlets

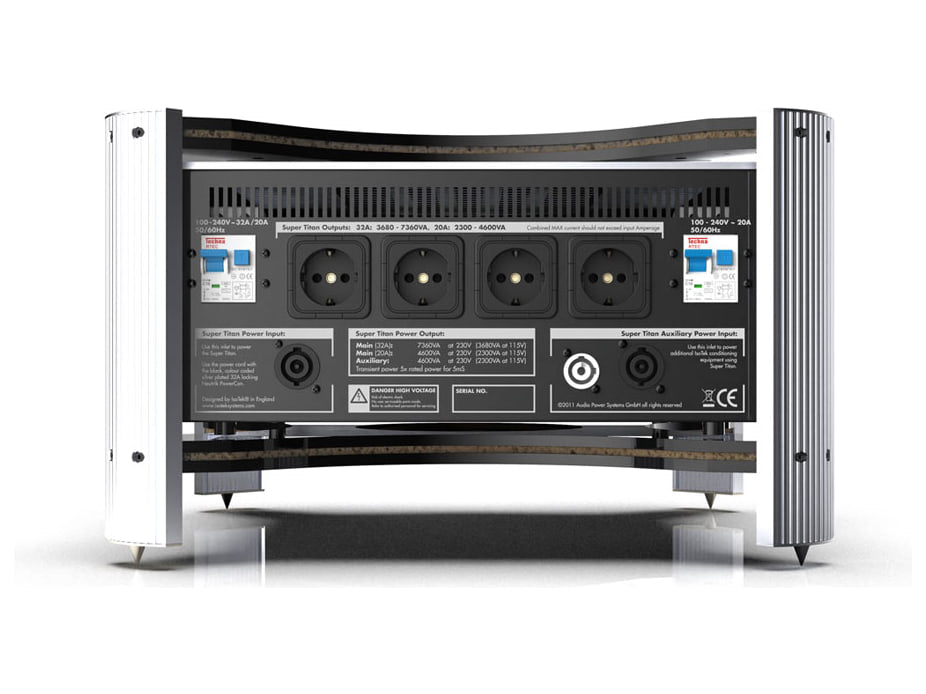

• 20 A version: 16 A outlets, up to 3,680 W at 230 V

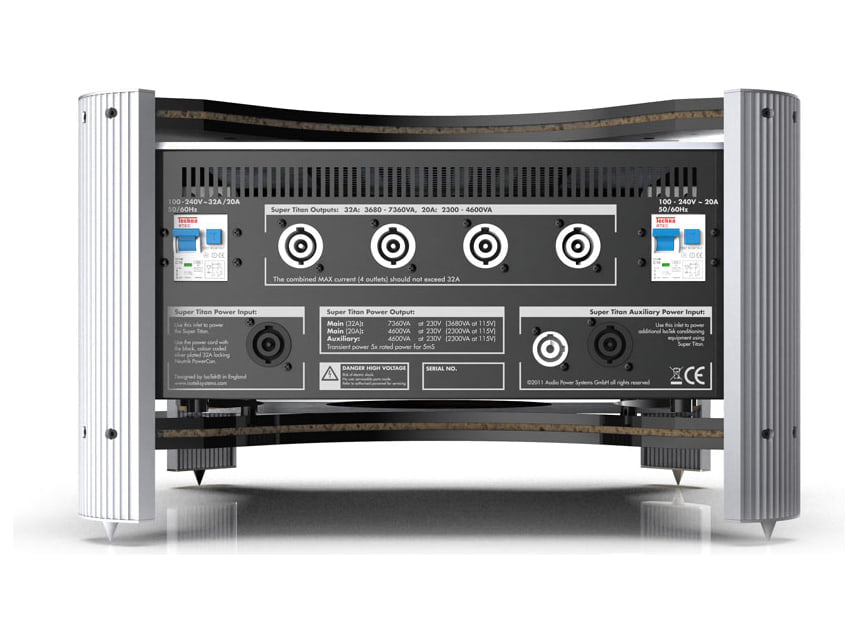

• 32 A version: 32 A Neutrik powerCON outlets, up to 7,360 W at 230 V, dedicated 32 A line
• RFI reduction: 85 dB
• Instantaneous protection: 135,000 A
• Mains inlet: silver-plated 32 A Neutrik
• System Link outlet to add further IsoTek units while keeping the star earth
• ISIS isolation system
• Internal wiring in solid-core silver-plated OCC copper with FEP air dielectric
• Supplied cables: EVO3 Optimum
• Size: 500 x 300 x 500 mm (W x H x D)
• Weight: 27 kg
