JBL Studio 6 66LCR: in-wall loudspeaker with two 165 mm woofers
The Studio 6 66LCR is an in-wall two-way designed for the three front channels of a home theater: left, centre and right. It is sold individually, so the front stage can be built with as many units as required.

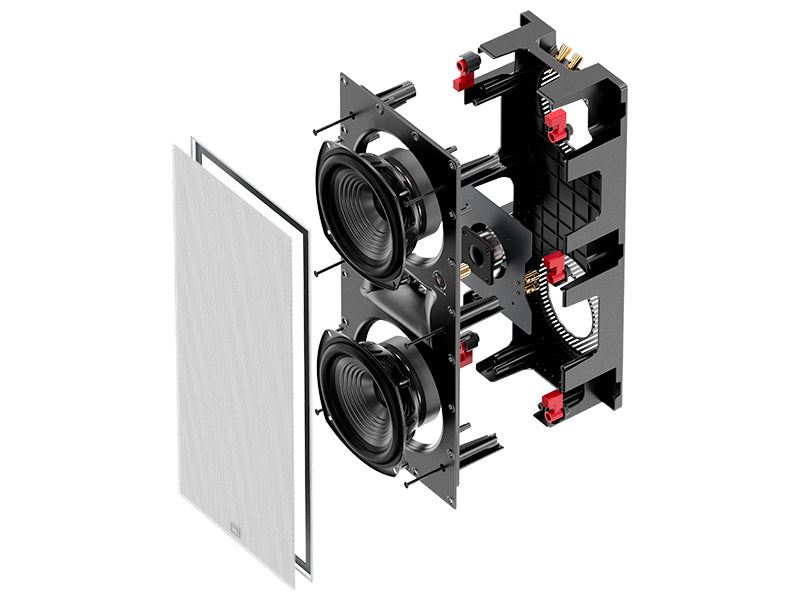

The 25 mm compression driver, with its HDI (High-Definition Imaging) waveguide, sits between two 165 mm Polyplas woofers. The filter network crosses over at 2.5 kHz and is built with mylar capacitors and air-wound inductors. On the loudspeaker you can adjust the treble level and the bass compensation required by nearby surfaces.
Key features
- 2-way configuration with twin 165 mm Polyplas woofers
- HDI waveguide with a 25 mm compression driver
- Reproduced band: 45 Hz - 20 kHz
- 91 dB sensitivity (2.83 V at 1 m) into 6 ohms
- Applicable power: 50 W RMS, with dynamic peaks of 200 W
- Suggested amplification from 50 W to 70 W
Installation
An opening of 180 x 443 mm (height x width) with 95 mm of mounting depth is required; the grille covers 209 x 473 mm. The Dog Leg system makes fitting fast and free of complications. The metal grille has no bezel, is held by magnets and stays aligned with the wall.
Finishes
The loudspeaker is white and both the grille and the visible part can be painted. It is the smallest of the in-wall LCR models: the Studio 6 88LCR uses 203 mm woofers and needs a 221 x 517 mm opening.
