JBL Stage 280C: round 2-way in-ceiling speaker with a 200 mm woofer
The Stage 280C takes the woofer of the round Stage ceiling speaker up to 200 mm. Against the 165 mm 260C, response drops from 50 to 42 Hz, sensitivity gains 3 dB and the amplifier can go up to 120 W; in return the ceiling opening grows from 203 to 244 mm. Supplied as a single unit.

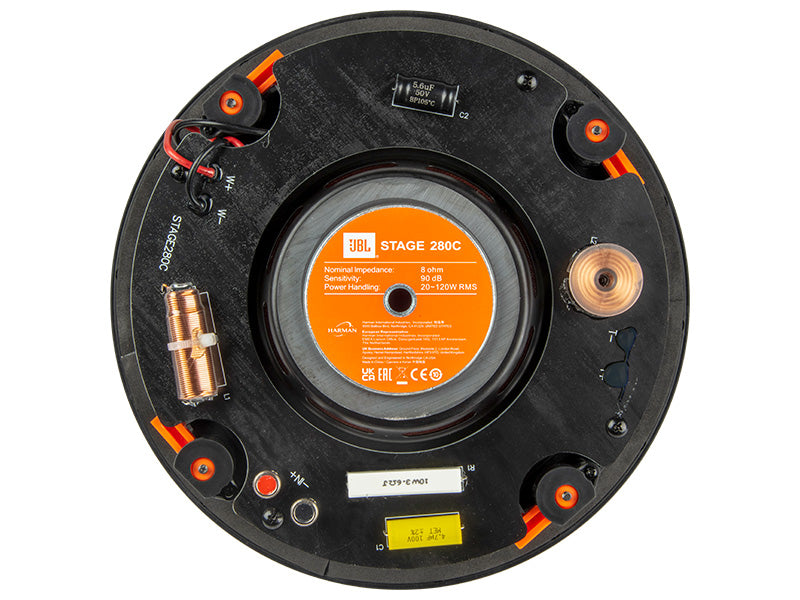

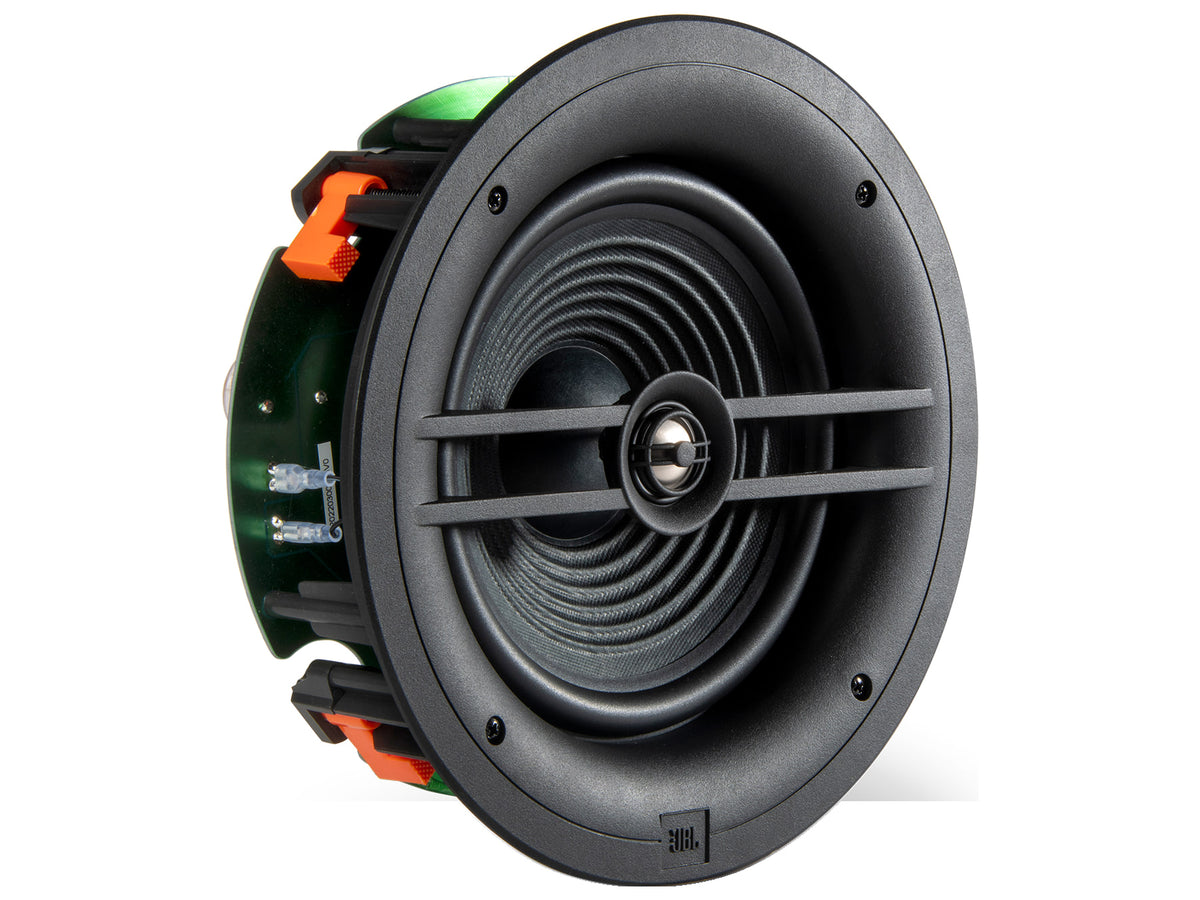

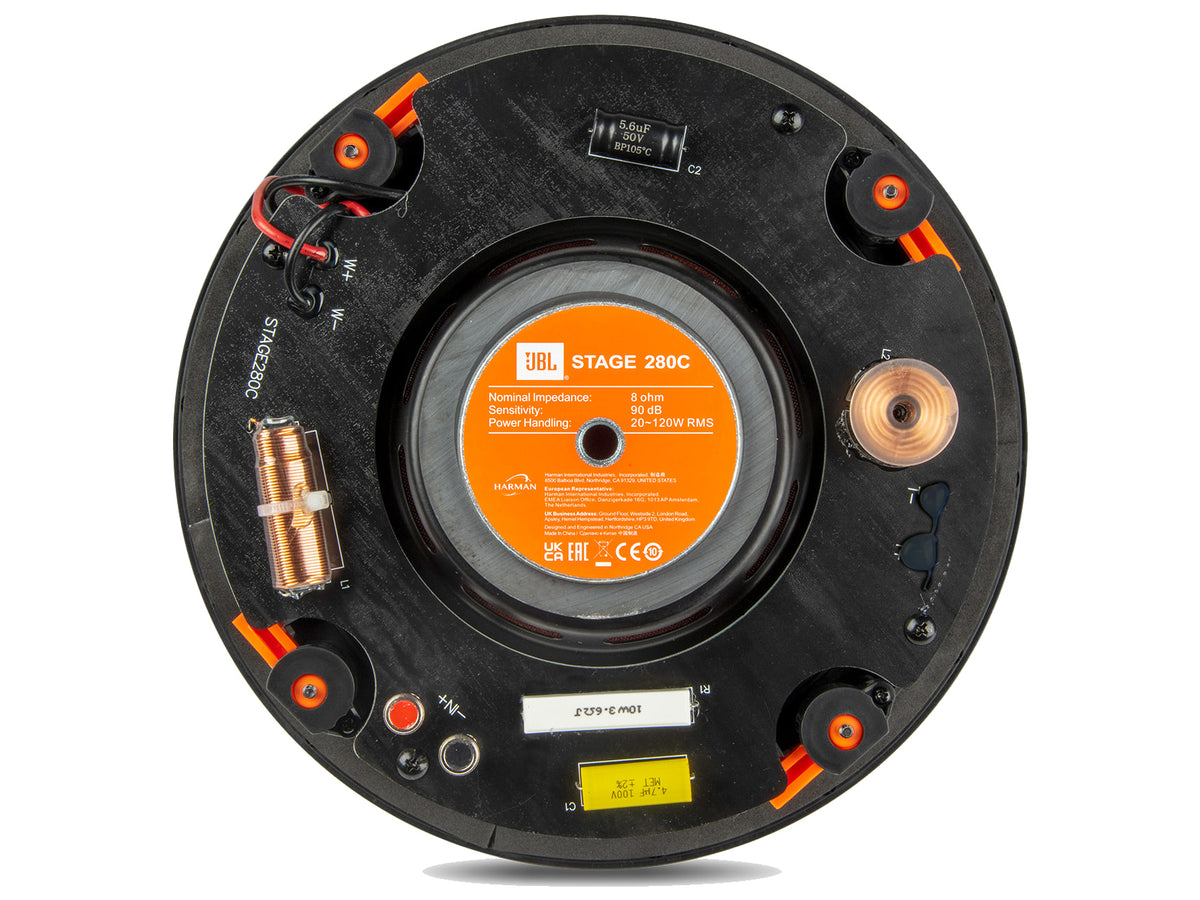

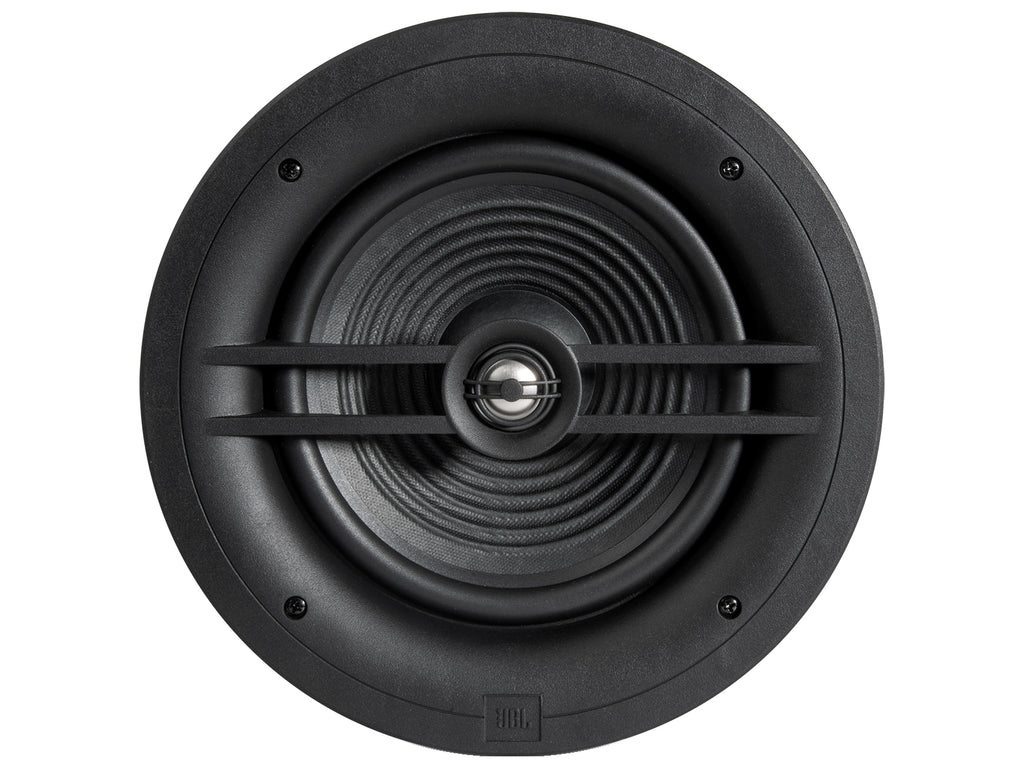

The woofer cone is polycellulose. Treble comes from a 25 mm aluminium dome with an acoustic-lens waveguide. JBL also worked on the front panel, rigid and with acoustic smoothing that helps the two drivers merge, and on the filter, built with air-core inductors and Mylar capacitors to preserve dynamics at every listening level. The frameless grille keeps it discreet to the eye.
Key features
- Frequency response 42 Hz - 25 kHz (-6 dB on axis)
- Sensitivity 90 dB (2.83 V at 1 m)
- Suggested amplifier: 20 - 120 W RMS
- Nominal impedance 8 ohms
- Crossover frequency 3400 Hz
- Nickel-plated spring terminals
- Weight 2.2 kg
Installation

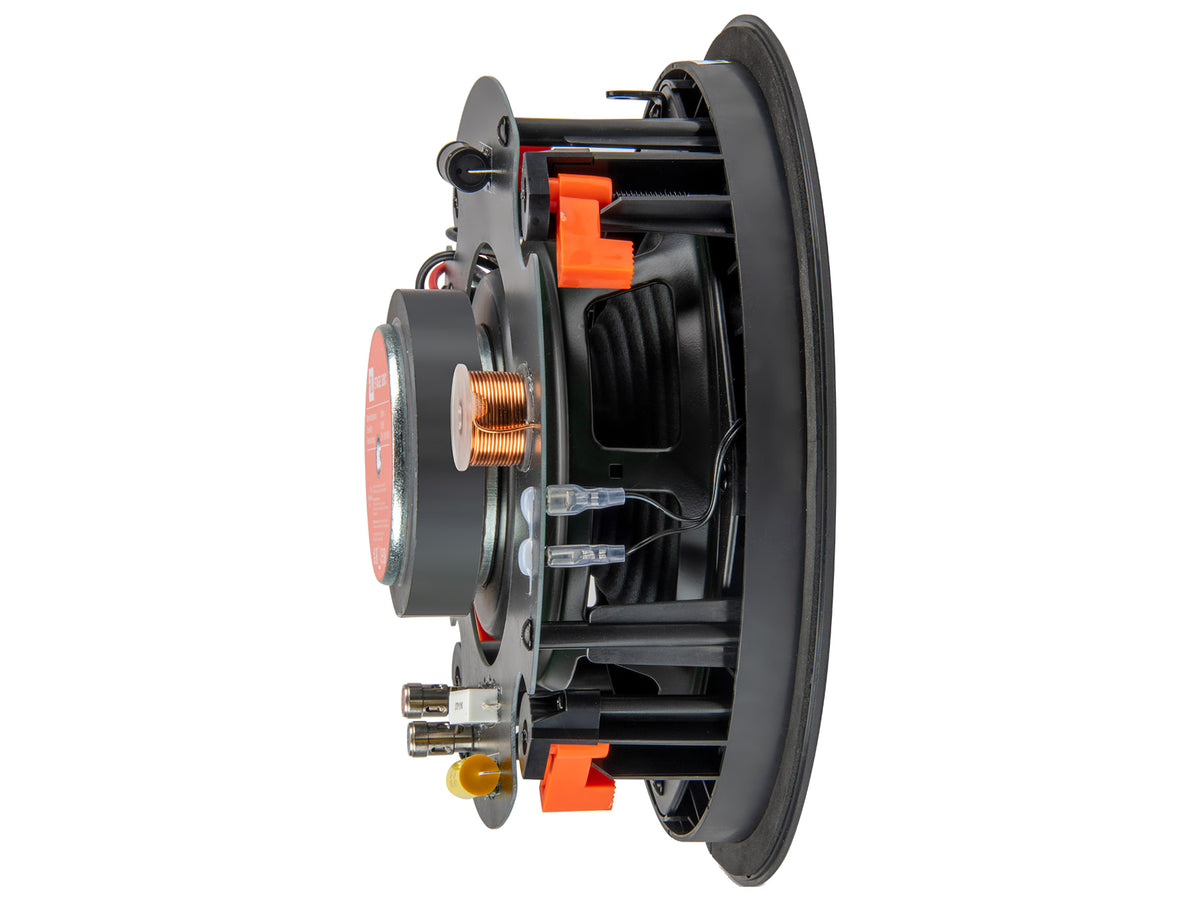

Opening diameter 244 mm, grille diameter 275 mm, mounting depth 108 mm. With the XL-2 system the speaker fixes to ceilings or walls no more than 50 mm thick.
Finishes

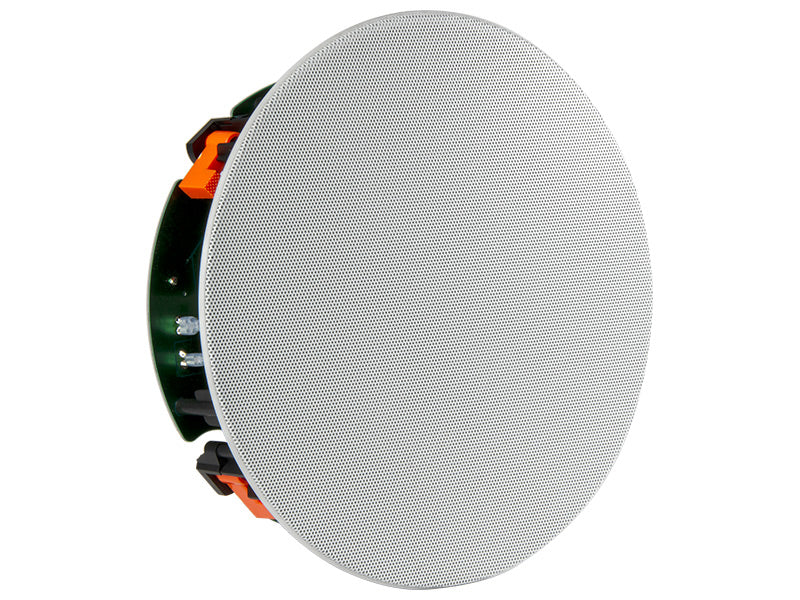

White. The magnetic metal grille and the surround can be painted along with the ceiling.
