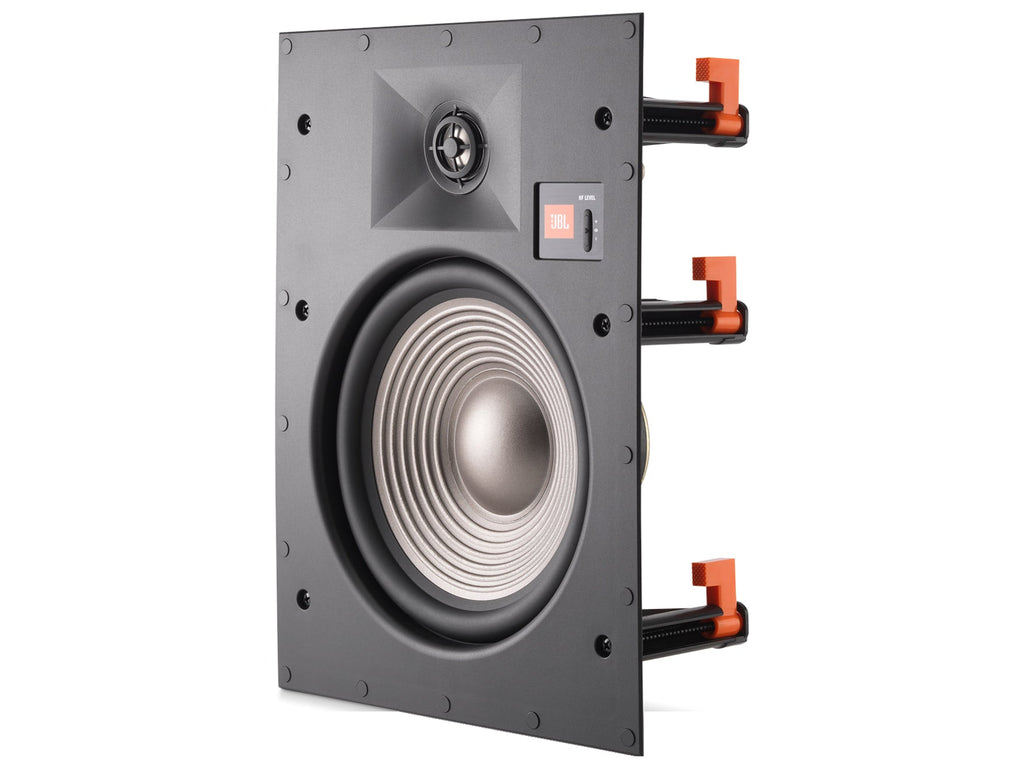

JBL Studio 2 8IW: rectangular 2-way in-wall speaker with a 203 mm woofer
Among the Studio 2 in-wall speakers, the 8IW has the largest single woofer, 203 mm, and the deepest-reaching response: it starts at 30 Hz. It belongs to an architectural series with an almost invisible profile, intended for custom home installations. Supplied individually.

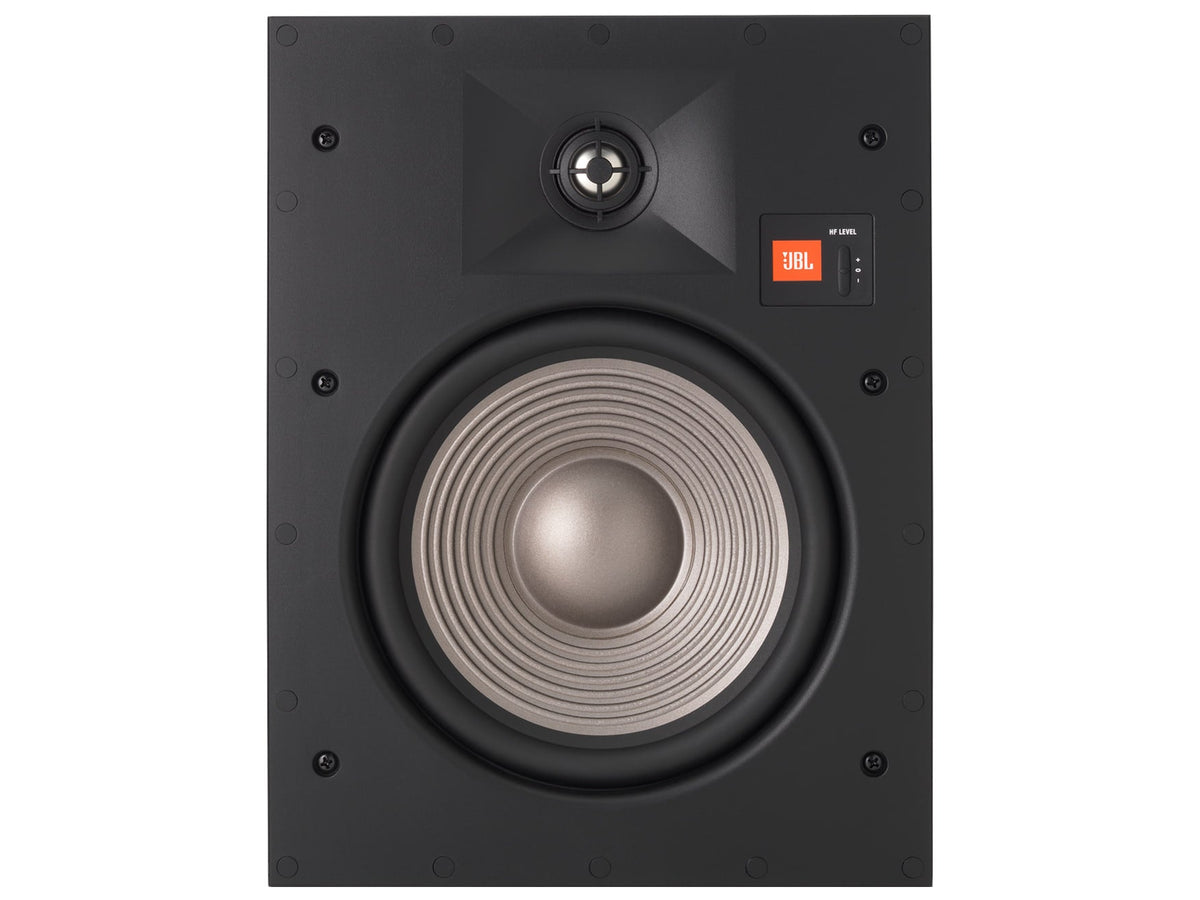

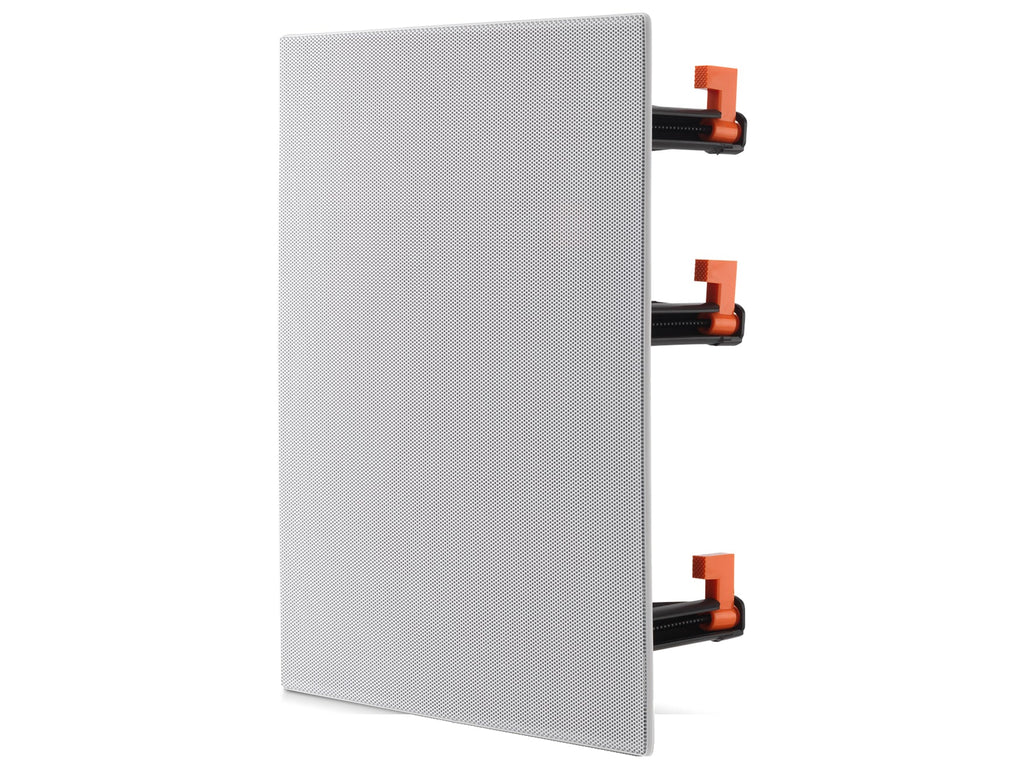

Pivoting 25 mm tweeter with CMMD dome and level adjustable by +/-3 dB; woofer with PolyPlas cone. It installs in the wall with the XL-2 bracket and is covered by a white magnetic grille with no bezel, which can be painted.
- Frequency response 30 Hz - 20 kHz
- Power handling 100 W RMS
- Sensitivity 88 dB (2.83 V at 1 m)
- Impedance 8 ohms
- Mounting depth 97 mm
