JBL Studio 6 88LCR: in-wall loudspeaker with two 203 mm woofers
The Studio 6 88LCR is the in-wall LCR model with the largest woofers in the range, suited to a home theater front stage that needs more sound pressure. It is sold individually and can serve as the left, centre or right channel.

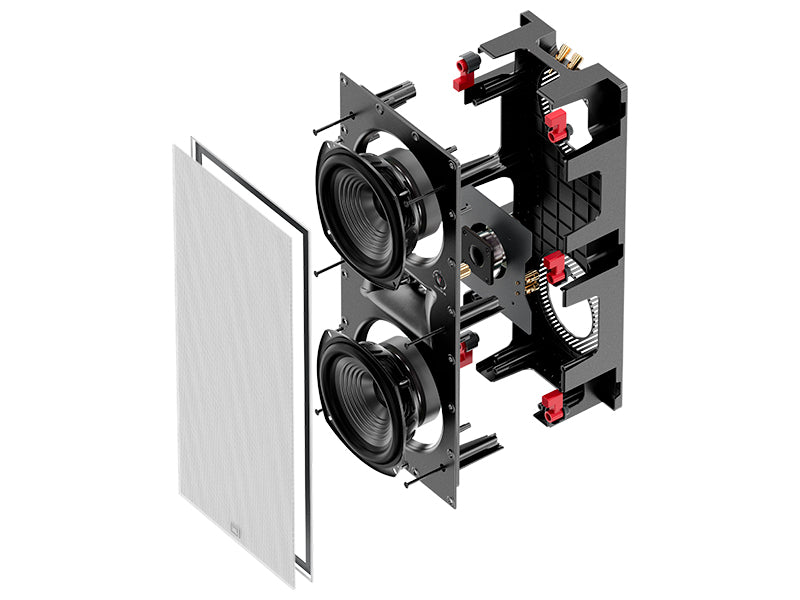

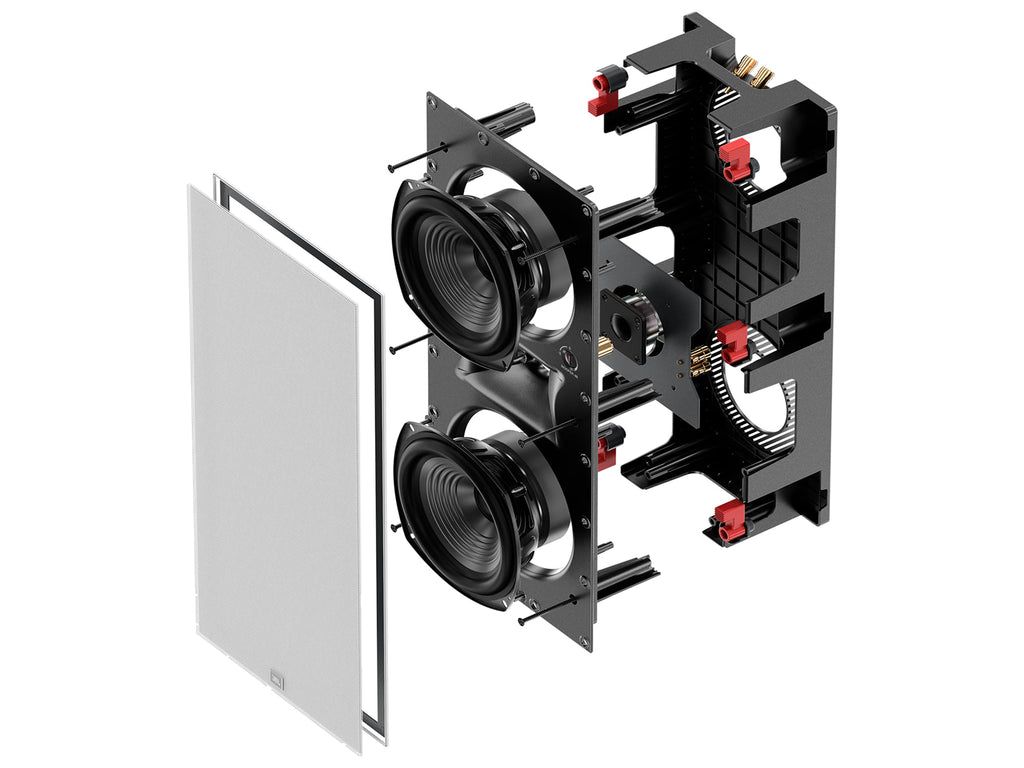

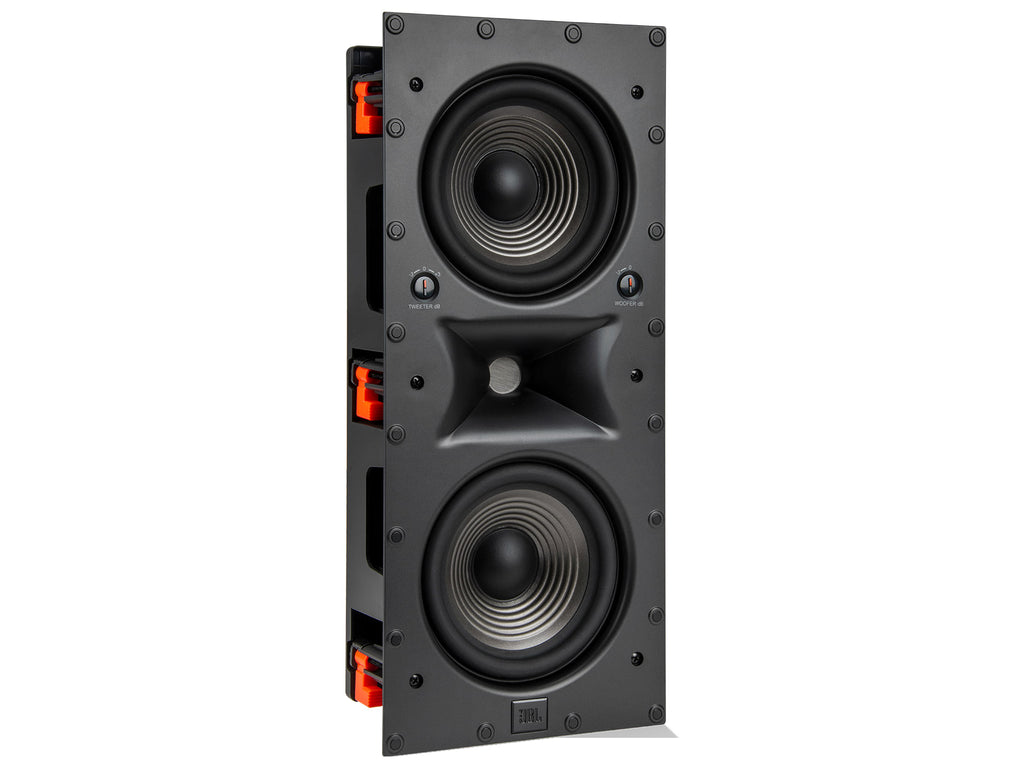

Two 203 mm Polyplas woofers flank a 25 mm compression driver equipped with an HDI (High-Definition Imaging) waveguide. The crossover works at 2.5 kHz and uses selected parts: air-core inductors and mylar capacitors. The loudspeaker is completed by a treble level control and a bass correction for mounting close to walls and ceiling.
Key features
- In-wall two-way with twin 203 mm Polyplas woofers
- 25 mm compression driver, HDI waveguide
- Frequency response 47 Hz - 20 kHz
- 96 dB sensitivity (2.83 V at 1 m), 6 ohms nominal
- Power: 120 W RMS and 500 W dynamic
- Suggested amplifier from 50 W up to 175 W
Installation

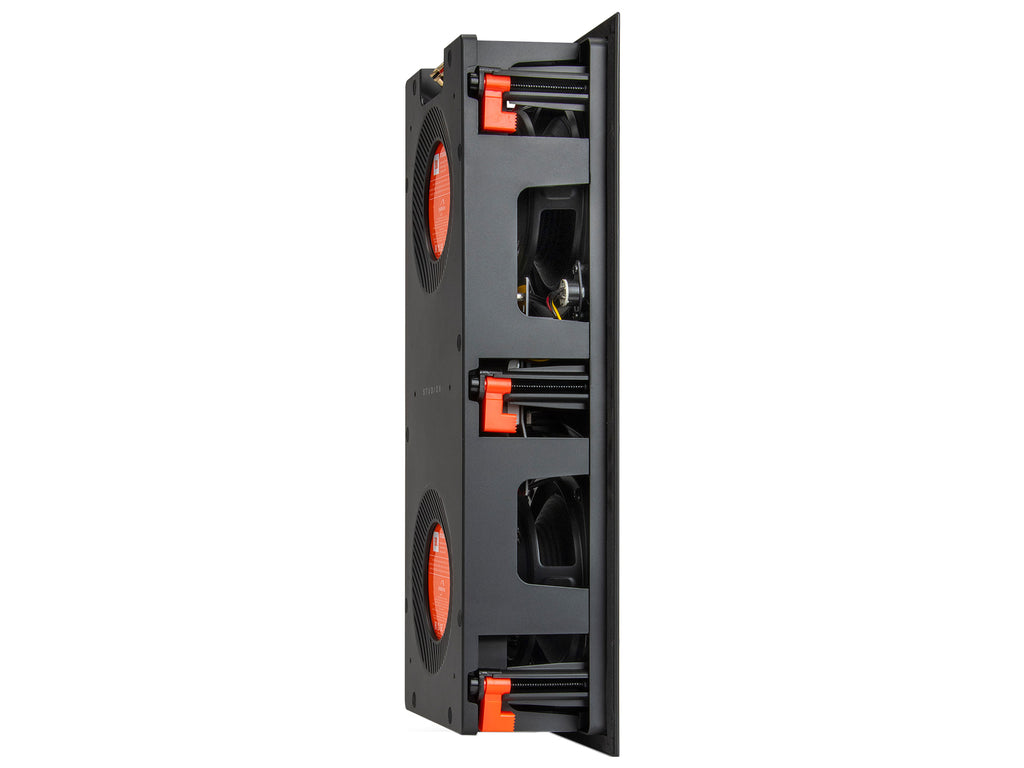

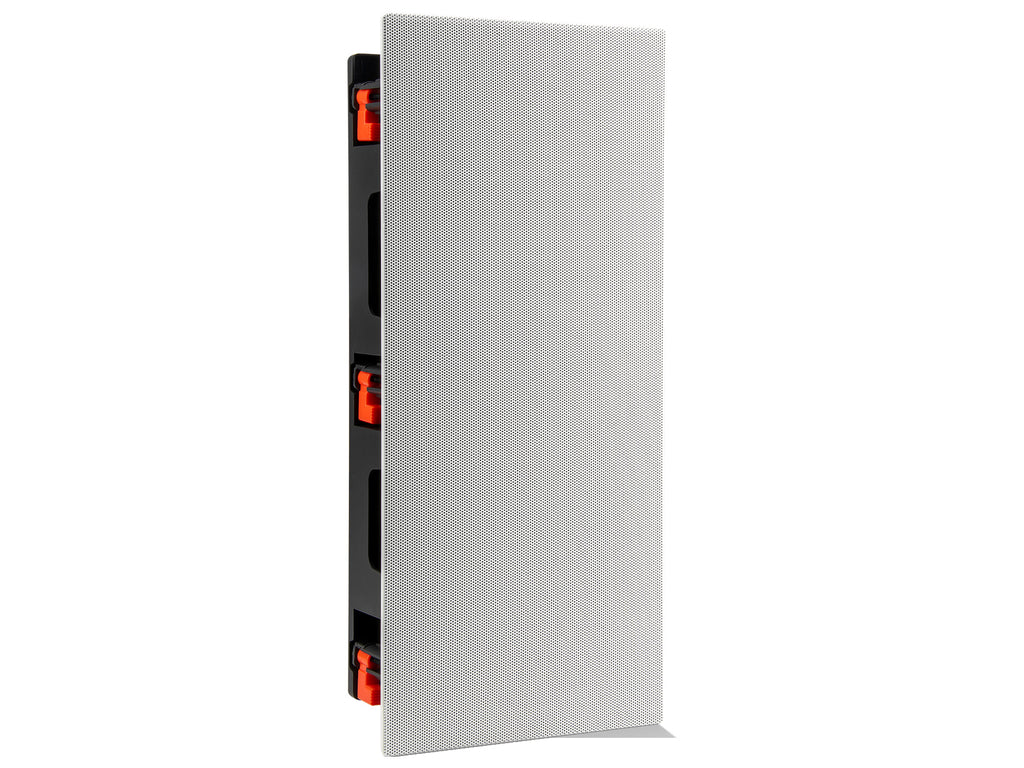

The recess to cut into the wall measures 221 x 517 mm (height x width) by 95 mm deep, while the grille takes up 251 x 547 mm. Mounting uses the Dog Leg clamps, which shorten fitting time. The metal grille with no border attaches with magnets and does not stand proud of the surface.
Finishes
White colour, with a grille and finish that accept paint. Compared with the Studio 6 66LCR it offers 5 dB more sensitivity and over twice the RMS power, 120 W against 50 W.
