JBL Stage 260CDT: stereo in-ceiling speaker with twin tweeters and a 165 mm woofer
Where there is room for one speaker only, the Stage 260CDT plays both stereo channels: one round ceiling frame holds two tweeters plus a woofer wound with two voice coils. It is the "dual tweeter" version of the 260C and keeps the same ceiling opening. It is supplied as a single unit.

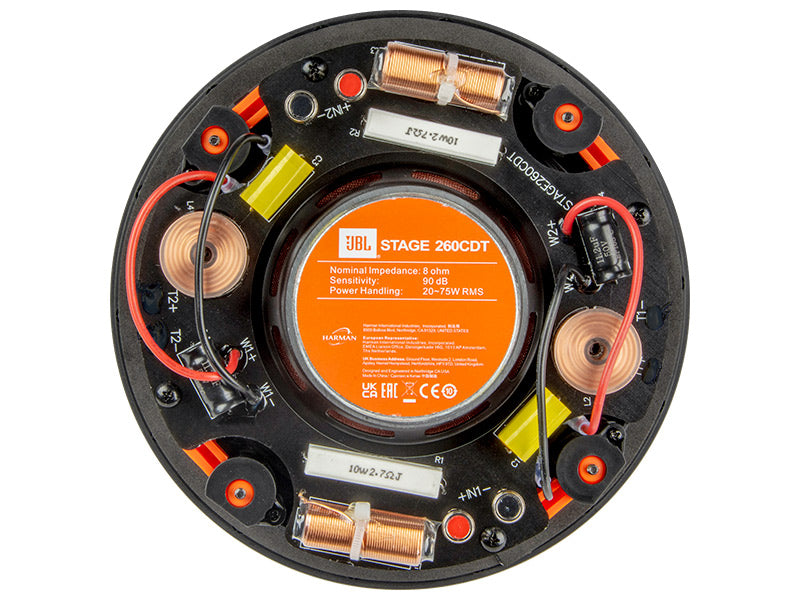

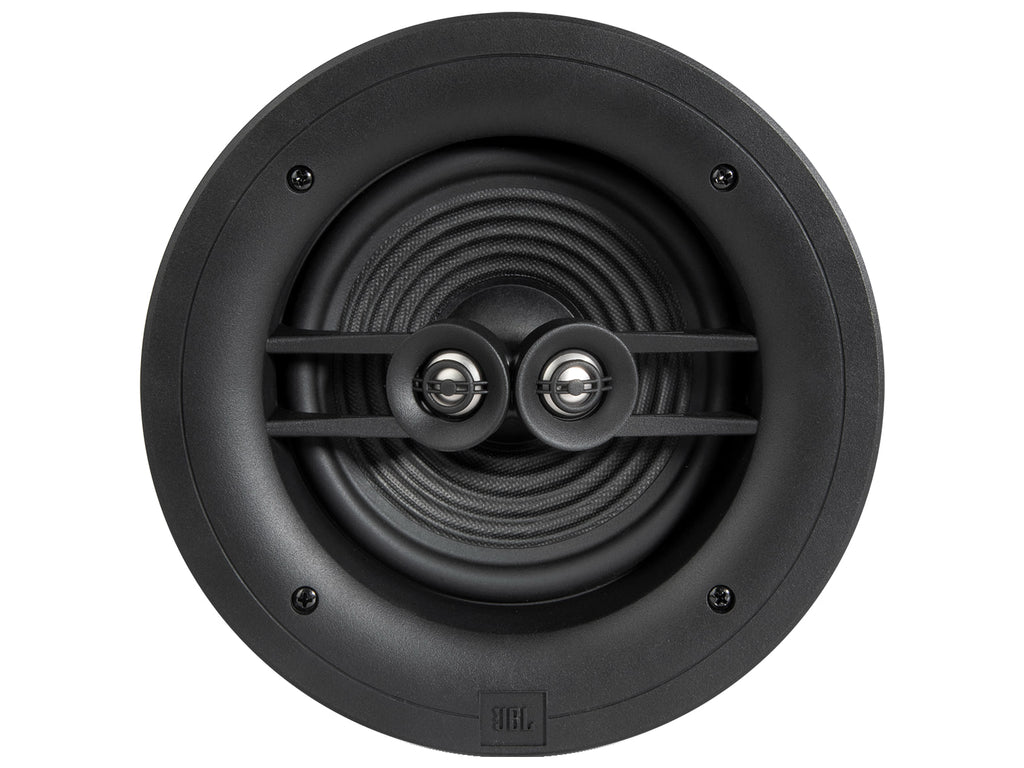

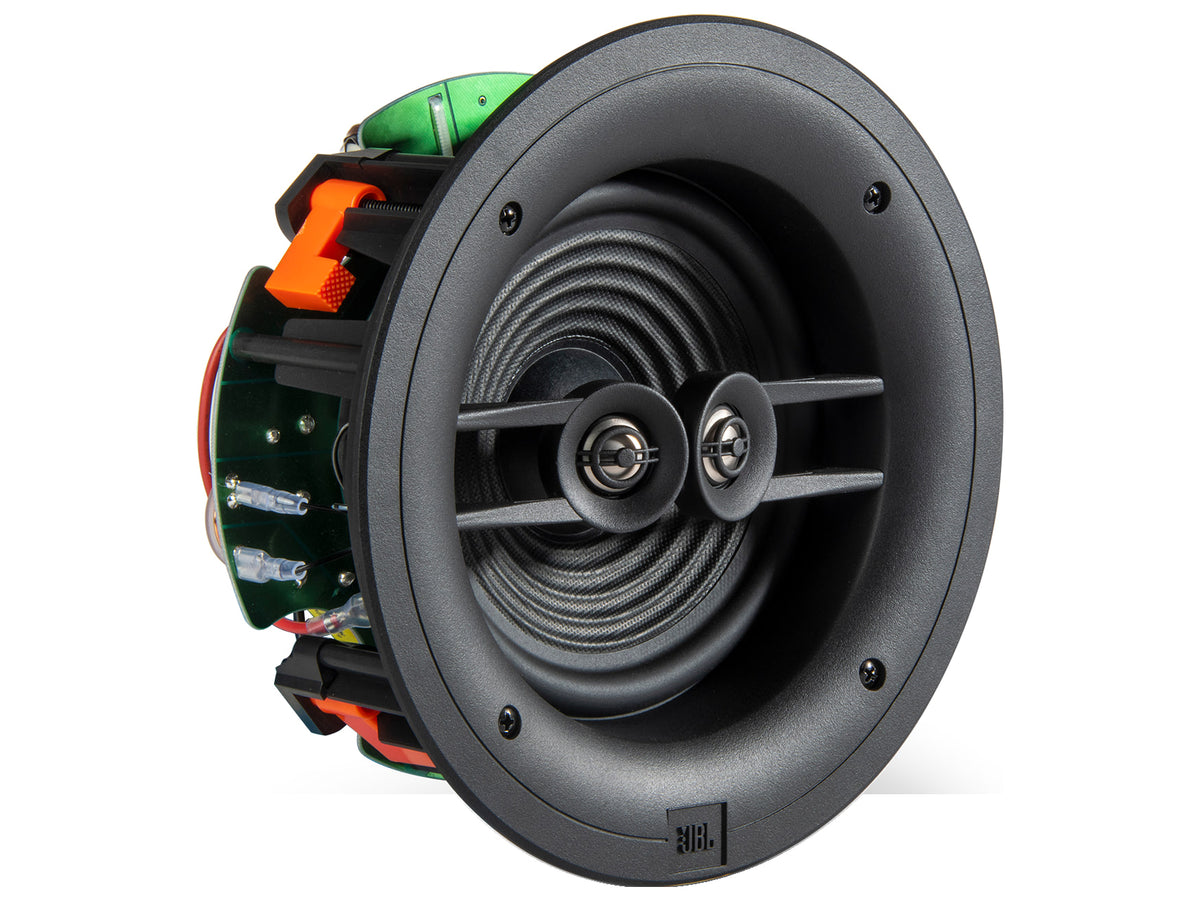

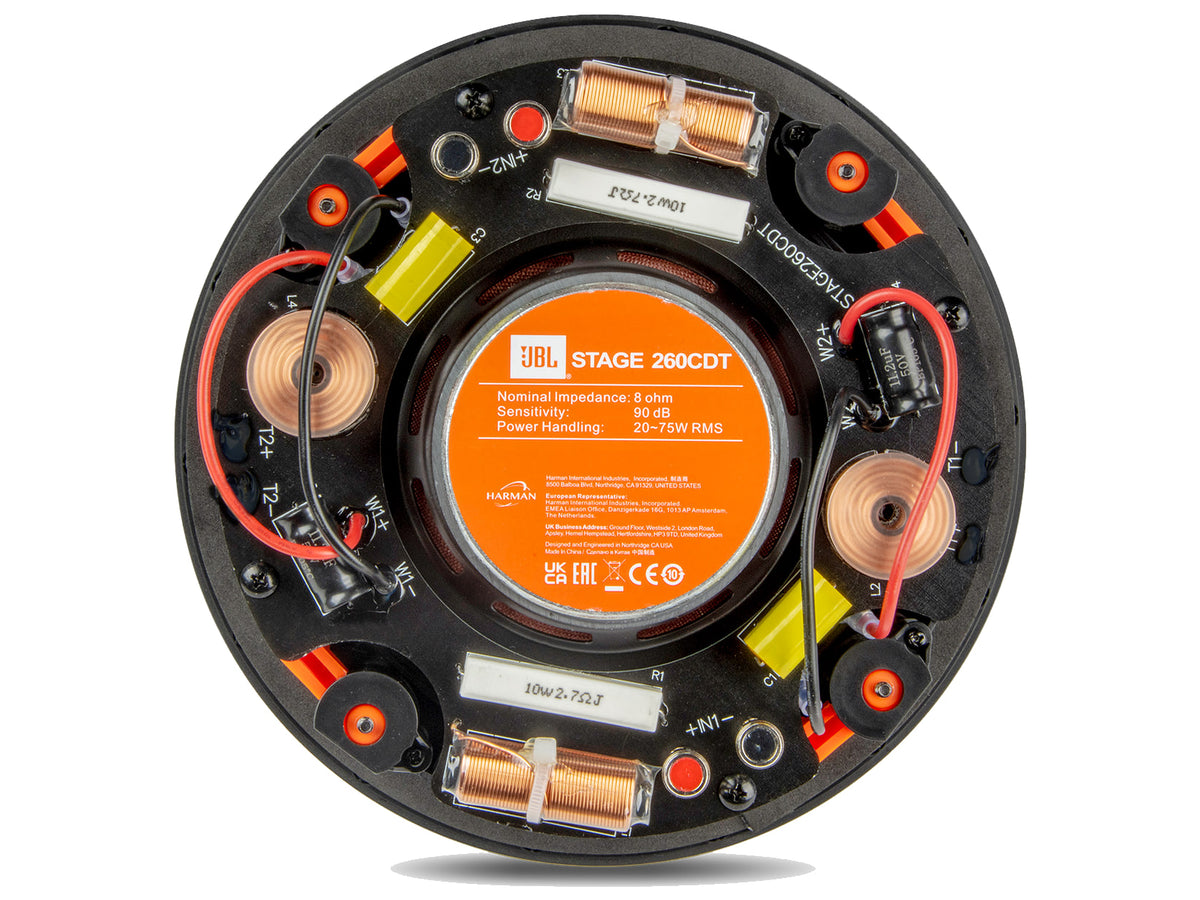

The two 19 mm tweeters have aluminium domes and acoustic-lens waveguides; the 165 mm woofer has a polycellulose cone and two coils, one per channel. The rigid front, with its smoothed surface, improves the blend between drivers, and the filter uses air-core inductors and Mylar capacitors. The frameless grille leaves the speaker level with the ceiling.
Key features
- Suggested amplifier output: 20 - 75 W RMS
- Sensitivity 90 dB (2.83 V at 1 m)
- Nominal impedance 8 ohms
- Frequency response 50 Hz - 25 kHz (-6 dB on axis)
- Crossover frequency 2900 Hz
- Spring-type input terminals, nickel-plated
- Weight 2.2 kg
Technical data

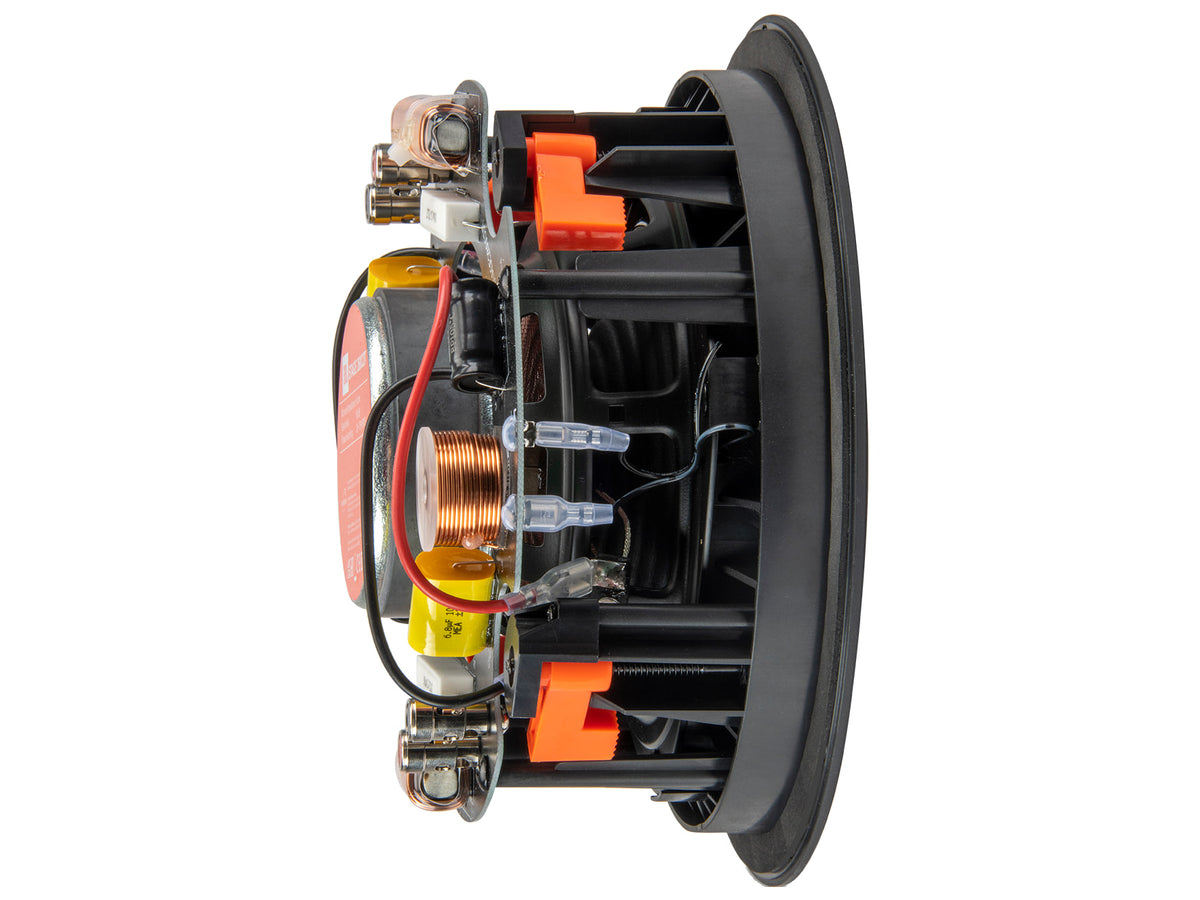

The ceiling opening is 203 mm in diameter and the grille 233 mm; mounting depth is 106 mm. The XL-2 system suits ceilings and walls no thicker than 50 mm.
Finishes

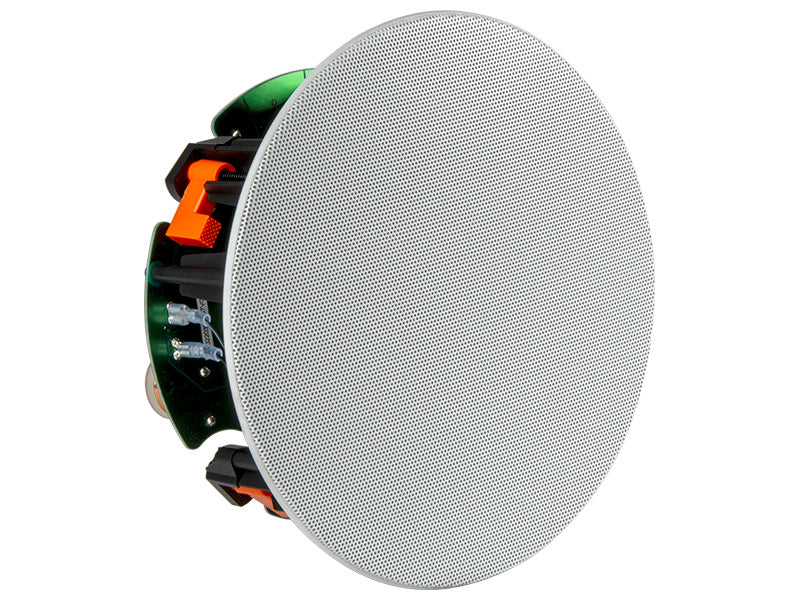

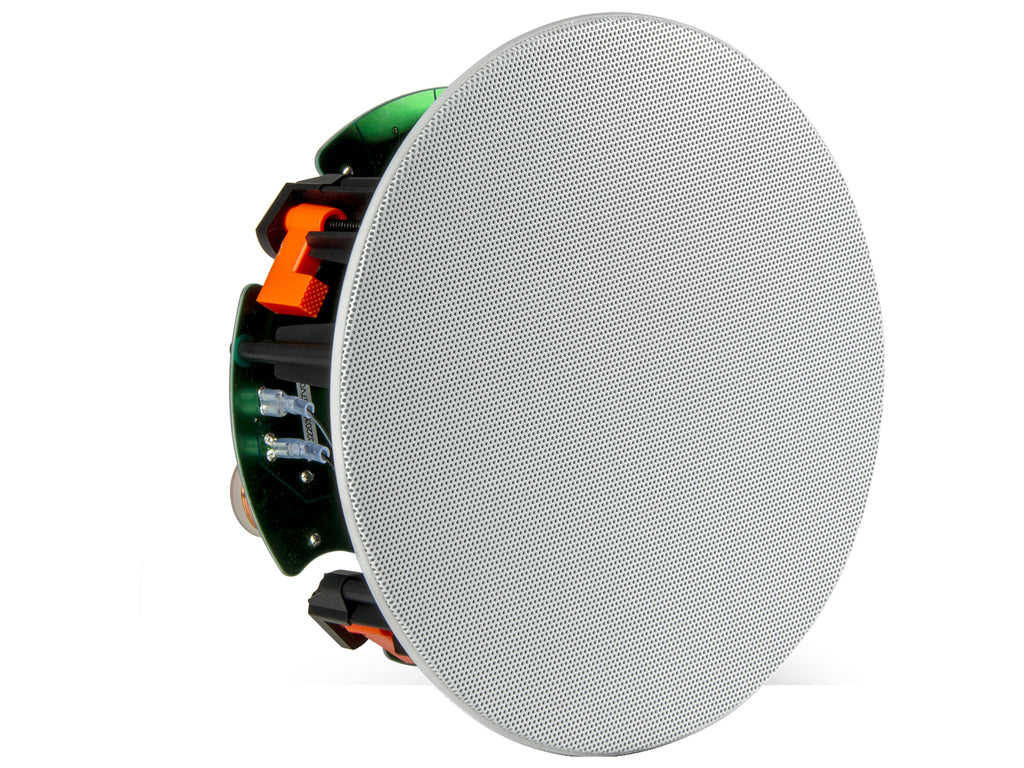

White, with a magnetic metal grille; both the grille and the frame can be painted.
