Monitor performance integrated directly into the wall
MK Sound IW95 is an architectural loudspeaker with 6.5-inch polypropylene woofer and 1-inch soft fabric dome tweeter, 80 Hz-20 kHz response and 91 dB sensitivity. The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels.
It is designed for complex installations requiring greater dynamics. The architectural range uses driver and crossover technology from MK Sound monitors so visible and concealed speakers can be mixed without changing tonal character. The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels.
Key features
- The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels.
- Mid/bass section: 6.5-inch polypropylene woofer.
- High-frequency section: 1-inch soft fabric dome tweeter.
- 80 Hz-20 kHz response and 91 dB sensitivity.
- Recommended amplifier power 25-300 W.
- 93 mm mounting depth.
- Low-profile paintable metal grille.
Drivers and response

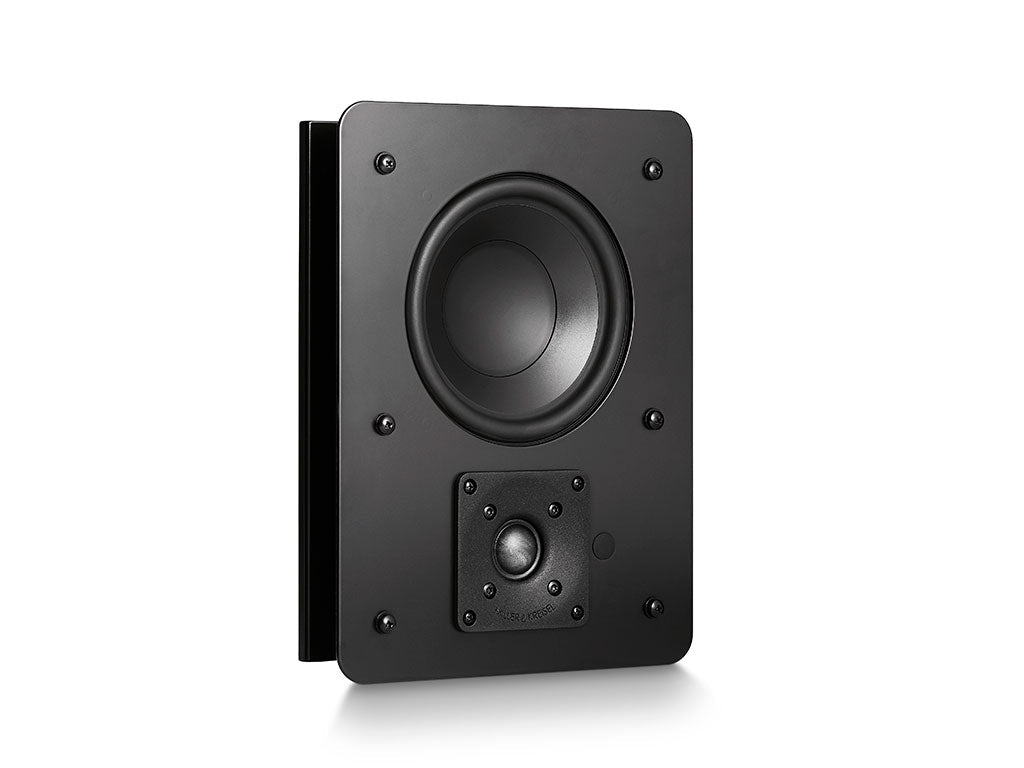

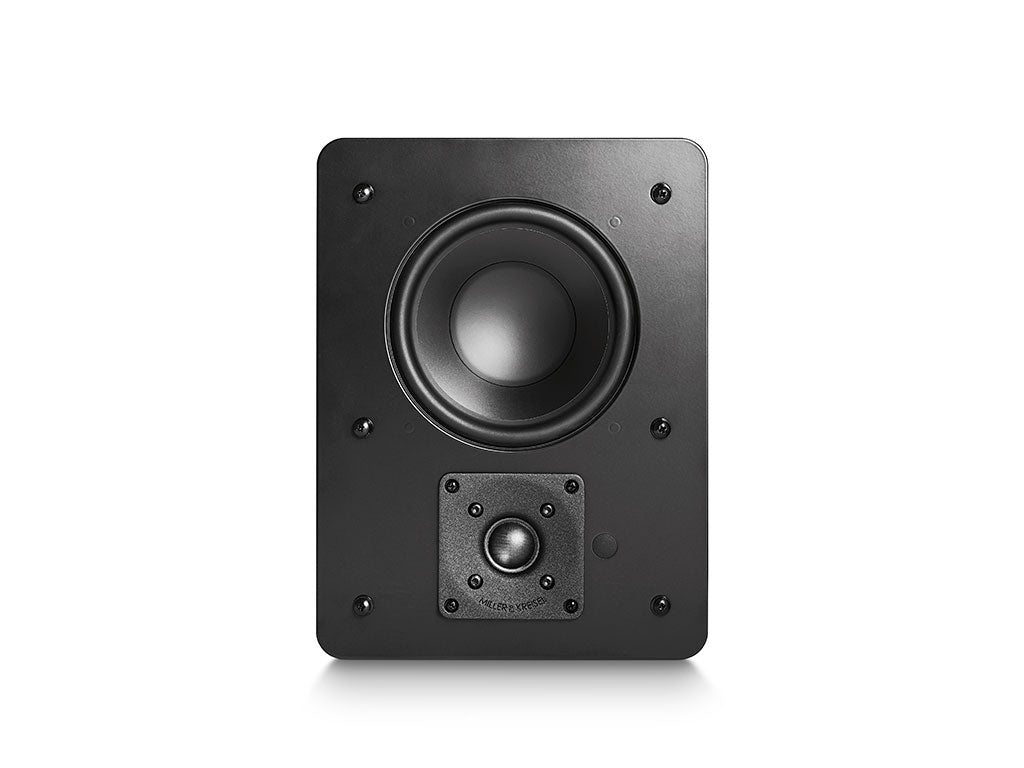

The system uses a 6.5-inch polypropylene woofer with a 1-inch soft fabric dome tweeter. Rated response is 80 Hz-20 kHz, with 91 dB sensitivity and recommended amplifier power of 25-300 W; its design descends from MK Sound professional-monitor principles.
Architectural integration

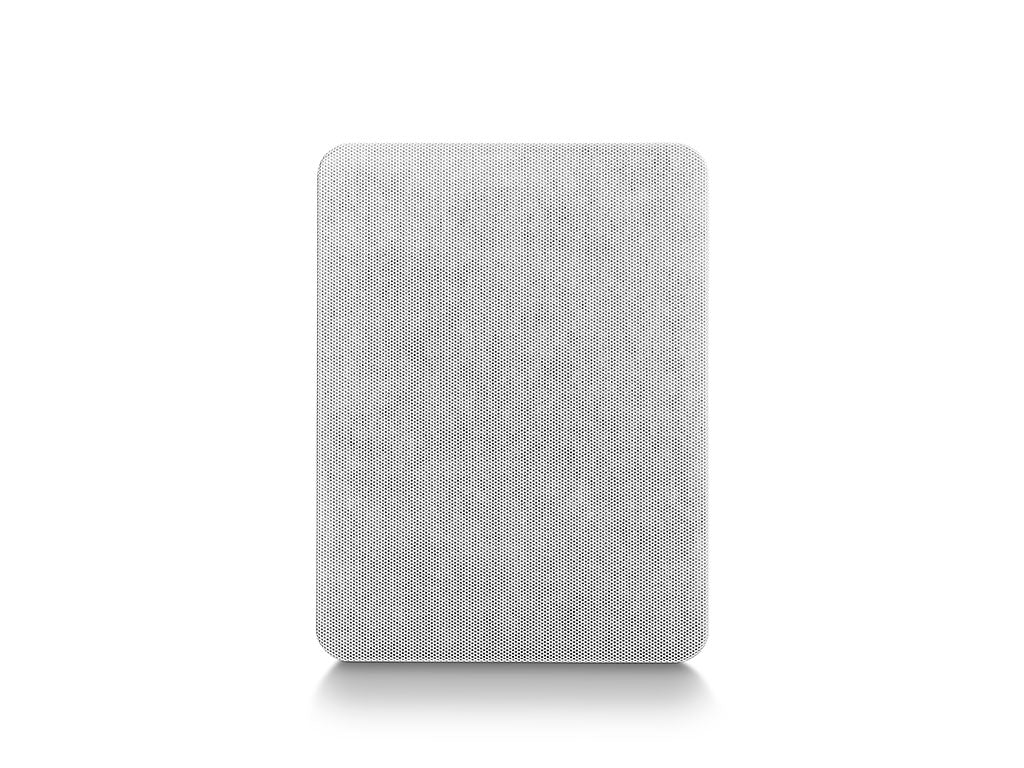

The IW range uses steel baffles and low-profile metal grilles to reinforce the wall, reduce vibration and leave only the required surface visible. Grilles can be painted to match the room finish.
Installation

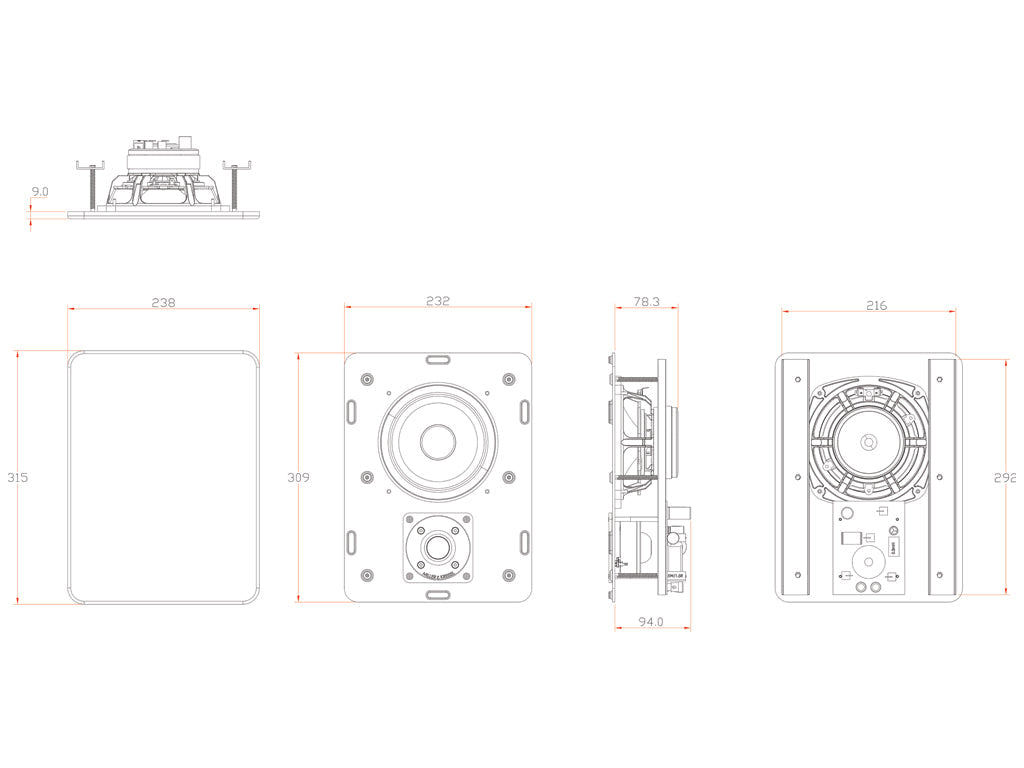

The baffle measures 309 x 232 mm, wall cut-out is 273 x 189 mm and required depth is 93 mm; weight is 4.6 kg. The IW mounting system is designed for stable installation with the grille sitting close to the finished surface.
Supply and finish
The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels. The white metal grille is paintable to match the wall or ceiling.
