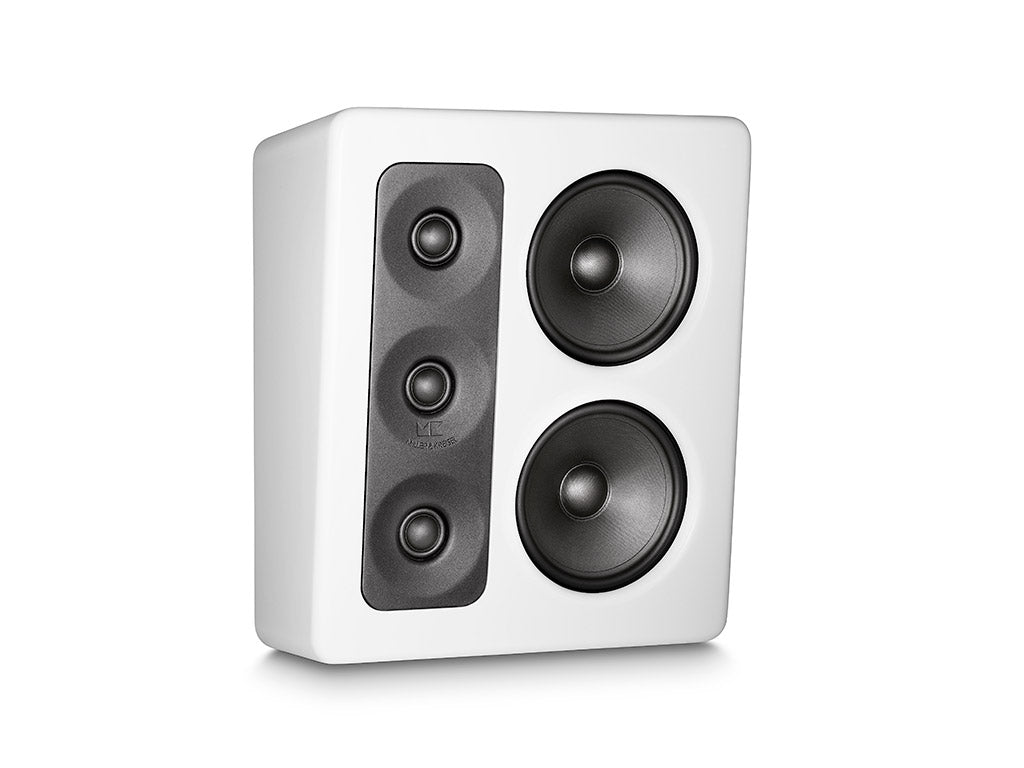

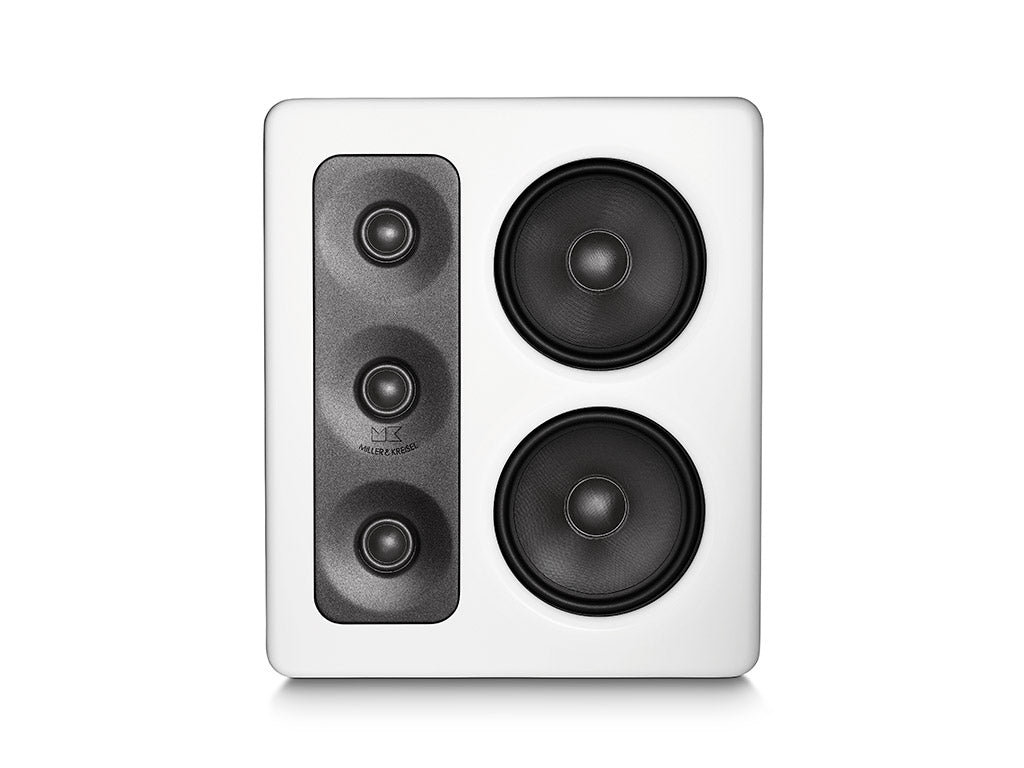

S300 on-wall monitor with reference performance in a shallower cabinet
MK Sound MP300 is a 300 Series loudspeaker with twin 6.5-inch woofers, three 1-inch tweeters, 80 Hz-22 kHz response and 92 dB sensitivity.

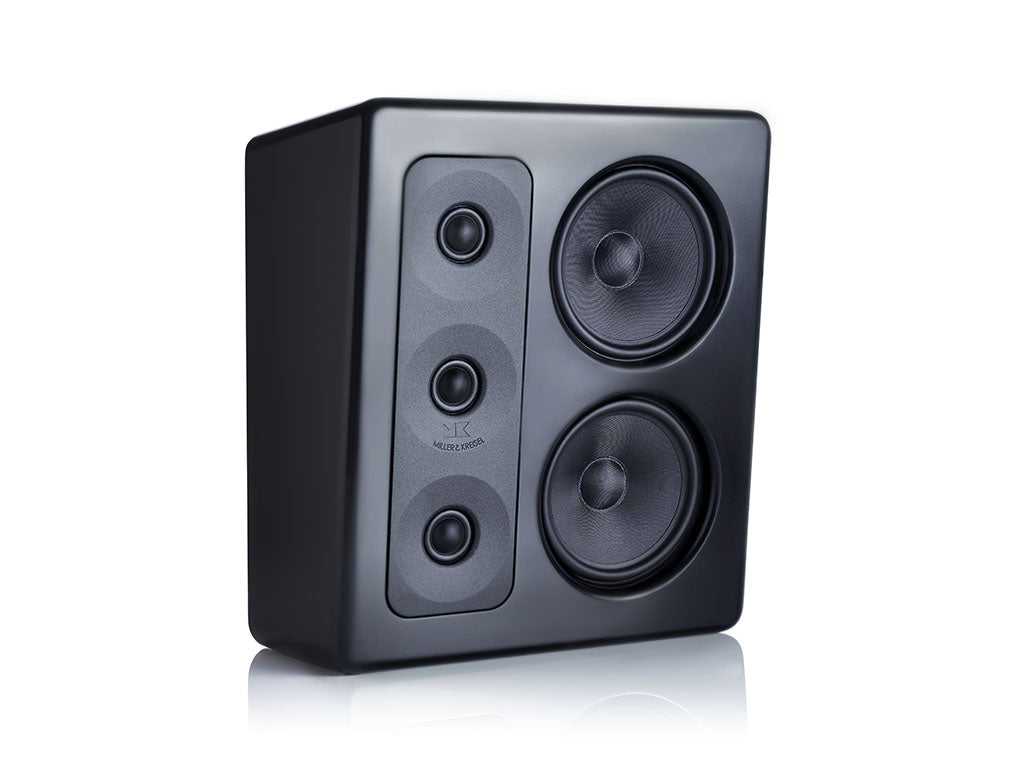

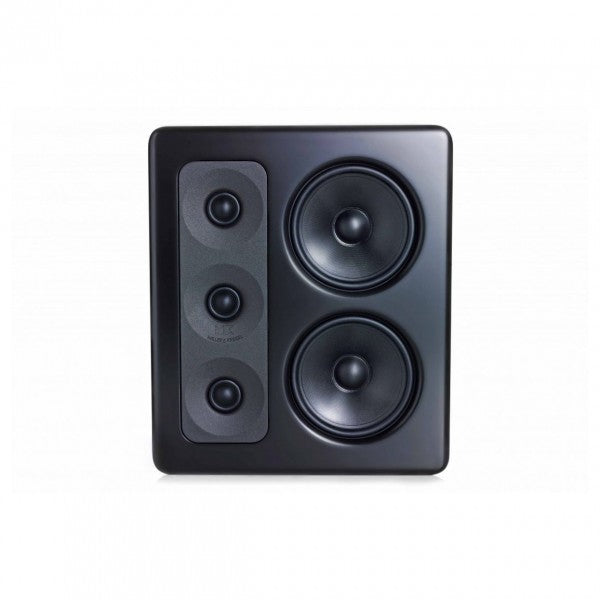

MK Sound MP300 belongs to the 300 Series and is designed for reference on-wall installations. It is the shallower version of S300 with crossover optimisation for wall mounting. Right/C and Left/C variants are mirror-imaged, allowing the correct geometry to be maintained at either side of the screen or in centre-channel use. The monitor uses twin 6.5-inch glass-fibre woofers and three 1-inch tweeters. With 92 dB sensitivity, 4-ohm impedance and recommended amplifier power of 25-500 W, it retains S300 reserve in a shallower enclosure.
Key features
- Twin 6.5-inch woofers.
- Array of three 1-inch tweeters.
- 80 Hz-22 kHz response and 92 dB sensitivity.
- Recommended amplifier power of 25-500 W.
- 300 Series crossover technology.
- Optimised for on-wall mounting.
- Rigid, damped construction.
- Black or White Satin finish.
Acoustic design
Twin 6.5-inch woofers and three 1-inch tweeters are mounted on rigid structures to reduce coloration and vibration. Right/C and Left/C are mirror-image variants sold individually. The baffle is angled by 5 degrees and the geometry places the monitor close to the screen without losing the front-array organisation of the 300 Series.
Role in the system
The shallow cabinet brings S300 precision close to the screen without the depth of the stand-mount monitor. The series uses separate die-cast mounting structures for woofers and tweeters, rear-mounted to the baffle to mechanically isolate the drivers from the cabinet and reduce reflections or colouration around the edges.
Crossover and timbre matching
The 300 Series uses crossover networks and driver geometry designed for time-domain accuracy, controlled dispersion and consistency across the range.
Installation and dimensions
Approximate dimensions are 39.4 x 33.9 x 17.7/14.2 cm; weight 12 kg. Construction is designed to maintain the correct driver geometry in the intended position.
Construction and finishes

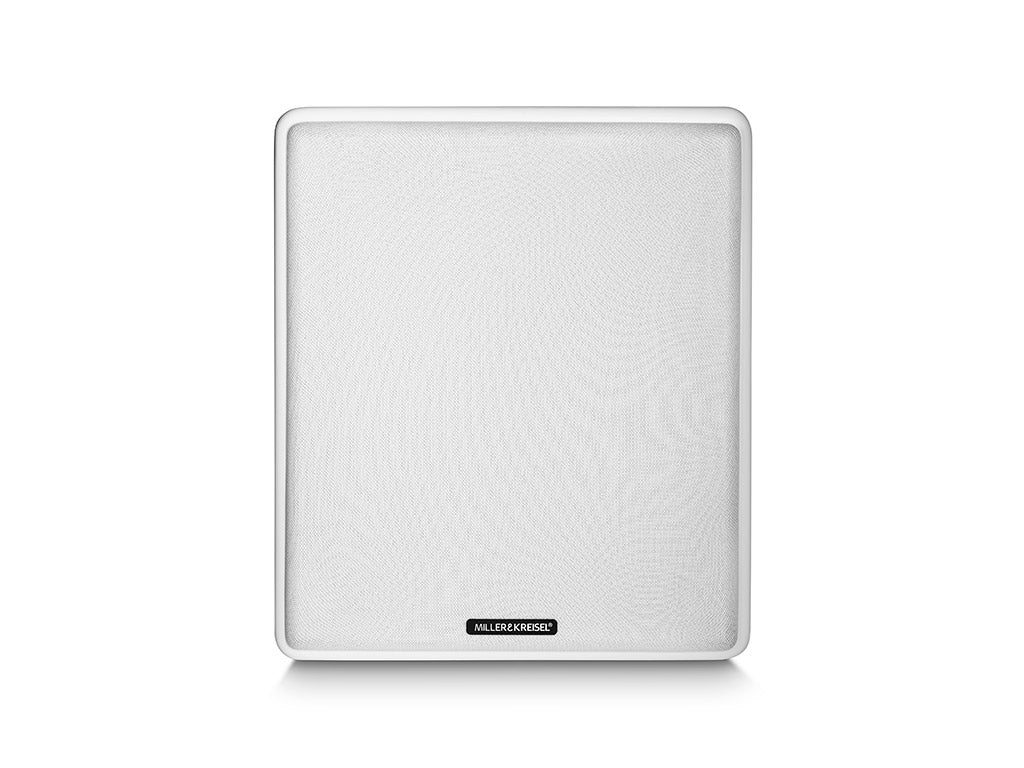

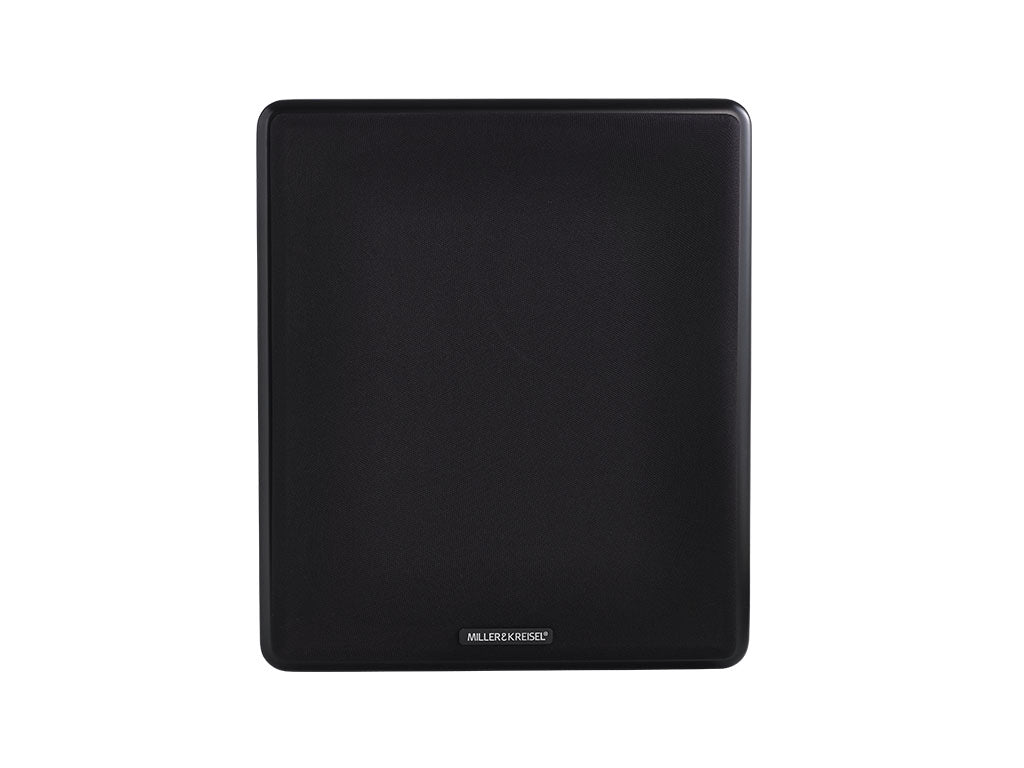

Rigid construction and separate driver mounts reduce mechanical cabinet noise. Black or White Satin finish.
