Reference 3-way in-ceiling speaker
The B&W CCM7.3 S2 is a high-end in-ceiling speaker designed to deliver true hi-fi performance in fully integrated installations. The 3-way configuration, using technology derived from the 700 Series, ensures extremely detailed and dynamic reproduction, ideal for premium living spaces or dedicated home theaters.

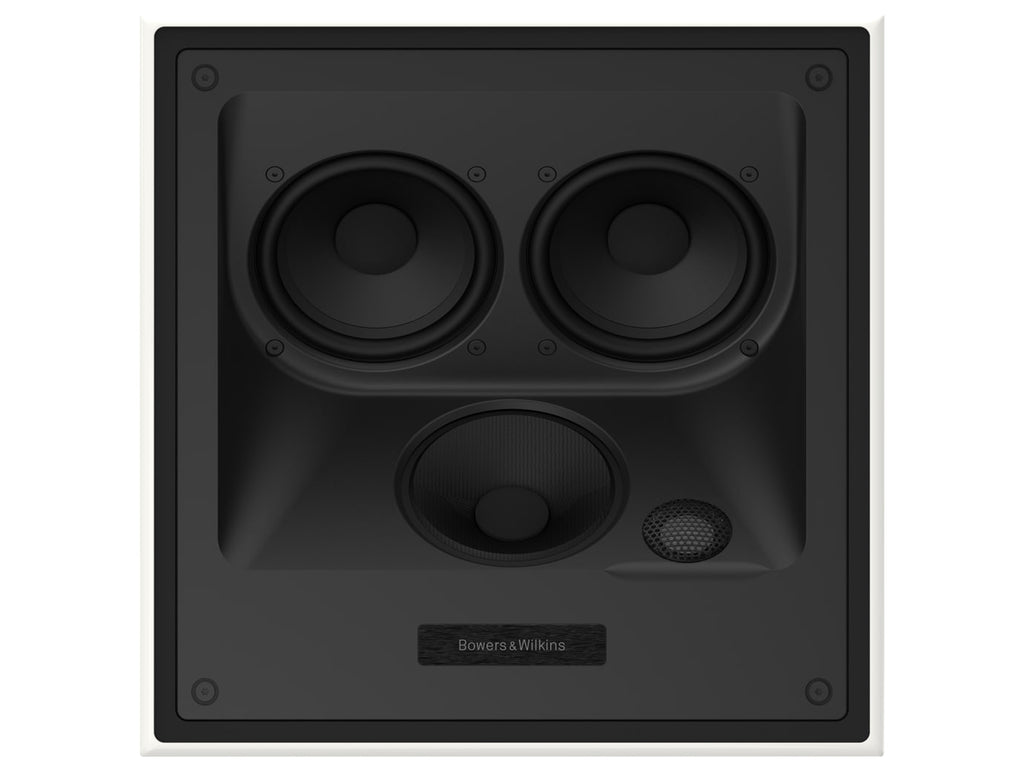

It integrates a 25 mm Carbon Dome tweeter, a dedicated 100 mm (4") Continuum™ midrange and a 180 mm (7") Aerofoil™ woofer, ensuring extension, control and tonal coherence across the entire sound spectrum.
Timbral precision and invisible integration
The Carbon Dome tweeter delivers crisp, airy high frequencies, while the Continuum™ midrange delivers natural, transparent vocals. The Aerofoil™ woofer delivers deep, controlled bass even at high sound pressure levels.

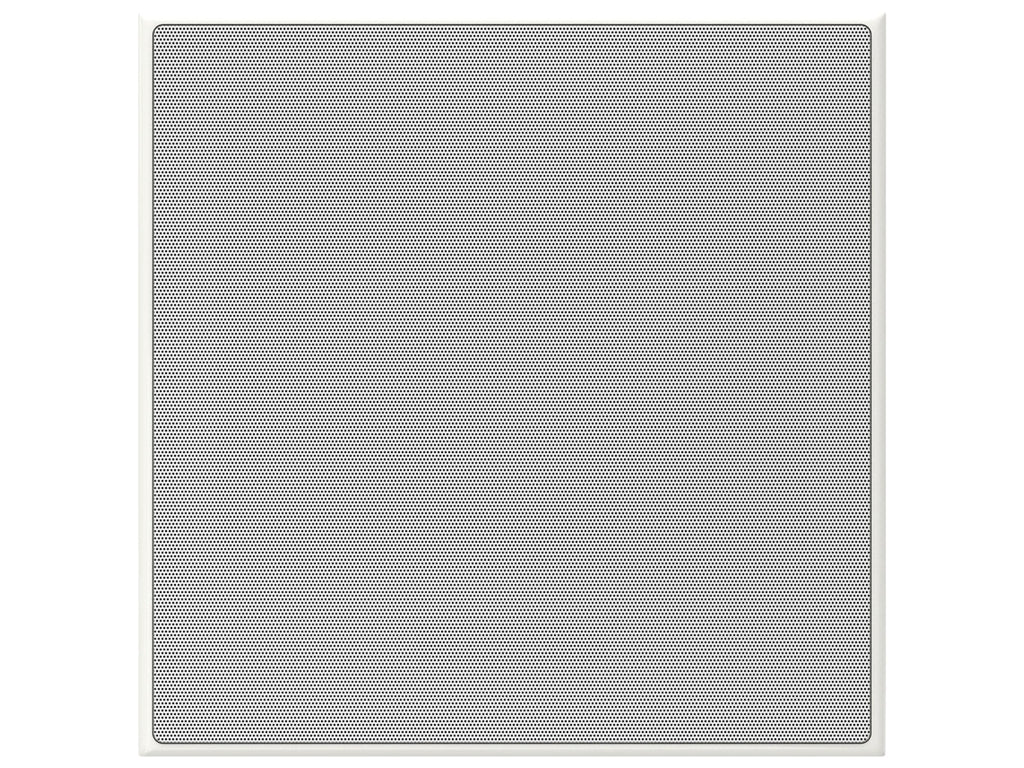

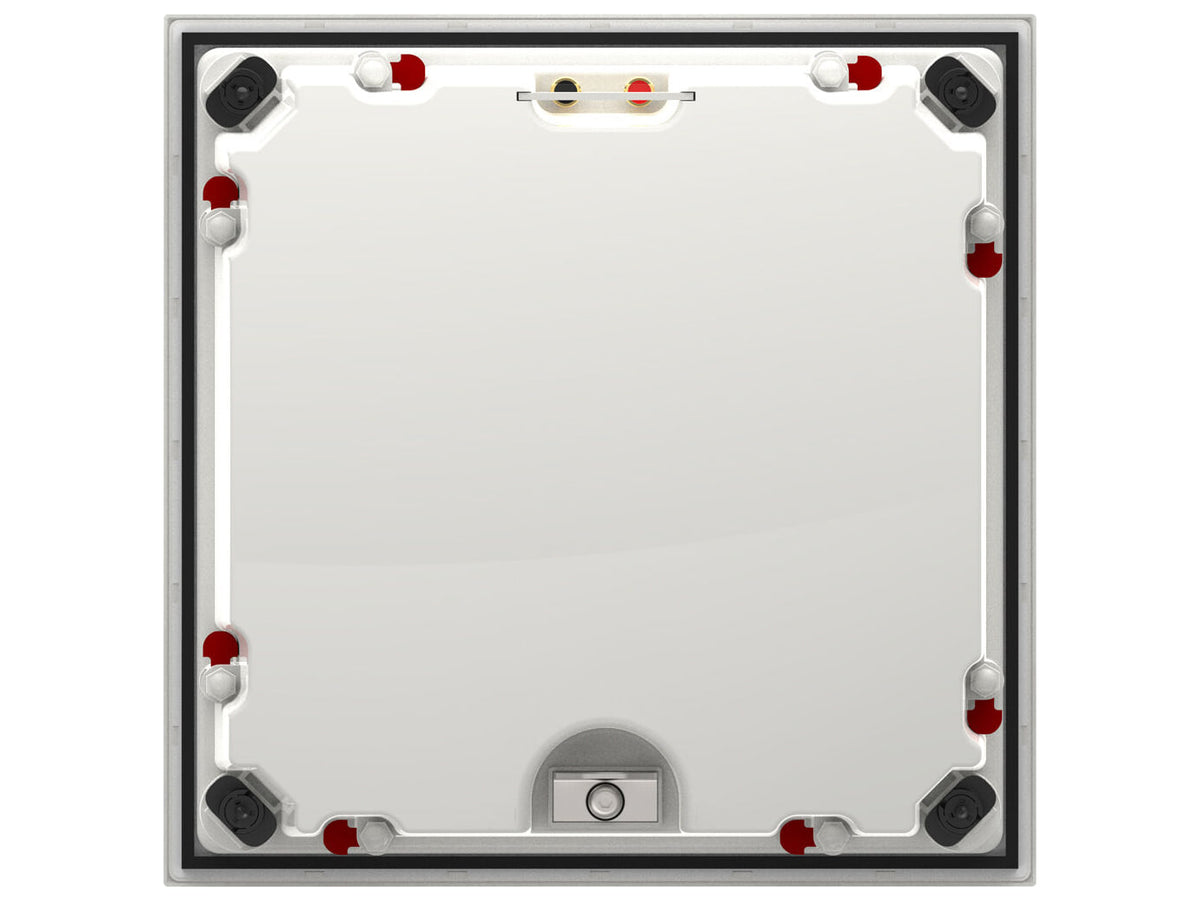

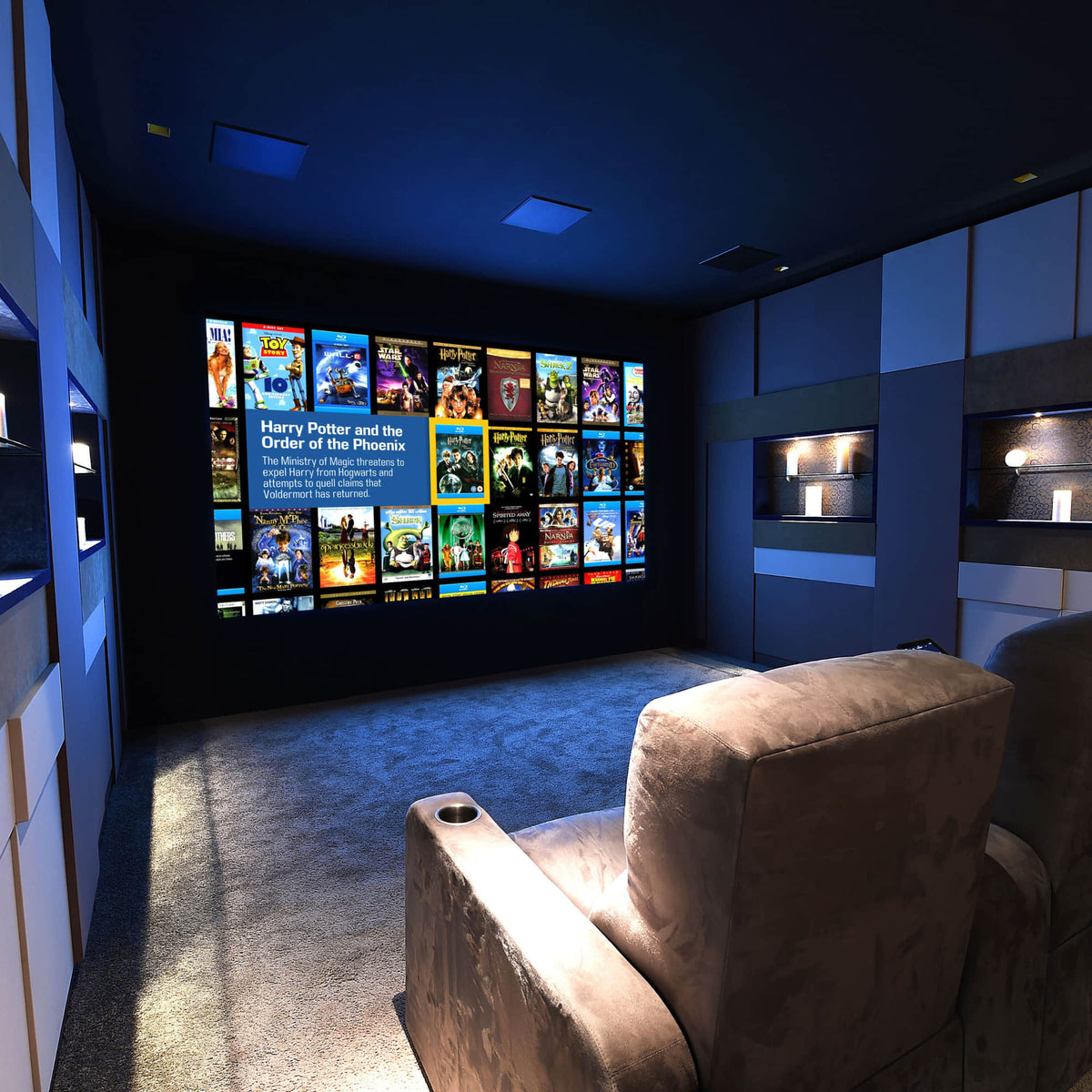

The installation system includes a sturdy frame and paintable magnetic grille for seamless aesthetic integration into the ceiling. Ideal as a main, surround, or Atmos channel in high-end home theater systems.
| Type
|
Recessed ceiling speaker |
| Configuration
|
3 ways |
| Woofer
|
1 × 180 mm (7") Aerofoil™ |
| Midrange
|
1 × 100 mm (4") Continuum™ |
| Tweeter
|
1 × 25 mm Carbon Dome |
| Frequency response
|
30 Hz – 33 kHz |
| Sensitivity
|
88 dB (2.83V / 1 m) |
| Nominal impedance
|
8 Ω |
| Recommended power
|
25 – 200 W |
| Recessed depth
|
194 mm |
| Grill
|
Magnetic and paintable |
