Description
The absolute reference of the 800 Diamond Series

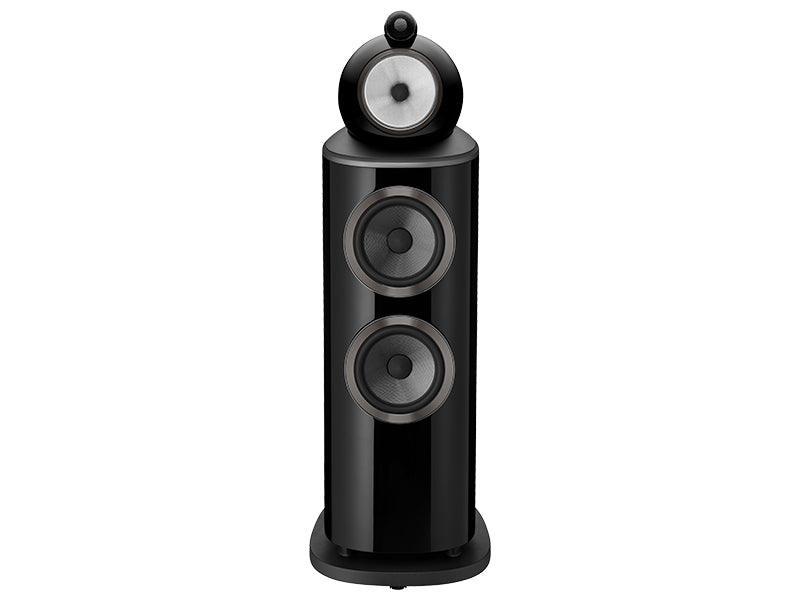

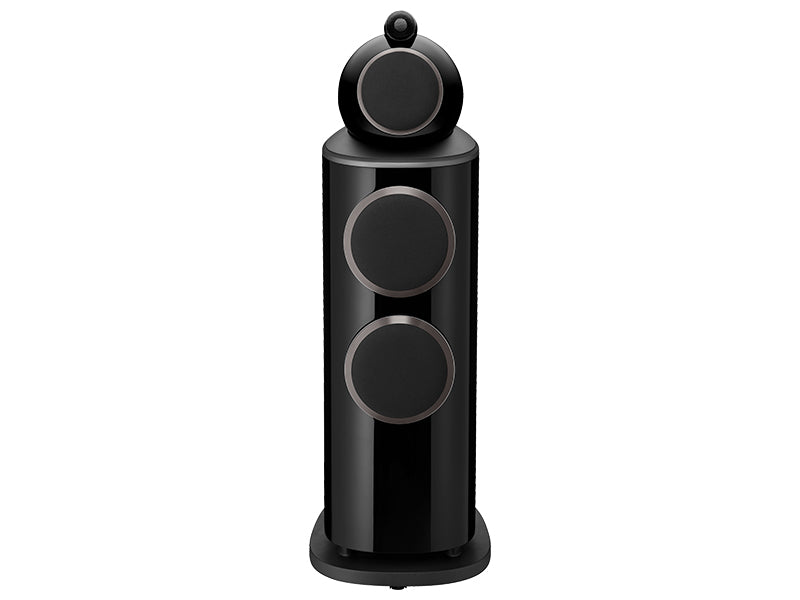

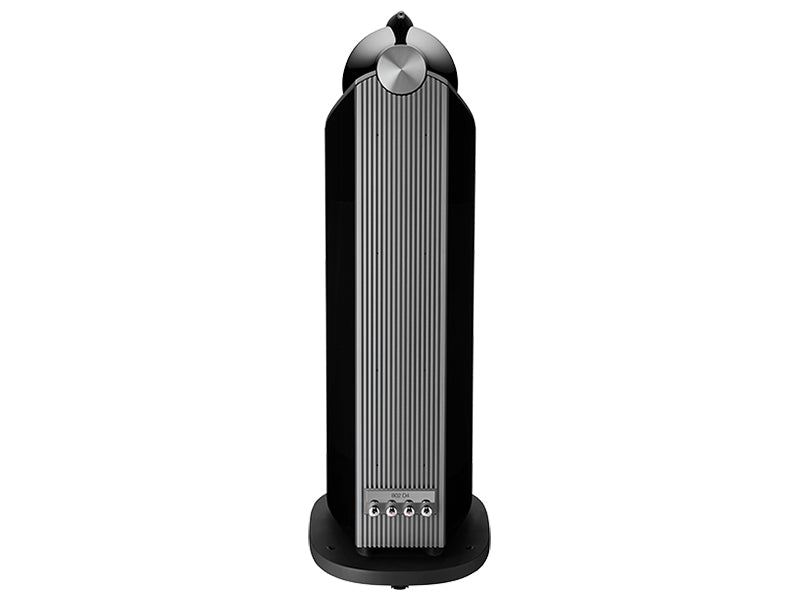

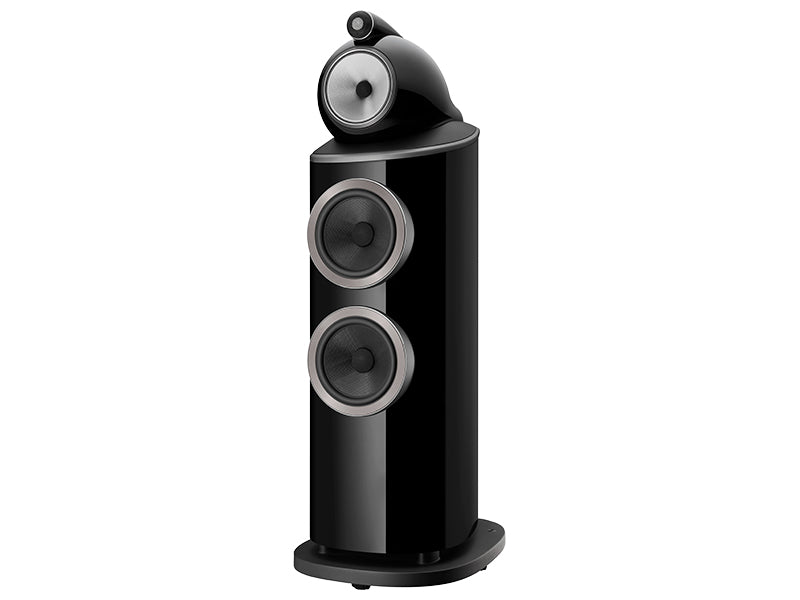

The Bowers & Wilkins 801 D4 is the flagship model of the renowned 800 Diamond Series, designed to deliver uncompromising performance in hi-fi and professional studio environments. Used as a reference in numerous recording studios around the world, this tower represents the most advanced expression of the B&W design philosophy.
Thanks to the use of proprietary engineering solutions such as the Diamond Dome tweeter , the Continuum™ FST™ midrange and the internally braced Matrix™ structure, the 801 D4 guarantees extremely precise, dynamic and natural sound reproduction.
It is the ideal speaker for large spaces and for top-level amplification systems, where every musical detail must emerge with absolute realism.
3-way architecture with Turbine Head and Aerofoil™ woofer
The 801 D4 features a 3-way bass-reflex configuration with a Reverse Wrap cabinet stiffened and reinforced by an aluminum structure. The midrange is housed in the renowned solid aluminum Turbine Head™ , completely decoupled to eliminate vibrations and interference from the rest of the cabinet.
The 25mm Diamond tweeter is mounted in a solid billet aluminium body, while the low range is entrusted to two large 250mm Aerofoil™ woofers, designed to offer depth, control and speed even at high volumes.
The result is a wide, three-dimensional soundstage, with deep, articulated bass, incredibly transparent mids, and extended, refined high frequencies.
| Type | 3-way, bass-reflex floorstanding speaker |
| Tweeter | 1×25mm Diamond Dome with Solid Body Tweeter |
| Midrange | 1 × 150mm Continuum™ FST™ |
| Woofer | 2 × 250 mm Aerofoil™ |
| Frequency response | 15 Hz – 28 kHz (±3 dB) |
| Frequency extension | 13 Hz – 35 kHz (-6 dB) |
| Sensitivity | 90 dB (2.83 V / 1 m) |
| Nominal impedance | 8 Ω (minimum 3 Ω) |
| Recommended amplifier power | 50 – 1000 W into 8 Ω |
| Dimensions (H × W × D) | 1221 × 451 × 600 mm |
| Weight | 100.6 kg |
| Finishes | Gloss Black, Satin Walnut, White |
