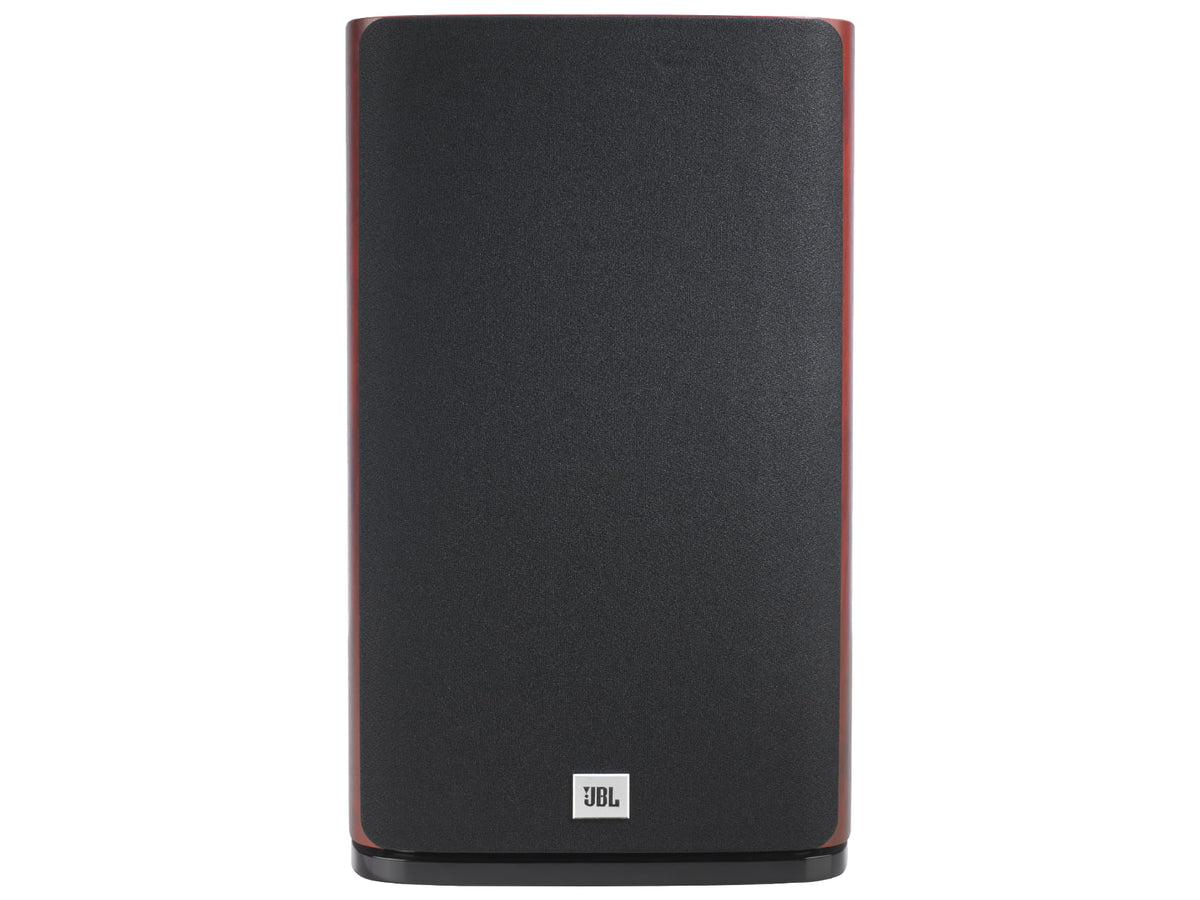

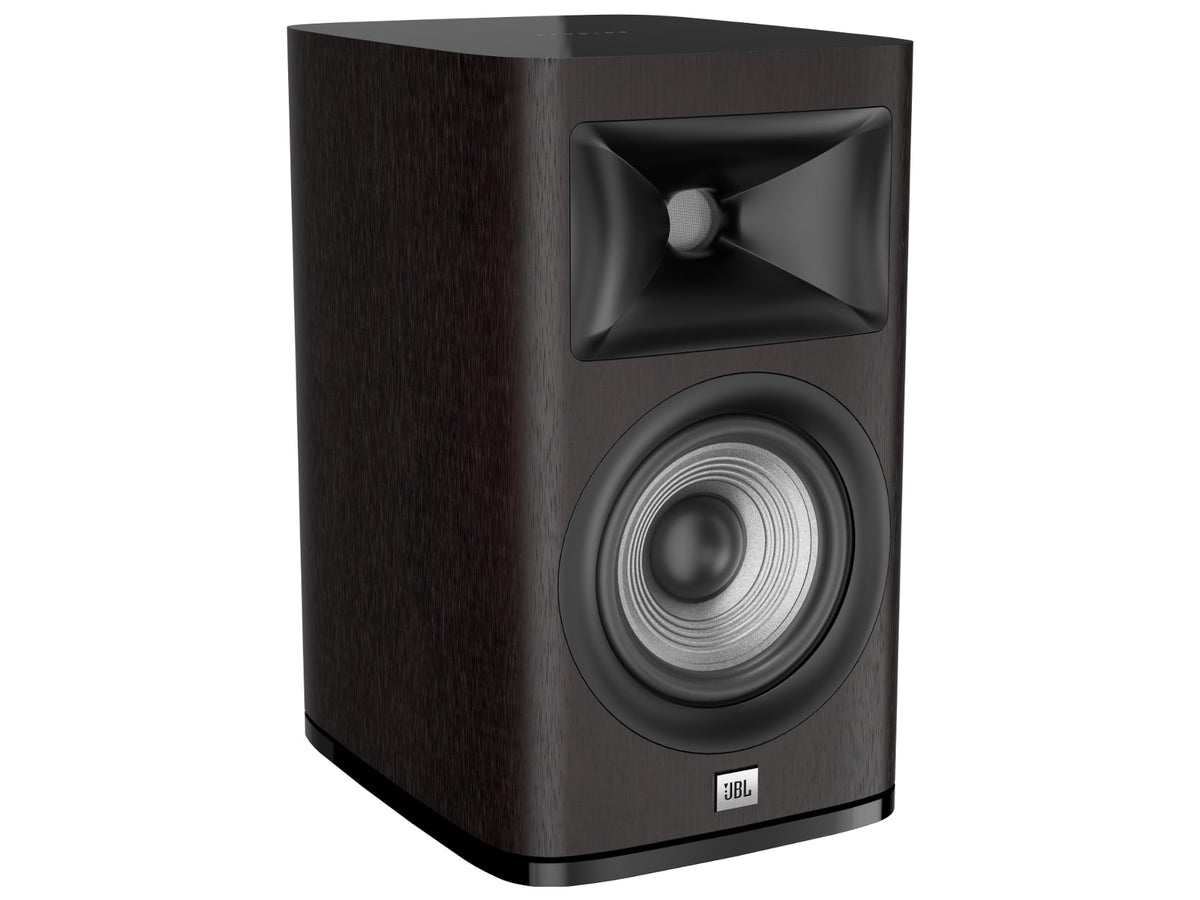

JBL Studio 620

JBL Studio 620: 2-way stand-mount loudspeaker with a 133 mm woofer

The smaller of the two stand-mount models in the Studio 6 range: a bass-reflex two-way to place on a stand or a shelf, suited to amplifiers of up to 100 W. Sold as a pair.

The 133 mm woofer has a PolyPlas cone; the treble comes from a 25 mm compression driver working through the HDI (High-Definition Imaging) waveguide. The cabinet is tuned by a port that opens on the back panel, and the handover between the two drive units takes place at 2.3 kHz.

Key features

• Bass-reflex two-way, with the tuning port facing backwards
• 133 mm woofer with a PolyPlas cone
• Treble handled by a 25 mm compression driver on an HDI waveguide
• Frequency range: 50 Hz - 40 kHz
• 84 dB sensitivity (2.83 V at 1 m) into a nominal 6 ohms
• Highest suggested amplifier power: 100 W

Technical data

One loudspeaker measures 190 x 240 x 312 mm (width x depth x height) and weighs 6.8 kg. Its bigger sibling, the Studio 630, has a 165 mm woofer, reaches down to 45 Hz and handles 150 W; the 620 stays more compact, being 60 mm lower and 40 mm smaller in both width and depth.

Finishes

Cabinet in the Dark Wood finish. Along with the two loudspeakers, the box includes eight support feet.
