Audiophile power distributor with 12 independent outputs for high current sources and components.
Complete solution for powering an entire hi-fi or home cinema system
The IsoTek EVO3 Nova is a high-end power distributor designed to offer advanced power management to a complete audio-video system. It is intended as a “full system upgrade” solution, with a structure that combines sections dedicated to medium current components and specific sockets for high current devices, so as to properly serve both sources and preamplifiers as well as integrated amplifiers, power amplifiers or subwoofers. IsoTek describes it as a product with 12 independent filter networks , each associated with its own output.
Twelve total sockets with separate section for heavy loads

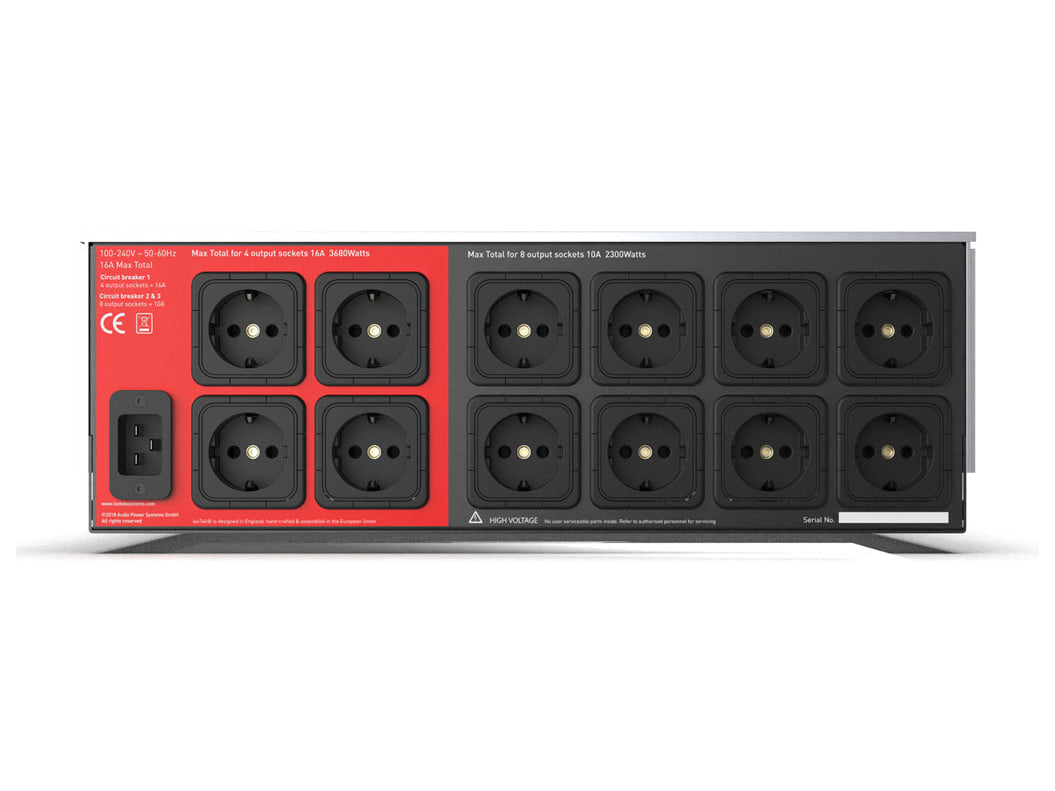

The rear panel of the EVO3 Nova provides a total of 12 outputs , divided into 8 medium current sockets and 4 high current sockets . The eight medium current outputs support up to 2,300 W total at 230 V or 1,150 W at 115 V , while the four high current outputs reach 3,680 W total at 230 V or 1,840 W at 115 V. This configuration makes the Nova very interesting for those who want to concentrate the power distribution of the entire system in a single chassis, maintaining a more orderly and specialized management of the various connected loads.
Front display, high protection and important construction

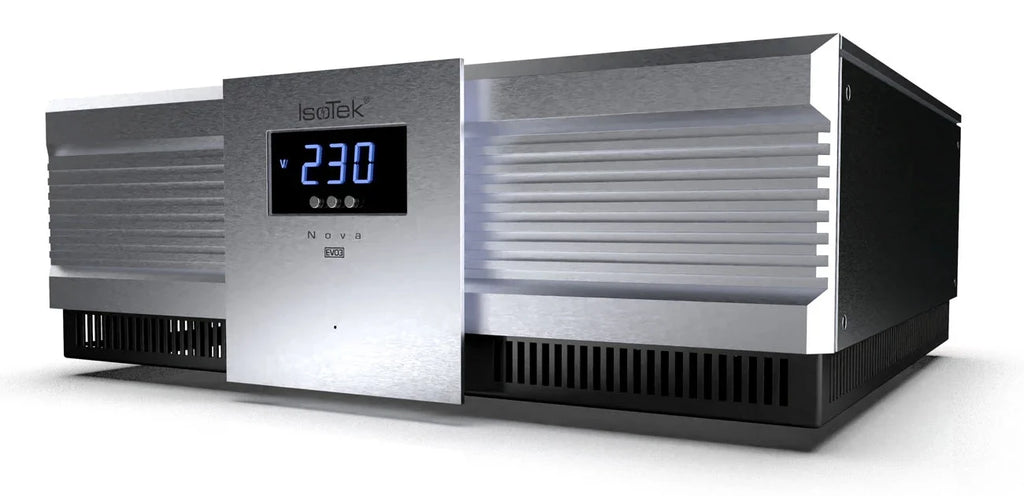

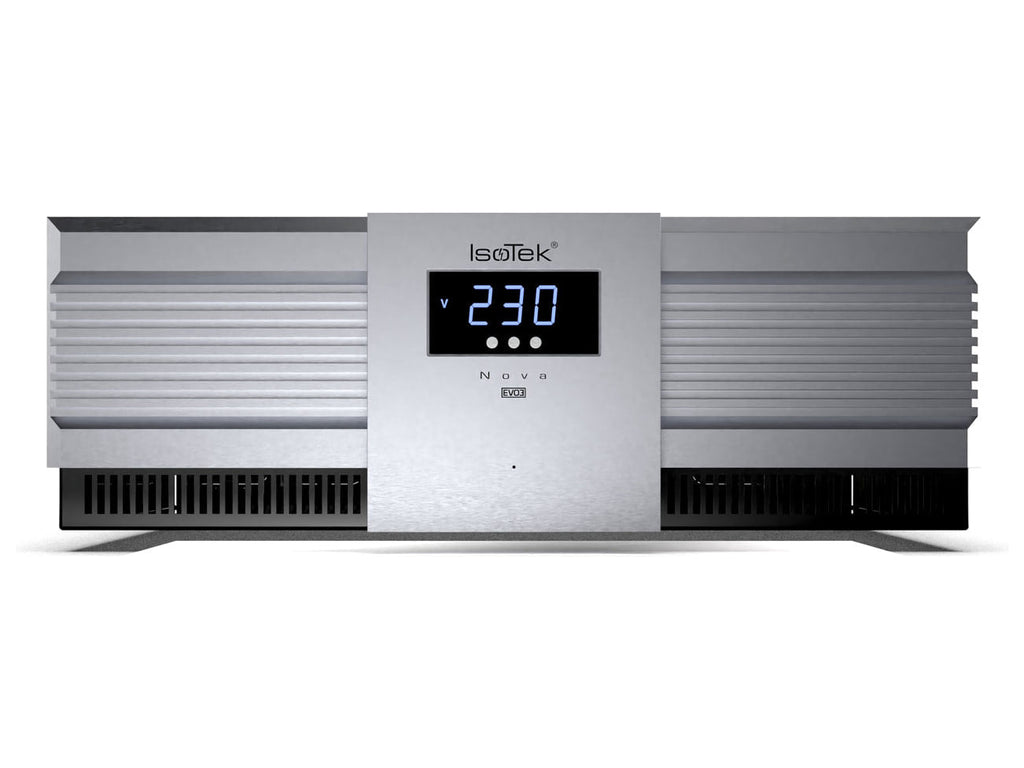

The IsoTek EVO3 Nova features a front display that can show voltage , THD or remain off, and uses a 16A IEC C20 mains input. It supports 100–240V/50–60Hz mains and is available with UK, EU, US, AU and CH standard sockets. Surge protection is rated at 108,000A , while dimensions and weight confirm a substantial build: 445 x 185 x 370mm for 15kg .
| Typology |
Audiophile power distributor / mains filter |
| Number of sockets
|
12 |
| Type of exits
|
8 medium current + 4 high current |
| Display
|
Voltage / THD / Off |
| Network input
|
16A IEC C20 |
| Supported mains voltage
|
100 – 240 V |
| Supported network frequency
|
50 – 60 Hz |
| Medium current outputs at 230 V
|
8 x 10A (2,300 W total) |
| Medium current outputs at 115 V
|
8 x 10A (1,150 W total) |
| High current outputs at 230 V
|
4 x 16A (3,680 W total) |
| High current outputs at 115 V
|
4 x 16A (1,840 W total) |
| Overvoltage protection
|
108,000 A |
| Standard sockets available
|
UK, EU, US, AU, CH |
| Dimensions (W x H x D)
|
445 x 185 x 370 mm |
| Weight
|
15 kg |
