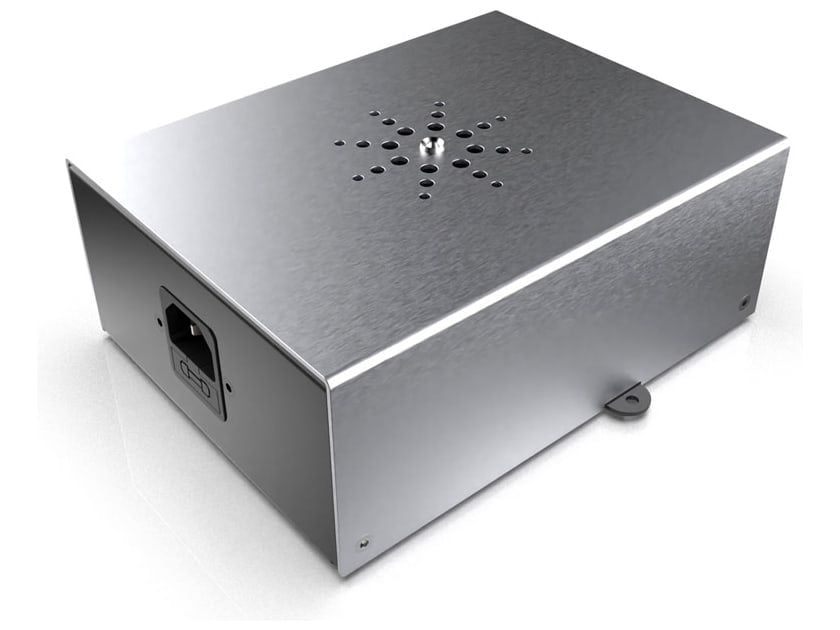

IsoTek EVO3 Mini Mira

Two-outlet mains filter designed for audio-visual use: TVs of every kind and projectors.

EVO3 Mini Mira: the design

EVO3 Mini Mira is designed for the screen and the component that goes with it: it uses a triple-resonance circuit that IsoTek specifies for plasma, LCD, LED, OLED and QLED TVs, and for projectors.

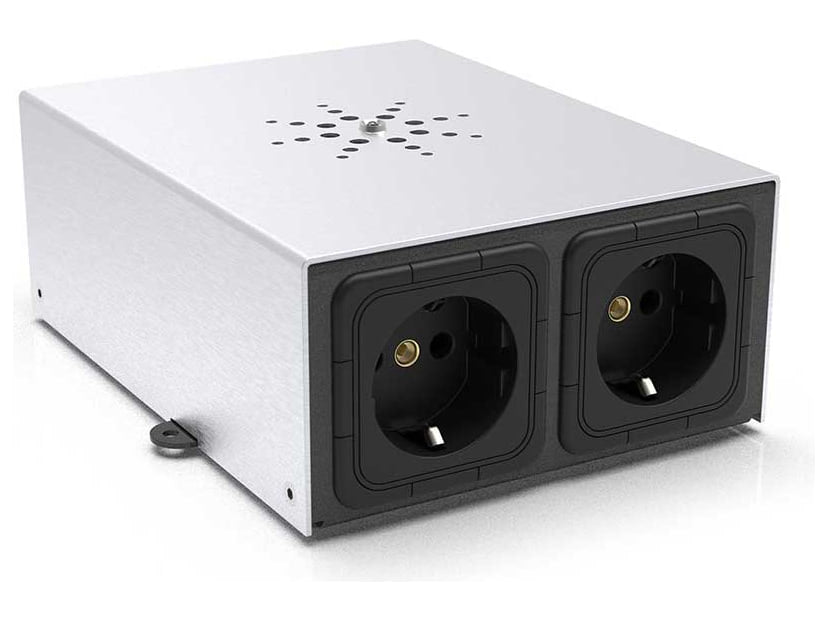

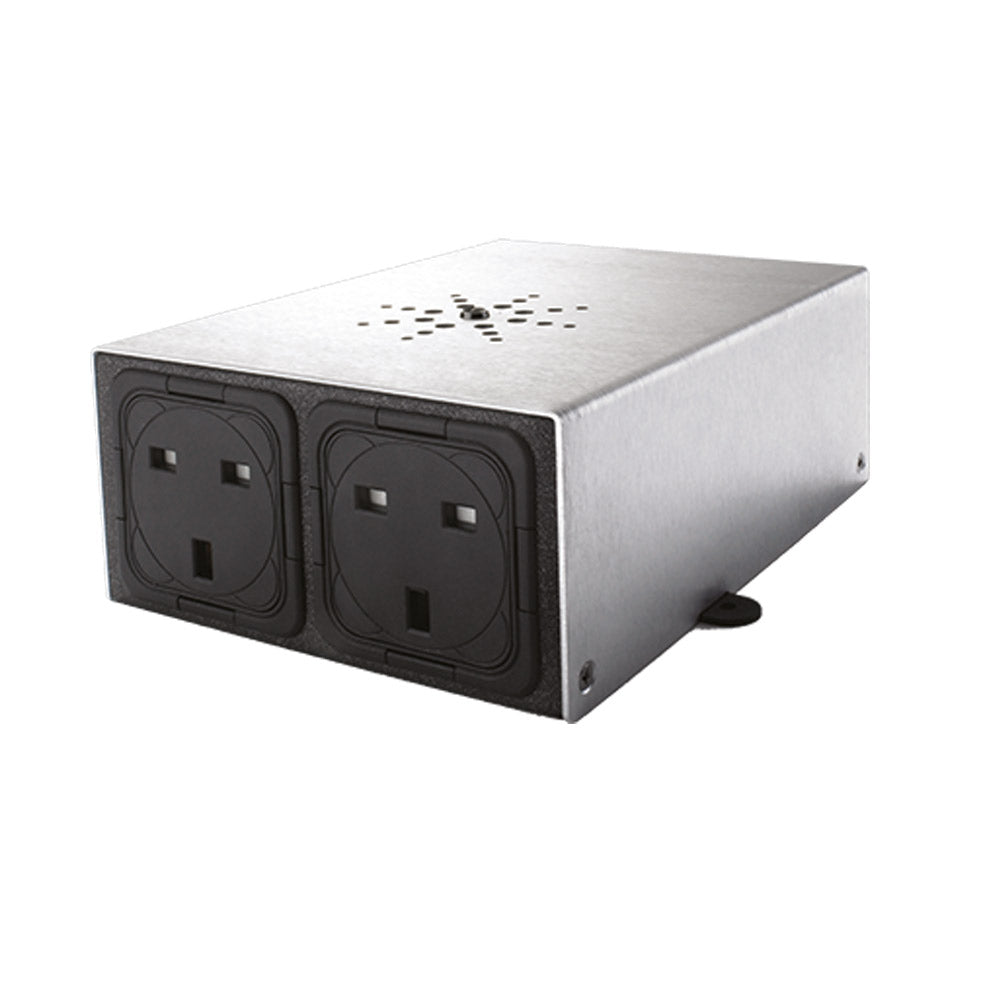

It has two filter circuits and two independent outlets, one for video and one for a component, both rated 10 A. It can be wall-mounted. It needs an IEC C13 lead, not included.

Specifications

• 2 independent outlets: one video, one component
• RFI reduction: 30 dB audio, 40 dB video
• Instantaneous protection: 22,500 A
• Star-earthed network
• Internal wiring in silver-plated 6N OFC copper with FEP dielectric
• Mains inlet: 10 A IEC C14
• Maximum power: 2,300 W (10 A at 230 V)
• Mains voltage: 100-240 V, 50-60 Hz
• Wall-mountable
• Size: 130 x 65 x 170 mm (W x H x D)
• Weight: 0.9 kg
