Compact power distributor with 2 independent outputs and audiophile filtering for hi-fi and AV systems
A simple yet effective solution to improve power quality
The IsoTek V5 Gemini is a compact power distribution box designed for basic hi-fi and audio-video systems, ideal for two-component setups, desktop setups, or as an extension of other IsoTek products. Part of the V5 series, the brand presents it as an updated evolution of the compact EVO3 Gemini, with a focus on increased protection, improved noise management, and ease of use.
Two independent sockets and architecture designed to limit contamination
The design integrates 2 independent outputs connected to the central PCB , avoiding the classic series connection between the sockets which can promote Differential Mode Noise contamination between the connected components. IsoTek also claims a delta filter topology with over 20 dB of power cleaning at 1 kHz and up to 42 dB at 10 kHz , as well as the presence of the System Link to expand the number of sockets while maintaining a completely star-earthed supply.
Ultra compact size, high protection and simple integration

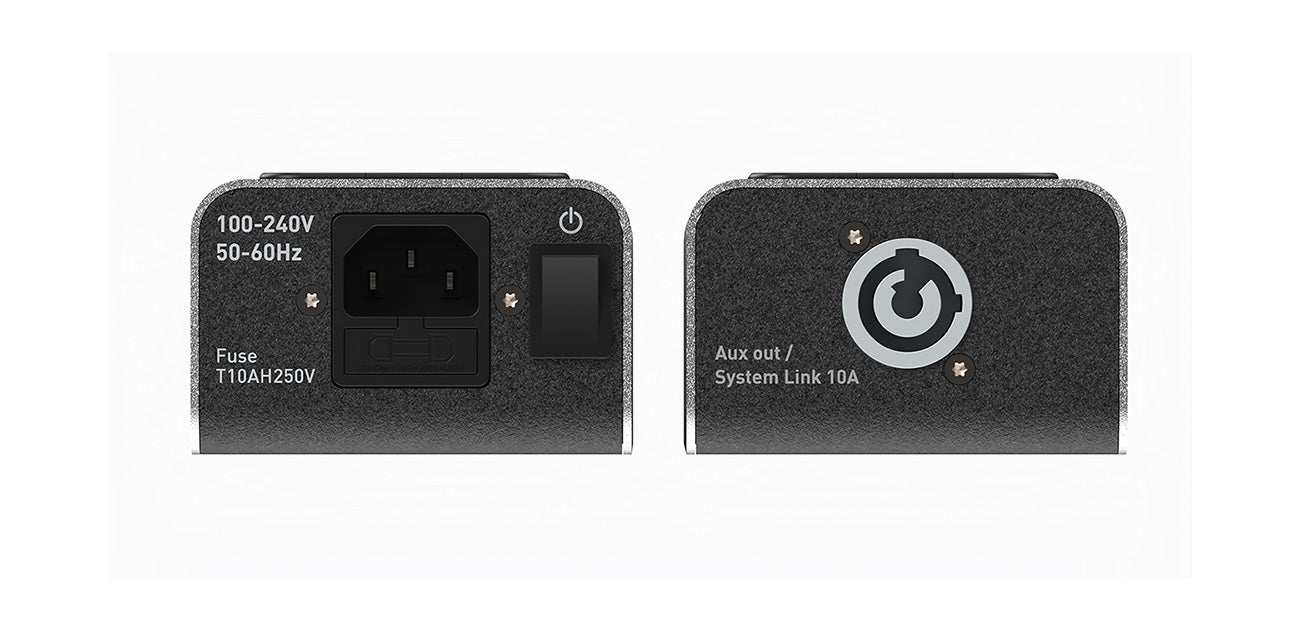

The IsoTek V5 Gemini uses a 10A IEC C14 mains input, supports 100–240V/50–60Hz mains and offers a maximum current of 10A HRC . The total declared power is 2,300W at 230V or 1,150W at 115V , while the surge protection is up to 45,000A . Its dimensions are 80 x 50 x 270mm and it weighs 0.7kg , making it very easy to fit into any home installation.
| Typology |
Audiophile power distributor / mains filter |
| Number of sockets
|
2 |
| Architecture
|
2 independent outputs connected to the central PCB |
| Filtering topology
|
Delta filter topology |
| Power cleaning
|
Over 20 dB at 1 kHz, up to 42 dB at 10 kHz |
| System Link
|
1 |
| Network input
|
10A IEC C14 |
| Supported mains voltage
|
100 – 240 V |
| Supported network frequency
|
50 – 60 Hz |
| Maximum current
|
10A HRC |
| Total power at 230 V
|
2,300 W |
| Total power at 115V |
1,150 W |
| Overvoltage protection
|
45,000 A |
| Dimensions (W x H x D)
|
80 x 50 x 270 mm |
| Weight
|
0.7 kg |
| Standard sockets available
|
UK, EU, US, AU, CH |
