Streamer, DAC, CD player and analogue preamplifier

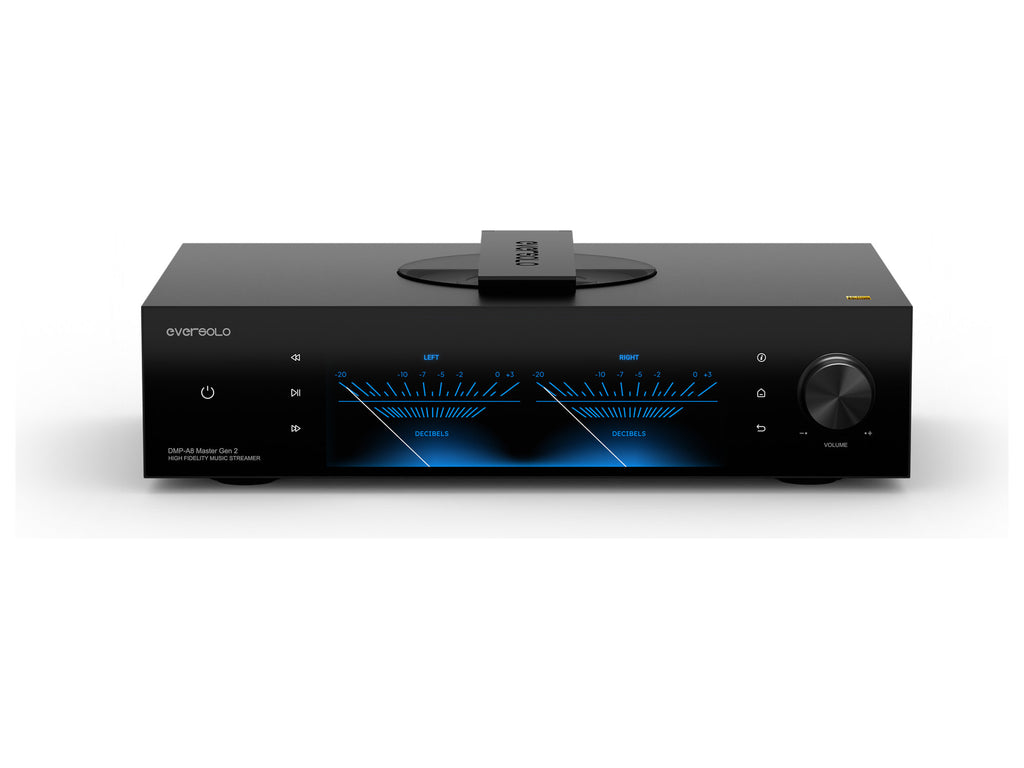

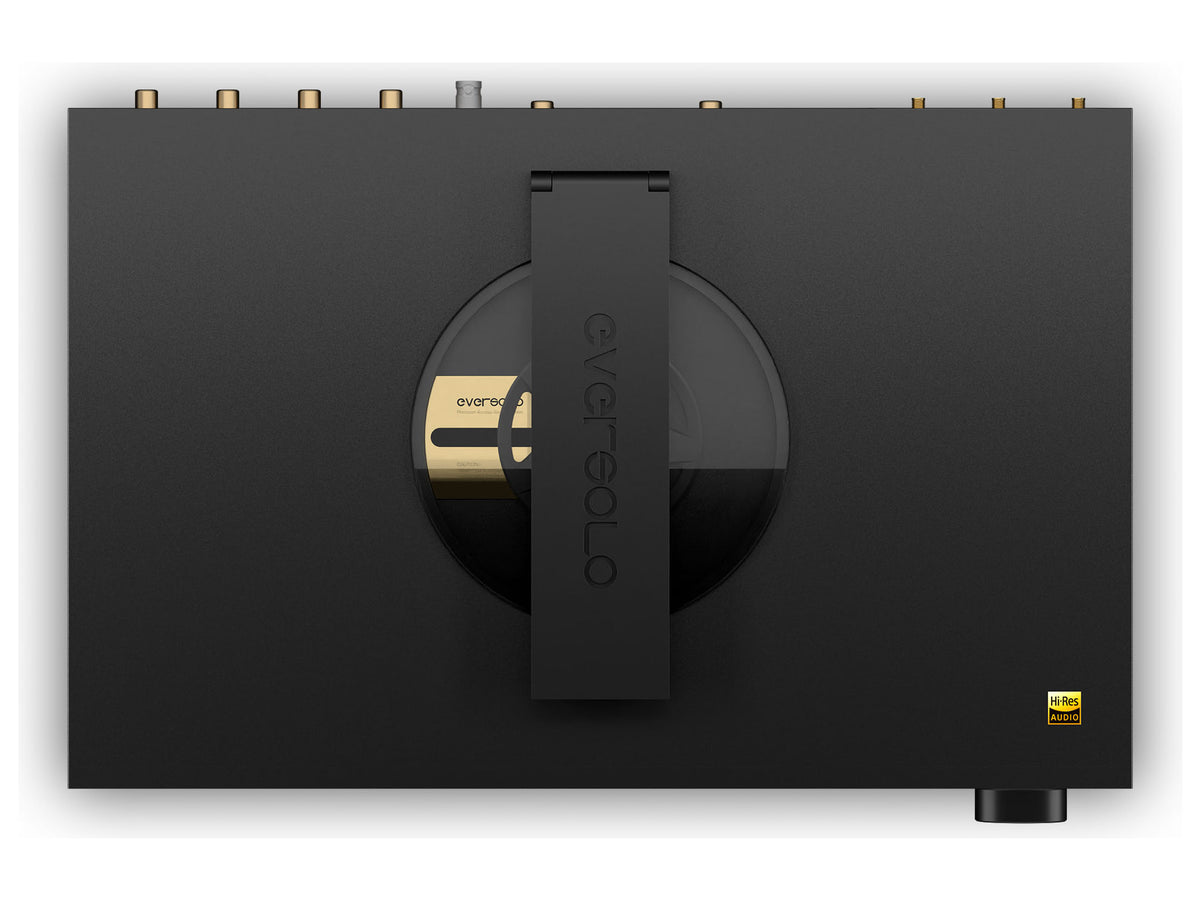

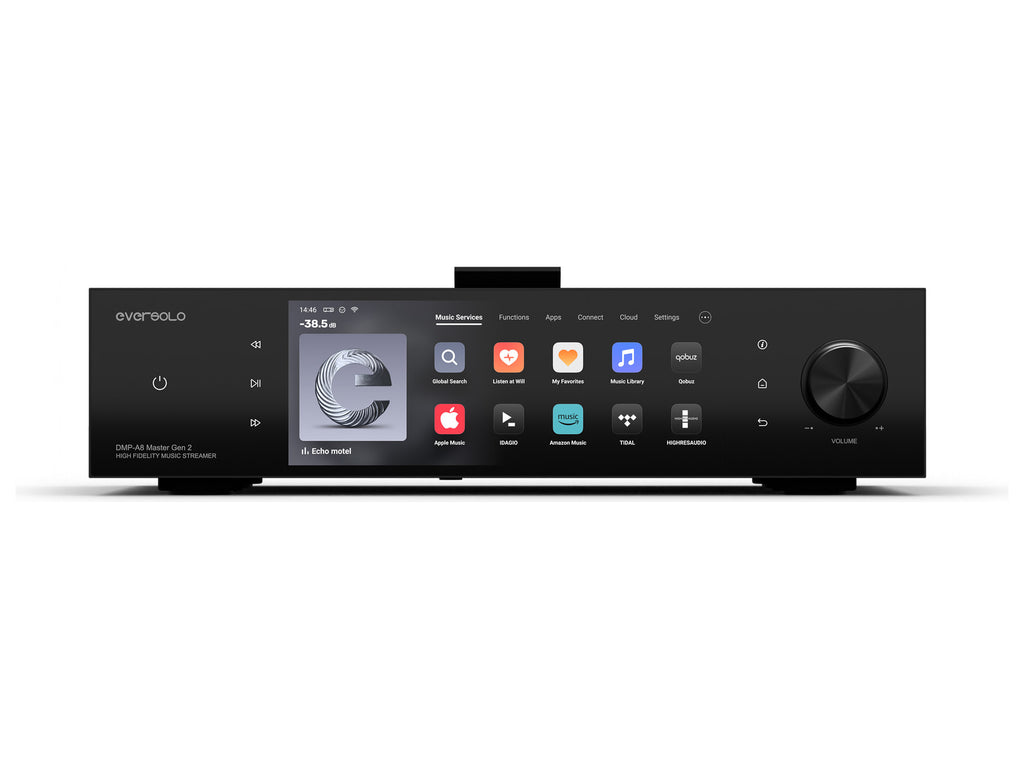

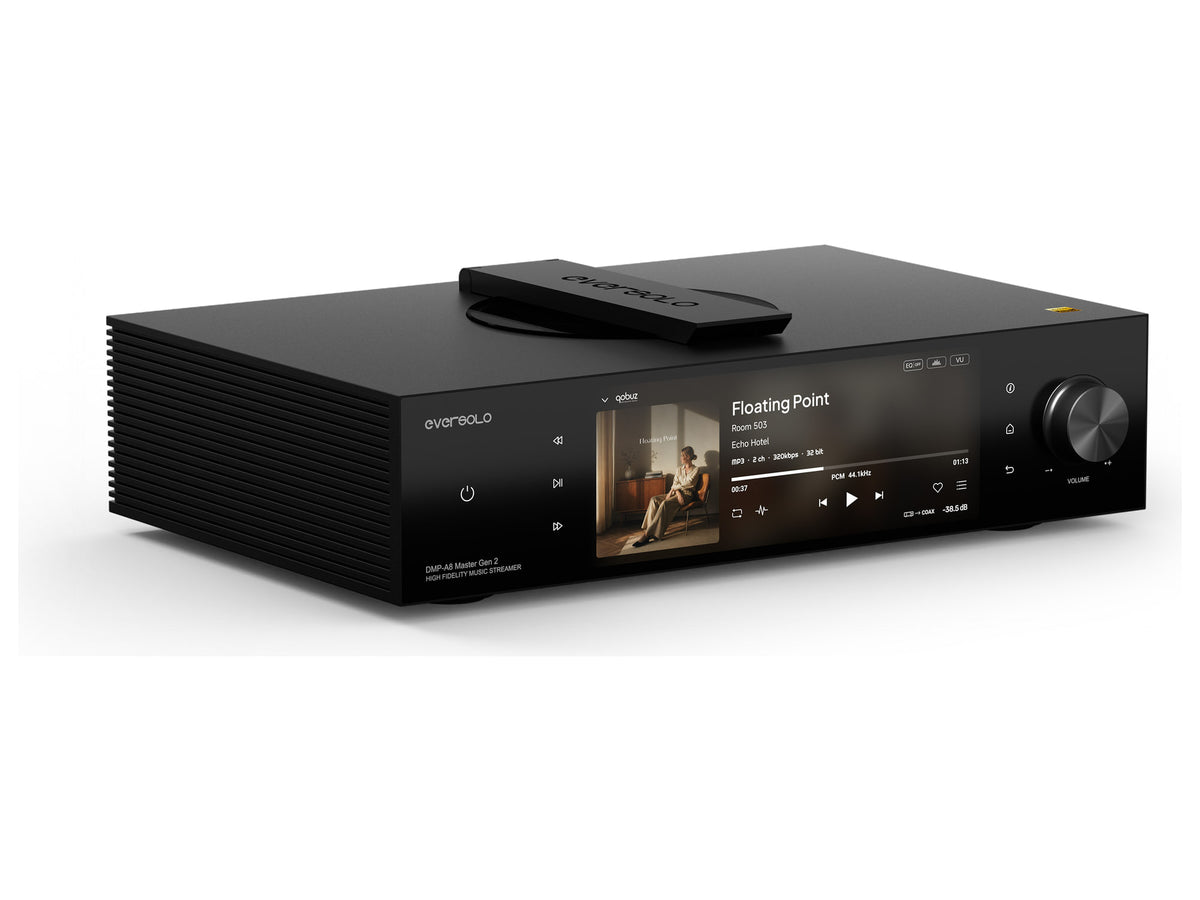

The Eversolo DMP-A8 Master Gen 2 adds to the DMP-A8 Gen 2 formula — network streamer, DAC and analogue preamplifier — a built-in CD player, with a reading system developed by Eversolo for audio use and high-precision error correction, for playing discs and ripping them to the library. The aluminium chassis measures 388 × 265 × 98.5 mm and houses an 8.6" LCD touchscreen, an octa-core processor, 8 GB of DDR5 memory and 64 GB of storage; on the underside an M.2 NVMe slot takes an SSD of up to 8 TB (not included).
AKM conversion, OCXO clock and external clock input
Conversion is handled by the AKM AK4499EXEQ + AK4191EQ pair, with OPA1612 operational amplifiers. The timing reference is an oven-controlled, low phase-noise OCXO clock, with declared jitter below 50 fs, and a 10 MHz external clock input lets you connect a master clock. Volume is adjusted in the analogue domain by an R-2R resistor ladder, with no digital attenuation, and the preamplifier stage is fully balanced. The power supply is dual, with separate linear and digital sections, and the internal architecture provides electrical isolation from the noise of connected devices. The declared figures on the XLR output are THD+N 0.000075% and a signal-to-noise ratio above 129 dB; decoding reaches DSD512 and PCM 768 kHz / 32 bit.
Inputs, outputs and room correction

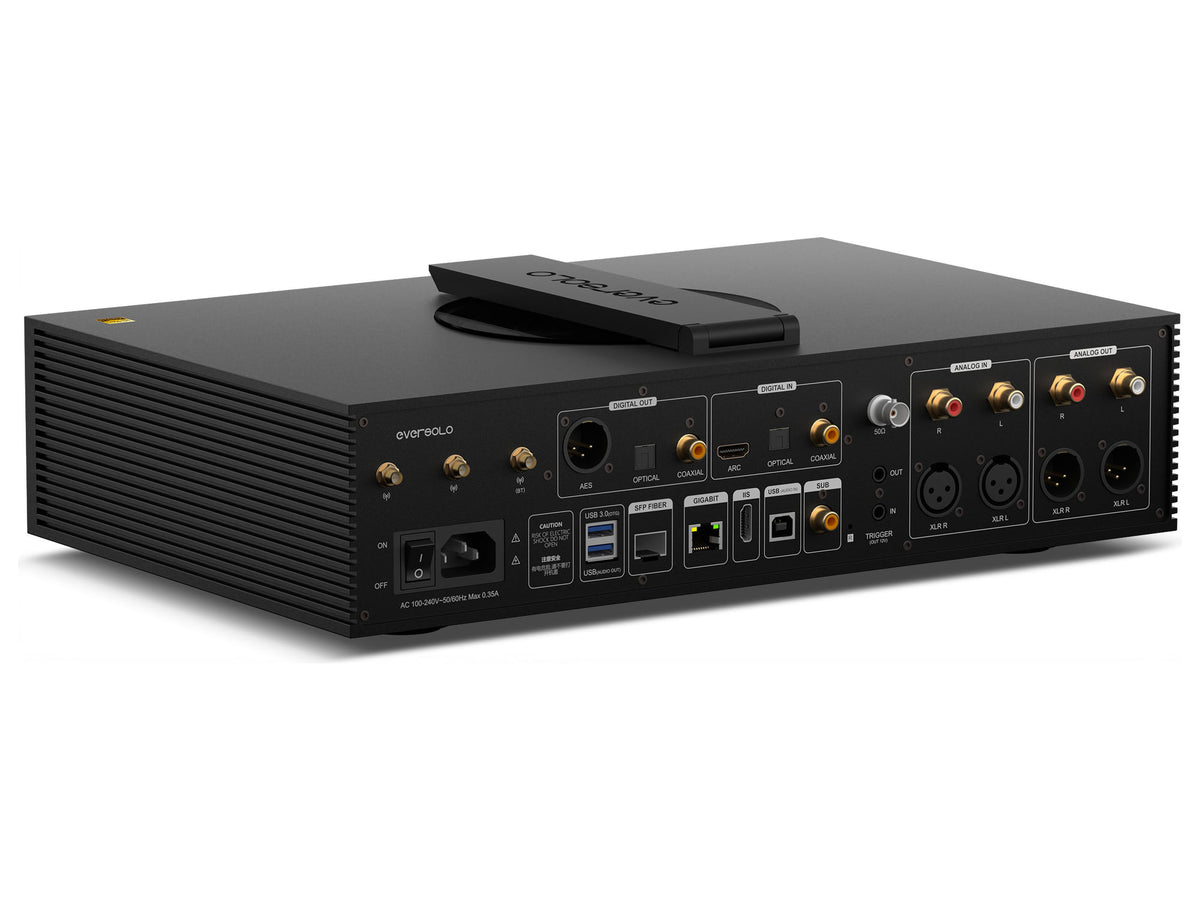

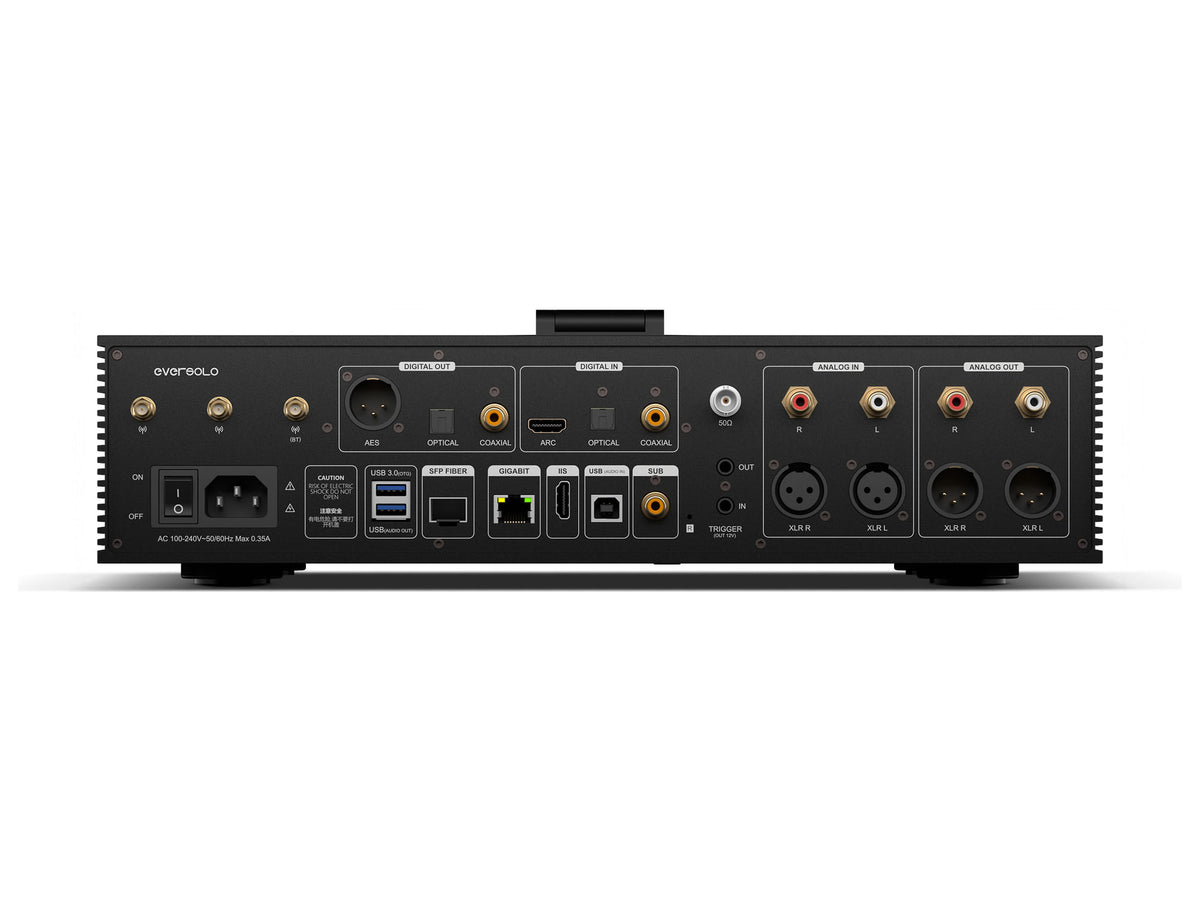

The inputs include HDMI ARC/eARC for the TV, USB-B, optical, coaxial, Bluetooth 5.4 and a pair of analogue XLR and RCA inputs. On the output side there are preamplified XLR and RCA analogue outputs, a dedicated subwoofer output, and USB Audio, IIS, AES/EBU, optical and coaxial digital outputs. Networking is via Gigabit Ethernet, Wi-Fi 6 or the SFP port for optical fibre (module not included). Spotify Connect Lossless, TIDAL Connect, Qobuz Connect and DLNA are supported, together with built-in services such as TIDAL, Qobuz, Amazon Music and Apple Music. evotune™ PRO room correction and the 20-band parametric equaliser adapt the response to the room. A Bluetooth and infrared remote control is supplied.
Technical specifications
| Model |
Eversolo DMP-A8 Master Gen 2 |
| Type |
Network streamer, DAC, CD player and analogue preamplifier |
| Display |
8.6" LCD touchscreen |
| Memory |
8 GB DDR5 + 64 GB eMMC |
| DAC |
AK4499EXEQ + AK4191EQ |
| Audio processor |
Eversolo AuralEngine |
| Operational amplifiers |
OPA1612 |
| Internal power supply |
Low-noise dual supply, separate linear and digital sections |
| Audio clock |
Low phase-noise OCXO, jitter below 50 fs |
| External clock input |
10 MHz |
| CD player |
Built-in, playback and ripping |
| USB-A ports |
2 × USB 3.0 |
| SSD slot |
M.2 NVMe PCIe 3.0, 2280 form factor, up to 8 TB (SSD not included) |
| Ethernet |
RJ-45 10/100/1000 Mbps |
| Wi-Fi |
Dual-band Wi-Fi 6 (2.4 GHz + 5 GHz) |
| SFP fibre network |
SFP port for optical fibre (module not included) |
| Bluetooth |
Bluetooth 5.4 (input) |
| USB-B Audio input |
Up to DSD512 and PCM 768 kHz / 32 bit; Windows 10/11, macOS, Android, iOS |
| Optical / coaxial inputs |
Up to PCM 192 kHz / 24 bit and DSD64 (DoP) |
| HDMI input |
ARC/eARC, up to stereo PCM 192 kHz / 24 bit |
| Analogue inputs |
Balanced XLR + RCA; maximum 4.2 Vrms (XLR) and 2.1 Vrms (RCA) |
| USB Audio output |
Up to native DSD512 and PCM 768 kHz / 32 bit (UAC-compliant DACs) |
| IIS output |
Up to native DSD512 and PCM 768 kHz / 32 bit |
| Optical / coaxial outputs |
Up to PCM 192 kHz / 24 bit and DSD64 (DoP) |
| AES/EBU output |
Balanced digital interface |
| Analogue outputs |
Balanced XLR + RCA, preamplified |
| Output level |
XLR 4.2 V • RCA 2.1 V |
| Frequency response |
20 Hz – 20 kHz (±0.25 dB) |
| THD+N |
XLR 0.000075% (-122 dB) • RCA 0.000086% (-121 dB) |
| Dynamic range / S/N ratio |
XLR > 129 dB • RCA > 127 dB |
| Crosstalk |
XLR > 133 dB • RCA > 131 dB |
| Music services |
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Deezer, SoundCloud, Presto Music, Apple Music, TuneIn and more |
| Streaming |
Spotify Connect Lossless, TIDAL Connect, Qobuz Connect, DLNA, Network Audio Adapter |
| Control |
Touchscreen, Eversolo Control app, remote control |
| Power supply |
AC 100–240 V, 50/60 Hz |
| Rated power |
30 W |
| Dimensions (W × D × H) |
388 × 265 × 98.5 mm |
| Net weight |
6 kg |
| In the box |
Remote control, power cable, trigger cable, polishing cloth, manual |
