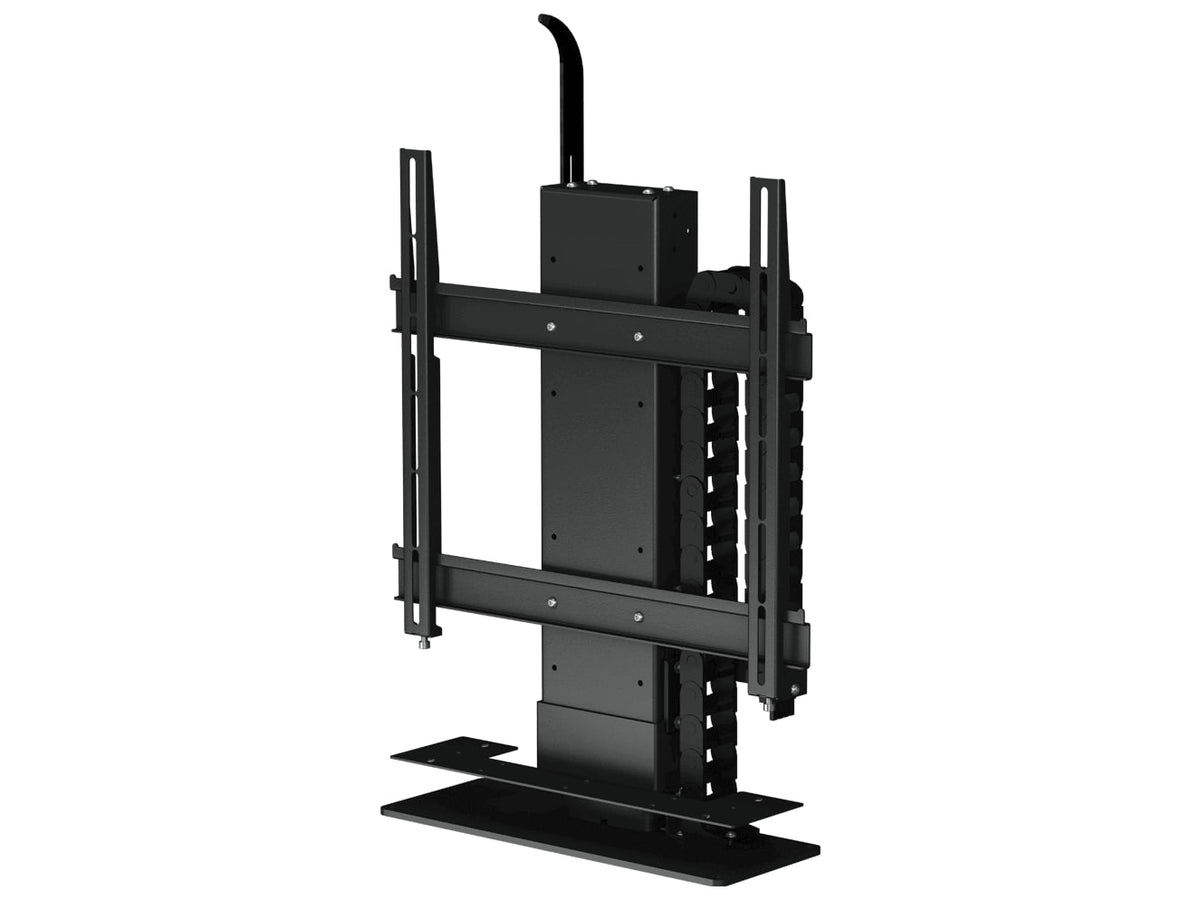

Motorised telescopic actuator TV lift for 32" to 48" screens
The AL675 is a motorised lifting mechanism by Future Automation that raises a television out of a cabinet and keeps both the screen and the mechanism out of sight whenever they are not needed. It suits screens of roughly 32" to 48", no taller than 645 mm and weighing 40 kg at most.
It can be fitted in a free-standing cabinet or at the end of a bed; the manufacturer also mentions living-room furniture and kitchen worktops. The unit arrives fully assembled, so nothing has to be built on site, and its near-silent motor and smooth travel make it a good fit for residential projects.
Key features
- Screens of roughly 32" to 48", with a screen height of 645 mm at most
- Maximum load: 40 kg
- Stated noise level: 51 dB
- Built-in cable chain that keeps wiring tidy and safe while the lift moves
- Brackets for a fixed lid and for a push flap lid, both in the box
- Black painted finish, RAL 9005
- 12 V power output; runs on a 240 V or 110 V supply
Control and integration
Out of the box the mechanism accepts IR, RS232 and contact closure commands. The AL675-RF variant adds radio-frequency (RF) control. The control box measures 150 x 210 x 50 mm.
Installation
The AL675 ships with brackets for a fixed lid as well as for a push-up lid (push flap), which leaves several cabinet designs open; a bracket that fixes the base panel is included too, so the cabinet can be closed off completely and safely. Among the compatible accessories Future Automation lists the USM speaker mount.
Environments
The AL675 is an indoor mechanism, intended for residential settings such as bedrooms, living areas and kitchens.
