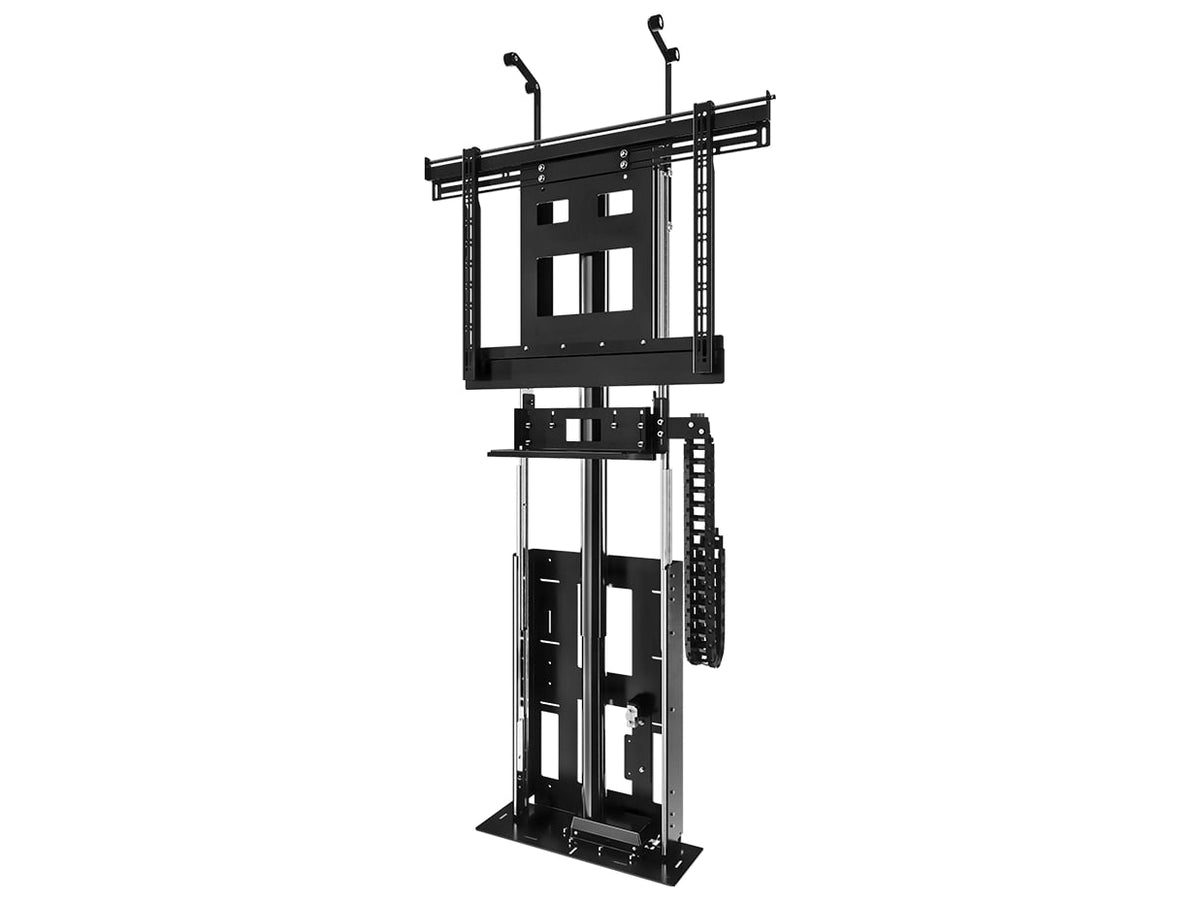

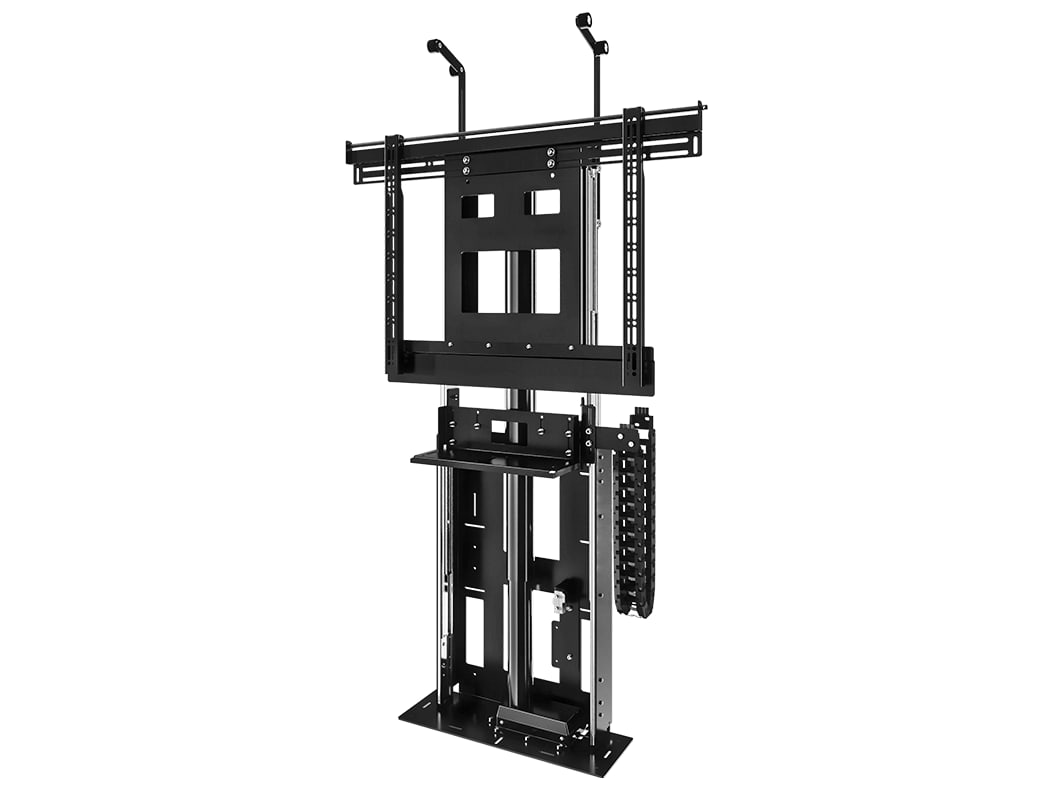

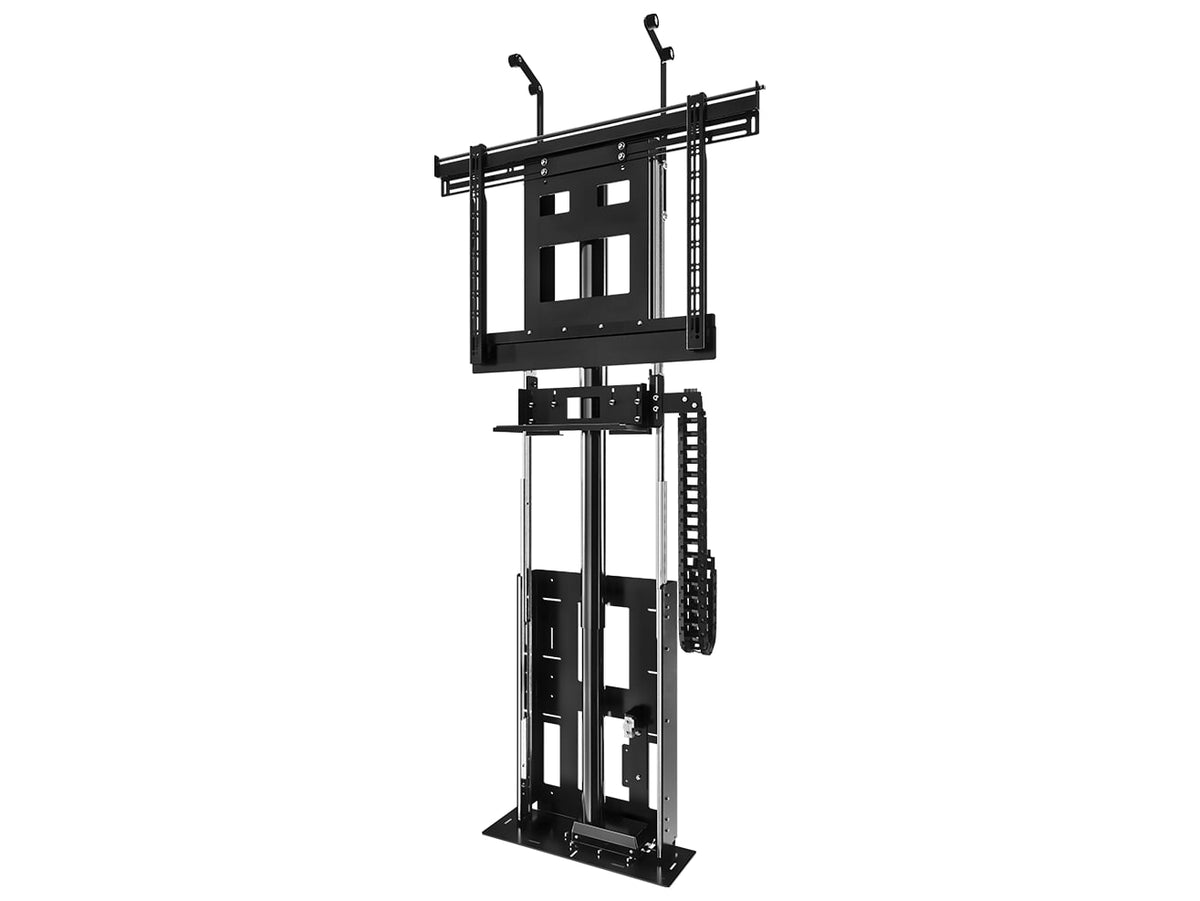

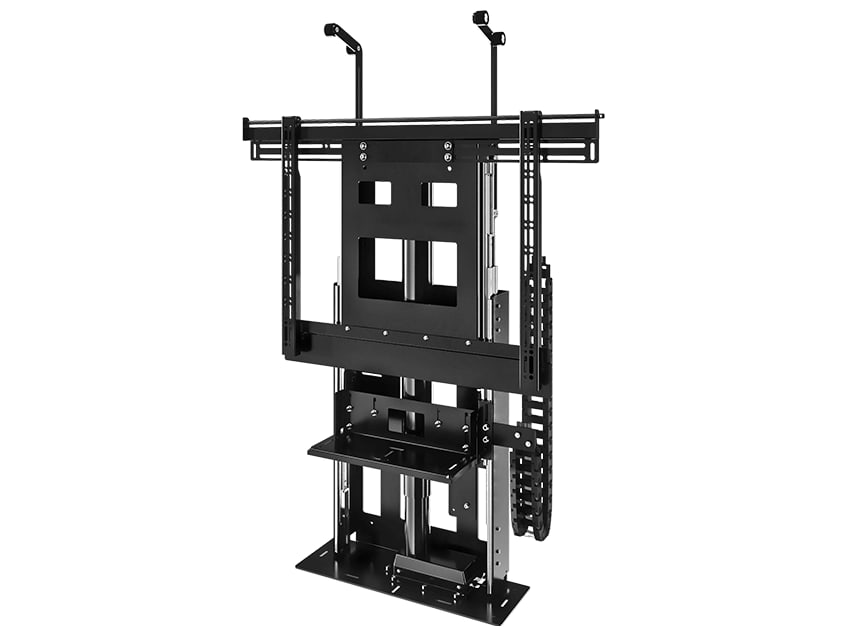

Motorised telescopic actuator TV lift for 50" to 65" screens
The AL965 is the bigger of the two actuator TV lifts made by Future Automation: it raises screens of roughly 50" to 65" out of a cabinet, as long as they are no taller than 930 mm and weigh 40 kg at most. Its near-silent motor suits residential and commercial projects alike.
Thanks to the telescopic actuator the cabinet can be kept low: just 75 mm of clearance is needed above the screen. The mechanism is delivered with mounting hardware for a fixed lid and for a push flap, so the cabinet design can still be settled once the order has been placed.
Key features
- Screens of roughly 50" to 65", with a screen height of 930 mm at most
- Maximum load: 40 kg
- Maximum lifting travel: 965 mm
- Stated noise level: 50 dB
- Built-in cable chain that keeps wiring tidy and safe while the lift moves
- Black painted finish, RAL 9005
- 12 V power output; runs on a 240 V or 110 V supply
Control and integration
Out of the box the mechanism accepts IR, RS232 and contact closure commands. The AL965-RF variant adds radio-frequency (RF) control. The control box measures 150 x 307 x 52 mm.
Installation
Besides the two lid solutions, the package includes brackets that fix the cabinet's base panel: once the television is raised, no gap is left along the cabinet top beneath the screen. The AL965 can be paired with other Future Automation products, for instance the universal USM mount for speakers, or the Smart Airflow Control units, which connect to the lift cabinet and help natural convection inside it.
Environments
The AL965 is an indoor mechanism, intended for residential and commercial installations.
