CHRS-M-DDP ceiling TV hinge with swivel and drop down panel, for marine settings

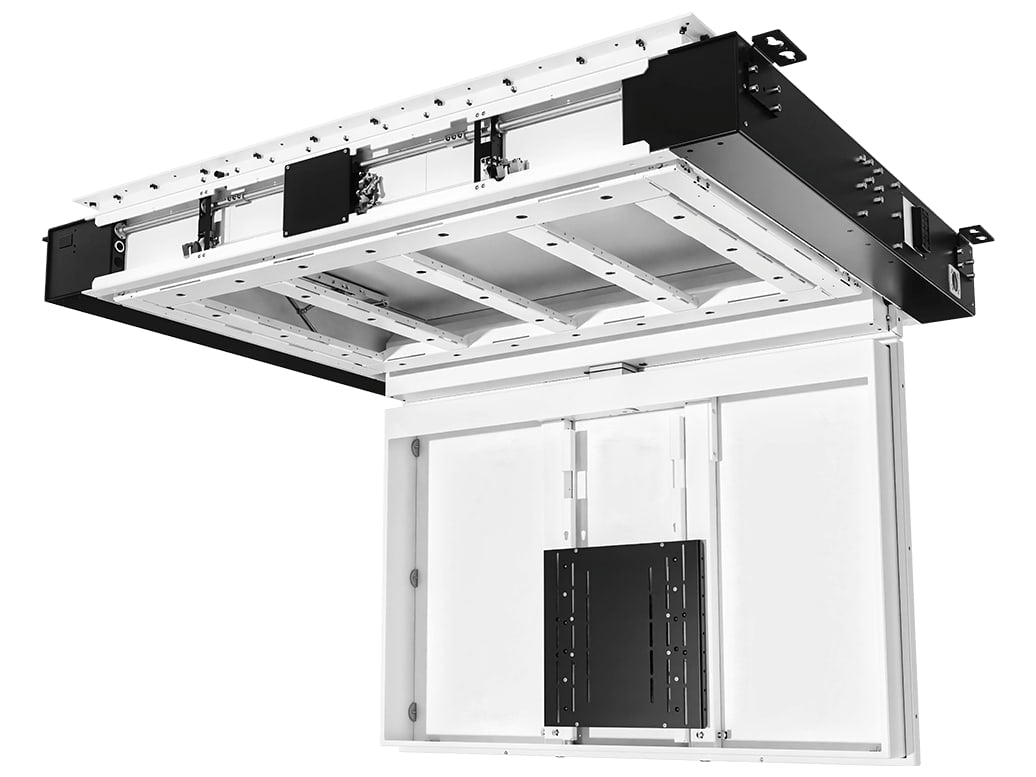

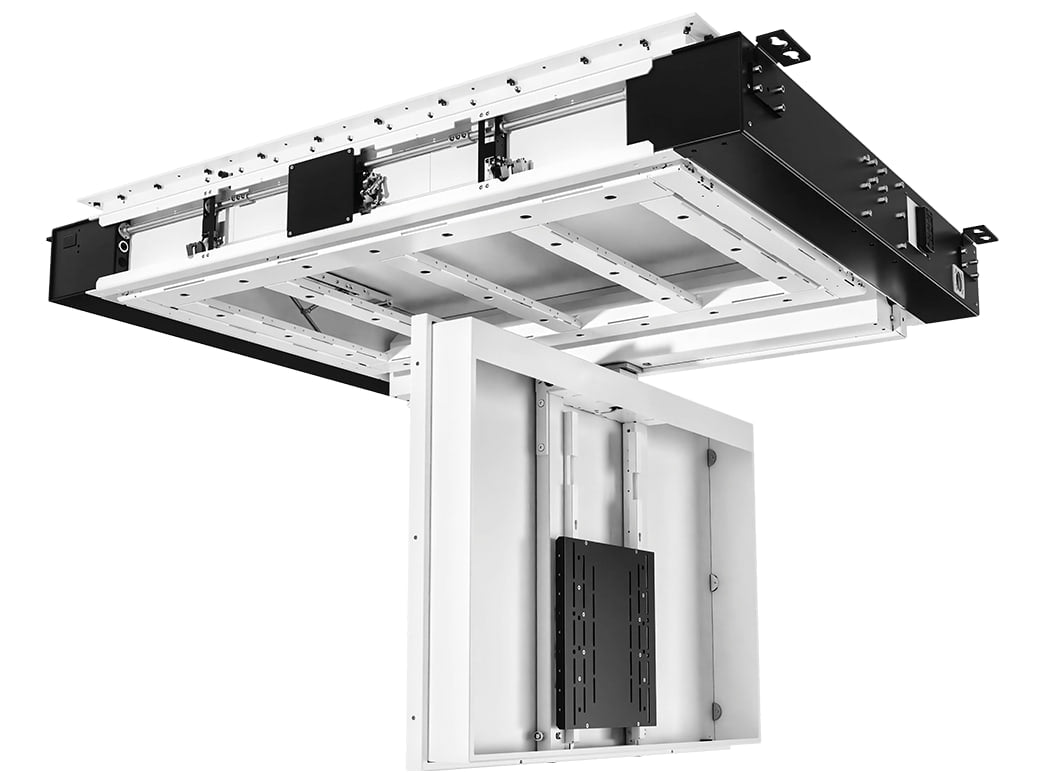

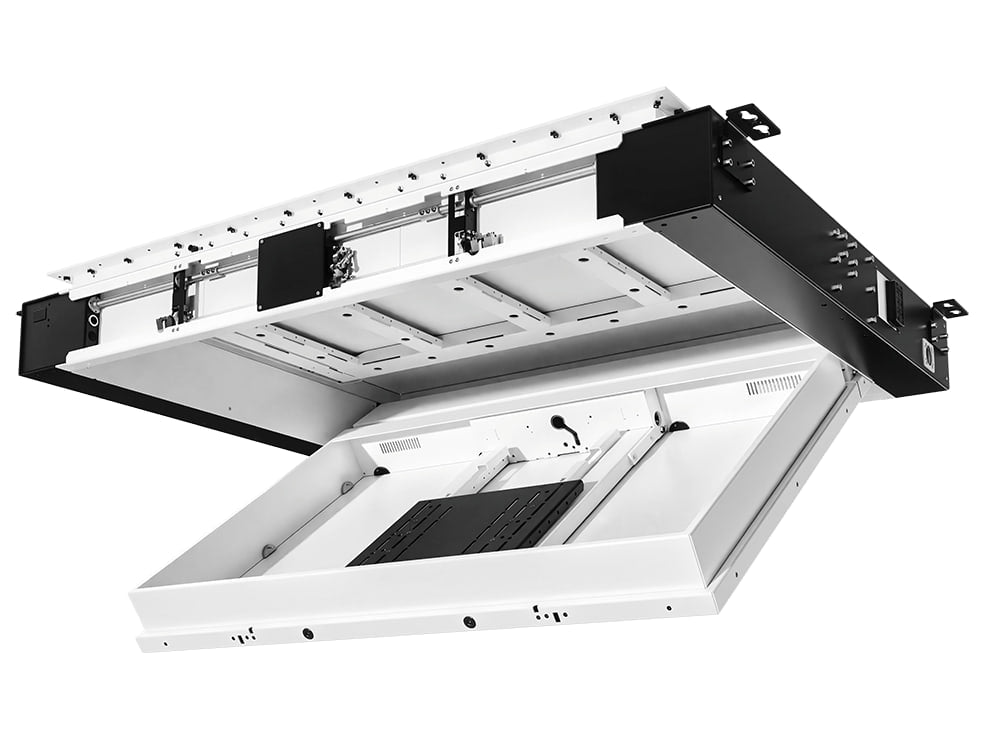

CHRS-M-DDP is the Future Automation ceiling TV hinge for indoor marine settings that adds up three functions: it swings the screen down from the ceiling by as much as 90°, turns it by as much as 180° to the left or to the right and closes the opening with a drop down panel.
While the screen is swinging down, the drop down panel descends and fills the gap, so the ceiling keeps its flush appearance. The series suits televisions between 40" and 88". At rest the mechanism is held shut by the marine locks and, on its lower face, it can carry a ceiling panel finished like the surface around it. It arrives as a single unit prepared for installation.
Key features
- Hinge travel of 90° and swivel reaching 180° clockwise and anticlockwise
- Drop down panel weighing 10 kg at most
- Marine locks for the closed position
- Limit switches that adjust themselves at the closed position
- Mechanical and electrical recovery supplied, so the system can be reached safely if the third-party control has a fault
- Internal control box, reached through an internal inspection hatch
- White RAL9910 painted finish, other finishes on request
Available sizes
The series is made up of CHRS4-M-DDP (50"), CHRS5-M-DDP (58"), CHRS6-M-DDP (65"), CHRS7-M-DDP (78") and CHRS8-M-DDP (88"). The maximum screen dimensions, width × height for depth of 70 mm at most, are in order 1130 × 680, 1330 × 800, 1530 × 920, 1730 × 970 and 1980 × 1090 mm. For deeper screens the usable height drops by 30 mm, with depth reaching 85 mm on the three smaller sizes and 120 mm on CHRS7-M-DDP and CHRS8-M-DDP.
Load capacity and control
The maximum weight, which takes in the added ceiling panel and the swivel back tray, is 45 kg for CHRS4-M-DDP and 35 kg for CHRS5-M-DDP (panel 10 kg at most, tray 5 kg at most) and 90 kg for CHRS6-M-DDP, 150 kg for CHRS7-M-DDP and 140 kg for CHRS8-M-DDP (panel 30 kg at most, tray 10 kg at most). The motorised mechanism weighs from roughly 185 to roughly 335 kg and is controlled through IR, RS232 and contact closure. A version without swivel is also available.
