TV ceiling mount with a stainless steel pole cut to measure
The CM (TV Ceiling Mount) is a manual ceiling mount for 32" to 65" screens, with a stainless steel pole cut to order and with both tilt and swivel movement. The product is also suitable for use in marine environments.
The pole is cut to the length requested, up to 1500 mm, so the mount answers the needs of the individual installation. The cables run inside the tube and stay completely hidden, which keeps the installation tidy. The mount comes as standard in two finishes: stainless steel pole with a black painted mount, or pole and mount both painted black.
Key features
- For screens from 32" to 65"
- Maximum weight: 50 kg
- Maximum tilt: 30°
- Manual movement, with tilt and swivel
- Pole cut to measure up to 1500 mm; outer diameter 51 mm, inner 48 mm
- Cables completely hidden inside the pole
- VESA fixing up to 200x200 (CM-V200, CM-BLK-V200) or up to 400x400 (CM-V400, CM-BLK-V400)
Available versions

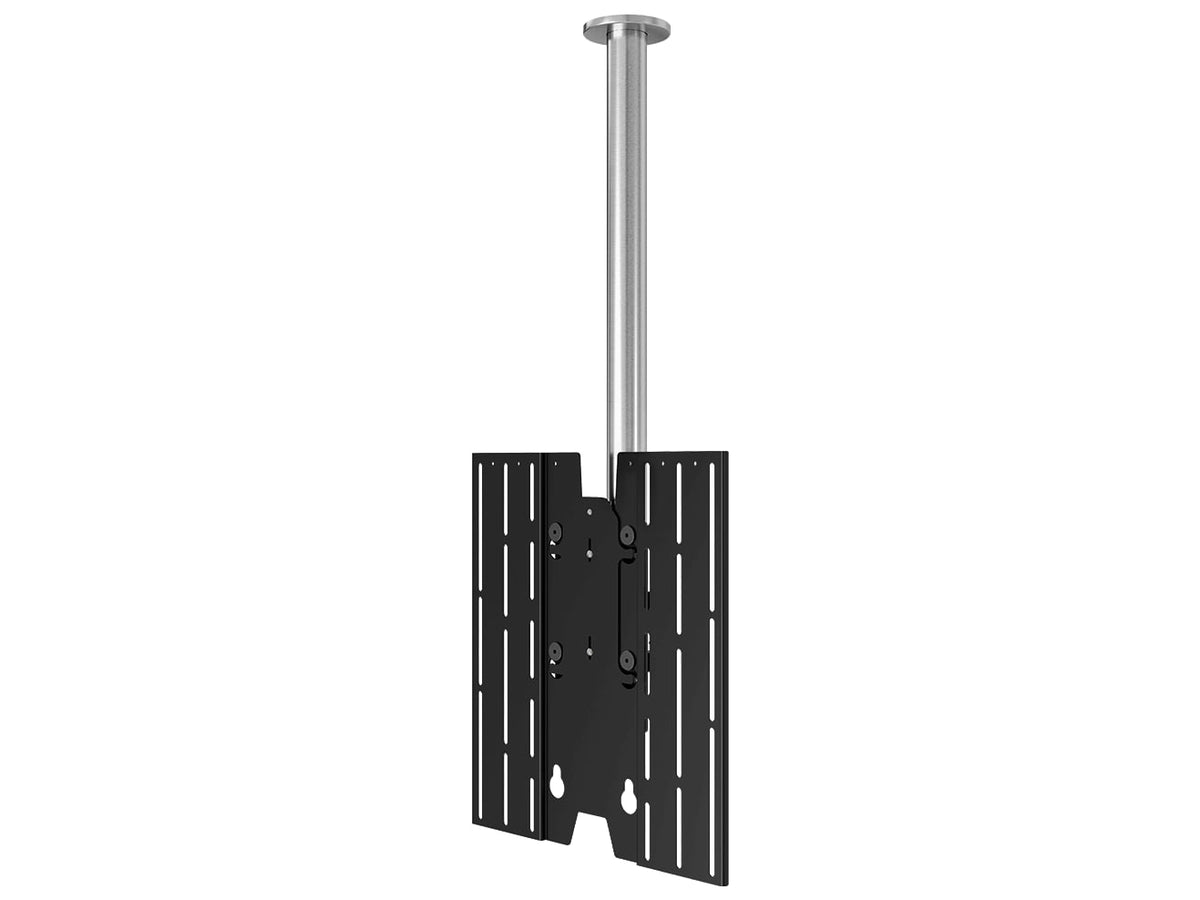

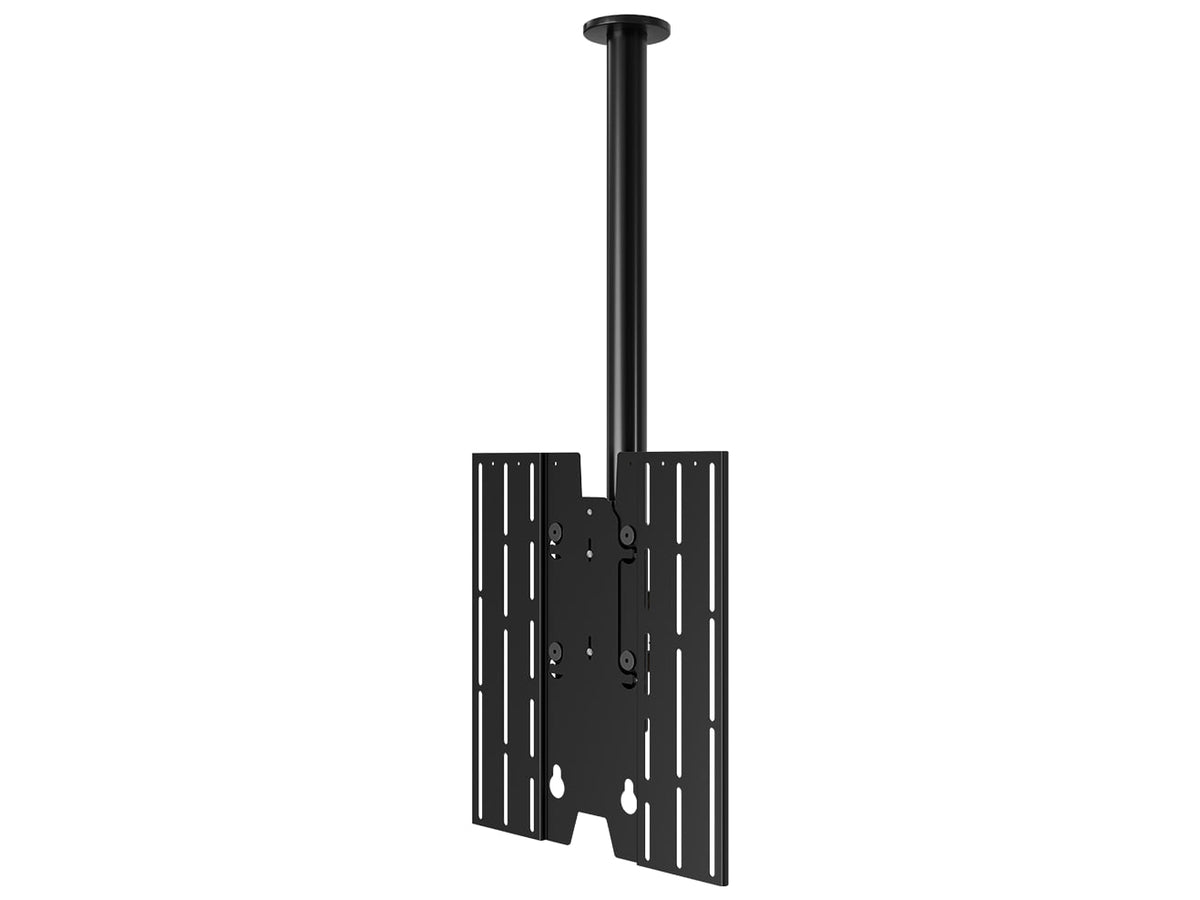

CM-V200 and CM-V400 have a stainless steel pole and a mount painted black RAL 9005; CM-BLK-V200 and CM-BLK-V400 have pole and mount both painted black RAL 9005. In each finish the choice is between the mount with a maximum VESA of 200x200 and the one with a maximum VESA of 400x400. Custom finishes can be requested.
Installation
The mount is a pole-type ceiling support. Since every pole is cut to order, its length has to be decided at the design stage, within the 1500 mm limit. Running the cables inside the tube keeps the installation neat. The product is intended for indoor use.
