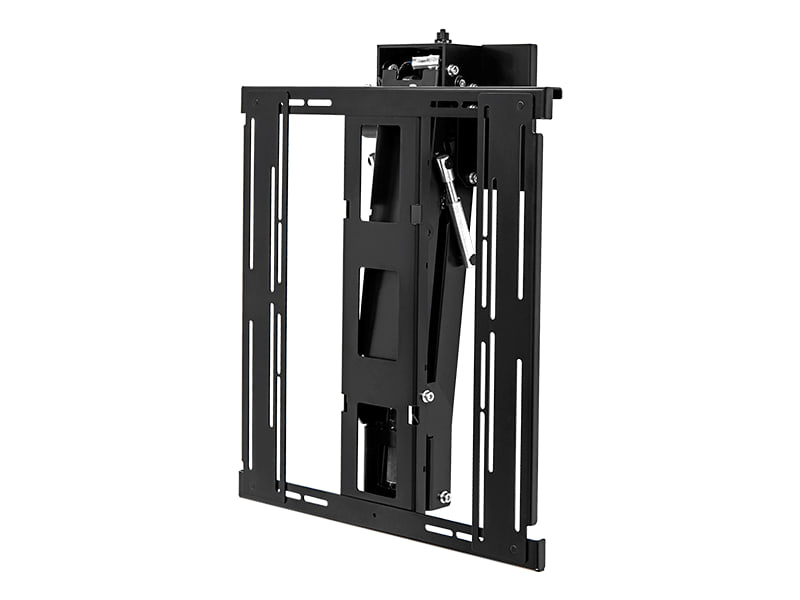

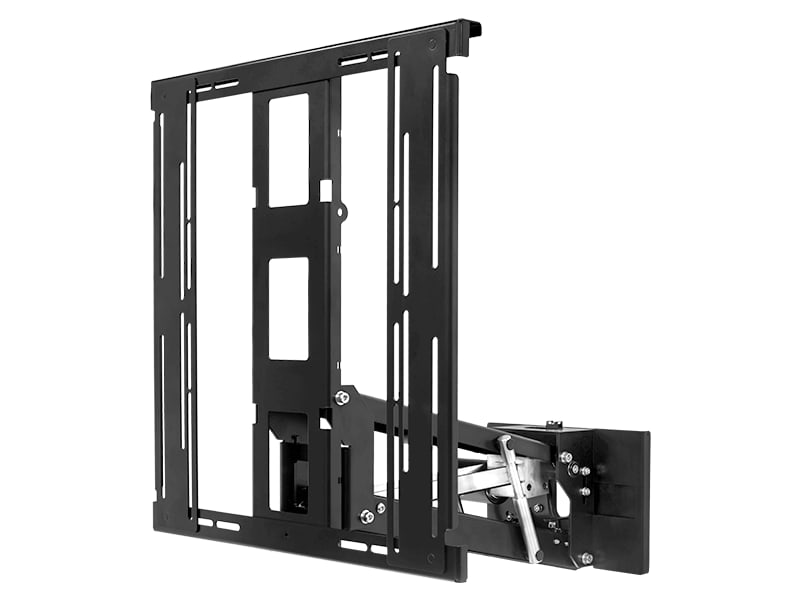

Motorised advance and lift wall bracket for TVs
EAL (Electric Advance & Lift) is a motorised wall bracket by Future Automation that raises the screen to a better viewing height. It builds on the same principles as the Electronic Advance and Drop mechanism, of which it is the inverted counterpart.
With this bracket the screen can be placed beneath a low cabinet or inside it, which leaves more freedom when deciding where the display goes in the home. The bracket comes away from the wall and pivots upward until the screen is at viewing level. Its central column, which is screw-threaded, together with the soft opening and closing function, keeps the travel steady and natural. The bracket is for indoor use.
Key features
- For screens of roughly 50" to 80", weighing no more than 50 kg
- Maximum lift of 533 mm measured against the closed position
- Reaches 557 mm out at most and sits 140 mm deep on the wall
- VESA patterns from 200 x 200 to 600 x 500 mm
- Magnetic covers that can be taken off, for a tidy finish
- Complete cable management and smooth, quiet travel
- RAL 9005 satin black finish; other finishes on request
Control and integration
The bracket is operated through RS232, contact closure or IR. RF control can be had as an option.
Versions
The same bracket also exists in a version with motorised swivel of the screen, the EAL-S, offered as a separate product.
