Anodised aluminium wall bracket with two articulated arms for TVs
FSA is a manual wall bracket for flat screens, with two arms, swivel to both sides and adjustable tilt.

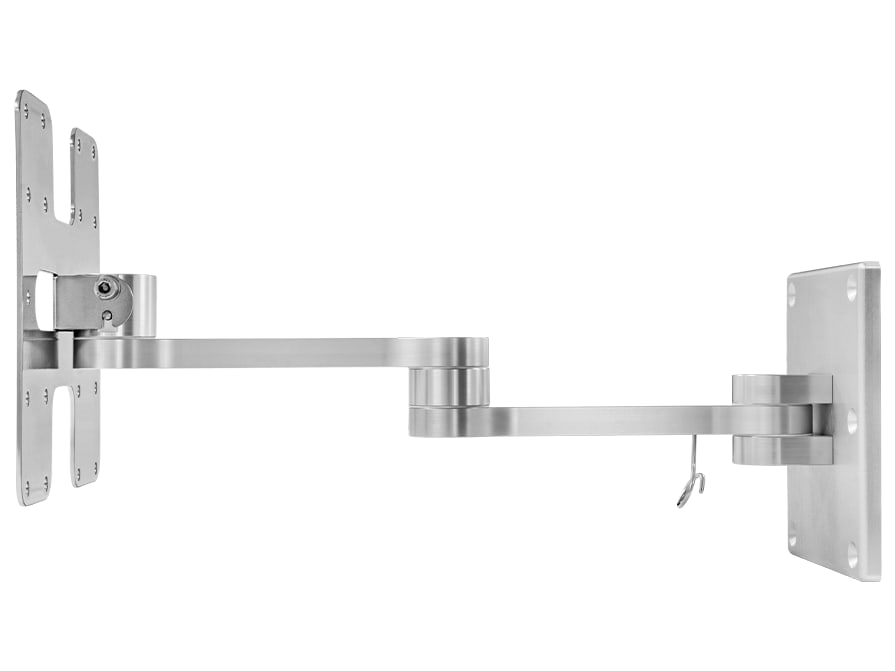

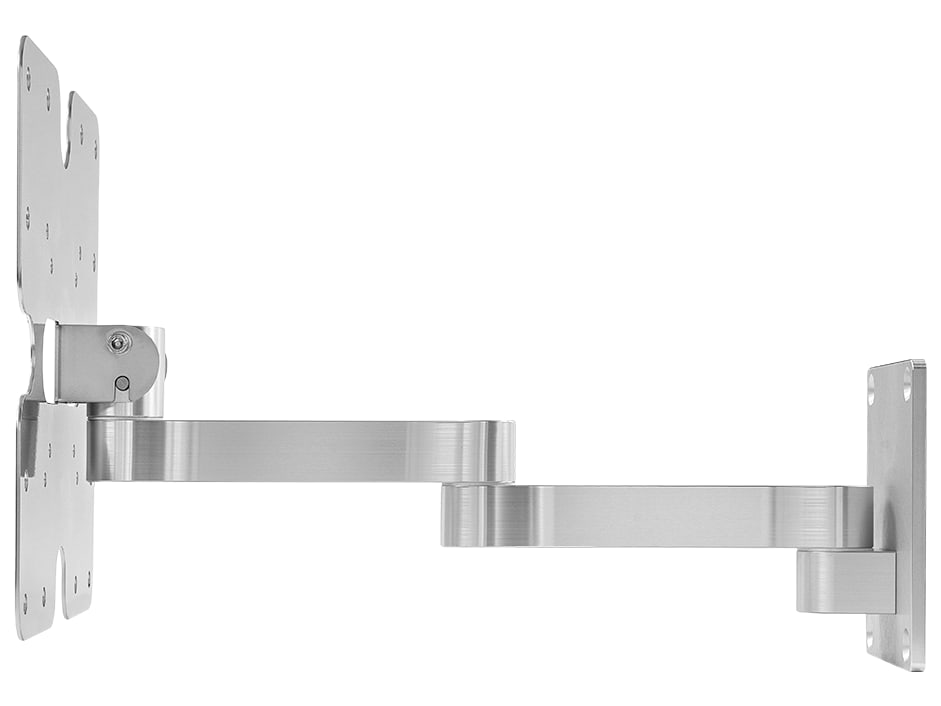

The two arms let the screen come right away from the wall and turn either way, so it can be watched from several angles. The bracket is made of anodised aluminium and is offered in two sizes, FSA1 and FSA2.
Key features
- Manual movement, swivelling as far as 180° to each side
- Tilt adjustable by as much as 5°
- Anodised aluminium finish
- FSA1: 10 kg maximum load, 349 mm maximum reach from the wall, 53 mm minimum depth
- FSA2: 15 kg maximum load, 486 mm maximum reach from the wall, 74 mm minimum depth
- For indoor use
Available sizes

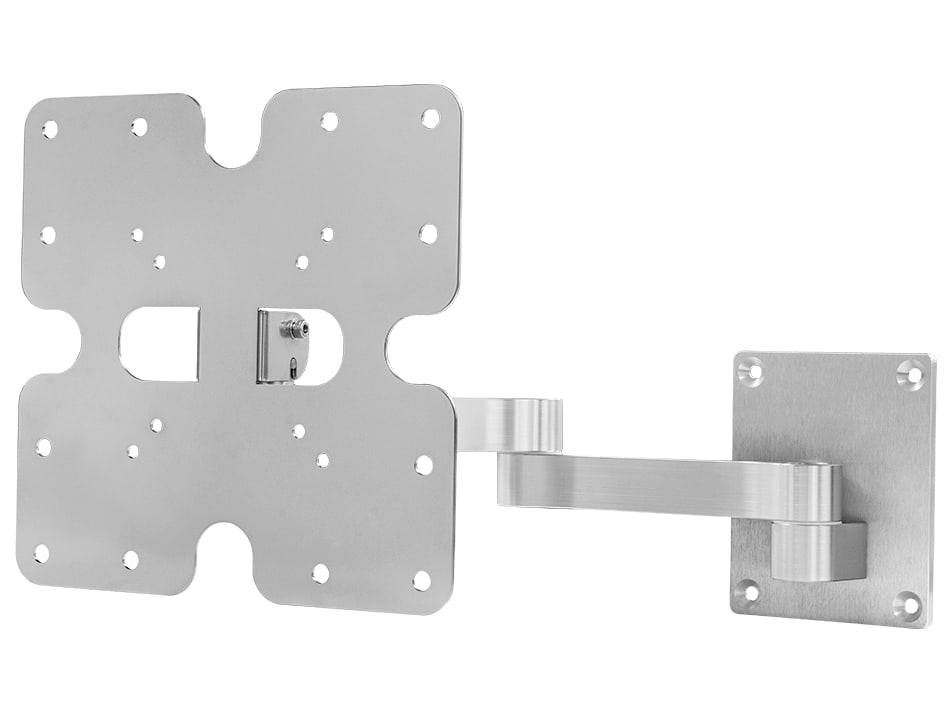

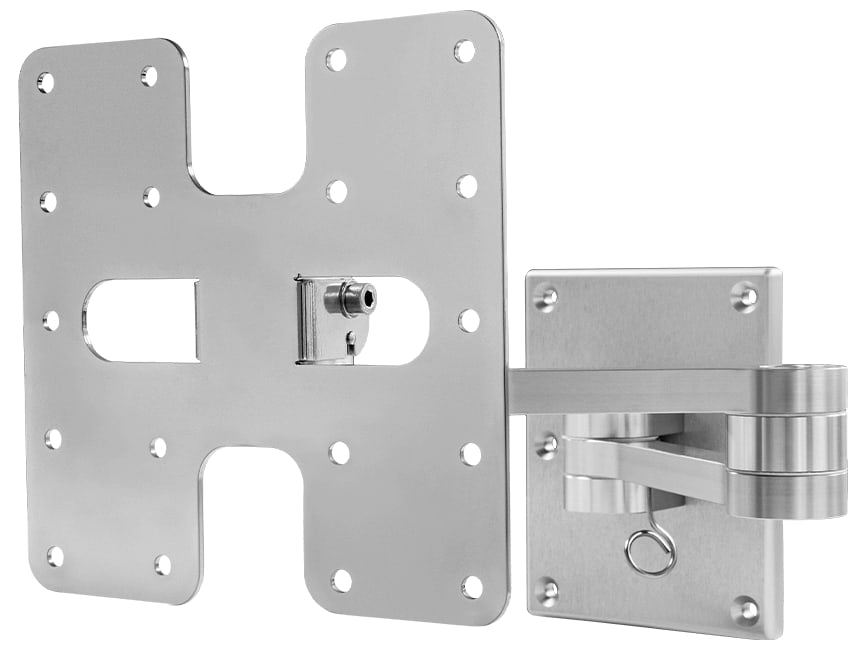

FSA1 is recommended for 15" to 26" screens and has VESA 75, 100 and 200 fixings; the body of the bracket measures 253 x 269 mm and is 53 mm deep. FSA2 has VESA 100 and 200 fixings and measures 346 x 283 mm, with a depth of 74 mm. On both, the largest screen that can be fitted depends on the weight of the television and on the rotation angle required.
Environments
Future Automation suggests the FSA bracket for rooms such as kitchens and bedrooms: with the tilt function a screen can be fixed high on the wall and then angled down towards the viewer. The bracket is intended for indoor installation.
