Motorised swing-arm TV bracket turning as far as 90°, for 32" to 40" screens

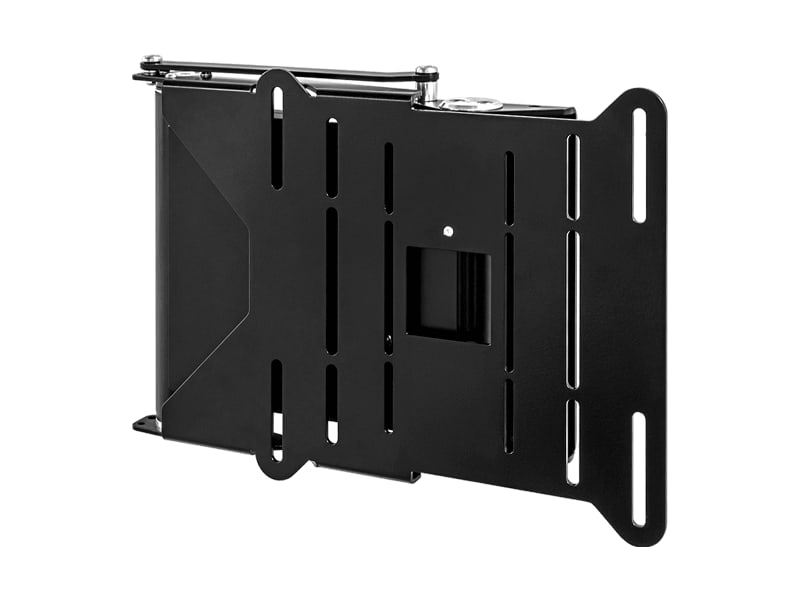

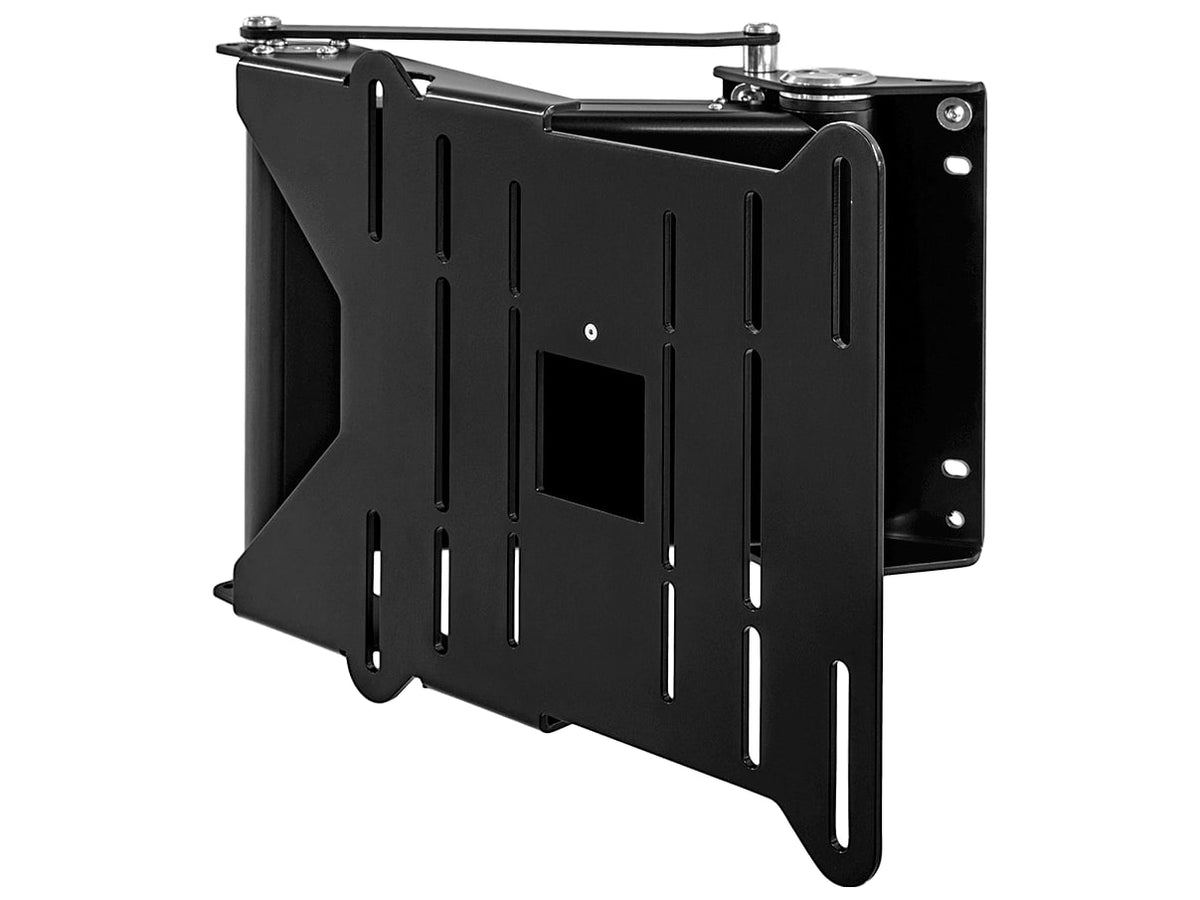

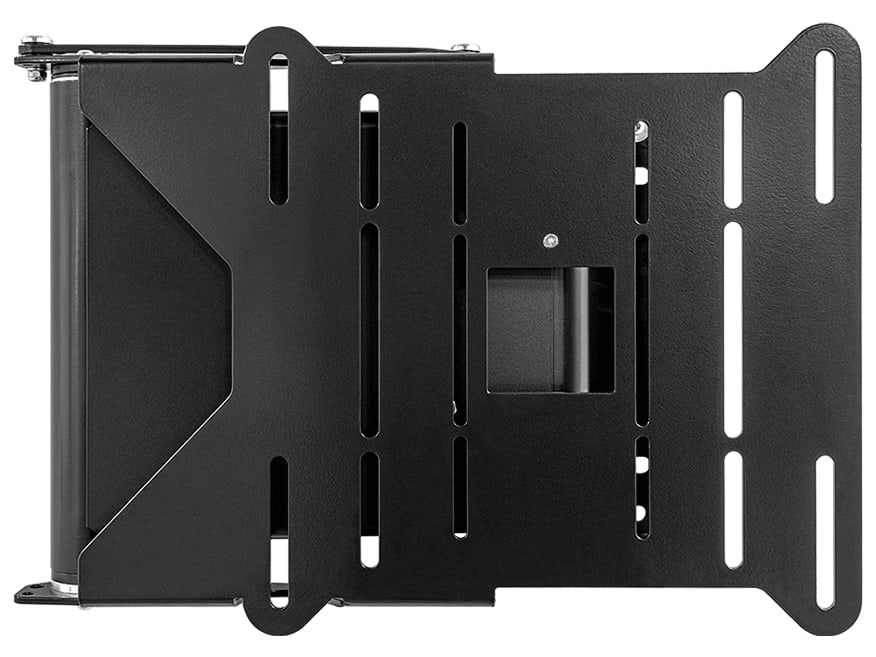

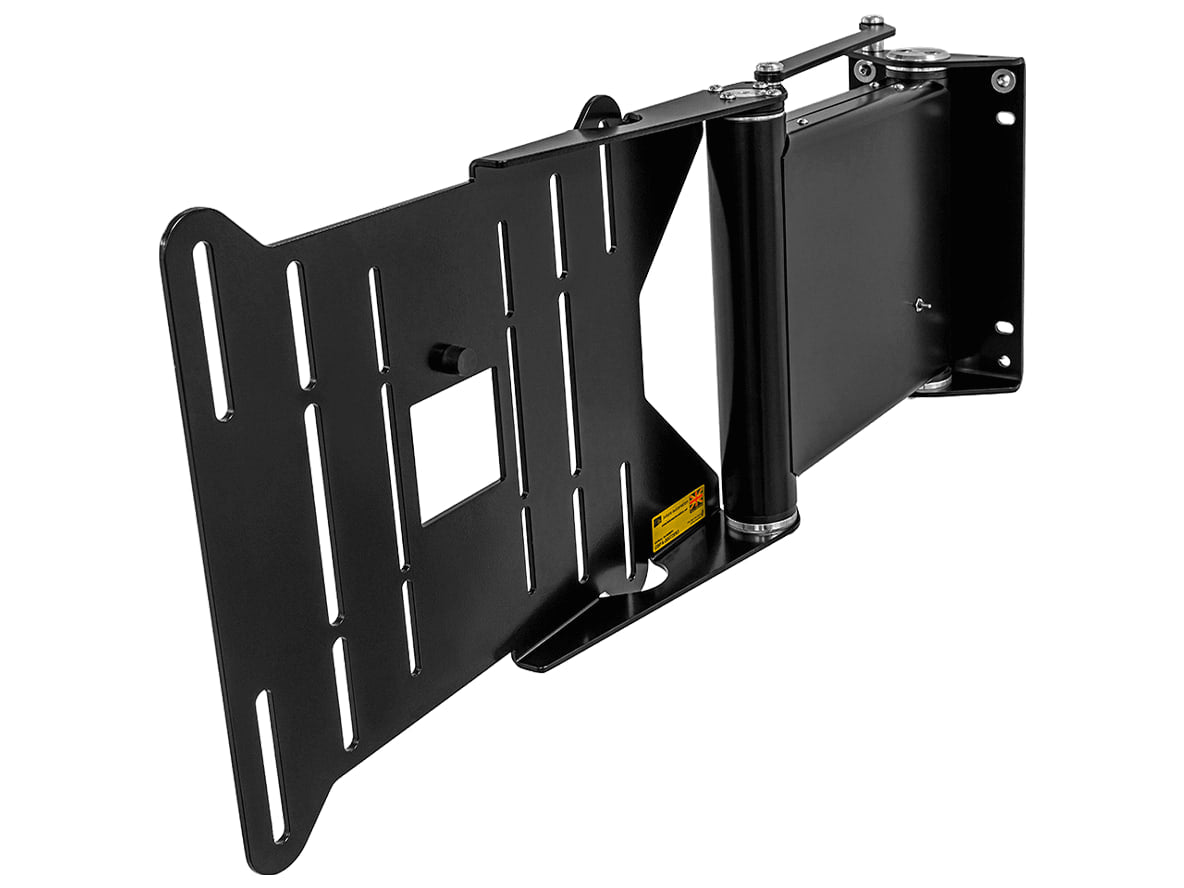

FSE90 is a motorised wall bracket that turns the screen as far as 90° to one side only, carrying it away from the wall.
The movement is smooth and quiet, with variable speed. The electronics sit on board the bracket, the cables are managed by the mechanism and a tidy mounting plate completes the assembly. Depending on the version, the rotation is clockwise or counter-clockwise with respect to the wall.
Key features
- Motorised rotation of as much as 90° to one side
- 30 kg maximum load
- 560 mm maximum reach from the wall, measured at the middle of the screen
- 73 mm minimum depth from the wall
- VESA 100, 200 and 300 fixings
- Noise level of 52 dB
- Satin black RAL 9005 finish, with custom finishes on request
Control and integration
FSE90 is operated by IR, by contact closure or by RS232. The control electronics are built into the bracket, and the power supply required is 110 V / 240 V AC.
Size and load
The bracket is recommended for 32" to 40" screens and carries as much as 30 kg. To reach the complete 90° turn the screen can be no wider than 1020 mm. The body of the bracket measures 328 x 476 mm, with a depth of 73 mm, and weighs 8 kg. FSE90 is intended for indoor installation.
