Motorised hinge-up mechanism for a TV concealed lying flat

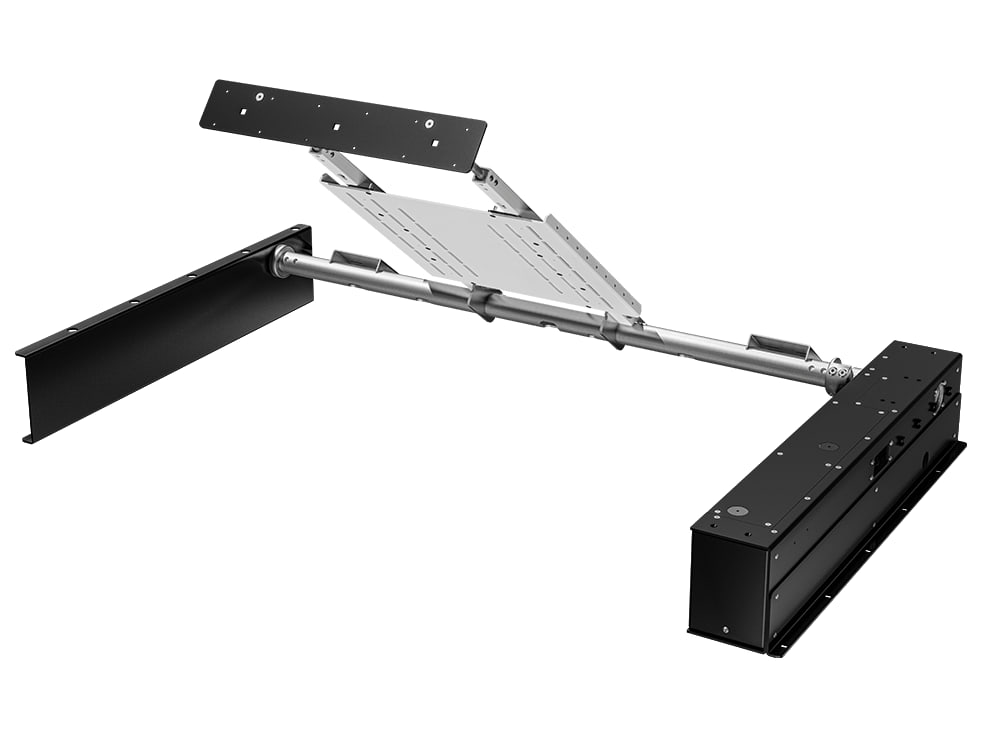

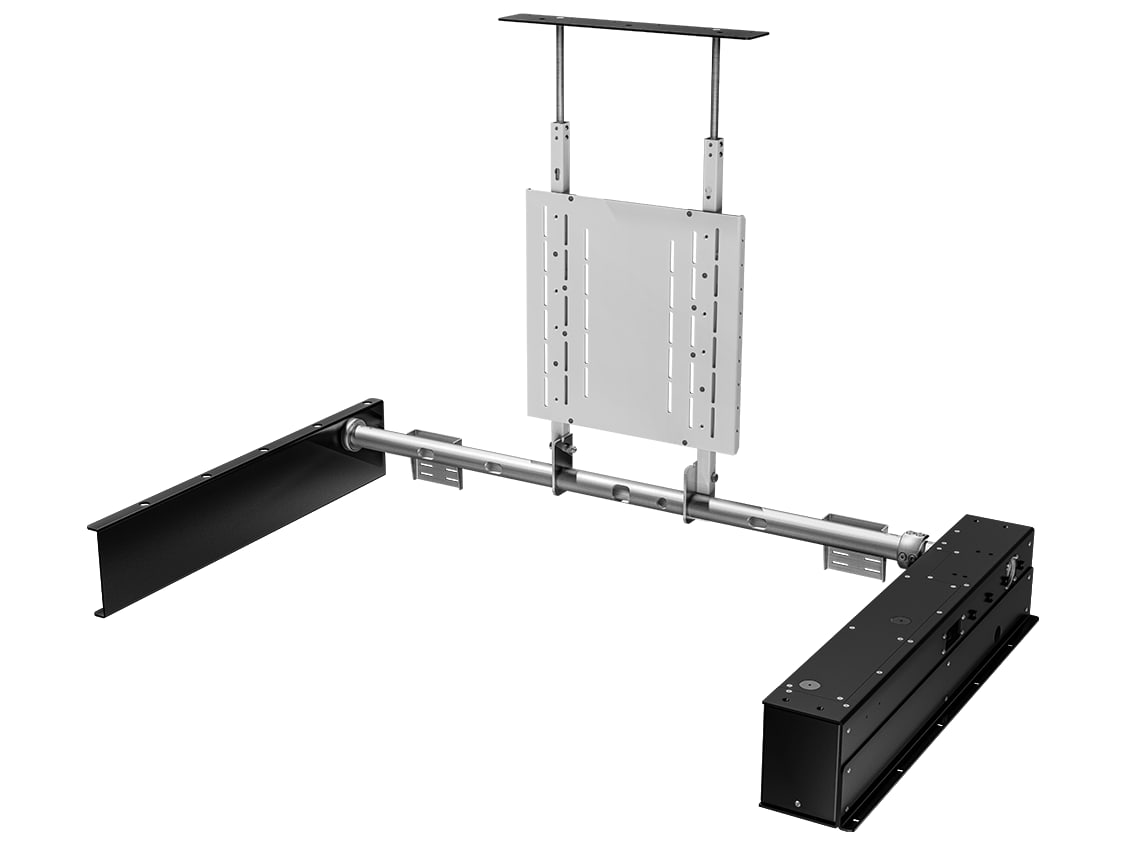

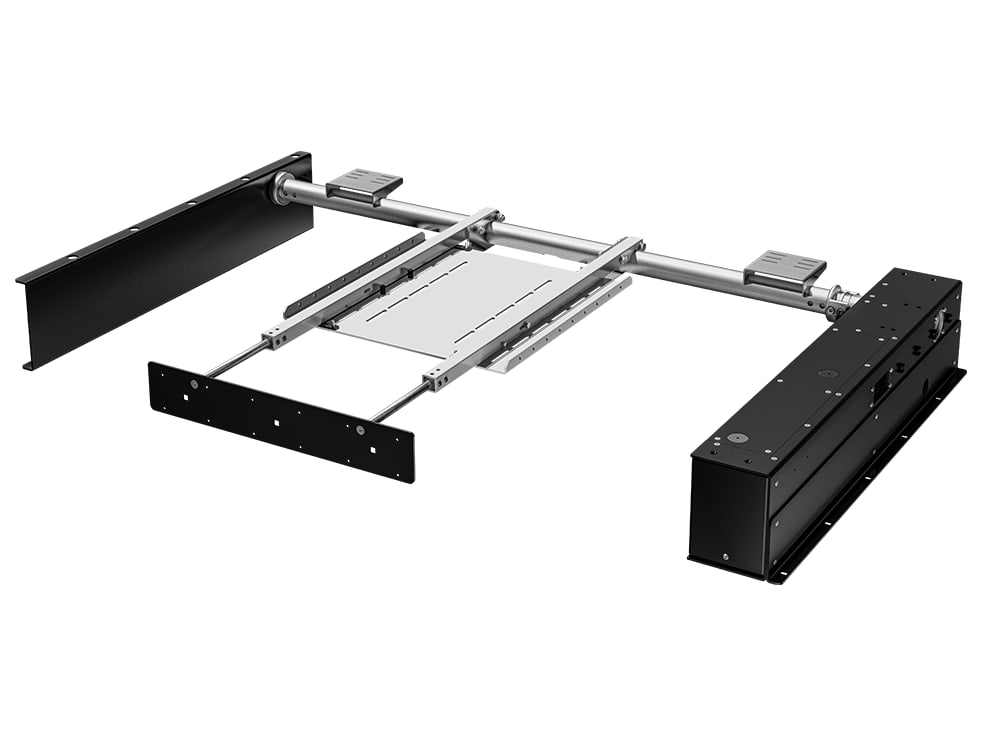

HU is a Future Automation mechanism that keeps the screen lying horizontally inside a piece of furniture and tilts it up by 90° into the viewing position.
It suits cabinets of limited height: large screens can be hidden while the furniture stays low. It is integrated into bespoke furniture or architectural joinery, and every HU unit is made for the specific project, leaving designers and installers free in their choices. When not in use, the television disappears entirely.
Key features
- Motorised 90° hinge-up movement
- Nearly silent motor, 55 dB declared
- Limit switches that are easy to adjust
- Separate control box, connected by a 3 m loom
- Control by contact closure, IR and RS232; RF available
Available sizes
HU4 is for screens up to 680 x 1130 x 65 mm, HU5 for screens up to 800 x 1330 x 65 mm and HU6 for screens up to 920 x 1530 x 65 mm.
Environments
HU exists in variants for indoor, outdoor and marine use, and can be specified for marine, outdoor, commercial and residential projects. Among the settings Future Automation mentions are homes, executive boardrooms and superyachts, where a television that is out of sight leaves the design of the room clean.
