Manual articulated TV wall bracket in stainless steel for outdoor use
IP-PS brackets belong to the Future Automation PS range and are built from stainless steel, which protects installations in the open against corrosion. Four sizes are offered, covering screens from 40" to 110".
The scissor arm gives a smooth, safe motion that stays parallel to the wall and takes very little effort. In the IP-PS40, IP-PS55 and IP-PS65 sizes the screen can be moved with a single hand even when it is big or heavy; the IP-PS80 moves screens of up to 110" either way and also suits screens recessed into a wall for a flush result.
Key features

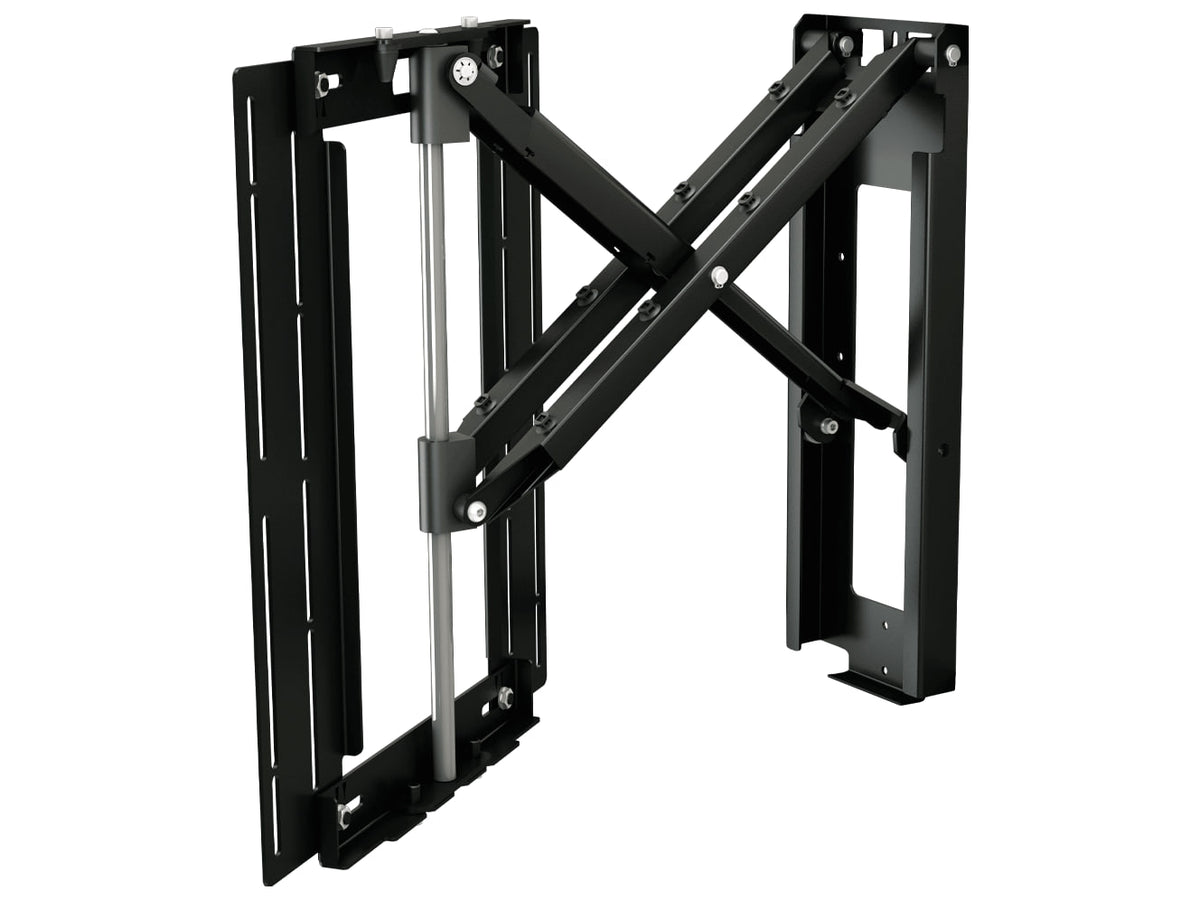

- IP-PS40: 40" to 75" screens, reaches 400 mm, swivels as much as 50° per side, carries 60 kg

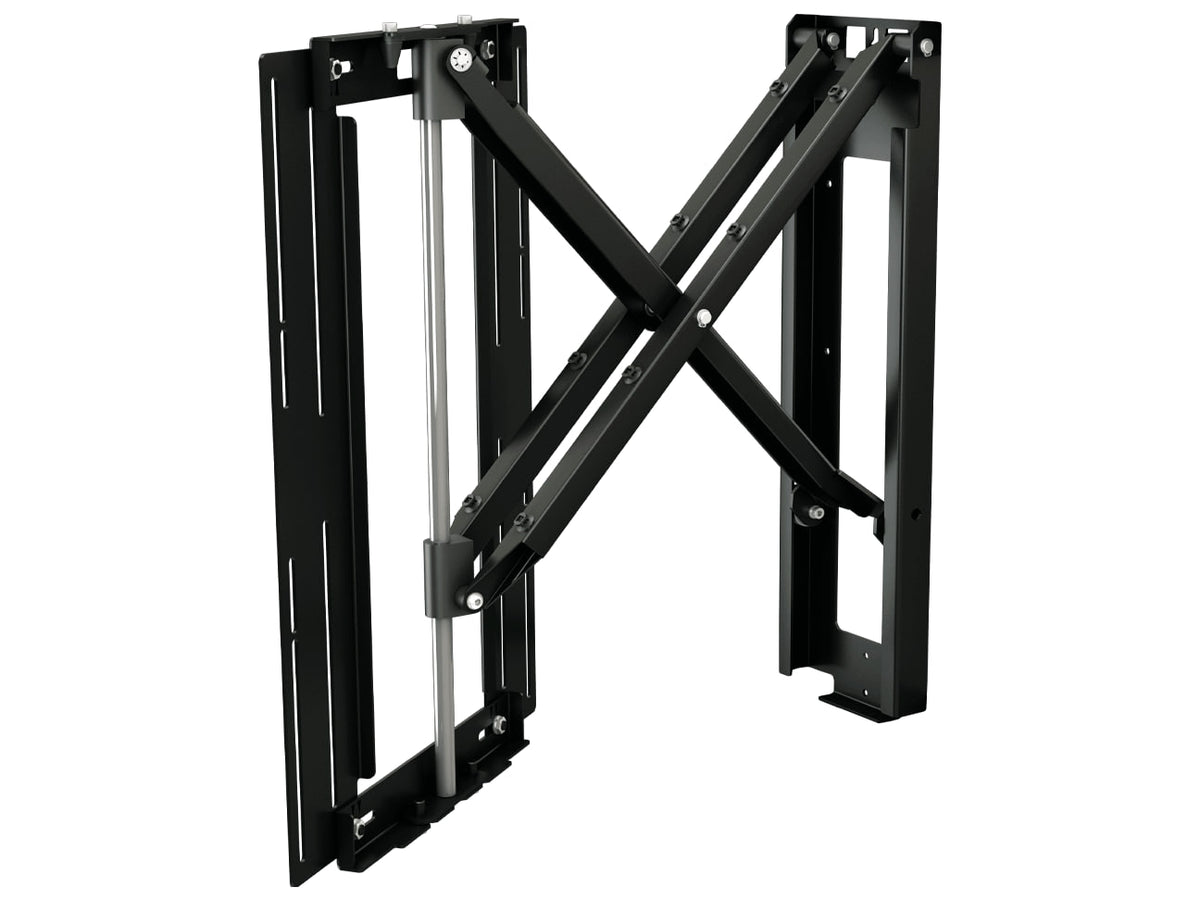

- IP-PS55: 55" to 75" screens, reaches 500 mm, swivels as much as 50° per side, carries 60 kg

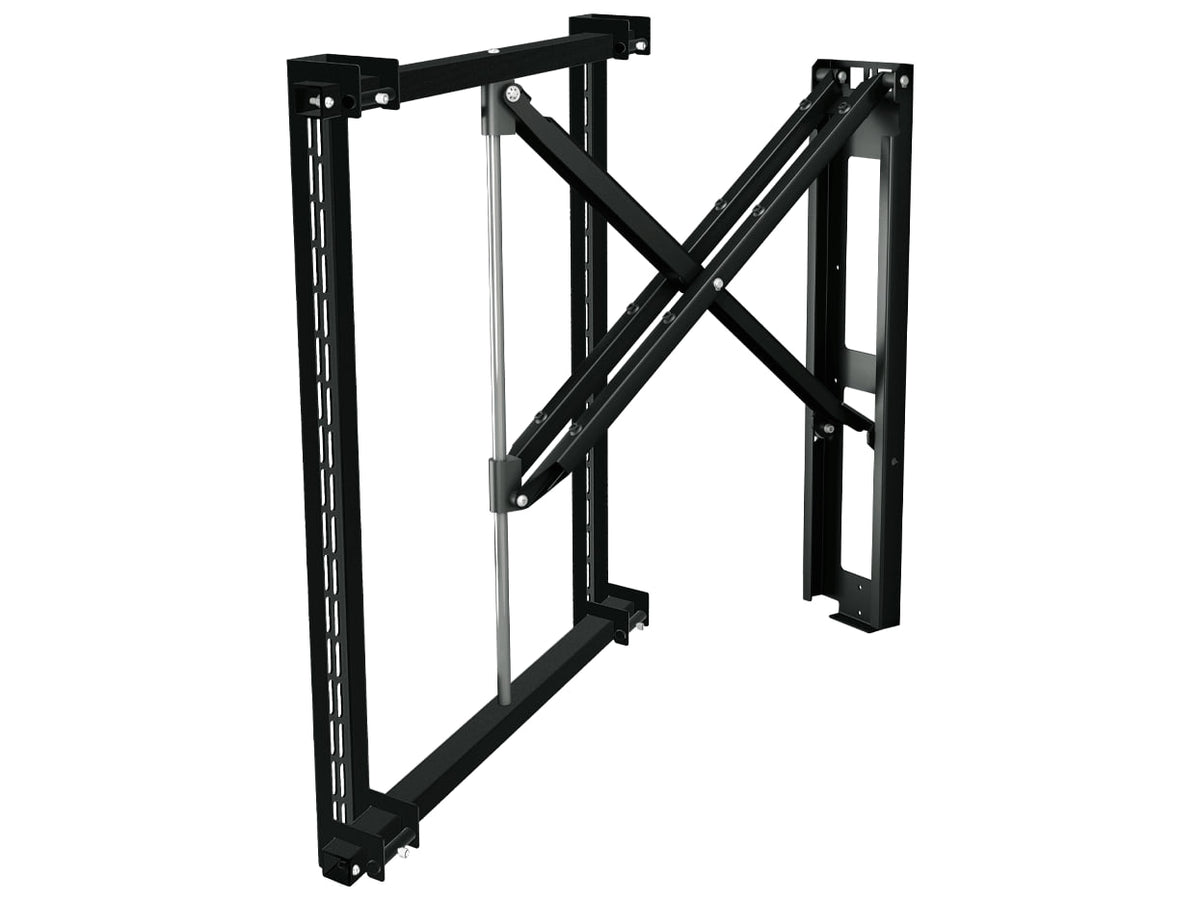

- IP-PS65: 65" to 75" screens, reaches 595 mm, swivels as much as 50° per side, carries 60 kg

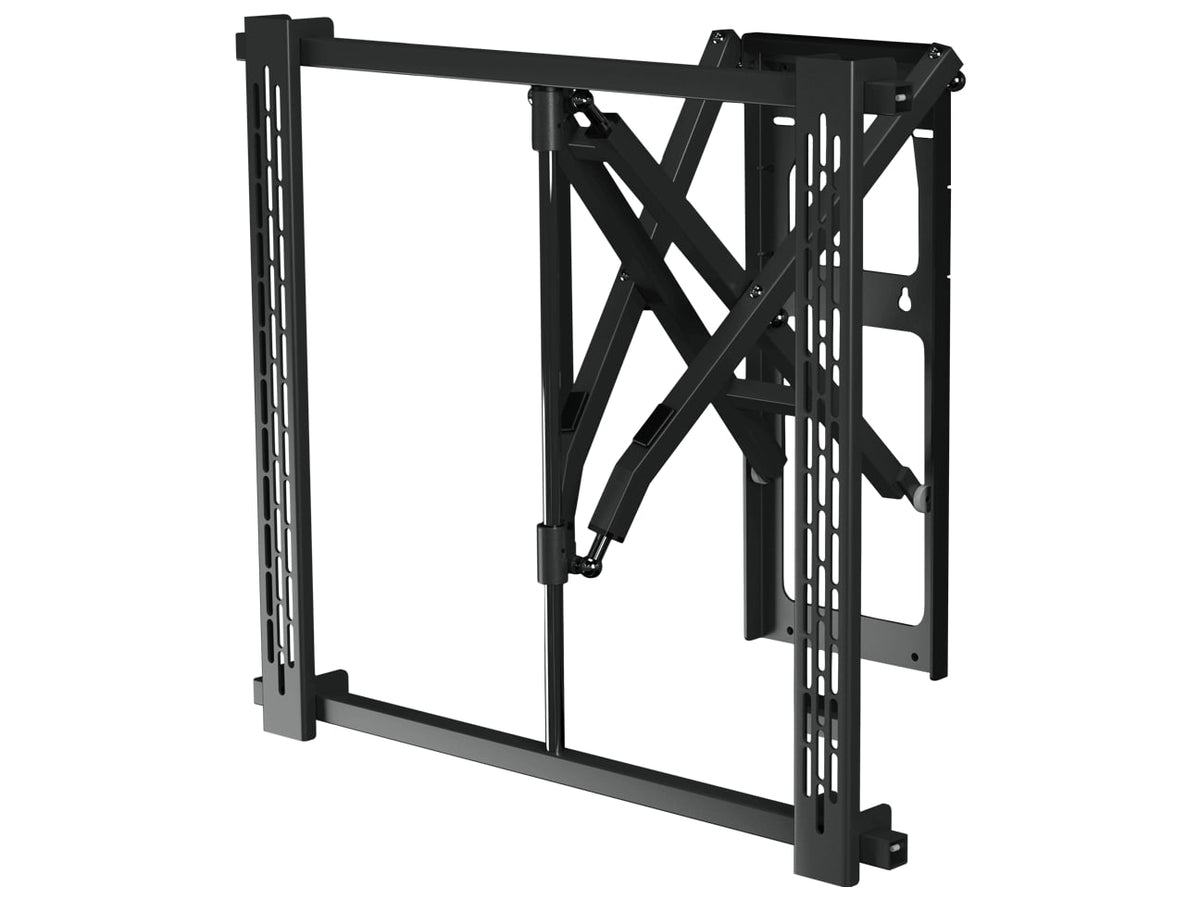

- IP-PS80: 80" to 110" screens, reaches 569 mm, swivels as much as 45° per side, carries 120 kg
- Integrated anchor points for cable ties, which come in the box
- Finished in satin black RAL 9005; other finishes can be requested
Installation
On the IP-PS40, IP-PS55 and IP-PS65 the screen hooks on and off, so a single person can fit it quickly even when it is big. Minimum depth off the wall is 54 mm for the IP-PS40 and IP-PS55 and 84 mm for the IP-PS80. Movement is manual; the swivel angle depends on how wide the screen is, and the largest usable screen is set by its weight and by the rotation wanted.
Environments
IP-PS brackets are for indoor and outdoor use.
