Heavy duty motorised TV lift for large-format screens

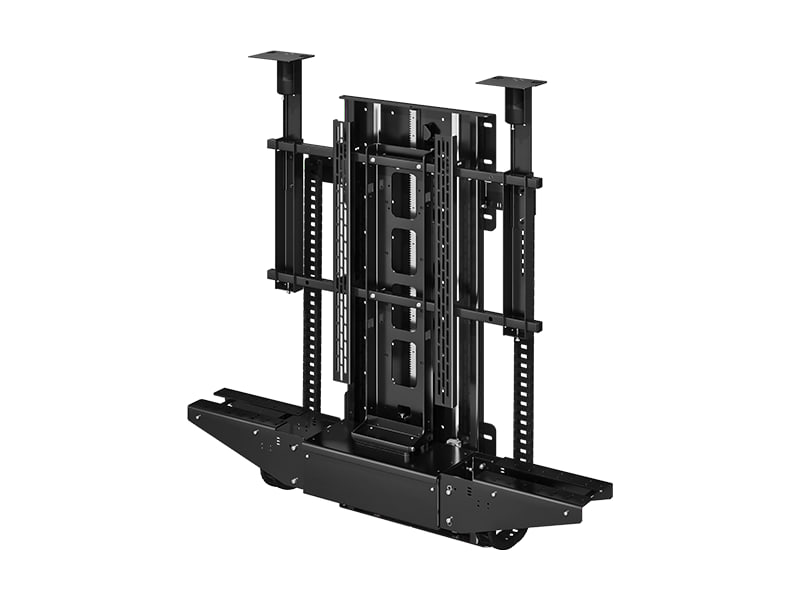

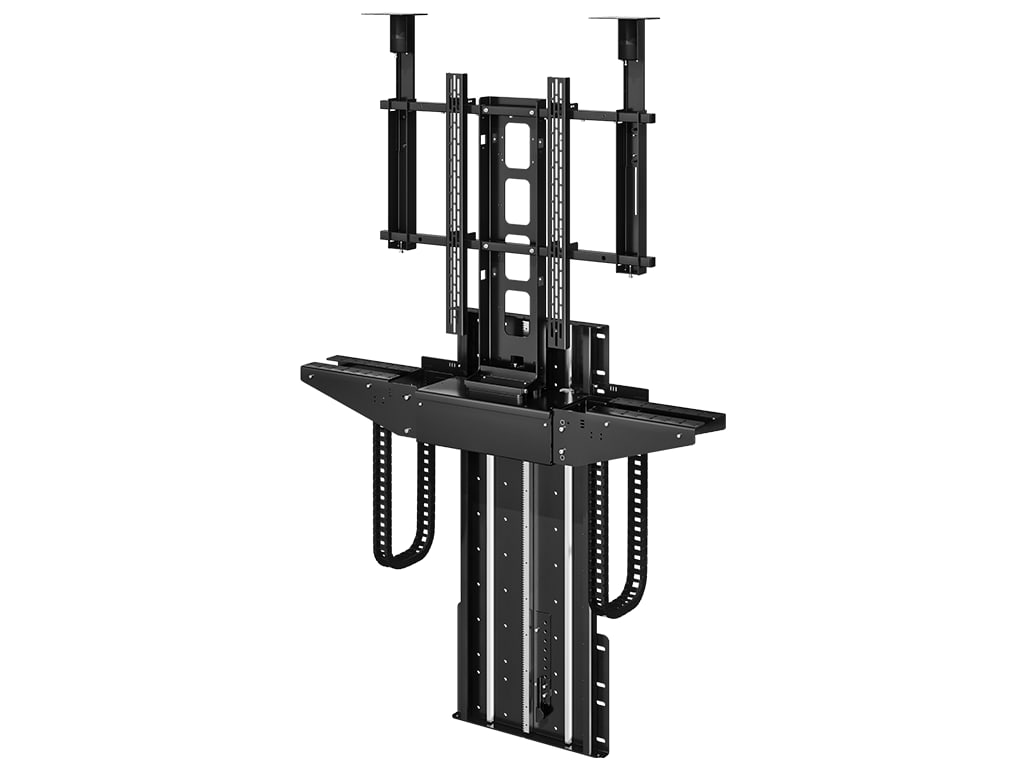

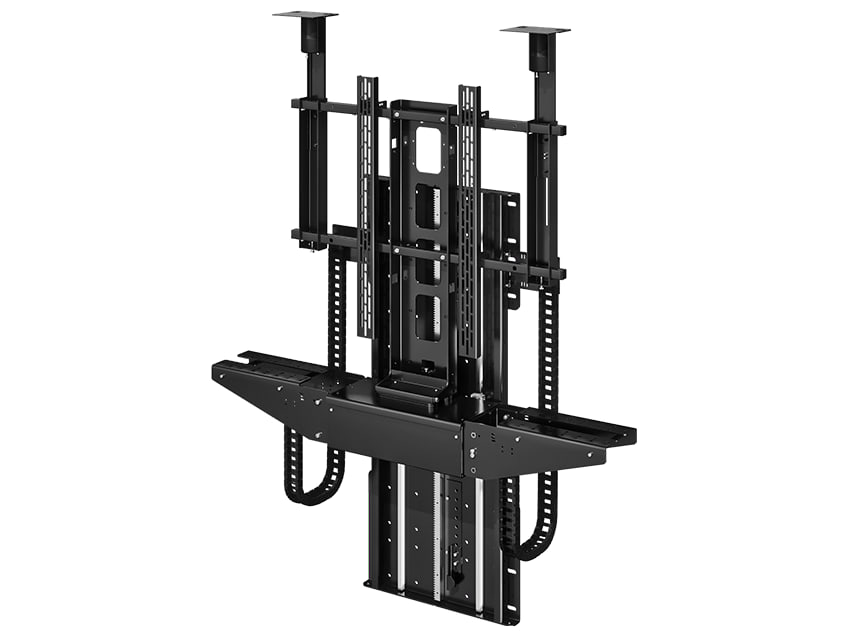

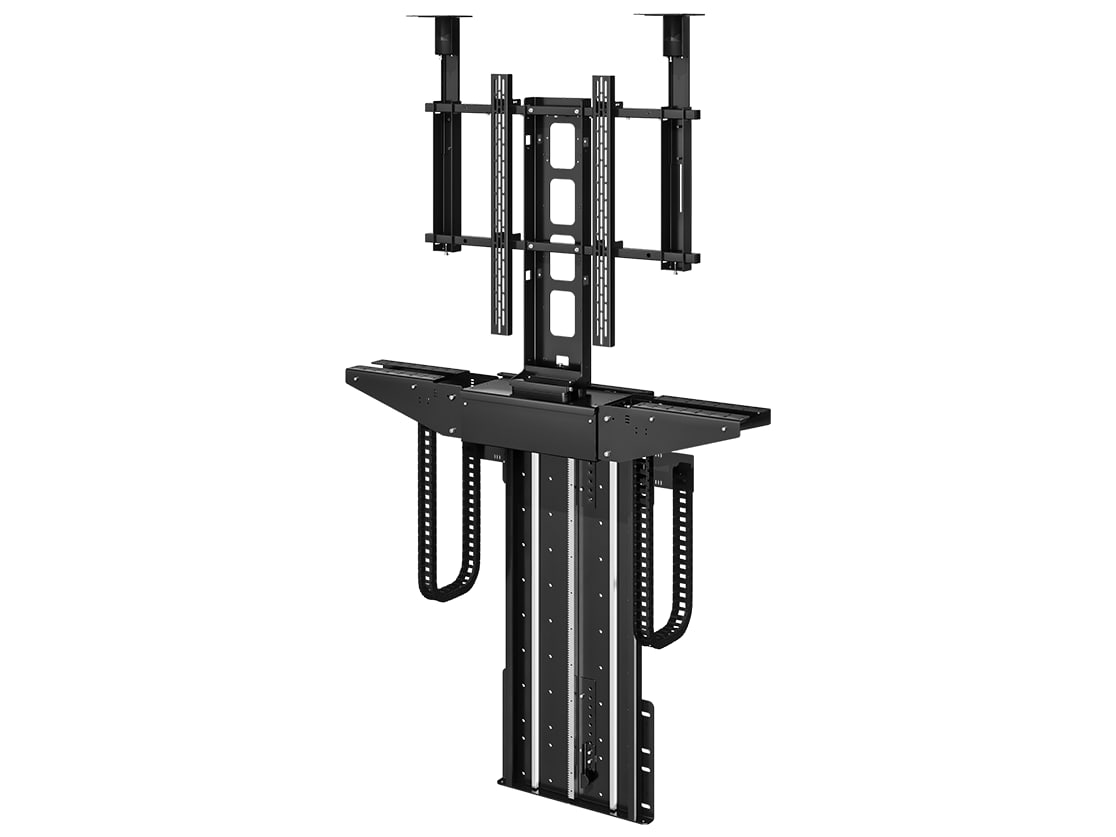

Known in full as Lift System Heavy, the Future Automation LSH is a lifting mechanism for hiding large-format screens inside furniture, made-to-measure cabinets or architectural structures. On a single command the screen travels straight up to its viewing position and, once it is no longer wanted, disappears again.
The mechanism is built for smooth, dependable and stable movement and lifts 100 kg at most. It is aimed at designers and integrators working on residential, marine and commercial spaces.
Key features
- Maximum lifting capacity: 100 kg; an option with a greater capacity can be requested
- Motorised vertical movement
- IR, RS232 and contact closure control included; RF control optional
- Black painted finish, RAL 9005, with custom finishes on request
- Optional configurations with swivel, with telescopic extension and with a high-power servo motor
Variants and lid
The LSH-BE includes the hardware for cabinets with a fixed lid and for those with a hinged lid; the LSH-HF has the Heavy electric flap, a motor-driven hinged door that opens and closes while the lift is working. In its basic configuration the mechanism can take either a full box enclosure, which covers the back of the screen once raised, or a plain floating lid, which blends with the surrounding cabinetry while the lift is closed. The manufacturer also offers a motorised drop & slide panel, which lowers and slides inside the cabinet and stays hidden while the screen is out.
Environments
The LSH is an indoor mechanism and is rated for marine use.
