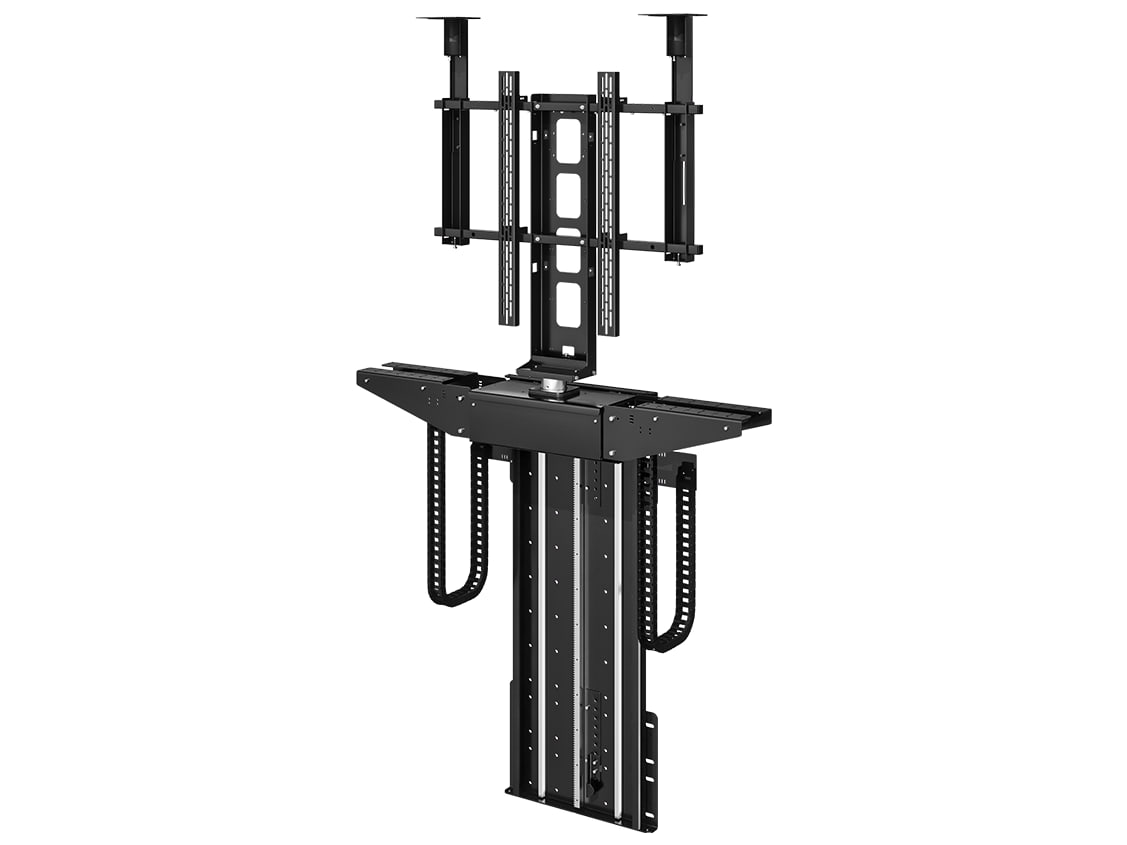

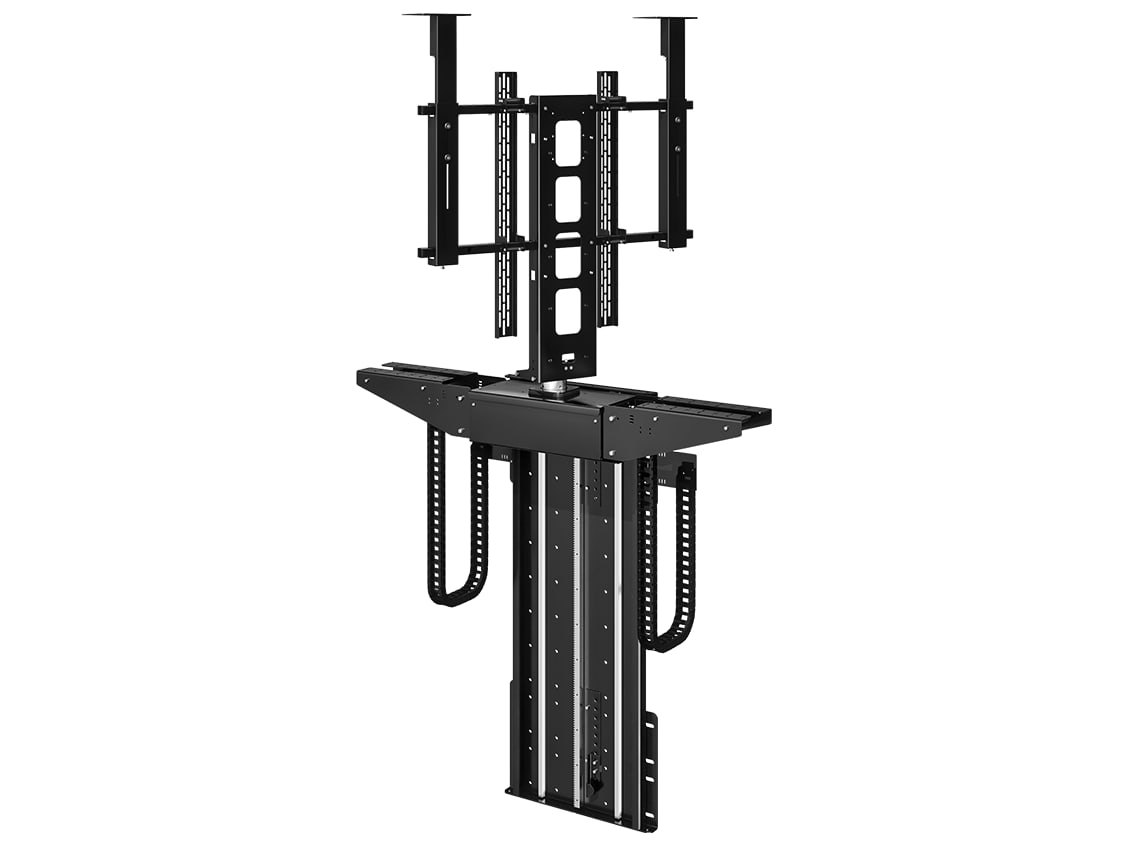

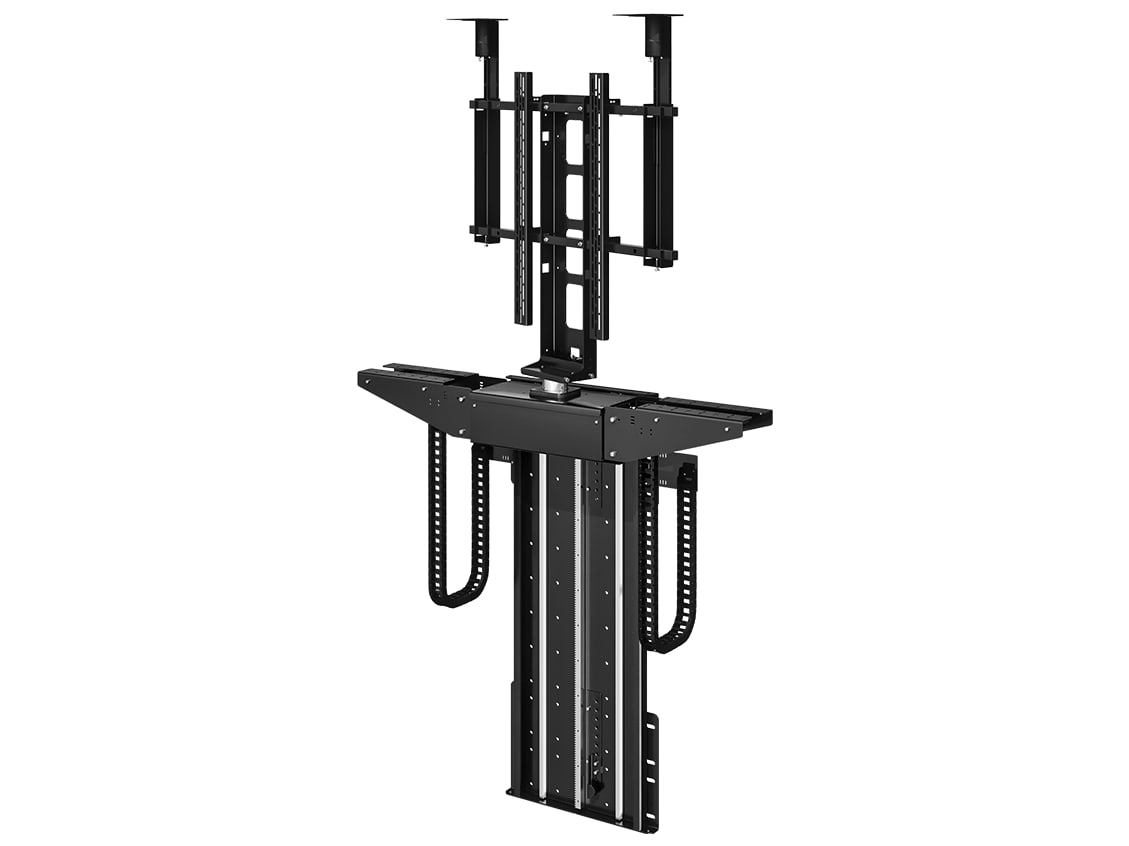

Heavy duty motorised swivelling TV lift for large-format screens
The Future Automation LSH-S is a mechanism that raises and turns the screen, made for hiding large-format screens inside furniture, made-to-measure cabinets or architectural structures. On a single command the screen travels straight up to its viewing position and, once it is no longer wanted, disappears again.
The swivel is fully programmable and reaches 180° on each side, which helps when one room has different viewing positions. The mechanism is built for smooth, dependable and stable movement, lifts 100 kg at most and is aimed at designers and integrators working on residential, marine and commercial spaces.
Key features
- Maximum lifting capacity: 100 kg; an option with a greater capacity can be requested
- Programmable swivel reaching 180° on each side
- IR, RS232 and contact closure control included; RF control optional
- Black painted finish, RAL 9005, with custom finishes on request
- Optional configurations with telescopic extension and with a high-power servo motor
Lid and cabinet
The LSH-S is supplied with the hardware for a fixed lid. In its basic configuration the mechanism can take either a full box enclosure, which covers the back of the screen once raised, or a plain floating lid, which blends with the surrounding cabinetry while the lift is closed. The manufacturer also offers a motorised drop & slide panel, which lowers and slides inside the cabinet and stays hidden while the screen is out.
Environments
The LSH-S is an indoor mechanism and is rated for marine use.
