Compact motorised TV lift with electric flap for 19" to 40" screens

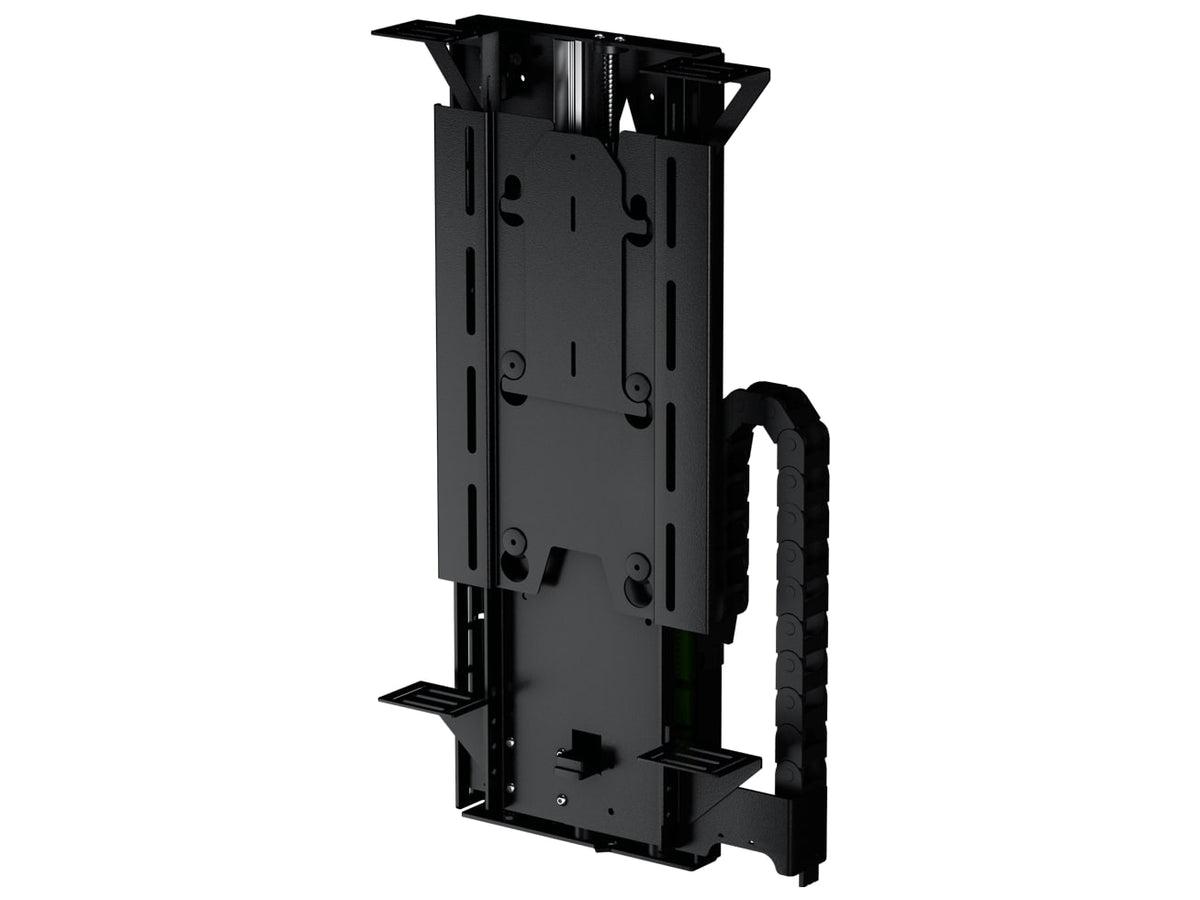

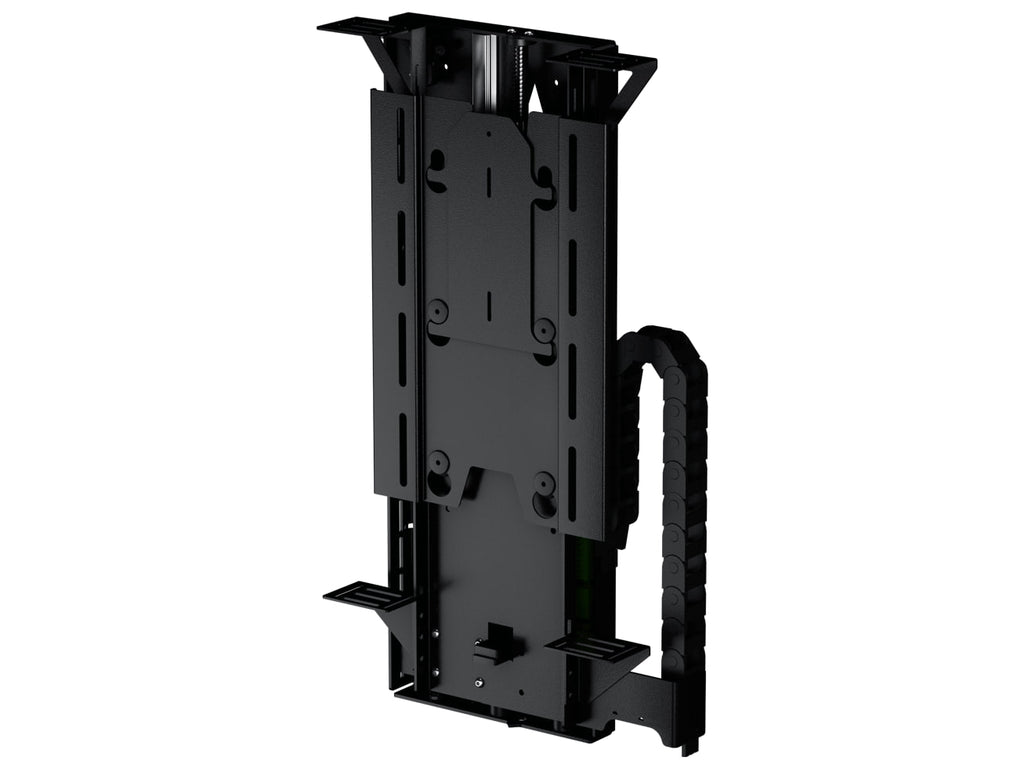

A compact TV lift, the LSL-EFA has a motor-driven hinged lid and derives from the Future Automation LSL. It hides small-format televisions inside a cabinet and raises them when wanted, comes in three sizes and carries 25 kg at most.
The lid does not rely on gravity but is driven by a motor: this is why the LSL-EFA fits marine applications, where the lid has to stay put while the screen is up. The mechanism is delivered ready to fit, with no assembly needed and with the electric flap included.
Key features
- Three sizes, for screens no taller than 410 mm, 524 mm or 599 mm
- Electric flap lid included in the standard supply
- Maximum load: 25 kg, reduced to 16 kg in marine installations
- 24 V DC motor, fast and quiet; stated noise level 58 dB
- Built-in cable management
- Black painted finish, RAL 9005
- 12 V power output; runs on a 240 V or 110 V supply
Available sizes
The LSL-EFA1 takes screens with a height of 410 mm at most (about 19"-32") and needs 580 mm of internal cabinet height; the LSL-EFA2 reaches a 524 mm screen height (about 32"-40") with 694 mm inside the cabinet; the LSL-EFA3 reaches 599 mm (about 40") with 769 mm inside the cabinet.
Control and integration
Out of the box the mechanism accepts IR, RS232 and contact closure commands; the manufacturer also lists RF control as available. It works with the main home automation control standards, Crestron, AMX and Lutron among them. The control box measures 150 x 210 x 50 mm.
Environments
The LSL-EFA is an indoor mechanism and is rated for marine use, where the maximum load is 16 kg. The manufacturer suggests it for places such as a kitchen island, a home office or a boardroom.
