Heavy duty motorised TV lift, made to measure for screens from 32" to 75", with drop & roll flap lid

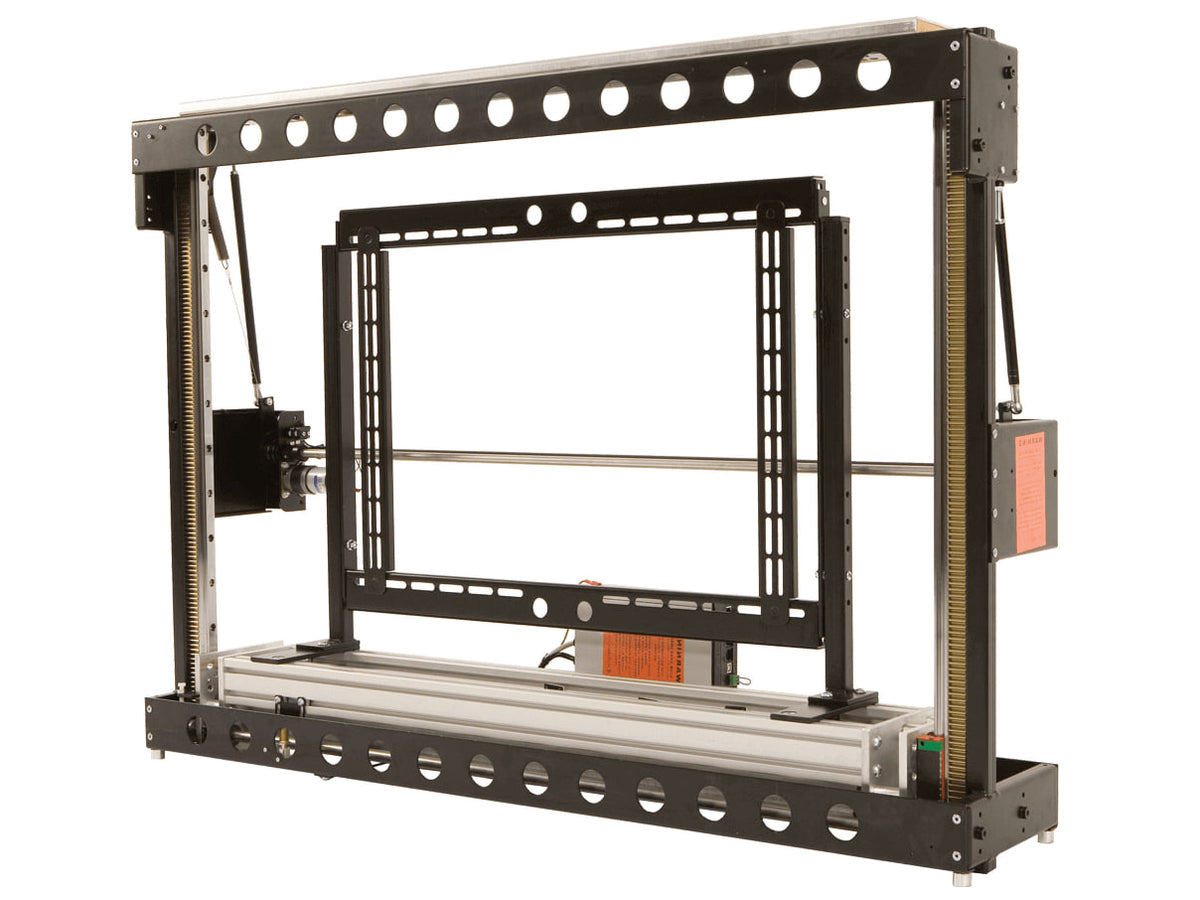

The Future Automation ML is a heavy duty TV lift built to measure and rated for marine use. It shares its drop & roll flap lid with the Future Automation Plasma Lift family and raises screens from 32" to 75".
Lifting is done by a rack-and-pinion drive, steered by an elaborate set of guides that keeps the movement smooth and sturdy. The manufacturer recommends it for marine installations indoors, for big screens above 65" and for cases where a deep speaker or a videoconferencing camera has to be mounted together with the screen.
Key features
- Built to measure on the exact dimensions of the screen, from 32" to 75"
- Lid with drop & roll flap mechanism
- Positively driven rack, giving a secure and sturdy lift
- Precise, smooth guide system
- Bespoke frames where screens or speakers are deeper
- Maximum screen weight: 50 kg; maximum screen depth: 155 mm
- Complete cable management; stated noise level 65 dB
Control and integration
The mechanism is operated by RS232, IR or contact closure; the manufacturer also lists RF control as available.
Installation
Every ML is sized to the screen being installed. To define the cabinet, Future Automation provides a dedicated specification tool (ML Cabinet Specification Tool).
Environments
The ML is an indoor mechanism and is rated for marine use.
