Manual articulated TV bracket with in-wall box for 40" to 75" screens, marine suitable
PS4026-2S-M is a manual pull & swivel service bracket complete with an in-wall box: in marine installations indoors it lets the back of a screen be reached quickly without taking the screen off the wall.

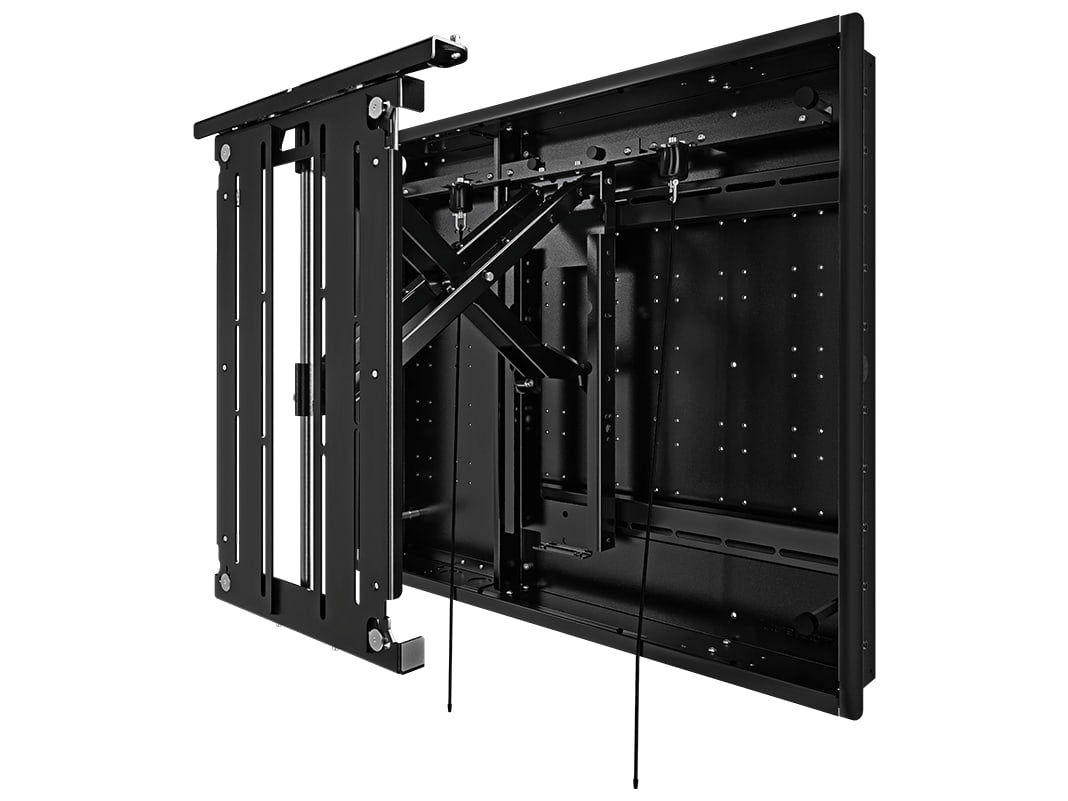

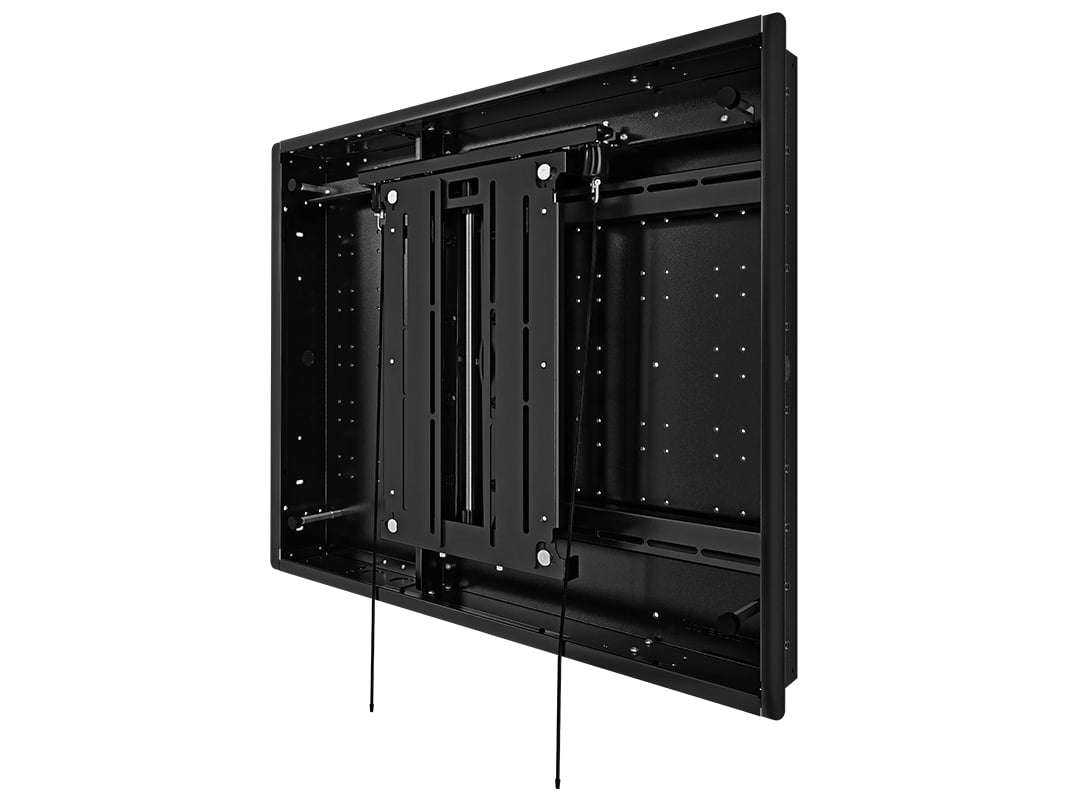

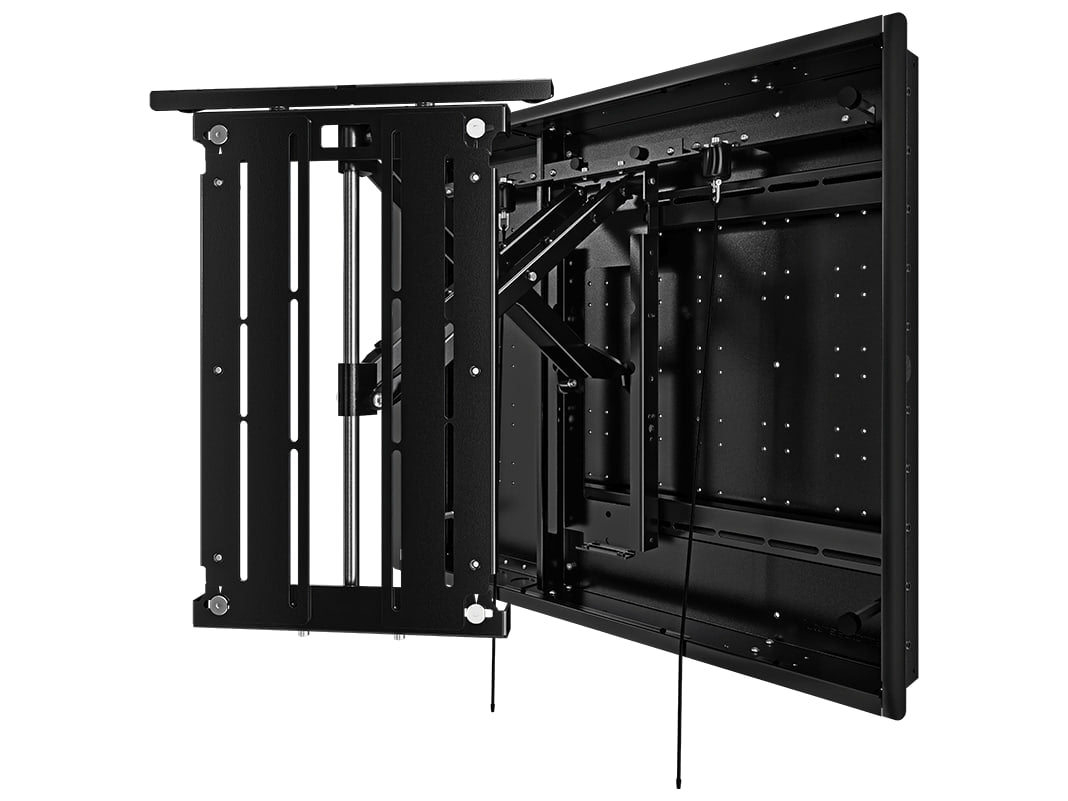

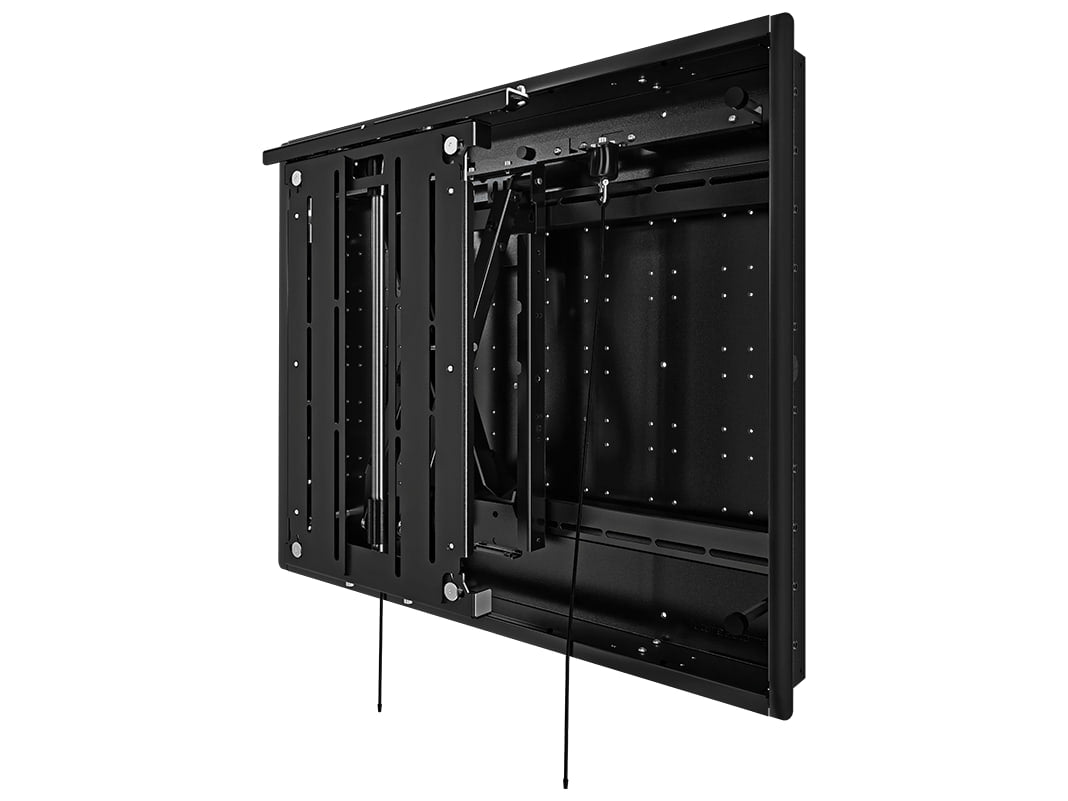

With the recessed box the TV stays flush with the wall, while the power supply and the connection points sit hidden behind the screen. For maintenance the technician pulls the cords and frees the spring-loaded catches placed high on the bracket, which then moves forward and swivels freely, leaving the display inputs and outputs and the AV equipment at the rear within reach. The cords have to be fastened to the bottom rear edge of the screen ahead of pushing the bracket home again. Once the job is done, the marine locking system holds the TV against the box, so that it does not shift at sea.
Key features
- For 40" to 75" screens
- Manual movement, with up to 50° of rotation per side depending on how wide the screen is
- Extends up to 353 mm off the wall, minimum depth of 5 mm
- Load up to 60 kg
- Bolt patterns from 100 to 400 mm, in height and in width
- Built-in anchors for cable ties
- In-wall box measuring 760 x 665 x 97 mm
Installation
The largest screen size depends on the weight and on the rotation angle wanted. The finish is satin black RAL 9005, and custom finishes are possible.
Environments
PS4026-2S-M is for indoor use and is marine suitable indoors only; it is not suited to outdoor use.
