Motorised articulated two-way TV wall bracket for outdoor and marine use

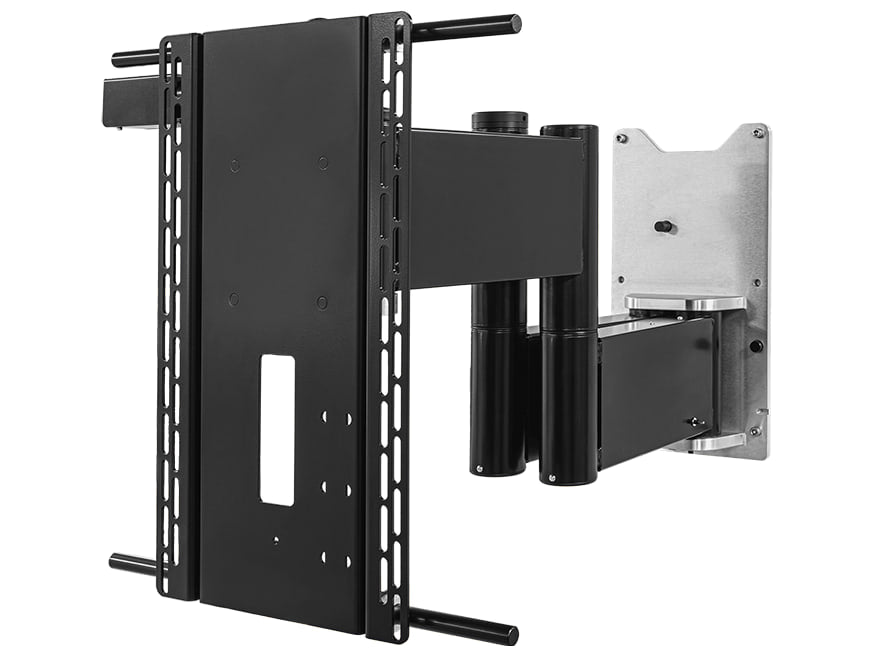

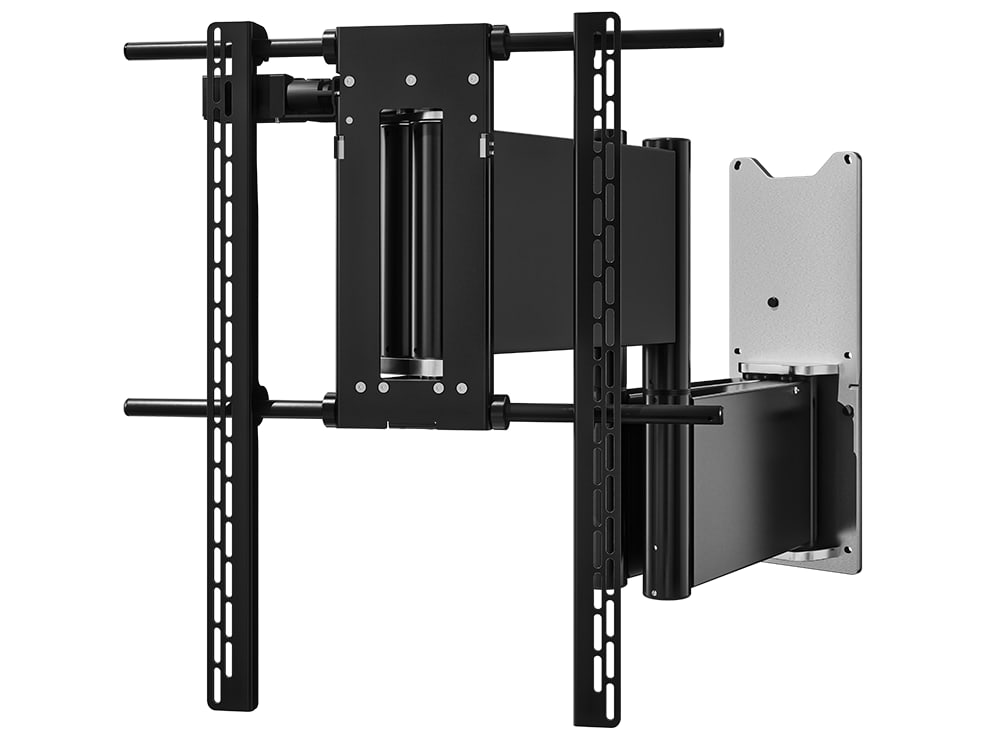

QA2-MO is the motorised wall bracket in the Future Automation Quad Arm family built for open-air and on-board installations: it brings the screen forward and turns it to the left or to the right, so that it can face several viewing spots.
The arm moves away from the wall and turns as far as 75° per side, depending on how wide the screen is, giving 150° overall. Whenever the screen is out of its viewing position, a motor-driven marine lock holds the bracket firmly on the wall. The frame is made of stainless steel and the control box sits outside the bracket and carries an IP rating: these are the elements that make open-air mounting possible. The bracket is suitable for indoor and outdoor use and for marine environments.
Key features
- Motorised rotation of as much as 75° per side, according to screen width
- As many as 3 viewing positions stored in advance
- Maximum load of 45 kg for QA2-MO and 60 kg for QA2-60-MO
- 140 mm deep when measured off the wall
- Cables routed out of sight inside the arm
- Smooth, quiet travel with parallel track function, declared noise level 52 dB
- Finished in RAL 9005 black paint with brushed aluminium; other finishes on request
Available models

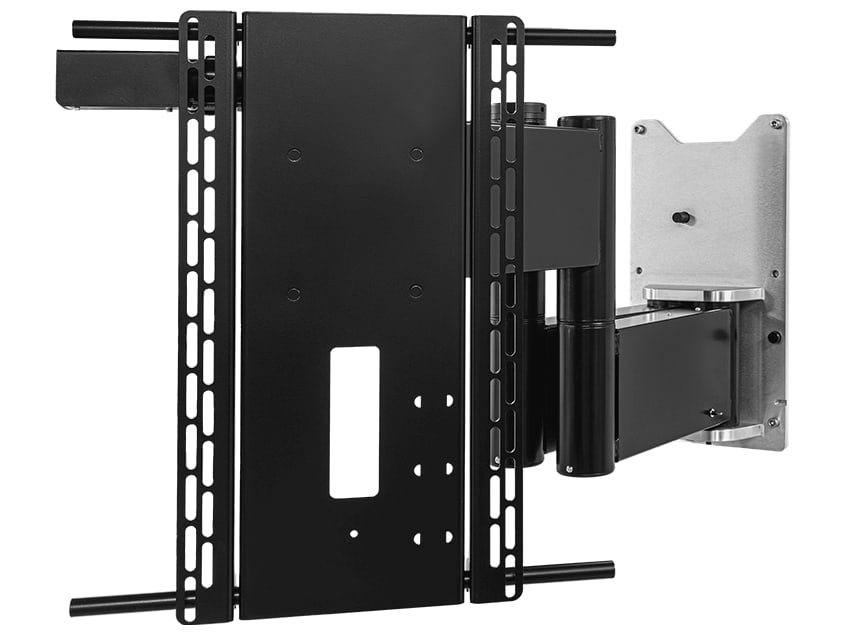

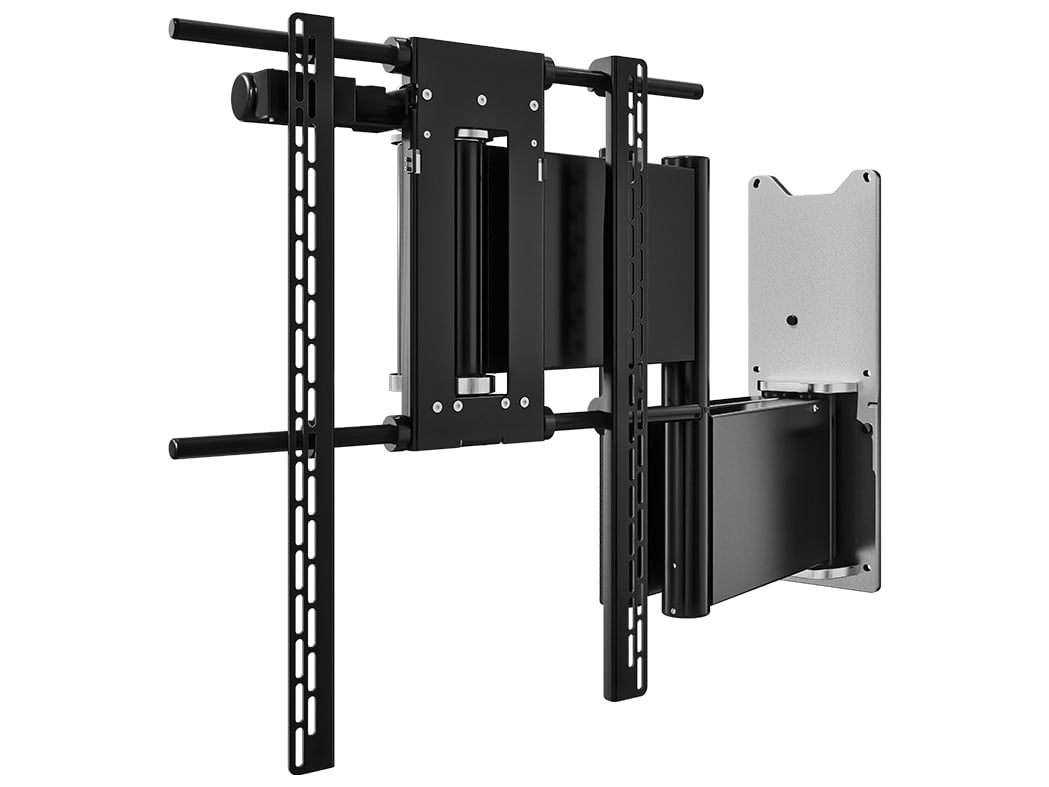

The bracket comes in two models: QA2-MO and QA2-60-MO, the heavy duty version for larger screens, rated at 60 kg. Both share the same depth off the wall and the same maximum rotation.
Control and integration
The bracket can be driven through RS232, contact closure or IR; RF control can be added as an option. It runs on a 240 V or a 110 V supply. Like the other Quad Arm models, it is delivered ready for installation, with nothing to assemble and only a short set-up on site. It is hand built in the Future Automation facilities in Great Britain and in the USA.
