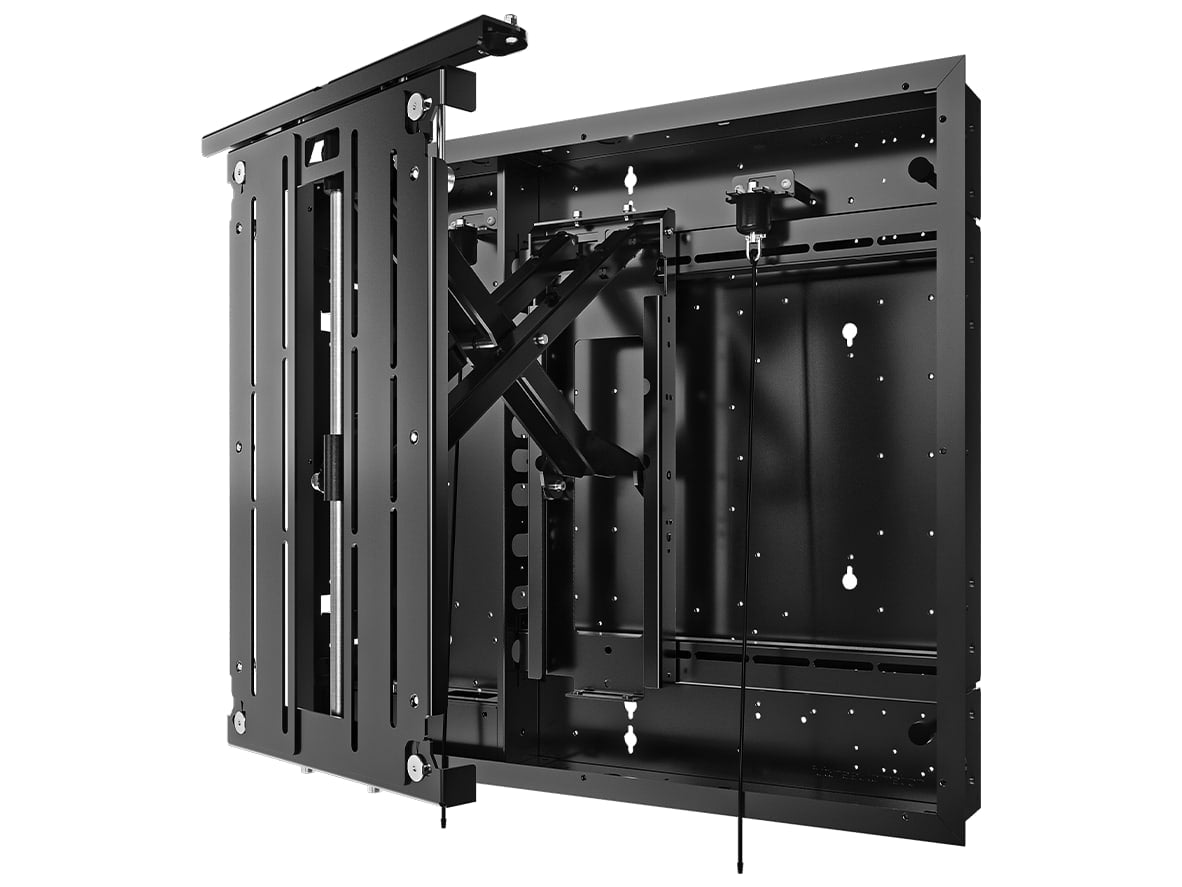

Manual service bracket with recessed wall box for the Séura Mirror TV
The TVM-SB is a service bracket developed together with Séura for that brand's Mirror TV in the 43", 55", 65" and 75" sizes. AV integrators can get quickly to the back of the display, which stays mounted.

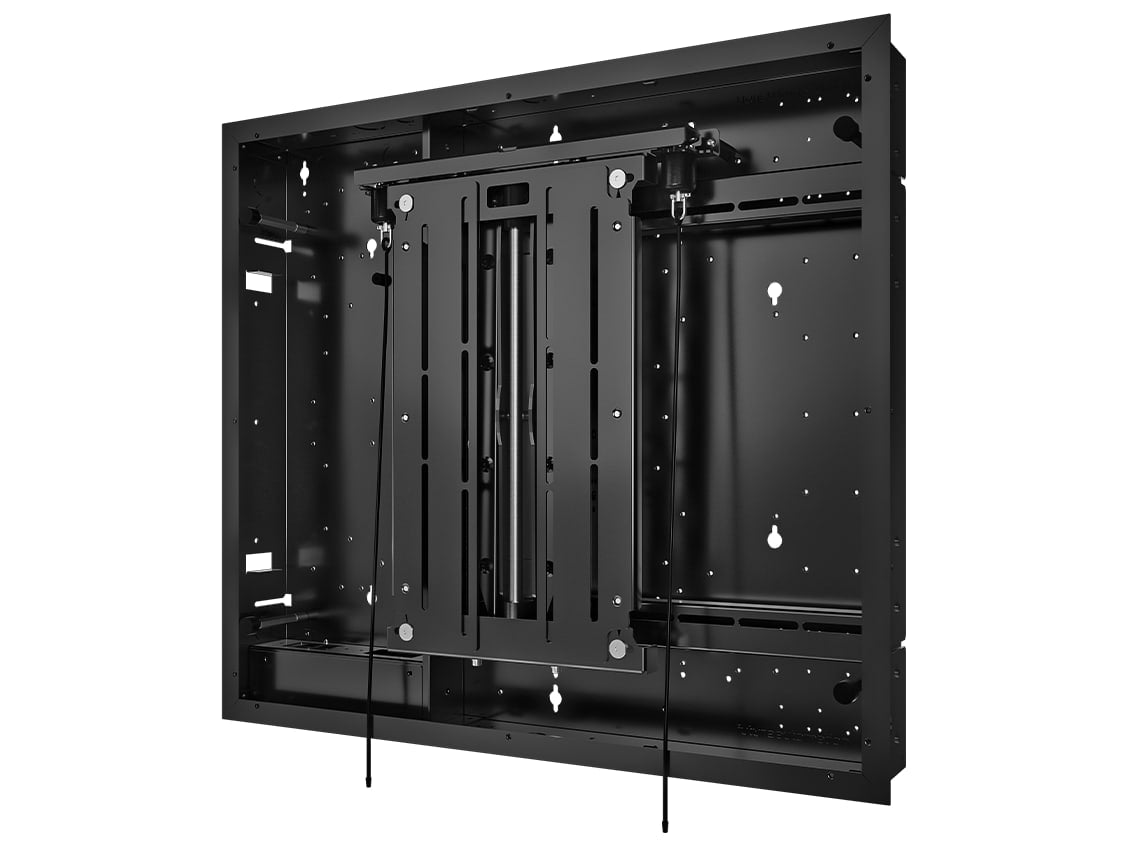

The recessed box lets the Mirror TV sit flush with the wall and hides the power supply and the connection points behind it. A pull to release system holds the screen tight to the wall and frees it with ease when it has to be moved for servicing.
Key features
- Fits the Séura Mirror TV in 43", 55", 65" and 75" sizes
- Carries up to 80 kg
- Reaches 349.5 mm out from the wall at most; minimum depth 5.3 mm
- Swivels as much as 45° to either side, depending on how wide the screen is
- Mounting hole spacing between 100 and 400 mm, horizontally and vertically
- Integrated anchor points for cable ties, which come in the box
- Finished in satin black RAL 9005; other finishes can be requested
Installation
The bracket measures 759 by 670 by 97 mm and weighs 20 kg. The lock is freed with two cords, both of which have to stay within reach. Movement is manual; how large a screen can be depends on its weight and on the swivel angle wanted.
Environments
The TVM-SB is suitable for marine use, indoors only: because the screen is held tight to the wall, it is a good match for interior spaces on board. It is not meant for outdoor installation.
