Fyne Audio F501S

Fyne Audio F501S: 2.5-way floorstanding speakers with a 150 mm IsoFlare driver

The F501S is a floorstander from the Fyne Audio F500S Series. The maker suggests it both for music listening and for home cinema. Sold as a pair.

The 150 mm IsoFlare point source unit, whose tweeter has a 25 mm magnesium dome, is joined by a 150 mm drive unit assigned to the bass. The patented BassTrax system with Tractrix diffuser, built into the cabinet, spreads bass evenly through 360 degrees and eases the problems of placing the speaker in the room. The cabinet is made of high-rigidity MDF, and a presence switch lets the listener adjust midrange detail.

Key features

• 2.5-way system with a port firing downwards and BassTrax
• 150 mm IsoFlare unit for bass and midrange, with a compression tweeter using a 25 mm magnesium dome
• 150 mm drive unit for the bass
• Presence adjustment: +/- 3 dB between 2.5 and 5.0 kHz
• Cabinet in high-rigidity MDF, extensively braced inside
• Frequency response 36 Hz - 34 kHz (-6 dB, typical in-room figure)
• Sensitivity 90 dB (2.83 V at 1 m), nominal impedance 8 ohm

Technical data

Suggested amplifier power runs from 30 to 150 W RMS; the speaker takes 75 W RMS continuously. The crossover points sit at 250 Hz and 1.7 kHz, using a second-order low-pass filter and a first-order high-pass filter. Each cabinet measures 984 x 250 x 317 mm (height x width x depth) and weighs 18.6 kg: both figures refer to a single speaker.

Finishes

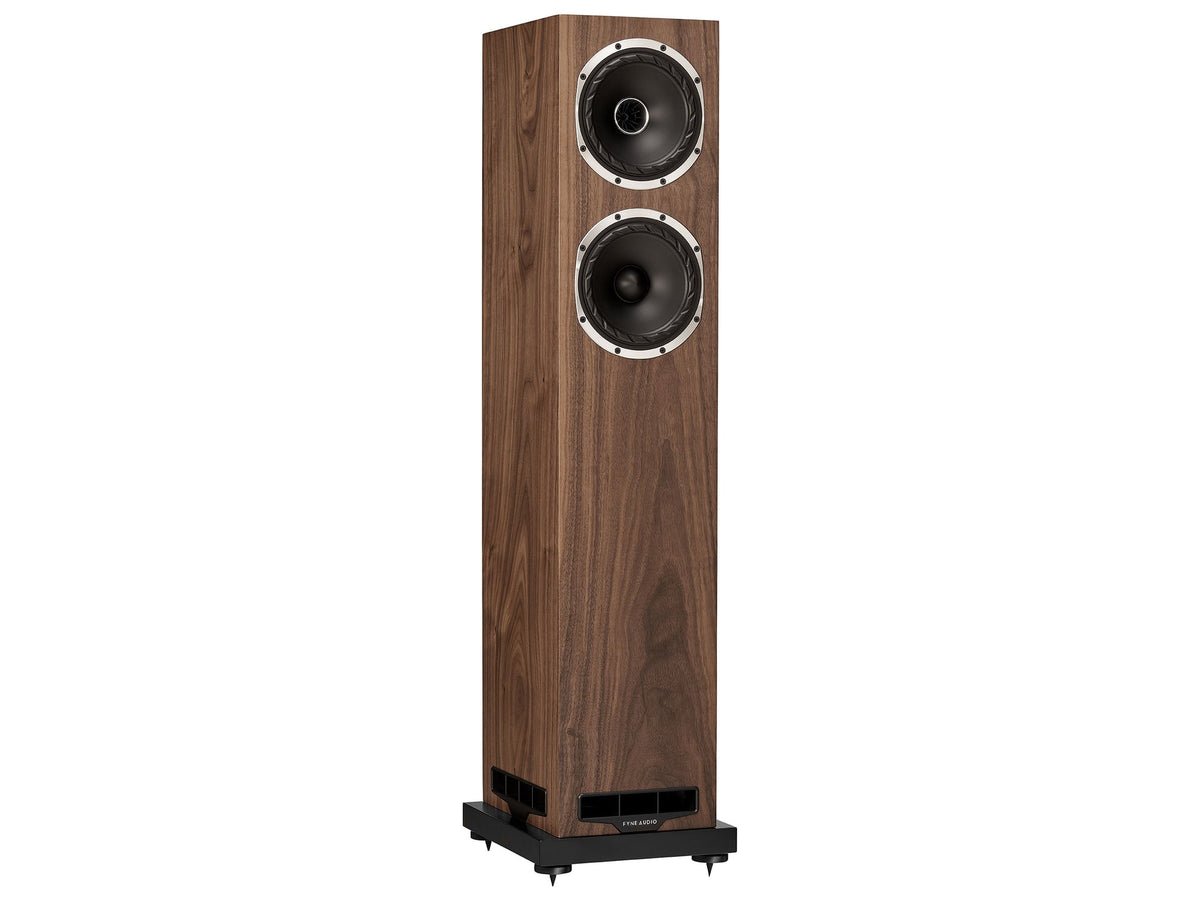

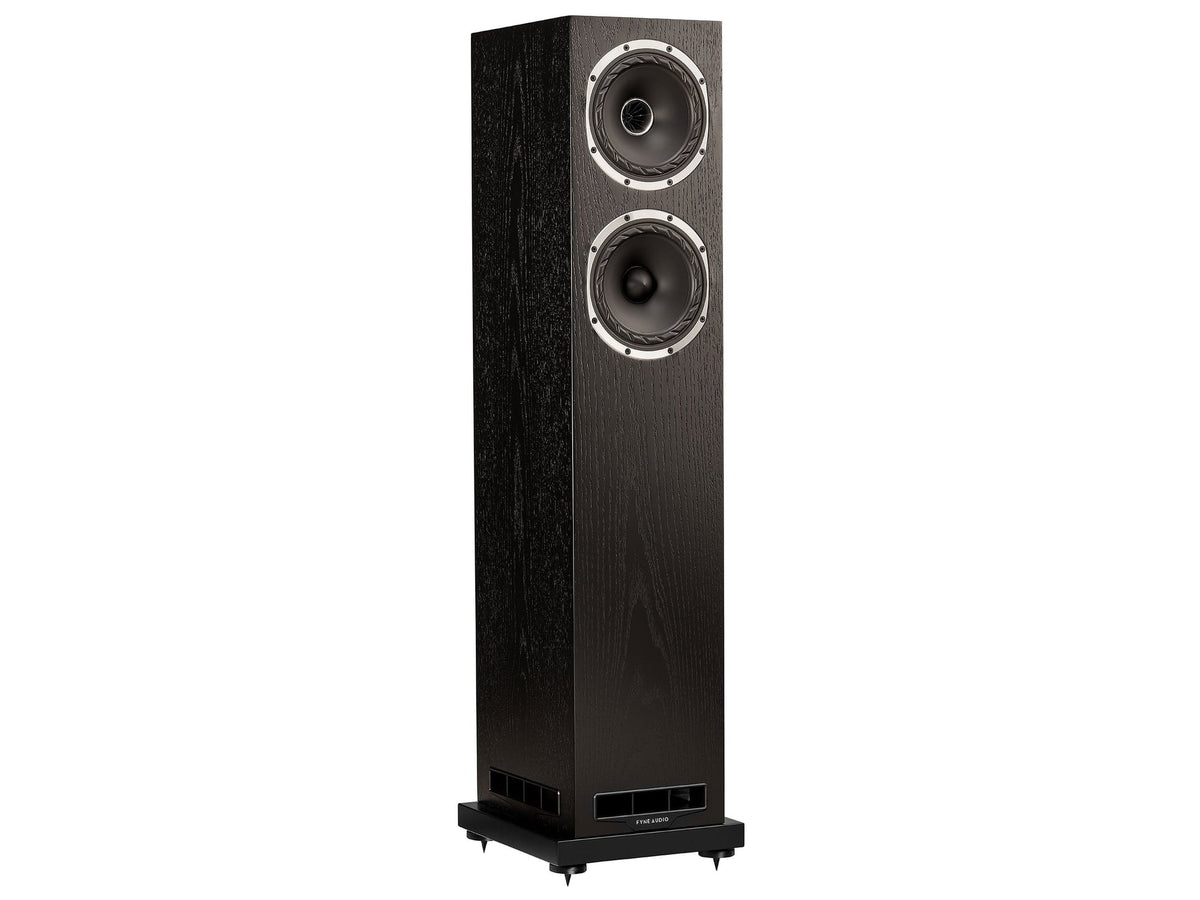

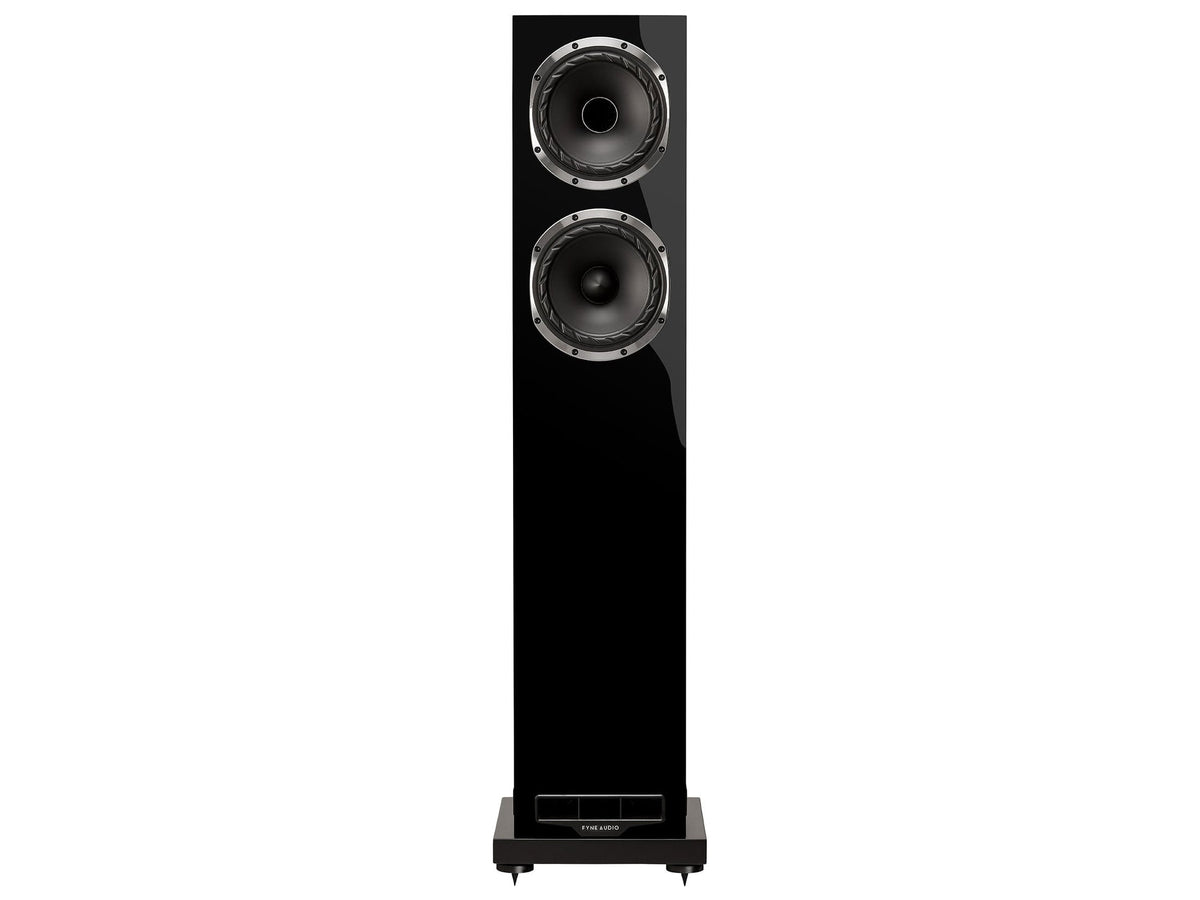

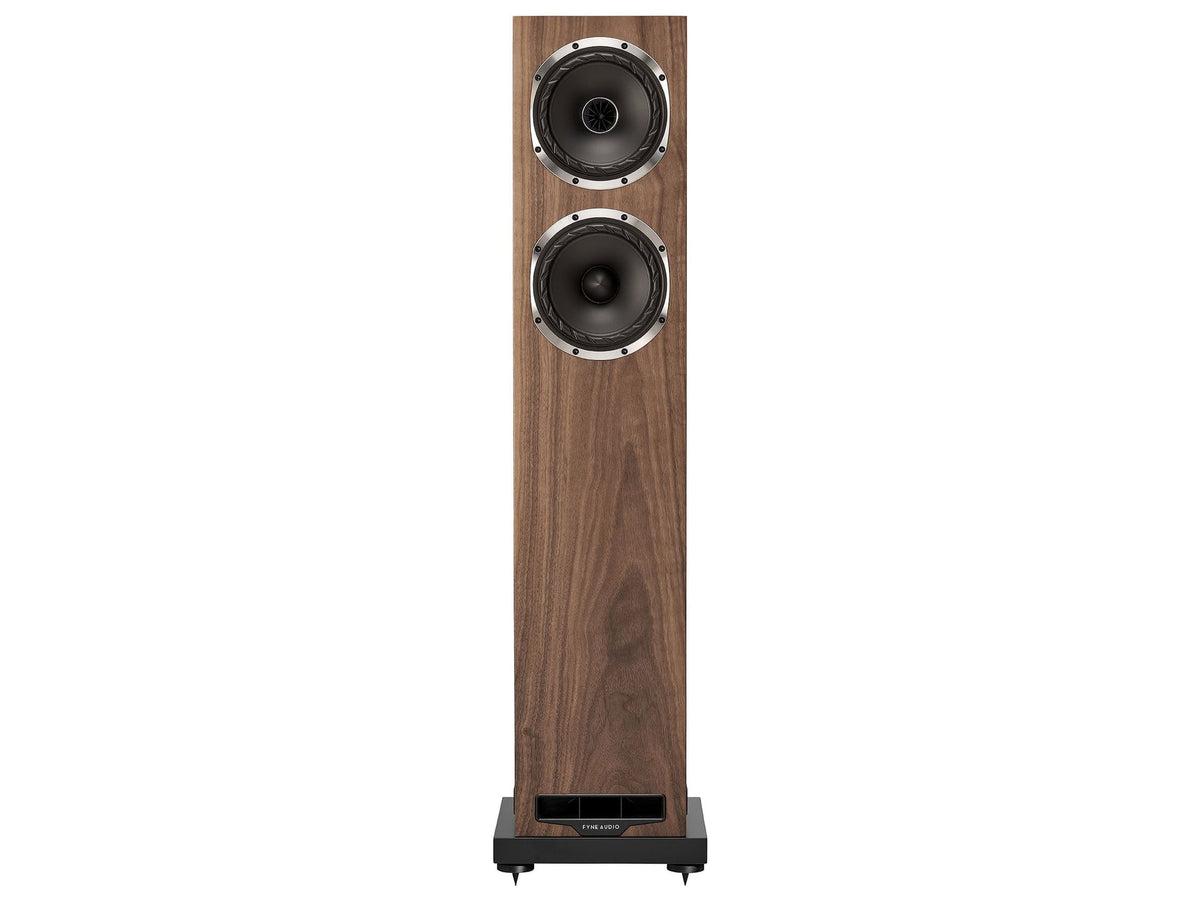

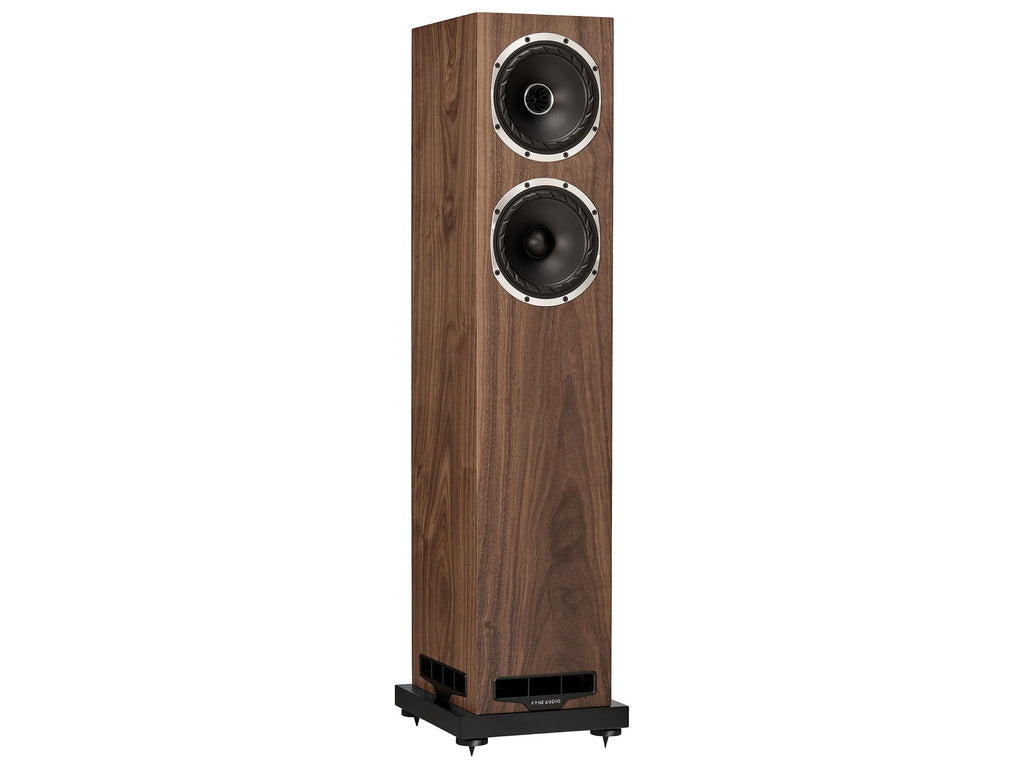

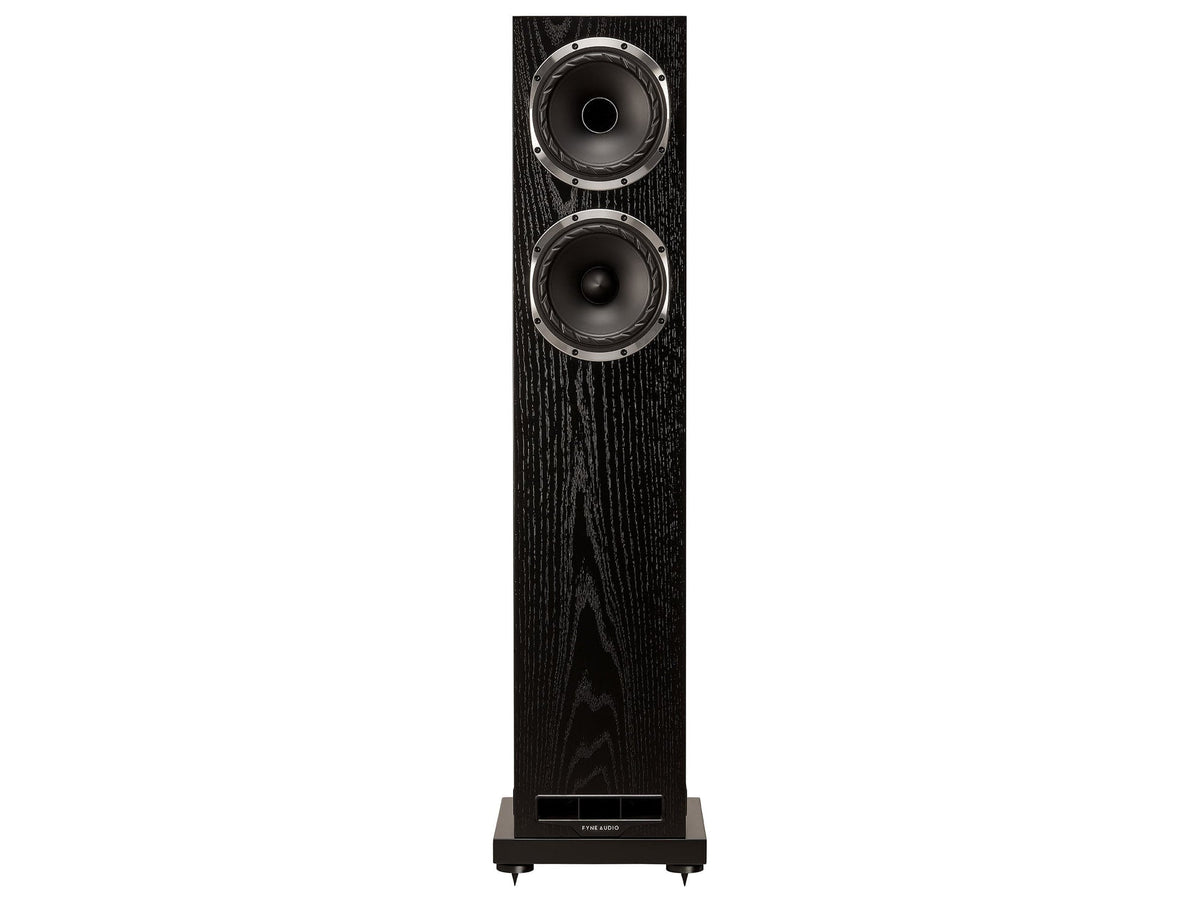

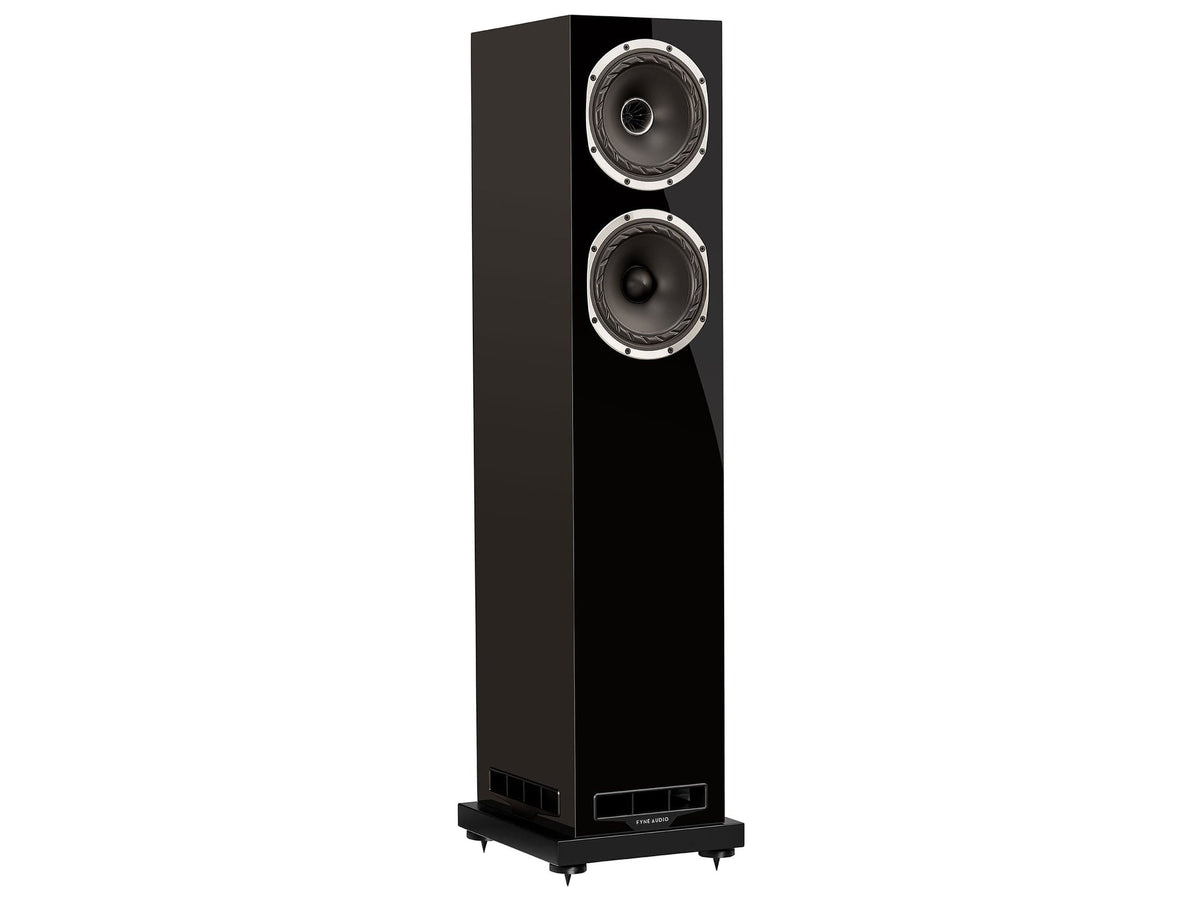

The F501S comes in three finishes: Natural Walnut and Black Oak, both in real wood veneer, and Black Piano Gloss.
